Help CenterGalvanized Non-Slip Perforated Flooring Sheets for Outdoor Safety and Drainage
Product Spotlights
Related Products
-
Galvanized Hexagonal Aluminum and Stainless Steel Perforated Grille for Car Audio Speaker CoversNegotiableMOQ: 50 Cubic Inches -
Premium Industrial Grade Perforated Metal Plate for Heavy Machinery ApplicationsNegotiableMOQ: 50 Cubic Inches
-
Customized Perforated Aluminum Decorative Panels for Exterior Wall Facade CladdingNegotiableMOQ: 50 Cubic Inches
-
Aluminum Corrugated Perforated Metal Panels for Decorative and Architectural UseNegotiableMOQ: 50 Cubic Inches
-
Custom Stainless Steel Perforated Mesh Tube for Exhaust Filter and Ventilation SystemsNegotiableMOQ: 50 Cubic Inches

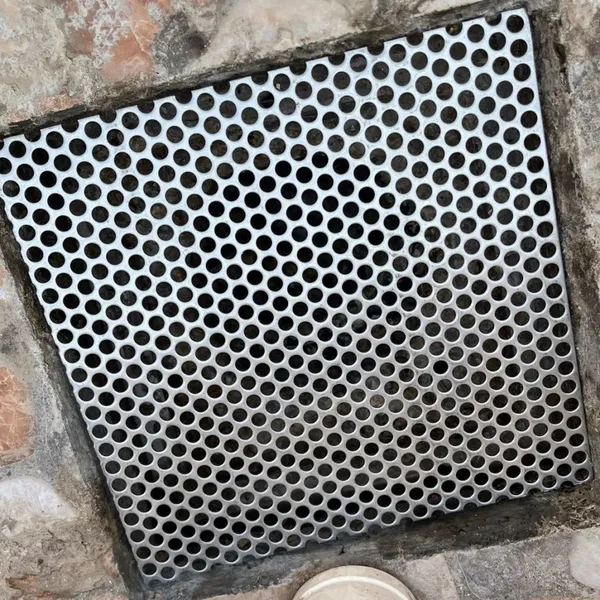

Anping Xinye Metal Wire Mesh Products Co., Ltd, based in Hengshui, Hebei, China, is a professional manufacturer specializing in metal mesh and flooring solutions for over 15 years. Our Galvanized Non-Slip Perforated Flooring Sheets for Outdoor Safety and Drainage are engineered to provide superior traction, efficient water drainage, and long-lasting durability in demanding outdoor environments. Whether for industrial walkways, public stairs, or marine platforms, these sheets combine safety with functionality to meet the highest standards of performance.
Key Features & Benefits

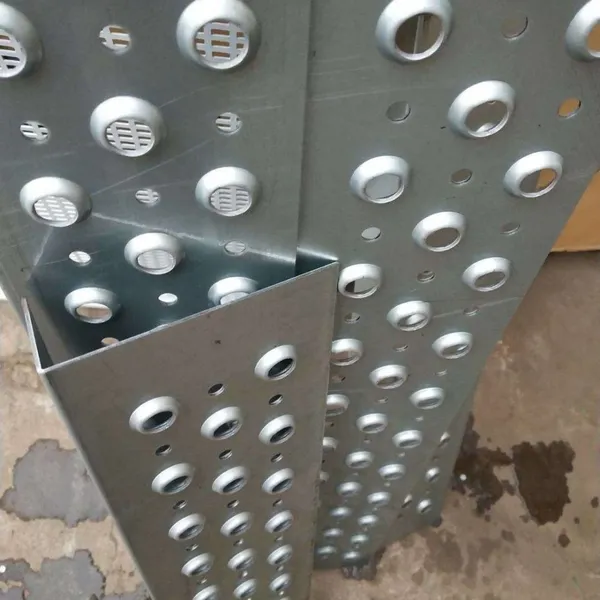

- Non-Slip Surface: The raised perforated pattern ensures excellent grip even in wet or oily conditions, reducing slip and fall risks.
- Efficient Drainage: Open area design allows water, mud, and debris to pass through quickly, preventing puddles and corrosion.
- Galvanized Protection: Hot-dip galvanized coating provides robust corrosion resistance, extending service life in outdoor and coastal areas.
- High Load Capacity: Manufactured from heavy-duty galvanized steel, these sheets support heavy foot traffic, light vehicles, and equipment loads.
- Easy Installation: Pre-cut to size or customizable, with smooth edges and pre-drilled holes for fast mounting onto frames or supports.
- Versatile Applications: Ideal for outdoor stairs, catwalks, mezzanines, platforms, truck beds, and drainage covers.
- Low Maintenance: The galvanized finish resists rust and requires minimal cleaning – just periodic hosing to remove debris.
Technical Specifications
| Parameter | Value |
|---|---|
| Material | Q235 / Q345 Galvanized Steel |
| Thickness Range | 1.5 mm – 5.0 mm (custom available) |
| Hole Diameter | 6 mm – 20 mm (round, square, or oblong) |
| Open Area Ratio | 30% – 60% (depending on pattern) |
| Sheet Width | 500 mm – 2000 mm |
| Sheet Length | 1000 mm – 6000 mm |
| Zinc Coating Thickness | ≥ 85 µm (average) |
| Load Capacity | Up to 500 kg/m² (for 3mm thickness) |
Why Choose Our Galvanized Non-Slip Perforated Flooring Sheets?
With years of experience in metal fabrication, Anping Xinye ensures each sheet meets strict quality control standards. Our hot-dip galvanizing process provides uniform coverage, protecting the steel from corrosion even in harsh outdoor environments. The non-slip design is optimized for maximum grip without compromising drainage – a critical balance for safety and cleanliness.
These sheets are widely used in construction sites, oil rigs, food processing plants, and public infrastructure. The customizable size and hole pattern allow you to tailor the product to your specific project requirements. Moreover, the smooth edges and pre-drilled holes (optional) save installation time and labor costs.
Frequently Asked Questions (FAQ)
Q1: Are these sheets suitable for heavy vehicle traffic?
A: Yes, depending on the thickness and support structure. For light vehicles (e.g., forklifts), we recommend 4mm or 5mm thickness with appropriate support spacing.
Q2: How do I install the sheets?
A: They can be welded, bolted, or clipped onto the supporting frame. Pre-drilled holes are available upon request for faster installation.
Q3: Can I cut the sheets on site?
A: Yes, they can be cut with standard metal cutting tools (grinder, plasma cutter). However, the galvanized coating may need reapplication at cut edges for full corrosion protection.
Q4: What is the typical lead time?
A: For standard sizes, lead time is 7-15 working days. Custom orders may take 15-25 working days depending on quantity.
Q5: Do you provide samples?
A: Yes, we offer free samples (shipping cost may apply). Please contact our sales team for details.
Q6: Can the sheets be used in marine environments?
A: Yes, the hot-dip galvanized coating provides excellent resistance to saltwater corrosion. For extreme conditions, we can also offer additional powder coating or stainless steel options.
Q7: What is the open area ratio for drainage?
A: Typically 40% – 50% for standard patterns. We can adjust the hole size and spacing to meet your specific drainage requirements.
Q8: How do you ensure product quality?
A: Each batch undergoes inspection for dimensions, hole pattern, coating thickness, and load testing. We are committed to consistent quality control throughout the production process.
At Anping Xinye Metal Wire Mesh Products Co., Ltd, we have supplied millions of square meters of flooring sheets to customers worldwide. Our dedicated team offers technical support, customization, and competitive pricing. Contact us today for a quote or to discuss your project requirements. We are ready to deliver safe, durable, and efficient flooring solutions for your outdoor applications.
