Home > Industrial Equipment & Components > Valve > Pressure Reducing Valve > YQK-12 Marine Air Reducer For Starting Air Bottle & Pneumatic Control Pipeline

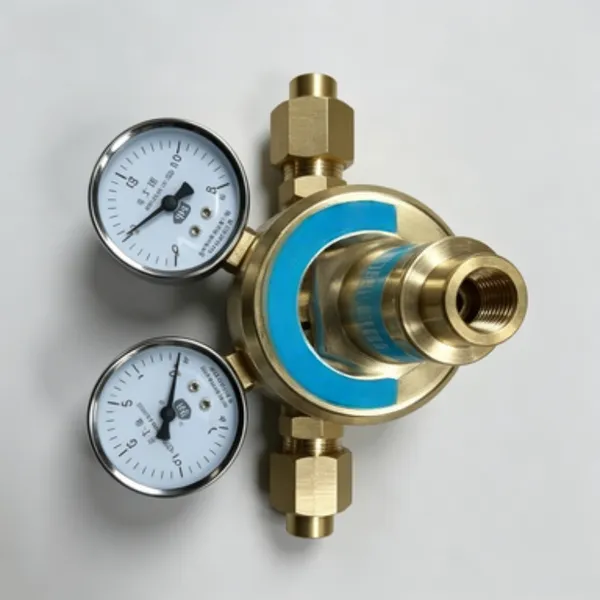

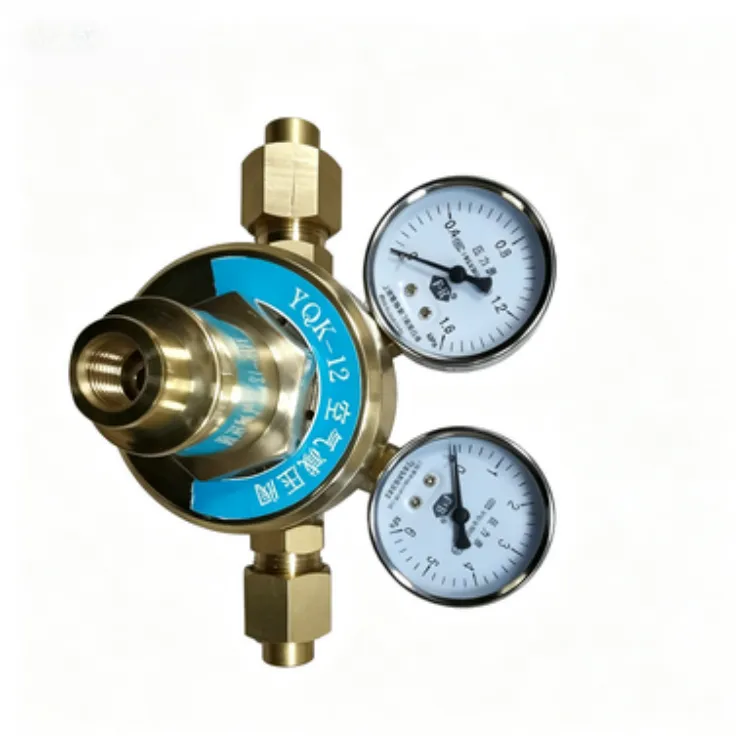

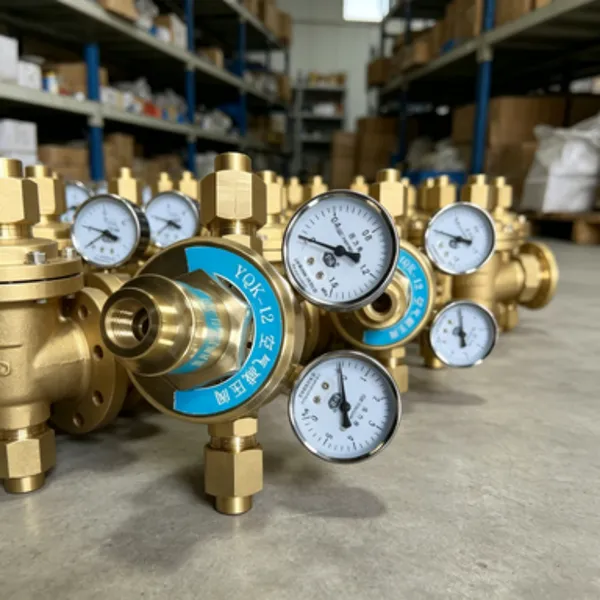

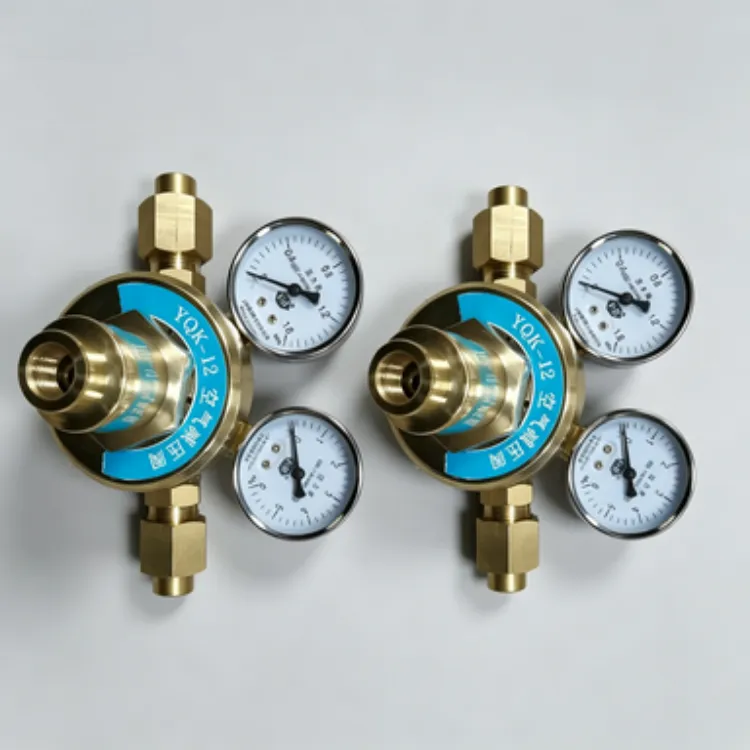

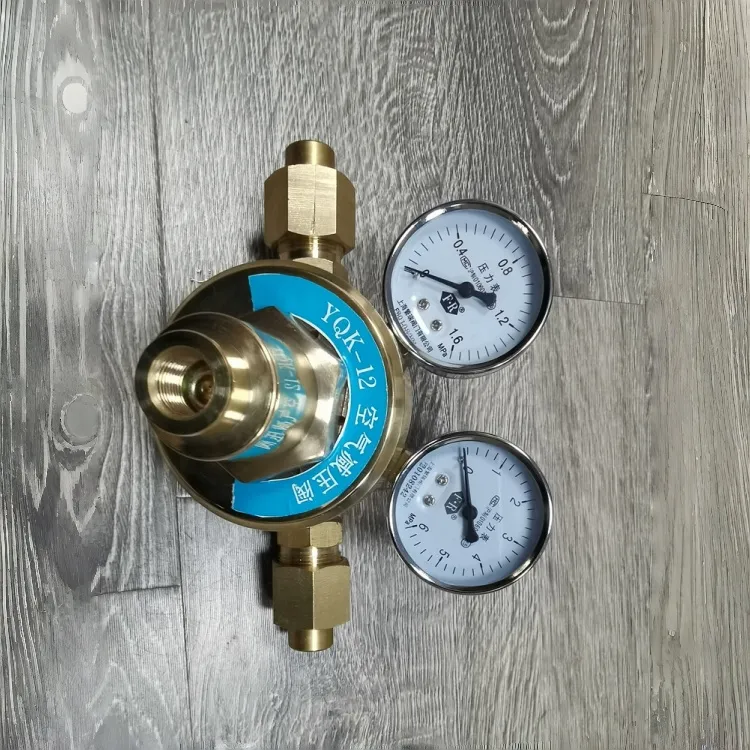

YQK-12 Marine Air Reducer For Starting Air Bottle & Pneumatic Control Pipeline
Product Spotlights
Precision-regulated marine air reducer for starting bottles and pneumatic pipelines. Corrosion-resistant brass/stainless steel body, adjustable 0.1–10 bar outlet, built-in filter and relief valve. ISO9001 certified, globally shipped from Shanghai. Reliable, compact, easy to install – ideal for harsh marine environments.
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Brass / Stainless Steel (optional)
Media:
Other, Compressed air, nitrogen, inert gas
Certification:
Other, ISO9001
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
5 days
Related Products
-
Marine Diaphragm Type Air Reducing Valve YQK-12 For Cargo Ship Fishing Vessel Air SystemNegotiableMOQ: 1 Unit -
CCS Approved YQK-12 Ship Compressed Air Regulator M27×1.5 External Thread ConnectionNegotiableMOQ: 1 Unit
-
YQK-12 Ship Air Bottle Pressure Reducer Manual Adjustable Compressed Air RegulatorNegotiableMOQ: 1 Unit
-
High Flow YQK-12 Air Pressure Regulator 150m³/h Vessel Engine Room Pressure StabilizerNegotiableMOQ: 1 Unit
-
Marine Nitrogen Pressure Reducing Valve For Fire Extinguishing & Pneumatic Instrument SystemNegotiableMOQ: 1 Unit
Material
Other, Brass / Stainless Steel (optional)
Media
Other, Compressed air, nitrogen, inert gas
Certification
Other, ISO9001
Model
YQK-12
Connection Type
Threaded (NPT/BSP) / Flanged (optional)
Pressure Range
0.5 – 16 bar (inlet); 0.1 – 10 bar (outlet adjustable)
Temperature Range
-20°C to +80°C
Application
Marine starting air bottles, pneumatic control pipelines
Port Size
1/4“ – 2“ (available upon request)
Weight
1.2 – 8.5 kg (depending on size)
Shanghai Zhibang Valve Manufacture Co., Ltd is proud to present the YQK-12 Marine Air Reducer, a precision-engineered solution specifically designed for starting air bottles and pneumatic control pipelines in marine environments. Built with robust materials and tested under stringent quality standards, this air reducer ensures stable, accurate pressure reduction from high-pressure air sources to the required working levels, safeguarding downstream equipment and enhancing operational safety. With over 8 years of valve manufacturing experience and ISO9001 certification, we deliver products that stand up to the harshest marine conditions.
Key Features & Technical Specifications
- Stable Pressure Regulation: Maintains precise outlet pressure regardless of inlet fluctuations, ensuring consistent performance for pneumatic controls and starting air systems.
- Corrosion-Resistant Construction: Available in high-grade brass or stainless steel, with optional anti-corrosion coating for extended service life in saltwater environments.
- Wide Adjustable Range: Outlet pressure can be easily set from 0.1 to 10 bar via a lockable adjustment knob, with clear scale indication.
- High Flow Capacity: Optimized internal design minimizes pressure drop and supports high flow rates required for rapid air bottle charging.
- Compact & Lightweight: Space-saving design suitable for tight marine installations; weight ranges from 1.2 kg (1/4") to 8.5 kg (2").
- Multi-Connection Options: Threaded (NPT/BSP) or flanged ends available upon request, compatible with standard marine piping systems.
- Integrated Safety Features: Built-in relief valve and sintered bronze filter element protect downstream components from overpressure and contaminants.
- Certified Quality: Manufactured under ISO9001 quality management system, with 100% factory testing before shipment.
| Parameter | Value |
| Model | YQK-12 |
| Max Inlet Pressure | 16 bar |
| Outlet Pressure Range | 0.1 – 10 bar (adjustable) |
| Operating Temperature | -20°C to +80°C |
| Connection Sizes | 1/4" – 2" (NPT/BSP/Flange) |
| Weight | 1.2 – 8.5 kg |
| Filter Element | Sintered bronze (40 µm) |
| Relief Valve Setting | Factory preset (adjustable optional) |
Why Choose the YQK-12 Marine Air Reducer?
- Enhanced Reliability: Reduces the risk of pressure surges that can damage sensitive pneumatic actuators, control valves, and starting air systems.
- Long Service Life: Corrosion-resistant materials and precise machining reduce wear and maintenance frequency, even in high-humidity marine atmospheres.
- Easy Installation & Adjustment: Compact body with multiple mounting orientations; external adjustment knob allows quick pressure changes without tools.
- Cost-Effective: Eliminates the need for separate filter and regulator units, simplifying piping and reducing total system cost.
- Global Compatibility: Threaded connections follow international standards (NPT, BSP, etc.), and we offer custom flanges upon request.
Shanghai Zhibang Valve Manufacture Co., Ltd has been a trusted manufacturer since 2016, exporting valves worth US$1 million – US$1.5 million annually to over 15 countries across North America, South America, Europe, Asia, Africa, and Oceania. Our products are shipped from major ports including Shanghai, Guangzhou, Hong Kong, and Beijing. Every YQK-12 air reducer undergoes rigorous inspection and pressure testing in our ISO9001-certified facility. We are committed to providing reliable, durable, and cost-effective solutions for your marine pneumatic systems. Contact us today for a quote or technical consultation – we are ready to support your project with prompt delivery and professional after-sales service.
Frequently Asked Questions (FAQ)
-
Q: What is the typical application of the YQK-12 marine air reducer?
A: It is primarily used to reduce high-pressure air from starting air bottles (typically 30 bar) to a lower working pressure (e.g., 6–10 bar) for pneumatic control systems, engine starting valves, and other onboard air tools. -
Q: Can this reducer be used with gases other than air?
A: Yes, it is compatible with nitrogen, inert gases, and non-corrosive dry gases. For other media, please consult our technical team. -
Q: What materials are available for the valve body?
A: Standard options include brass (for general marine use) and stainless steel (for higher corrosion resistance). Custom materials can be arranged upon request. -
Q: Is the outlet pressure adjustable while the system is under pressure?
A: Yes, the adjustment knob can be turned under pressure, but for precise setting we recommend making adjustments when the downstream system is isolated. -
Q: What is the pressure drop across the reducer at rated flow?
A: The pressure drop is typically less than 0.5 bar at 50% of maximum flow capacity. Detailed flow curves are available in our technical datasheet. -
Q: Do you provide certification for marine classification societies (e.g., DNV, CCS, ABS)?
A: While our standard model is ISO9001 certified, we can assist with third-party inspection or additional certifications upon request and at extra cost. Please contact us for specific requirements. -
Q: What is the warranty period?
A: We offer a standard 12-month warranty from the date of shipment covering manufacturing defects. Extended warranty options are available. -
Q: How do I select the correct size for my application?
A: Size selection depends on flow rate, inlet pressure, and desired outlet pressure. Our technical support team can help you choose the right model based on your system parameters.
