At Anping County Boli Hardware Wiremesh Products Factory, we have been manufacturing high-performance filtration solutions since 1998. Our Heavy Duty Custom Dust Filter Cartridge with 3 micron filtration, 1500 Pa differential pressure rating, and IP65 enclosure is engineered for the most demanding industrial environments. This cartridge combines robust construction with precise filtration to protect your equipment and ensure cleaner air output. With annual export value exceeding US$5 million and shipments to over 15 global markets, Boli is your trusted partner for custom dust filtration.

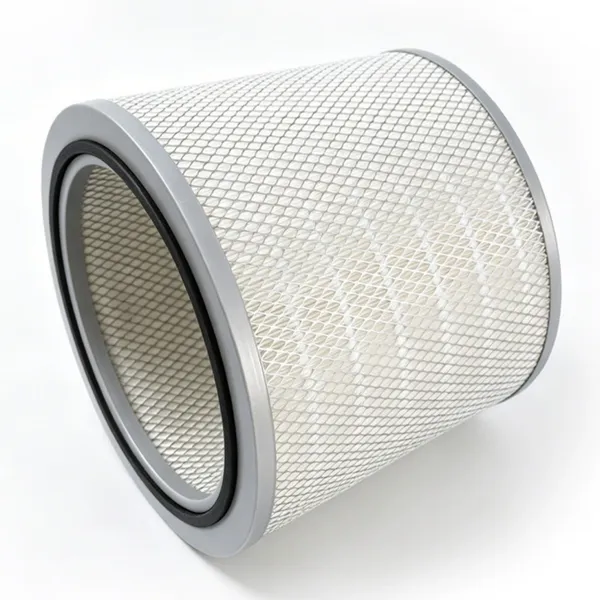

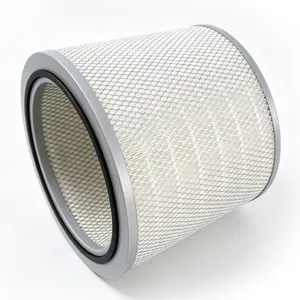

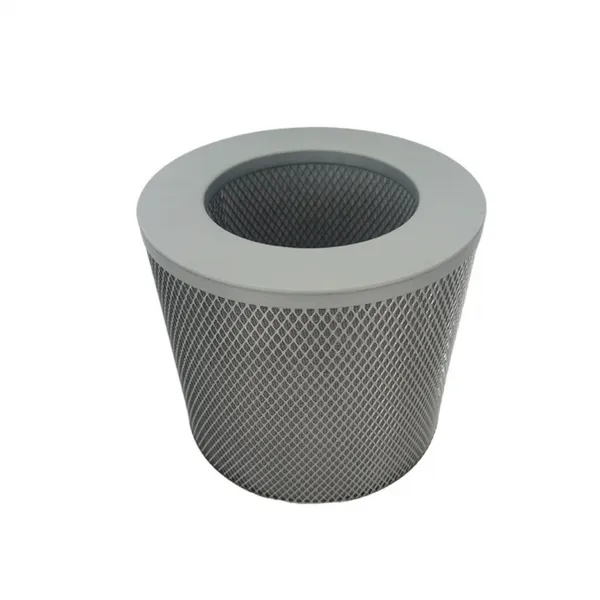

The Heavy Duty Custom Dust Filter Cartridge is designed to capture fine dust particles as small as 3 microns while maintaining a low pressure drop of up to 1500 Pa. The IP65 enclosure guards against dust ingress and moisture, making it suitable for outdoor or harsh indoor use. Every cartridge is built to order – you can specify dimensions, filter media type, gasket material, and even end cap configuration to match your existing dust collector system.
Key Features & Benefits
- 3 Micron Filtration Efficiency: Captures fine dust, smoke, and particulate matter, improving air quality and reducing equipment wear.
- 1500 Pa Differential Pressure Capacity: Handles high dust loads without clogging – extends service intervals and reduces maintenance costs.
- IP65 Enclosure Protection: Fully sealed against dust and water jets – ideal for wet, outdoor, or high-humidity environments.
- Customizable Dimensions: Outer diameter, length, inner diameter, and flange type can be tailored to your equipment – no adapter needed.
- Choice of Filter Media: Available in polyester, cellulose, PTFE coated, or antistatic options – choose based on your dust characteristics.
- Heavy-Duty Construction: Galvanized steel or stainless steel end caps, reinforced pleats, and high-strength gaskets ensure long service life even under pulse-jet cleaning.
- Low Pressure Drop: Optimized pleat geometry minimizes energy consumption of your dust collector fan.
- Easy Installation: Standard mounting patterns (e.g., 3-lug, 6-lug, or threaded) – direct replacement for many brands.
Technical Specifications (Typical)
| Parameter | Value |
| Filtration Efficiency | ≥99% for 3 micron particles |
| Max Operating Temperature | 80°C (176°F) continuous; 120°C peak |
| Max Differential Pressure | 1500 Pa (6 in H₂O) |
| Enclosure Protection | IP65 (dust-tight, water jet protected) |
| Media Area | Customizable, typically 10-30 m² per cartridge |
| End Cap Material | Galvanized steel / Stainless steel / Plastic (optional) |
| Gasket | Neoprene, silicone, or foam (customizable) |
| Dimensions (OD x Length) | Custom from 100 mm x 200 mm to 350 mm x 1000 mm |
Why Choose Boli Heavy Duty Dust Filter Cartridge?
- Proven Performance: Over 25 years of filtration manufacturing experience – our cartridges are trusted by industries worldwide.
- Global Export Leader: With annual export value of US$5–10 million, we ship to North America, Europe, Southeast Asia, Africa, Oceania, and more.
- Fully Customizable: Provide your existing cartridge dimensions or equipment model – we will produce a perfect match.
- Strict Quality Control: Every cartridge is tested for pressure drop, filtration efficiency, and seal integrity before shipment.
- Fast Delivery: Located in Hengshui, Hebei – convenient port access (Tianjin, Qingdao, Shanghai). Typical lead time: 15–25 days.
- Competitive Pricing: Factory-direct pricing with no middleman – save up to 30% compared to branded equivalents.
Our Heavy Duty Custom Dust Filter Cartridge is the ideal solution for cement plants, mining operations, woodworking shops, chemical processing, and any industry where fine dust control is critical. The 3 micron rating ensures compliance with many workplace air quality standards, while the IP65 enclosure allows safe operation in washdown areas or outdoor installations. Whether you need a single replacement cartridge or a bulk order for your entire dust collection system, Boli can deliver.
Contact us today to discuss your specific requirements. Our engineering team will help you select the optimal filter media, size, and gasket for your dust collector. With Boli, you get a custom solution backed by decades of manufacturing expertise and a commitment to quality. Request a quote or sample – we are ready to serve you.
Frequently Asked Questions
1. What is the operating temperature range of this cartridge?
The cartridge can operate continuously at up to 80°C (176°F) with intermittent peaks up to 120°C (248°F). For higher temperatures, we can recommend PTFE or glass fiber media.
2. Can I use this filter cartridge for food-grade applications?
Yes, with appropriate media selection. We offer FDA-compliant options (e.g., polyester with food-grade coating) for dust collection in food processing facilities. Please specify your requirements.
3. How do I know the correct dimensions for my dust collector?
Measure the outer diameter, inner diameter, length, and mounting style (e.g., 3-lug, 6-lug, or threaded). If you provide the model number of your existing filter, we can often cross-reference and produce a direct replacement.
4. What is the typical lifespan of this cartridge?
Lifespan depends on dust load and cleaning frequency. Under normal conditions (e.g., 8-hour shifts, pulse-jet cleaning), a cartridge can last 12–24 months. Heavy dust or abrasive particles may reduce lifespan. Regular maintenance extends service life.
5. Do you offer anti-static filter media for explosive dust?
Yes, we provide antistatic/conductive media options (e.g., with carbon fiber or aluminum coating) for combustible dust environments like flour, metal powders, or coal. Please specify that you need an antistatic version.
6. What is the minimum order quantity (MOQ)?
For standard sizes, MOQ is 10 pieces. For custom dimensions or special media, MOQ may be 50 pieces. However, we can accommodate smaller orders for sample testing – contact us for details.
7. How do I clean the cartridge? Can it be washed?
Most pleated cartridges are designed for dry pulse-jet cleaning. Some media (e.g., polyester) can be washed with water and mild detergent, but it must be completely dried before reuse. Avoid washing if the cartridge is used for hygroscopic dust. We recommend pulse-jet cleaning for optimal performance.
8. Do you provide samples for testing?
Yes, we offer paid samples according to your specifications. The sample cost is deducted from the first bulk order. Lead time for samples is typically 5–10 days.
