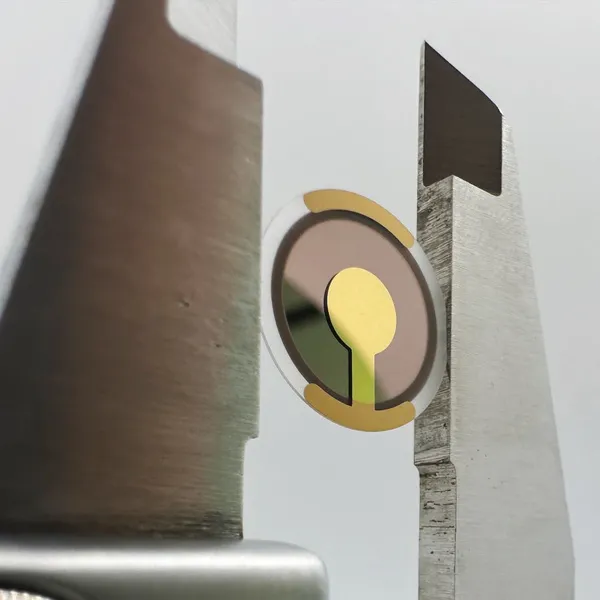

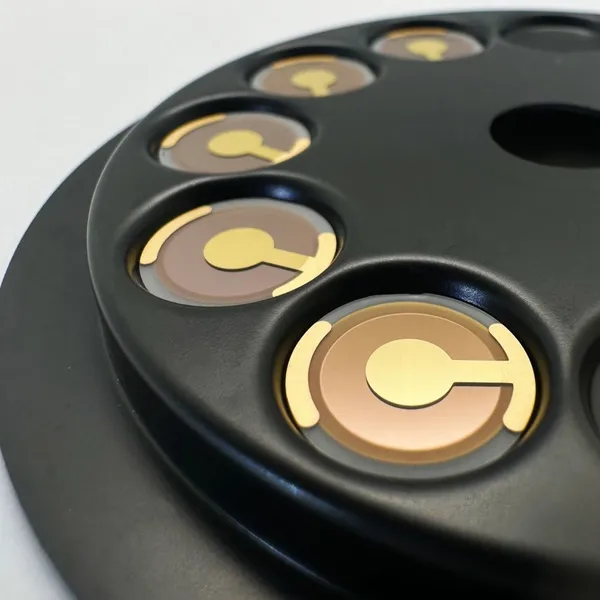

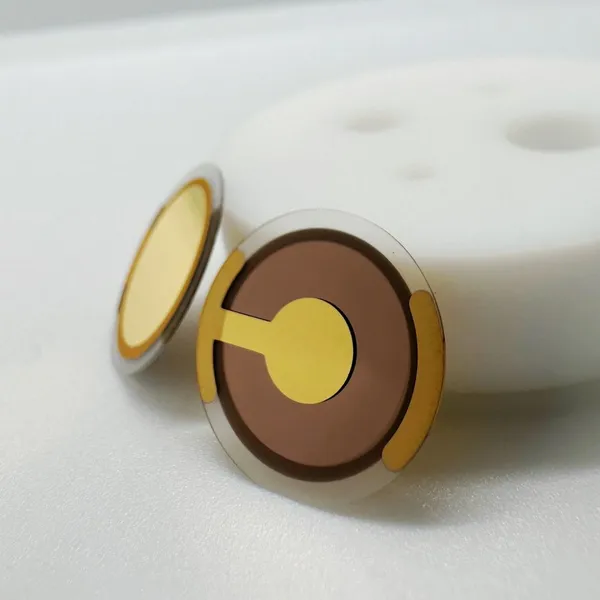

Help CenterQcm Sensor- 15MHz~30MHz Gold
Product Spotlights
Related Products
Resonant Frequency: 15~30 MHz
Crystal Cut Type: AT
Electrode Material: gold/SiO2/Pt/Cu/C/Ni/Zn/Ti/TiO2/Fe/Stainless steel and tens of other
Crystal Diameter: 14 mm,
Thickness: 0.3 mm
Surface Finish: Optically polished,
surface roughness of electrode: less than 2nm (RMS)
Basic elements: Aluminum, Cobolt, Chromium, Copper, Gold, Iron, Molybdenum, Nickel, Platina, Silica, Silver, Titanium, Tungsten,
Oxides: Silicon dioxide, rough Silicon dioxide, Aluminium oxide, Iron oxides, Zinc oxide, Silver oxide, Titanium dioxide, Indium-tin oxide
We can customize for special demands, such as low frequency of 3MHz, high frequency of 30MHz.
Not only used on Biolin Q-sense QCM-D, also used on many other EQCM platform for more than 20 years.
We can also produce other models, to provide cost-effective, stable performance, good service products
Our QCM sensor crystals not only used on usual EQCM&RQCM, also used on many quartz sensor monitor for air, water, and many other such as pollution monitor.
