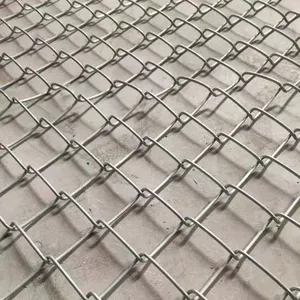

Help CenterLow Carbon Steel Wire Hook Mesh 2.0mm Wire Diameter 50x50mm Opening Hot Dip Galvanized
Product Spotlights
Related Products
-
1.5mm-4.0mm Wire Gauge Galvanized Low Carbon Steel Wire Hook Mesh for FencingNegotiableMOQ: 50 Cubic Inches -
Low Carbon Steel Wire Hook Mesh PVC Coated 100x100mm Grid Tensile Strength 350-500 N/mm2NegotiableMOQ: 50 Cubic Inches
-
1.2mm-5.0mm Wire Diameter Low Carbon Steel Wire Hook Mesh Standard CompliantNegotiableMOQ: 50 Cubic Inches
-
Low Carbon Steel Wire Hook Mesh for Animal Cage Poultry Fencing Garden ProtectionNegotiableMOQ: 50 Cubic Inches
-
Low Carbon Steel Wire Hook Mesh 2.7mm Wire 75x75mm Mesh Mill Test Report AvailableNegotiableMOQ: 50 Cubic Inches
Anping Xinye Metal Wire Mesh Products Co., Ltd, located in the renowned wire mesh manufacturing hub of Hengshui, Hebei, China, proudly presents our Low Carbon Steel Wire Hook Mesh with a wire diameter of 2.0mm and a 50x50mm opening, finished with hot dip galvanizing. This product is engineered to deliver exceptional strength, corrosion resistance, and long service life, making it a reliable choice for various industrial, agricultural, and construction applications. Our factory combines decades of weaving expertise with advanced production lines to ensure every roll meets strict quality standards.
The hook mesh design features a unique bent edge (hook) that simplifies installation and provides a neat, secure finish. Whether you need to enclose a poultry farm, reinforce a concrete slab, or create a durable garden fence, this mesh offers an optimal balance of flexibility and rigidity. The hot dip galvanized coating provides a thick, uniform zinc layer that protects the steel core from rust and harsh weather conditions, even in coastal or high-humidity environments.
Below we detail the technical specifications, key advantages, and practical benefits that make our low carbon steel wire hook mesh a smart investment for your project.
Technical Specifications
| Parameter | Value |
|---|---|
| Material | Low carbon steel wire (Q195 / Q235 grade) |
| Wire Diameter | 2.0 mm (±0.05 mm) |
| Mesh Opening | 50 mm x 50 mm (center-to-center) |
| Surface Treatment | Hot dip galvanized (zinc coating weight: 200-300 g/m², customizable) |
| Tensile Strength | 350-500 MPa (depending on wire drawing specification) |
| Standard Roll Size | Width: 1.0 m / 1.2 m / 1.5 m; Length: 10 m / 20 m / 30 m (custom sizes available) |
| Hook Edge Style | Half hook / full hook / L-shaped hook (optional) |
Key Features and Customer Benefits
- Superior Corrosion Resistance: The hot dip galvanized coating forms a metallurgical bond with the steel, providing lasting protection against rust, moisture, and chemicals. This extends the service life of the mesh by 5–10 years compared to uncoated or electro-galvanized alternatives.
- High Strength-to-Weight Ratio: Low carbon steel wire offers excellent tensile strength while remaining lightweight, making the mesh easy to handle, cut, and install without sacrificing structural integrity.
- Precise and Uniform Openings: The 50x50mm square openings are accurately welded using automated machines, ensuring consistent spacing for applications like small animal enclosures, gravel retention, or reinforcement.
- Easy Installation with Hook Edges: The pre-formed hooks on the edges allow quick attachment to posts, frames, or wall anchors without needing additional fasteners. This reduces labor time and cost.
- Versatile Application Range: Suitable for poultry fencing (chicken, duck, rabbit), garden protection, construction (concrete mesh, plastering), mining screen, and industrial partition walls.
- Customizable Dimensions: We offer flexible roll widths and lengths to match your specific project requirements. Custom wire diameters and mesh openings are also available upon request.
- Eco-Friendly and Recyclable: Low carbon steel is 100% recyclable, and the hot dip galvanizing process adds minimal environmental impact compared to PVC coatings.
Why Choose Anping Xinye?
With over 20 years of experience in the wire mesh industry, Anping Xinye Metal Wire Mesh Products Co., Ltd has established a reputation for consistent quality, competitive pricing, and reliable delivery. Our factory covers an area of 15,000 square meters and is equipped with 50 advanced automatic welding machines, capable of producing 500 tons of hook mesh per month. We strictly control the raw material sourcing from reputable domestic steel mills, and every batch undergoes rigorous inspection for wire diameter, tensile strength, and galvanizing thickness before shipment.
Our products have been exported to more than 30 countries across Southeast Asia, the Middle East, Africa, and South America, earning positive feedback from customers who appreciate our attention to detail and after-sales support. We offer free samples for quality evaluation, and our technical team is available to assist with customized solutions.
By choosing our low carbon steel wire hook mesh, you are investing in a product that combines durability, cost-effectiveness, and ease of use. We stand behind every roll with a warranty against manufacturing defects. Contact us today for a quote or to discuss your specific requirements.
Frequently Asked Questions (FAQ)
-
Q: What is the difference between hot dip galvanized and electro-galvanized hook mesh?
A: Hot dip galvanizing involves immersing the welded mesh in molten zinc, creating a thick, durable coating layer (typically 200-300 g/m²). Electro-galvanizing applies a thin zinc layer via electrolysis, which offers less corrosion resistance. Our product uses hot dip galvanizing for long-term outdoor use. -
Q: Can the mesh be cut to smaller sizes for custom projects?
A: Yes, the mesh can be cut using standard wire cutters or angle grinders. The hook edges can be trimmed or re-bent as needed. We also supply custom-cut panels upon request. -
Q: What is the recommended post spacing for installing this hook mesh as a fence?
A: For a tensioned fence, we recommend posts every 2–3 meters. For a freestanding panel, intermediate supports may be needed every 1.5 meters depending on the height. Specific installation guidelines can be provided by our technical team. -
Q: Is the mesh suitable for climbing plants or green walls?
A: Yes, the 50x50mm opening provides good support for climbing plants like ivy, passionflower, or beans. The galvanized coating resists moisture and plant acids, making it suitable for vertical gardens. -
Q: How long does the hot dip galvanized coating last in outdoor conditions?
A: In typical atmospheric environments, the coating can last 15–20 years before significant rust appears. In coastal or industrial areas with high pollution, the lifespan may be reduced to 8–12 years. Regular cleaning can extend its service life. -
Q: Do you offer samples before bulk order?
A: Yes, we provide free samples (A4 size) for quality evaluation. The customer only needs to pay for shipping. Please contact our sales team to arrange. -
Q: What is the minimum order quantity (MOQ)?
A: The MOQ for standard sizes is 100 rolls, but we can negotiate smaller quantities for trial orders. Custom sizes may have different MOQ requirements. -
Q: How is the mesh packaged to prevent damage during shipping?
A: Each roll is tightly compressed and wrapped with waterproof kraft paper, plastic film, and steel straps. For container shipments, we use wooden pallets or crates to ensure safe arrival. We also offer export-grade fumigation-free packaging on request.
