Zhangjiakou Sunlight Panels, Zhangjiakou Endurance Panels, Zhangjiakou Sunlight Panels
24-hour consultation phone number: 13833825773

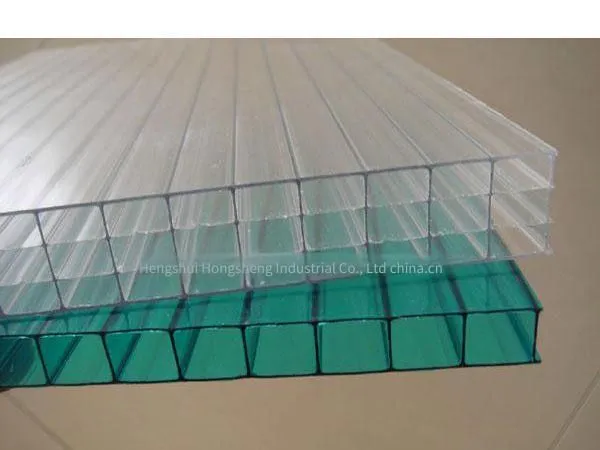

1. Sunlight Panels: 2.1M (width) × 6M (length) (sheet material) Thickness: 4MM, 6MM, 8MM, 10MM, 12MM, 14MM, 16MM (customizable length)
Colors: transparent, grass green, lake blue, milky white, crystal. Special thicknesses can be customized.
2. Endurance Panels: Width: 1.22, 1.56, 1.82, 2.1. The maximum width can reach 2.18 meters. Length is unlimited. Thickness: 2mm, 3mm, 4mm, 5mm. The maximum thickness can reach 20MM (customizable length)
Colors: transparent, grass green, lake blue, milky white, crystal (frosted). Special colors can also be customized.
Polycarbonate sunlight panels and endurance panels are suitable for building daylighting with high insulation requirements. Their K value reaches 2.4W/m².℃, making them the ideal energy-saving daylighting materials in China at present. They are suitable for daylighting in large sports stadiums or commercial spaces. At the same time, their cold-bending property provides designers with an ideal free space for creation. Compared with insulating glass, their weight is as low as 2.8 kilograms per square meter, but they have high impact resistance to ensure safety. The width of the grid is increased to 20mm, providing better permeability and visual experience. The varieties with anti-condensation coating on the inner surface are suitable for daylighting in modern facility agriculture greenhouses and buildings such as swimming pools with high humidity. The varieties with co-extruded UV protection layer on the surface can prevent people from being harmed by ultraviolet rays in sunlight. When used for daylighting in warehouses or museums, they can prevent organic matter and other polymer materials from fading and other damages under the influence of ultraviolet rays.
Sunlight Panels
Factory direct sales contact person: Gong Maosheng
24-hour consultation phone number: 13833825773
The PC sunlight panels, endurance panels, pc panels, PC sunlight panels, PC endurance panels, and PC sound barrier special panels produced by Shenlong Bayer Technology Hengshui Co., Ltd. are currently the private enterprises in China that specialize in producing polycarbonate PC sunlight panels and have advanced production lines.
The company has introduced a complete set of advanced Italian production equipment and technology, and fully uses raw materials from Bayer AG in Germany. It specializes in producing polycarbonate PC sunlight panels - hollow panel series and solid panel series, with an annual output of up to 12,000 tons. The company adopts advanced foreign management systems and process technologies, and has a group of high-quality and energetic employees, ensuring that the company can produce products of excellent quality and provide a complete set of comprehensive and considerate after-sales services.
The polycarbonate sunlight panels - hollow panel series (also known as unbreakable glass, Makrolon) and solid panel series (also known as endurance panels, transparent steel plates) produced by the company are engineering plastics with excellent comprehensive performance, having outstanding physical, mechanical, electrical, and thermal properties. Therefore, polycarbonate sunlight panels are known as the "king of transparent plastics". They have advantages such as good impact resistance, heat insulation, sound insulation, daylighting, UV protection, and flame retardancy. After being tested by the National Fireproof Building Materials Quality Supervision and Inspection Center, according to the GB8624 - 1997 standard, Hongsheng sunlight panels have a combustion performance reaching the difficult-to-burn B1 level. Hongsheng Industrial sunlight panels are widely used in daylighting and rain shelters, passage ceilings, elevated road sound barriers, shopping mall roofs, and plant greenhouses in public and civil buildings. They are currently the most ideal awning materials in the world and are widely recommended and praised by the modern architectural decoration industry.
The company's purpose is to continuously strive to improve and enhance product quality, expand the application fields of products to meet the needs of different users, produce first-class products, and serve society.
Compared with other covering materials, the sunlight panels produced by Shenlong Bayer Technology Hengshui Co., Ltd. have the following advantages:
1. Low price, light material, high impact resistance, and low overall cost of greenhouse construction.
2. Can be packed and transported in rolls, saving freight costs.
3. Large single-panel area, can be made into 210m2 per piece (100 meters long × 2.1 meters wide). Easy to install when building a greenhouse, and low greenhouse construction cost.
4. High-quality PC sunlight panels have a long service life. There are records of greenhouses in foreign countries that have been in use for more than 20 years.
5. Will not cause quality deterioration such as deformation within the temperature range of -40℃ to +120℃ Celsius.
6. Confirmed by the national standard GB50222—95, PC sunlight panels are of the first-level non-combustible type, that is, B1 level. The self-ignition point of PC sunlight panels is 580 degrees Celsius. They will self-extinguish after leaving the fire, and will not produce toxic gases when burning, nor will they promote the spread of fire.
7. Keep cool in summer and warm in winter. PC sunlight panels have a lower thermal conductivity (K value) than ordinary glass and other plastics. The heat insulation effect is 7% - 25% higher than that of the same glass, and the heat insulation of PC sunlight panels can reach 49%. Thus, the heat loss is greatly reduced. It is an environmentally friendly material for buildings with heating equipment.
8. The surface has a co-extruded layer that prevents ultraviolet rays, which can prevent the resin from becoming fatigued and yellowing due to the ultraviolet rays of sunlight. The surface co-extruded layer can absorb ultraviolet rays through chemical bonds and convert them into visible light, which has a good and stable effect on plant photosynthesis. After 4000 hours of artificial climate aging test, the yellowing degree is 2, and the decrease value of light transmittance is only 0.6%. After ten years, the light transmittance loss is only 6%, while the loss rate of PVC is as high as 15% - 20%, and that of glass fiber is 12% - 20%.
24-hour consultation phone: 13833825773
Factory direct sales contact person: Gong Maosheng
The sunlight panels and endurance panels produced by the company are widely used in the lighting ceilings of public and civil buildings, sound insulation of expressways, lighting materials for modern greenhouses, and also used as advertising base materials, bathroom doors, etc. They have good advantages such as impact resistance, sound insulation, lighting, anti-ultraviolet, and flame retardancy.
Technical parameters of sunlight panels (endurance panels) The wavelength range of sunlight reaching the earth's surface is between 295 - 2140nm (10-9m). Generally, they are divided into the following bands:
Middle ultraviolet light region UV-B 280--315nm
Near ultraviolet light region UV-A 315--380nm
Visible light region 380--780nm
Near infrared light region 780--1400nm
Middle infrared light region 1400--3000nm
Outdoor weather resistance of sunlight panels (endurance panels)
Anti-ultraviolet (UV) protective film Solar radiation is clearly harmful to polymer materials, which will cause fine lines on the surface and lead to degradation. These fine lines are easily eroded by water, dust, and water chemical substances. The degree of influence on polymers largely depends on environmental parameters such as geographical location, altitude, and seasonal changes. The panels produced by our company have single-sided or double-sided ultraviolet protective layers, with good outdoor weather resistance. This unique protection ensures that they can still be used for a long time and maintain their optical properties under strong ultraviolet light for a long time, compared with other thermoplastic materials. (Ten-year quality, professional guarantee)
Factory direct sales of sunlight panels and endurance panels, 24-hour consultation phone: 13833825773
Contact person: Gong Maosheng
Made of imported polycarbonate raw materials and processed by high-tech special anti-infrared technology, the panel surface is evenly distributed with a high-concentration UV co-extruded anti-ultraviolet layer, which can block ultraviolet rays from passing through and protect the product's stability against ultraviolet radiation, long-term weather resistance, protect indoor objects, and extend the service life of the panel. (Ten-year quality, professional guarantee)
Product characteristics of PC sunlight panels, endurance panels, pc boards, PC sunlight panels, PC endurance panels, and PC special boards for sound barriers:
(1) Transparency of sunlight panels and endurance panels: The light transmittance of PC boards can reach 89%, comparable to that of glass. UV-coated boards will not turn yellow, fog, or have poor light transmittance when exposed to sunlight. After ten years, the light transmittance loss is only 6%, while the loss rate of PVC is as high as 15% - 20%, and that of glass fiber is 12% - 20%.
(2) Impact resistance of sunlight panels and endurance panels: The impact strength is 250 - 300 times that of ordinary glass, 30 times that of acrylic boards of the same thickness, and 2 - 20 times that of tempered glass. There will be no cracks even if a 3kg hammer is dropped from two meters below. It has the good names of "unbreakable glass" and "ringing steel".
(3) Light weight of sunlight panels and endurance panels: The specific gravity is only half that of glass, saving the costs of transportation, handling, installation, and supporting frames.
(4) Flame retardancy of sunlight panels and endurance panels: Confirmed by the national standard GB50222—95, PC boards are of the first-level non-combustible type, that is, B1 level. The self-ignition point of PC boards is 580 degrees Celsius. They will self-extinguish after leaving the fire, and will not produce toxic gases when burning, nor will they promote the spread of fire.
(5) Anti-ultraviolet of sunlight panels and endurance panels: One side of the PC board is coated with an anti-ultraviolet (UV) layer, and the other side has anti-condensation treatment, integrating the functions of anti-ultraviolet, heat insulation, and anti-dripping. It can block ultraviolet rays from passing through and is suitable for protecting valuable artworks and exhibits from being damaged by ultraviolet rays. Anti-ultraviolet (UV) protective film Solar radiation is clearly harmful to polymer materials, which will cause fine lines on the surface and lead to degradation. These fine lines are easily eroded by water, dust, and water chemical substances. The degree of influence on polymers largely depends on environmental parameters such as geographical location, altitude, and seasonal changes. Hongsheng panels have single-sided or double-sided ultraviolet protective layers, with good outdoor weather resistance. This unique protection ensures that they can still be used for a long time and maintain their optical properties under strong ultraviolet light for a long time, compared with other thermoplastic materials.
(6) Bendability of sunlight panels and endurance panels: Can be cold-bent on the construction site according to the design drawing and installed into arches, semi-circular roofs, and windows. The minimum bending radius is 175 times the thickness of the board, and it can also be hot-bent.
(7) Sound insulation of sunlight panels and endurance panels: The sound insulation effect of PC boards is obvious. They have better sound insulation than glass and acrylic boards of the same thickness. Under the condition of the same thickness, the sound insulation of PC boards is 3 - 4DB higher than that of glass. It is the material for expressway sound barriers internationally.
(8) Energy-saving of sunlight panels and endurance panels: Keep cool in summer and warm in winter. PC boards have a lower thermal conductivity (K value) than ordinary glass and other plastics. The heat insulation effect is 7% - 25% higher than that of the same glass, and the heat insulation of PC boards can reach 49%. Thus, the heat loss is greatly reduced. It is an environmentally friendly material for buildings with heating equipment.
(9) Temperature adaptability of sunlight panels and endurance panels: PC boards will not become cold and brittle at -100 degrees Celsius, and will not soften at 135 degrees Celsius. Their mechanical properties and other physical properties have no obvious changes in harsh environments.
(10) Weather resistance of sunlight panels and endurance panels: PC boards can maintain the stability of various physical indicators in the range of -40℃ to 120℃. After 4000 hours of artificial climate aging test, the yellowing degree is 2, and the decrease value of light transmittance is only 0.6%.
(11) Anti-condensation of sunlight panels and endurance panels: When the outdoor temperature is 0℃, the indoor temperature is 23℃, and the indoor relative humidity is lower than 80%, there will be no condensation on the inner surface of the material.
Supply price quotes for sunlight panels, endurance panels, and pc boards
We are factory direct sales. Welcome your consultation if you have any questions. We will serve you wholeheartedly and answer every call with the most sincere heart. Compare the quality at the same price, and compare the price at the same quality. We will repay your love with the highest-quality products and the most sincere service.
Our company is insured by the People's Insurance Company of China, so you don't have to worry about using our products.
In 2009, the top ten green, environmentally friendly, and energy-saving building material brands in China, Duma Xinge brand sunlight panels and Klute brand sunlight panels. Hengshui pc sunlight panel company specializes in producing PC sunlight panels, endurance panels, pc boards, PC sunlight panels, PC endurance panels, and PC special boards for sound barriers. It is currently the leading enterprise in the domestic industry of producing polycarbonate PC sunlight panels and has advanced production lines.
Zhangjiakou sunlight panels, Zhangjiakou endurance panels, Zhangjiakou sunlight panels
