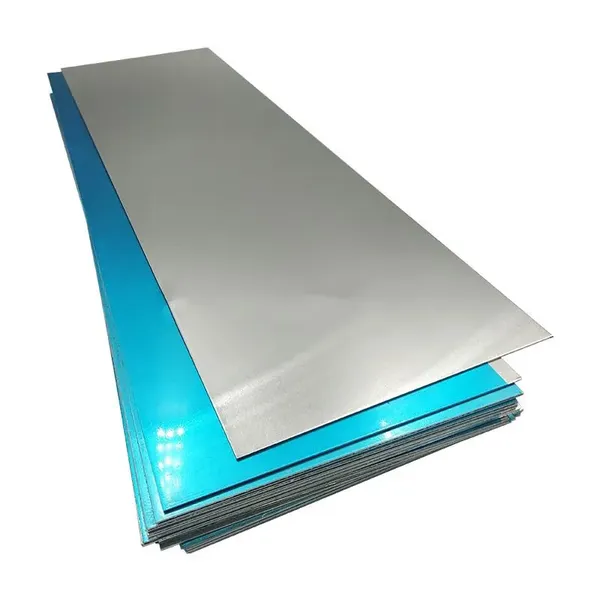

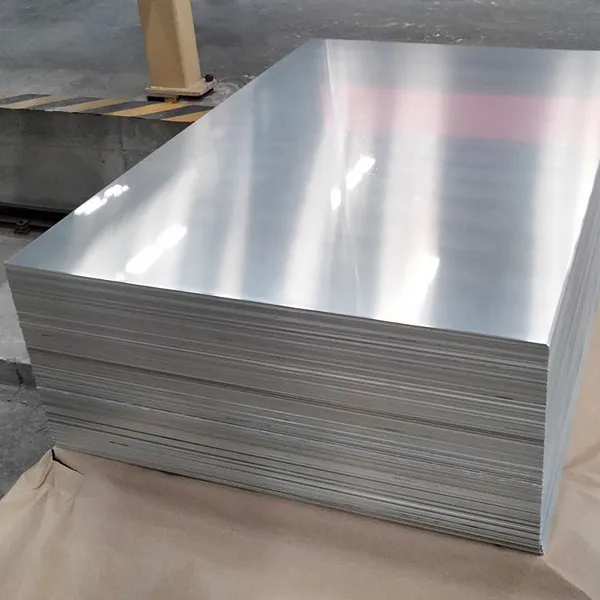

Hemaokang Steel (Shandong) Co., Ltd. is proud to offer our premium Aluminum Plate 5052 H32, specifically engineered for building molds and signage applications. With a smooth, uniform surface and excellent dimensional accuracy, this plate ensures precise mold cavities and crisp, professional sign faces. Our ISO 9001:2015 certified facility in Liaocheng, Shandong, combines advanced manufacturing processes with strict quality control, delivering a product that meets the demanding requirements of construction, signage, and industrial fabrication. Whether you need large-format sheets for mold bases or cut-to-size blanks for illuminated signs, this aluminum plate offers superior performance and consistency.
Key Features & Benefits:
- High Strength-to-Weight Ratio: Alloy 5052 H32 provides moderate to high strength while remaining lightweight, reducing structural load on molds and sign supports.
- Excellent Corrosion Resistance: Ideal for indoor and outdoor signage, as well as concrete molds exposed to moisture, thanks to its natural oxide layer.
- Superior Surface Smoothness: Our mill-finished plates feature a clean, flat surface with minimal imperfection, ensuring perfect adhesion for paints, laminates, or reflective films.
- Exceptional Formability & Weldability: 5052 H32 can be easily bent, stamped, cut, and welded, making it versatile for custom mold shapes and sign fabrication.
- Consistent Thickness Tolerance: Precision rolling ensures tight thickness tolerances (±0.05 mm for sheets under 3 mm), critical for uniform mold cavities.
- Non-Sparking & Non-Magnetic: Safe for use in environments where sparks are a concern, and non-magnetic for sensitive electronic sign components.
Typical Mechanical Properties (5052 H32):
| Property | Value |
|---|---|
| Tensile Strength | 210–260 MPa |
| Yield Strength | 130–180 MPa |
| Elongation | ≥12% (in 50 mm) |
| Hardness (Brinell) | 60–70 HB |
| Density | 2.68 g/cm³ |
Available Dimensions & Customization:
- Thickness: 0.5 mm – 6.0 mm (other thicknesses available upon request)
- Width: 1000 mm – 2000 mm (narrower widths available)
- Length: 2000 mm – 6000 mm (or cut-to-size per your drawing)
- Surface Options: Mill finish, brushed, or anodized (customizable)
- Packaging: Wooden pallets with protective film, suitable for export
Applications:
- Building Molds: Concrete formwork, precast molds, and architectural panels
- Signage: Channel letters, light boxes, directional signs, and display boards
- General Fabrication: Enclosures, brackets, tanks, and marine components
Quality Assurance & Trust:
At Hemaokang Steel (Shandong) Co., Ltd., we are committed to delivering aluminum plates that meet the highest industry standards. Our facility is ISO 9001:2015 certified, ensuring consistent quality from raw material sourcing to final inspection. With an annual export value exceeding US$50 million and a dedicated team of 51–100 employees, we serve clients across North America, South America, Europe, Southeast Asia, Africa, the Middle East, Oceania, and beyond. Our smooth-surface 5052 H32 plates have been used in thousands of successful projects, from high-rise building molds to illuminated city signage. We stand behind every sheet with reliable lead times, competitive pricing, and responsive customer service. Whether you need a small trial order or a full container load, we are your trusted partner for aluminum solutions.
Frequently Asked Questions (FAQ):
-
Q: What is the difference between 5052 H32 and 6061 T6 for molds?
A: 5052 H32 offers better corrosion resistance and formability, making it ideal for molds that require bending or shaping. 6061 T6 is stronger but less formable. For signage, 5052 H32 is preferred for its smooth surface and weldability. -
Q: Can you cut the plates to specific sizes for my signage project?
A: Yes, we offer custom cutting to your exact dimensions. Please provide a drawing or specify length and width in your inquiry. -
Q: Is the surface suitable for direct painting or screen printing?
A: Absolutely. The mill finish is clean and free of oil residues, providing an excellent substrate for paints, adhesives, and vinyl films. For optimal adhesion, we recommend a light solvent wipe. -
Q: What is the minimum order quantity (MOQ)?
A: Our MOQ for standard sizes is 1 ton per size. For customized sizes or small quantities, please contact us for availability. -
Q: How long does delivery take for an order to the United States?
A: Typical lead time is 25–35 days after order confirmation, depending on quantity and shipping method. We work with reliable freight forwarders to ensure timely delivery. -
Q: Do you provide samples for testing?
A: Yes, we can provide small samples (e.g., 200×200 mm) free of charge, with the customer covering shipping costs. Please send a request to our sales team. -
Q: Is this plate suitable for outdoor use in coastal environments?
A: Yes, 5052 is one of the best marine-grade alloys, offering excellent resistance to saltwater and humidity. It is widely used in boat building and coastal signage. -
Q: What certifications do you have for your products?
A: Our company is ISO 9001:2015 certified. The aluminum plates themselves conform to ASTM B209 and GB/T 3880 standards. Additional certifications (e.g., material test reports) are available upon request.
Contact us today to discuss your requirements for Aluminum Plate 5052 H32. Our team of experts is ready to provide technical support, competitive quotations, and reliable delivery for your building molds, signage, and industrial projects. Choose Hemaokang Steel – quality you can trust, delivered worldwide.
