Help CenterChina Pcd Blank Supplier PCD632 for Metal Cutting Tools
Product Spotlights
High wear resistance
High impact resistance
Related Products
-
Funik 63mm Pcd Blank Manufacturer PCD685 for Milling and Rough Cutting of Aluminium AlloysUS$ 105 - 120MOQ: 1 Piece -
China Pcd Cutting Tool Blank Company PCD605 for Cutting Aluminium AlloysUS$ 105 - 120MOQ: 1 Piece
-
Funik 63mm Polycrystalline Diamond Blank Round Pcd Blank PCD512W for WoodworkingUS$ 95 - 110MOQ: 1 Piece
-
Funik 63mm Pcd Blank PCD510 for Wood Stone Metal Cutting ToolsUS$ 95 - 110MOQ: 1 Piece
-
Funik Pcd Blank PCD532 for Wood Cutting ToolsUS$ 95 - 110MOQ: 1 Piece
Product Description

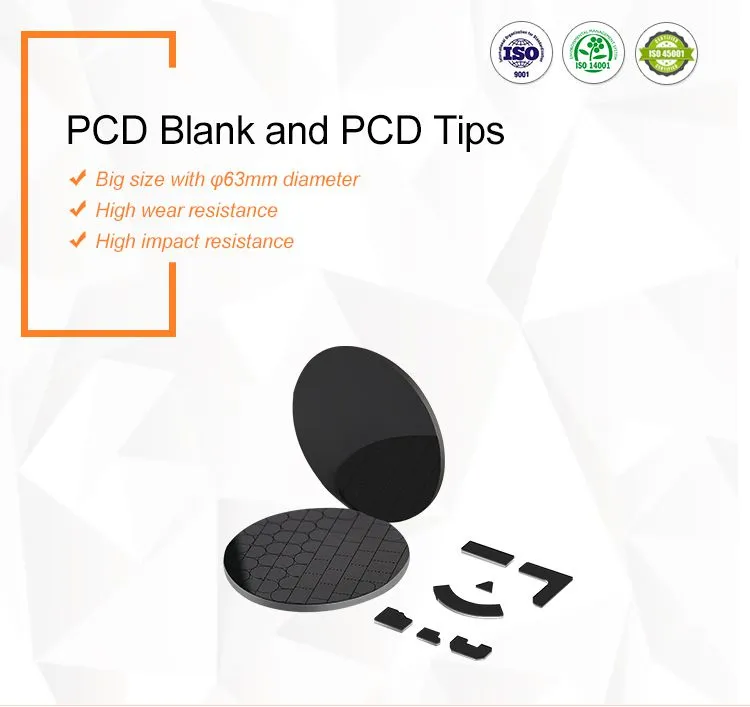

Funik manufactures PCD cutting tool blank with 63mm diameter. This is the largest diameter PCD cutting tool blank which are made in China. The performance and quality of this large-diameter cutting tool blank is equal in performance to the highest world-class standards.
Our Advantages
■ Big size with φ63mm diamete.
■ With continuous impact resistance, outstanding thermal stability and superior wear resistance, it can ensure excellent workpiece quality and offer extremely long life of cutting tool.
■ Its working conditions and the machining performance in the application can achieve an ideal balance, and it can meet the requirements of cutting or grinding and also be equipped with chipping resistance, wear resistance, discharge characteristic and grindability.
■ Thickness scan of PCD layer. Funik offers a unique ultrasound scan that can map the thickness distribution of the PCD layer. The PCD scan identifies the 'North Point', which matches the 'North Point' laser-engraved on the disc, enabling users to optimize the cutting areas.

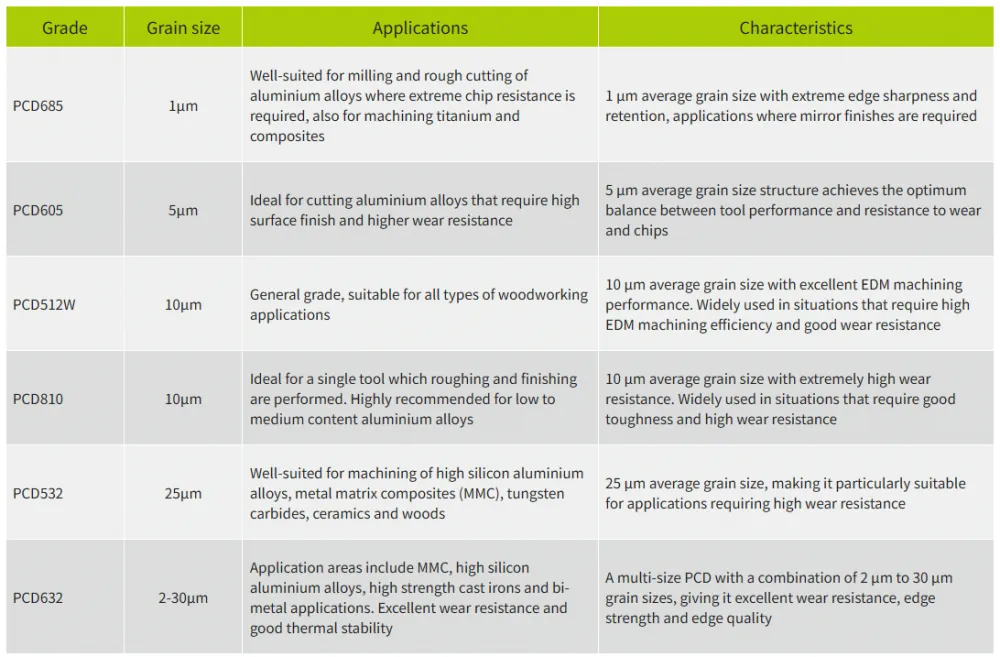

PCD grades and characteristics
Application condition and machining performance

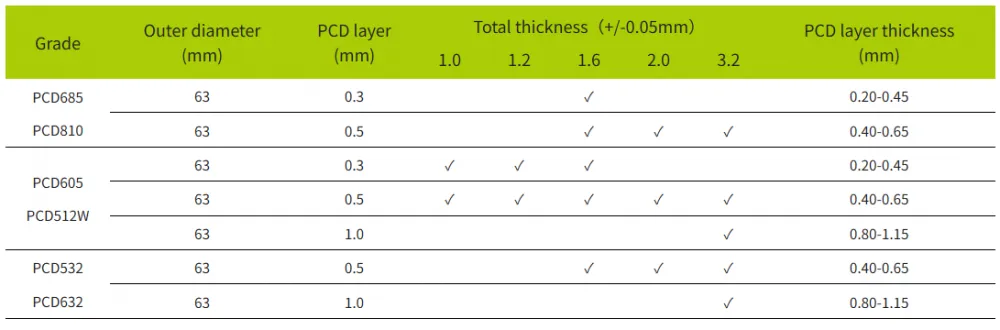

Parameters for product specifications

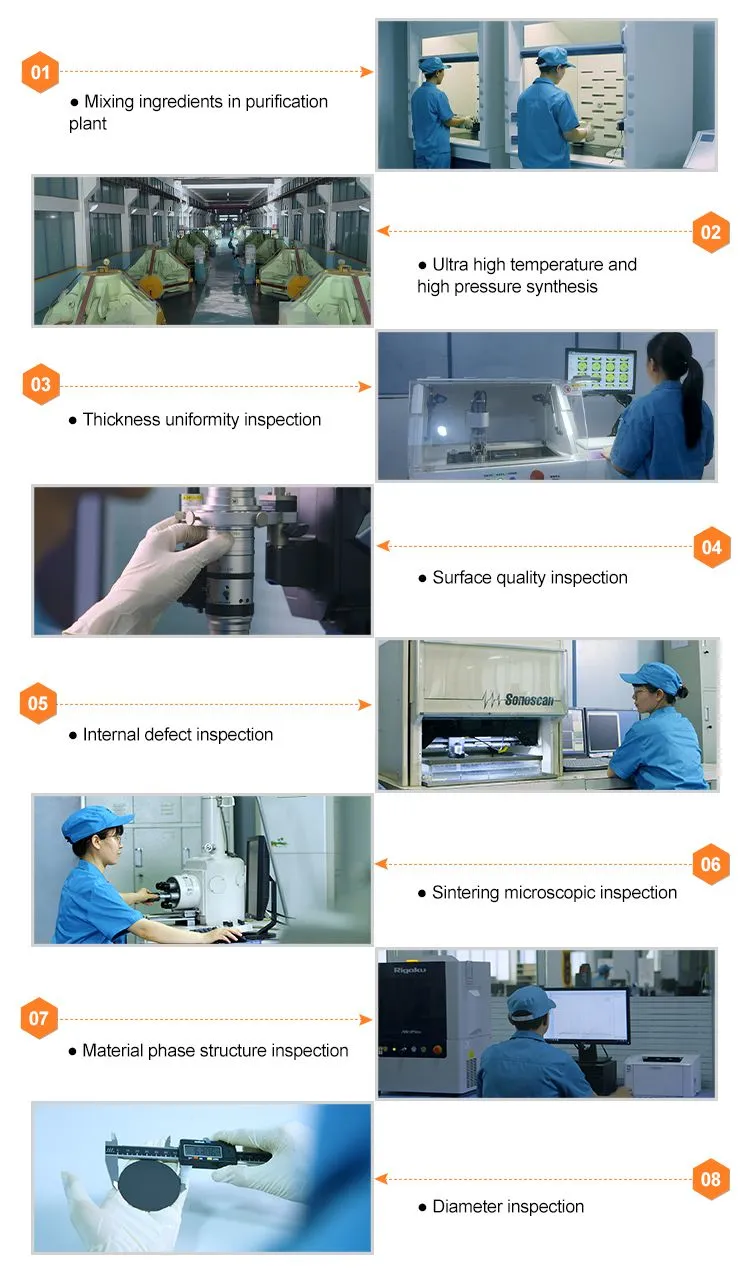

Manufacturing & Inspetion Process
Application
For cutting wood, plastic board, stone, graphite, ceramic, aluminum alloy, metal composite materials, organic glass, wear-resistant part, carbon etc.
Package & Shipping
Why Choose FUNIK
