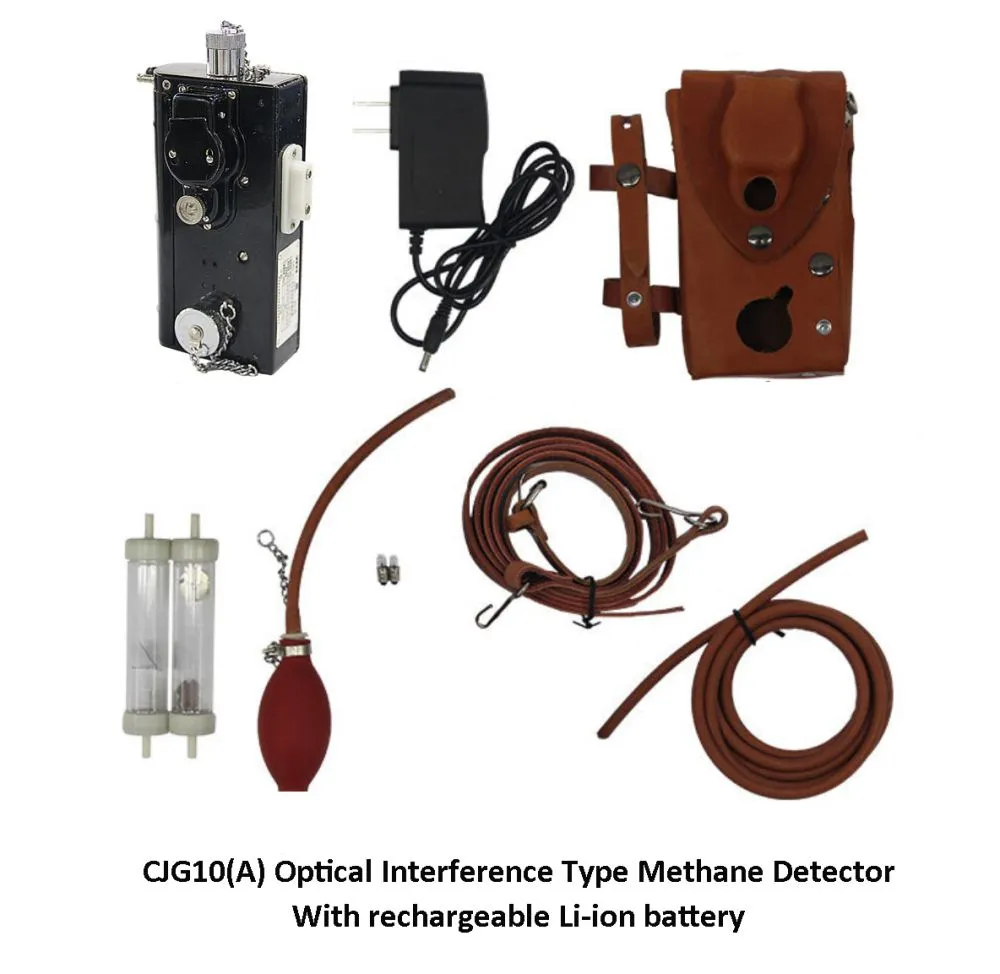

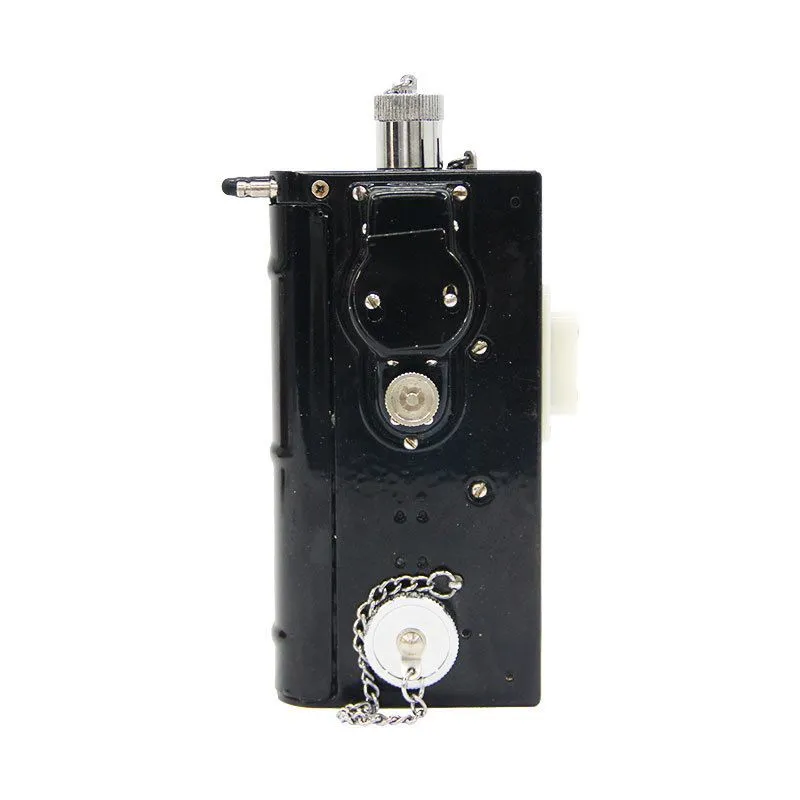

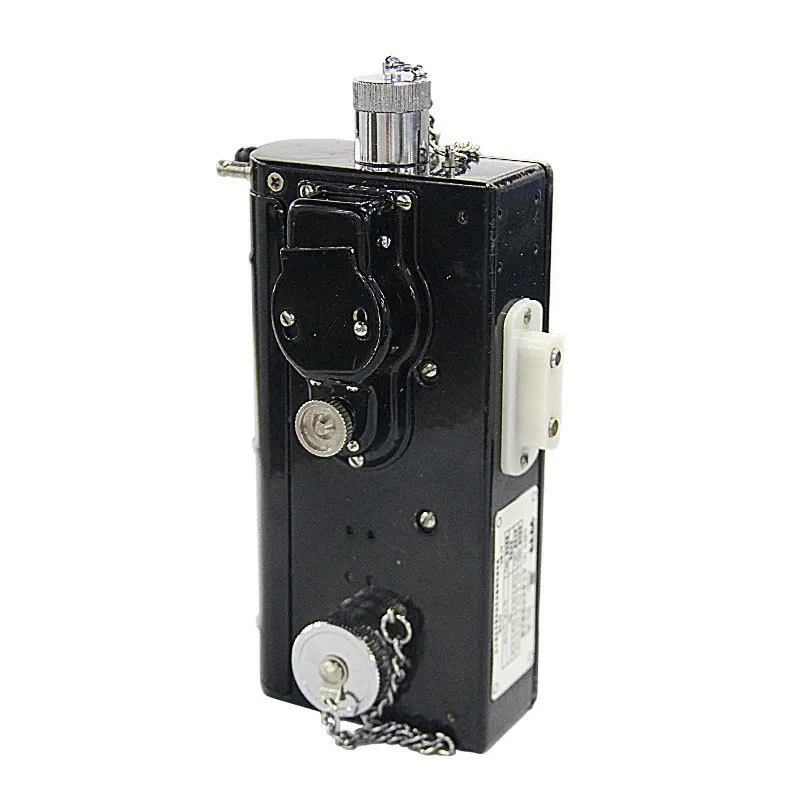

CJG10(A) Optical Interference Type Methane Detector
Main characteristics
1. Using optical interference principle, it can real-timely detect the methane concentration in ambient air.
2. It has characteristics of accurate measurement, simple operation, convenient to use.
Main specification
|
Model Item |
Specification |
CJG10(A) | |
Measurement range |
(0～10)%CH4 |
Minimum division value of eyepiece reticle |
0.5% |
Division range of micrometer dial |
(0-1)% |
Minimum division value of micrometer dial |
0.02% |
Explosion-proof mark |
Ex ia I Ma |
Light source |
6.3V/0.1A bulb(electric bead) |
Power Supply |
YLMP18650 - 2000mAh manganese acid lithium battery |
Dimensions |
168×97×52mm |
Protection grade |
IP54 |
Weight |
0.8Kg |

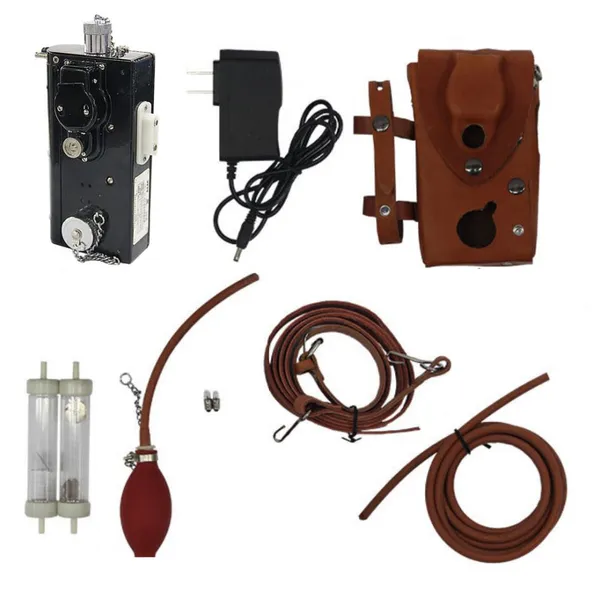

Matching information
Standard configuration |
Detector, protective cover(leather case), balloon set, absorption tube set, bulb, rubber hose, charger |
