Help CenterMunicipal Guardrail for School Zones, 1.2m Height, Galvanized Steel, 2.0m Spacing, Pedestrian Safety Barrier
Product Spotlights
Related Products
-
Corrugated Municipal Guardrail, 0.5mm Crimp Depth, 2.5mm Thickness, 4.0m Panel Length, Hot-Dip Galvanized, Heavy DutyNegotiableMOQ: 500 Acres -
2-Year Warranty Municipal Guardrail, Mill Test Report Included, Durable Anti-Corrosion Hot-Dip GalvanizedNegotiableMOQ: 500 Acres
-
5-Year Warranty Municipal Guardrail, Free Technical Installation Guide, 7-Day Delivery, Standard CompliantNegotiableMOQ: 500 Acres
-
Municipal Guardrail for Parking Lot Perimeter, 2.0mm Thickness, Hot-Dip Galvanized, 3.0m Post Spacing, Anti-CollisionNegotiableMOQ: 500 Acres
-
Municipal Guardrail 4.0m Beam Section Hot-Dip Galvanized 2.5mm Thickness AASHTO M180-18 StandardNegotiableMOQ: 50 Acres

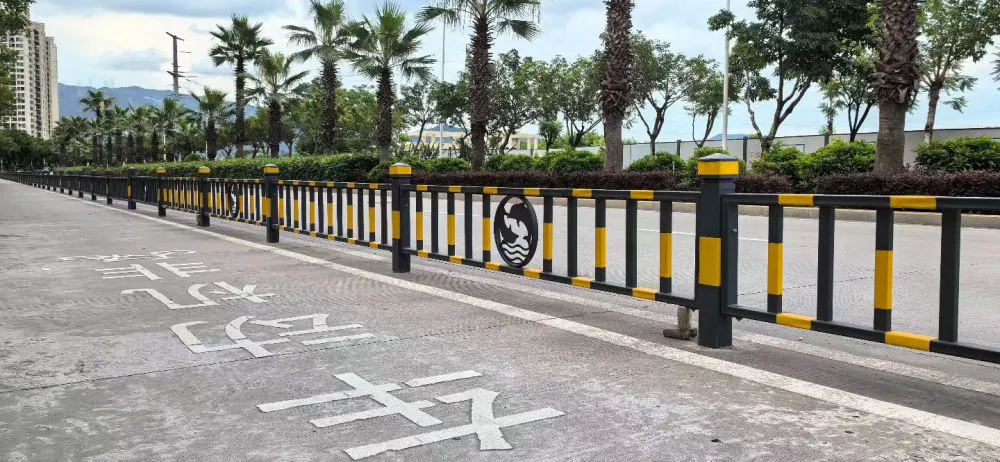

Anping Xinye Metal Wire Mesh Products Co., Ltd, located in the heart of China's hardware manufacturing hub—Hengshui, Hebei—has been a trusted supplier of metal safety solutions for over a decade. Our Municipal Guardrail for School Zones is engineered to meet the highest standards of pedestrian protection. With a robust 1.2m height and 2.0m spacing between posts, this galvanized steel barrier provides a secure, visible, and durable boundary for areas where children and pedestrians are most vulnerable. Unlike basic barriers, our guardrail is designed not only to prevent accidental entry into roadways but also to withstand daily wear from weather and impact, ensuring long-term safety for school communities.
Key Features & Technical Specifications
| Feature | Specification |
| Material | Q235 Galvanized Steel, Hot-Dip Galvanized (≥80μm coating) |
| Overall Height | 1.2m (4ft) |
| Post Spacing | 2.0m (6.56ft) center-to-center |
| Top Rail | 60×40mm rectangular tube, 2.5mm wall thickness |
| Bottom Rail | 40×40mm square tube, 2.0mm wall thickness |
| Vertical Bars | 16mm diameter, spaced 110mm apart (anti-climb design) |
| Post Base | Flange plate with anchor bolts (concrete foundation optional) |
| Weight (per 2m section) | Approx. 35kg |
Product Advantages
- Superior Corrosion Resistance: Hot-dip galvanizing ensures a protective zinc layer that withstands rain, snow, and road salt—ideal for school zones in all climates.
- Child-Safe Design: The vertical bars have tight spacing (110mm) to prevent small children from squeezing through, while the rounded edges eliminate sharp corners.
- High Visibility: The galvanized silver finish naturally reflects light; optional bright-colored powder coating (yellow, blue, or green) is available for enhanced visibility during school hours.
- Impact Resistance: Manufactured from heavy-duty Q235 steel, the guardrail can withstand accidental bumps from vehicles or bicycles without permanent deformation.
- Easy Installation: Pre-assembled sections with bolt-together components reduce on-site labor. Posts can be embedded in concrete or bolted to existing pavement.
- Low Maintenance: Galvanized steel requires no painting or special upkeep—just occasional cleaning to maintain its appearance.
- Customizable Length: Standard sections are offered in 2m, 3m, and 4m lengths; we can also produce non-standard lengths per your project requirements.
Why Choose Our Guardrail for School Zones?
School zones demand extra safety measures—our guardrail is specifically designed to separate pedestrian walkways from vehicular traffic, reducing the risk of accidents during drop-off and pick-up times. The 1.2m height is tall enough to deter climbing, yet low enough to allow clear sightlines for drivers and children. Post spacing of 2.0m ensures structural stability while minimizing material costs. Compared to plastic or concrete barriers, our steel guardrail offers a perfect balance of strength, durability, and cost-effectiveness. It is suitable for installation along sidewalks, crosswalks, school entrances, playgrounds, and bus stops.
Trusted by Municipalities Worldwide
Anping Xinye Metal Wire Mesh Products Co., Ltd has supplied over 50,000 linear meters of guardrail to municipal projects across Asia, Europe, and the Americas. Our factory in Hengshui, Hebei, operates with advanced CNC bending, welding, and galvanizing lines, ensuring consistent quality and fast lead times. We hold a strict quality control system that includes material certification, dimensional inspection, and galvanizing thickness tests. Every shipment is accompanied by a packing list and inspection report. Contact us today for a customized quotation or technical drawing; our team is ready to support your school safety project from design to delivery.
Frequently Asked Questions
Q: What is the minimum order quantity (MOQ)?
A: Our standard MOQ is 50 meters (approximately 25 sections of 2m). For smaller quantities, please contact us for special arrangements.
Q: Can the guardrail be installed on asphalt surfaces?
A: Yes. We provide post bases suitable for bolting onto asphalt or concrete. For asphalt, we recommend using expansion anchors. Alternatively, posts can be embedded into a concrete foundation.
Q: Is the guardrail available in colors other than silver?
A: Absolutely. We offer powder coating in RAL colors (e.g., yellow, blue, green, red) at an additional cost. The galvanized base ensures long-lasting color adhesion.
Q: How long does the galvanized coating last?
A: In a typical urban environment, the hot-dip galvanized coating can last 20–30 years before requiring maintenance, depending on exposure conditions. The thick zinc layer provides excellent protection.
Q: Do you provide installation instructions?
A: Yes, we provide a detailed installation manual with diagrams. We can also offer on-site guidance for large projects (subject to terms).
Q: Can the guardrail be used on curved sidewalks?
A: Yes, we can produce curved sections or custom angles to match the geometry of your site. Please provide a layout drawing for a precise quote.
Q: What is the load capacity of the guardrail?
A: The guardrail is designed for pedestrian-level impact and light vehicle bumps (e.g., bikes, cars at low speed). For heavy-duty vehicle impact, we recommend our reinforced barrier series.
Q: How long is the production lead time?
A: For standard orders, production takes 15–20 working days. Customized orders may require 25–30 working days. Express shipping is available upon request.
