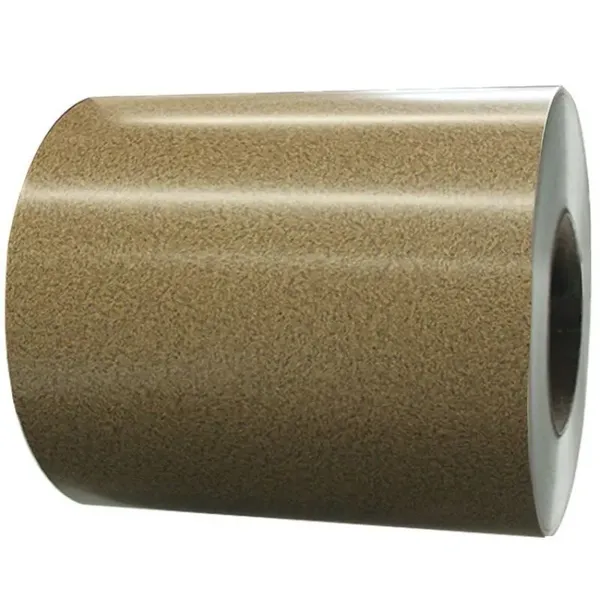

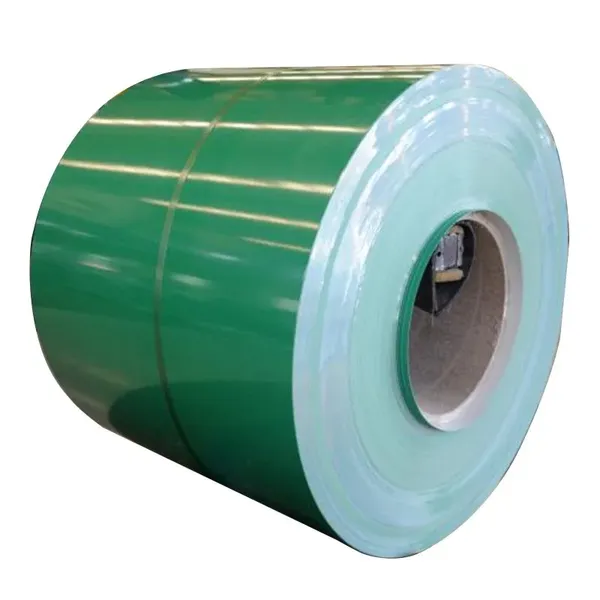

Help CenterPPGI Galvanized Color Coated Coil 0.3-2.0mm Thickness 600-1500mm Width PE Coating 60-120g/m2 Zinc
Product Spotlights
Related Products
-
Color Coated Galvanized Steel Coil DX51D Z100 0.35-1.5mm 900-1250mm Regular Spangle Smooth SurfaceNegotiableMOQ: 1 Ton -
Galvanized Color Coated Coil for Roofing and Wall Panel Construction 0.4-0.8mm 1000mm WidthNegotiableMOQ: 1 Ton
-
PPGI Steel Coil 0.3-2.0mm 600-1500mm Width 80-180g/m2 Zinc Coating Standard Compliant 5 TonsNegotiableMOQ: 1 Ton
-
Galvanized Color Coated Coil 0.5mm 0.8mm 1.0mm 750-1250mm ASTM A653 CS-B PE/PVDF CoatingsNegotiableMOQ: 1 Ton
-
PPGI Coil With 1-Year Warranty, Mill Test Certificate, 0.3-2.0mm, 1000-1250mm, Standard CompliantNegotiableMOQ: 1 Ton
Hemaokang Steel (Shandong) Co., Ltd., established in 2025, is a professional manufacturer and exporter of high-quality steel products. With an annual export value of US$50 million to US$100 million and a dedicated team of 51–100 employees, we are committed to delivering reliable and cost-effective solutions to global markets. Our PPGI Galvanized Color Coated Coil is a prime example of our manufacturing excellence—combining durable galvanized substrate with a premium polyester (PE) coating to offer superior corrosion resistance, aesthetic appeal, and long service life. Whether you need roofing sheets, wall panels, or home appliance components, our PPGI coils are designed to meet your specific requirements.
The product features a thickness range of 0.3–2.0mm and a width range of 600–1500mm, with a zinc coating weight of 60–120g/m². The polyester topcoat provides excellent color retention, UV resistance, and flexibility, making it suitable for both indoor and outdoor applications. Below is a detailed technical specification table for your reference.
| Parameter | Value | Note |
|---|---|---|
| Base Material | Hot-dip galvanized steel (GI) | Spangle-free or regular spangle optional |
| Thickness | 0.3 – 2.0 mm | Tolerance: ±0.02mm |
| Width | 600 – 1500 mm | Custom width available upon request |
| Zinc Coating Weight | 60 – 120 g/m² (both sides) | Z275, Z300, etc. optional |
| Top Coating | Polyester (PE) – 20–25 μm | Gloss level: 20-80% adjustable |
| Back Coating | PE or epoxy, 5–10 μm | Anti-corrosion primer |
| Color | RAL colors (blue, red, white, grey, etc.) | Custom color matching available |
| Coil Weight | 3 – 8 tons per coil | ID: 508/610mm |
Key Features and Benefits:
- Excellent Corrosion Resistance: The galvanized zinc layer (60–120 g/m²) provides a strong barrier against rust, while the polyester topcoat adds an extra layer of protection. This makes the coil ideal for humid or coastal environments.
- Superior Paint Adhesion: Our advanced chemical treatment and primer application ensure the PE coating bonds firmly to the substrate, preventing peeling, chalking, or blistering even under extreme weather conditions.
- Color Stability & UV Resistance: The polyester coating is formulated with high-quality pigments that resist fading and yellowing, maintaining the building's aesthetic appeal for years.
- Formability & Flexibility: With a thickness range of 0.3–2.0mm, the coil can be easily roll-formed, bent, or stamped into various profiles without cracking the coating. Suitable for roofing sheets, wall cladding, sandwich panels, and more.
- Wide Application Range: Used in residential, commercial, and industrial construction, as well as in home appliances (refrigerators, washing machines), furniture, and automotive components.
- Customizable Options: We offer a wide selection of colors, gloss levels, widths, and coating weights. Custom specifications are available upon request to meet your project's exact needs.
- Consistent Quality: Our production is ISO9001 certified, ensuring strict quality control from raw material inspection to final packaging. Each coil is tested for thickness, coating weight, adhesion, and color consistency.
Why Choose Hemaokang Steel?
As a newly established yet rapidly growing company, Hemaokang Steel has already achieved an annual export value of US$50–100 million, serving markets across North America, South America, Europe, Africa, Oceania, and Asia. With a team of 51–100 experienced professionals and a factory located in Liaocheng, Shandong—a major steel production hub—we ensure competitive pricing, timely delivery, and reliable after-sales support. Our ISO9001 certification guarantees that every PPGI coil meets international standards. We are not just a supplier; we are your long-term partner in steel solutions.
Frequently Asked Questions (FAQ)
-
Q: What is the difference between PPGI and ordinary galvanized steel?
A: PPGI (Pre-Painted Galvanized Iron) has an additional polyester coating on top of the galvanized layer, providing better corrosion resistance, color options, and aesthetic appeal. Ordinary galvanized steel only has a zinc coating and is typically used in environments where appearance is not critical. -
Q: Can I get a sample before placing a bulk order?
A: Yes, we offer free samples (size A4 or 100mm×100mm) for quality evaluation. The shipping cost is at your side, but we can arrange express delivery. Samples are usually ready within 3–5 working days. -
Q: What is the minimum order quantity (MOQ)?
A: Our standard MOQ is 50 tons per specification. For trial orders or special colors, we may accept 20–30 tons after discussion. Please contact our sales team for details. -
Q: How do you ensure the color consistency between batches?
A: We use a spectrophotometer to measure color difference (ΔE) and maintain a strict tolerance of ΔE ≤ 1.0. Each production batch is tested against a master sample to ensure consistency. -
Q: What is the typical lead time?
A: For standard specifications, lead time is 15–20 days after receiving deposit. For custom colors or special coating weights, it may take 20–30 days. We always keep a certain stock for fast-moving colors. -
Q: Is your product suitable for outdoor use in extreme climates?
A: Yes, our PE coating is designed to withstand UV radiation, temperature variations, and moderate humidity. For very harsh environments (e.g., marine or industrial), we recommend our PVDF or HDP coating options, which are also available upon request. -
Q: Do you provide third-party inspection or certification?
A: Yes, we can arrange SGS, BV, or other third-party inspection at the buyer's cost. Our own factory test reports are provided free of charge with each shipment. -
Q: What payment terms do you accept?
A: We accept T/T (30% deposit, 70% against copy of shipping documents) and L/C at sight. For long-term cooperation, other terms can be negotiated.
Contact Us for More Information
With our strong production capacity, strict quality control, and global distribution network, Hemaokang Steel is your trusted partner for PPGI coils. Whether you need a small trial order or a large-scale project supply, we are ready to support you. Contact us today to discuss your requirements and receive a competitive quotation. We look forward to building a successful partnership with you!
