Deqing Leixin Coating Equipment Co., Ltd., a professional manufacturer established in 2011 with an ISO9001 certified quality management system, presents our Energy Saving Vehicle Components Electrodeposition Line Uniform Anti-Rust Coating System. This advanced coating solution is designed specifically for automotive parts requiring durable, uniform anti-corrosion protection. With a factory area of 1,000-3,000 square meters and a dedicated team of 51-100 employees, we have exported over US$1 million to US$1.5 million annually to markets across North America, Europe, Asia, and Africa. Our electrodeposition line combines energy efficiency with consistent coating quality, helping you reduce operational costs while enhancing product longevity.

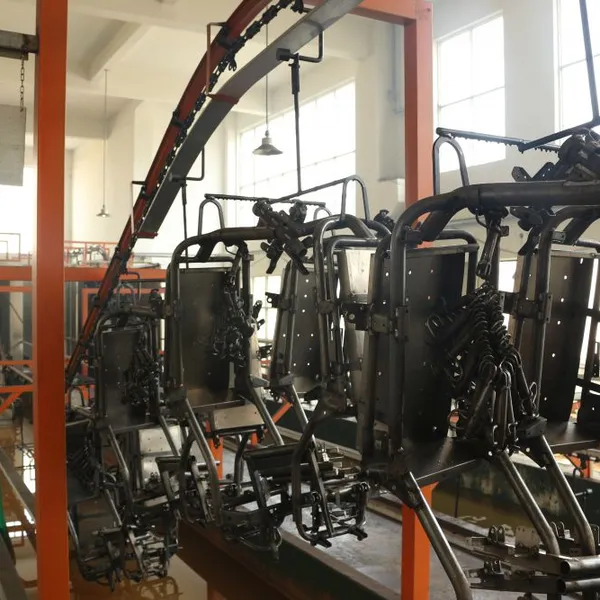

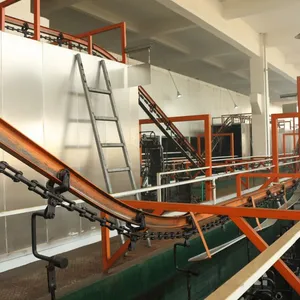

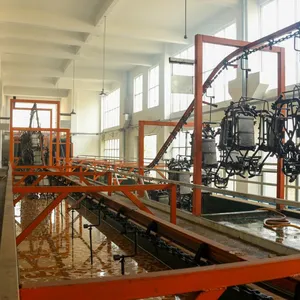

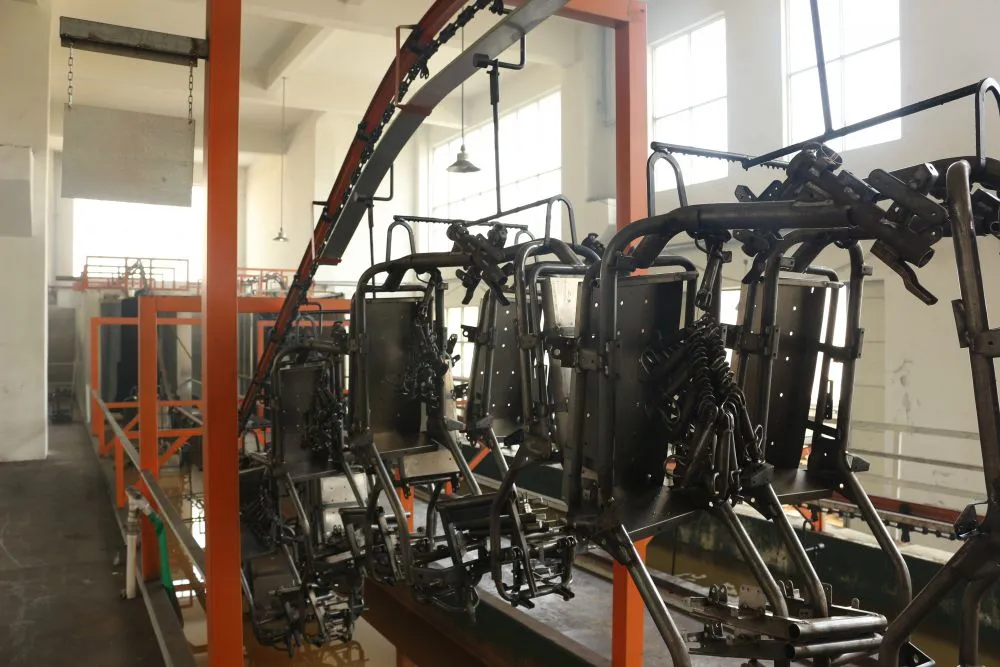

The system utilizes cathodic electrodeposition (CED) technology to deposit a uniform paint film on complex metal surfaces. It ensures complete coverage even on sharp edges, recesses, and internal cavities, which is critical for vehicle components exposed to harsh environments. The integrated energy-saving features include optimized rectifier efficiency, heat recovery from oven exhaust, and intelligent control of conveyor speed, reducing total power consumption by up to 30% compared to conventional lines. Below are key technical specifications:
| Parameter | Value |
| Coating Type | Cathodic Electrodeposition (Epoxy or Acrylic) |
| Coating Thickness | 15-35 μm (adjustable) |
| Line Speed | 0.5-3.0 m/min (adjustable) |
| Oven Temperature | 160-200°C (curing zone) |
| Power Consumption | ≤ 120 kWh/ton of parts |
| Rectifier Type | IGBT-based (high efficiency) |
| Control System | PLC + Touch Screen (Siemens or Mitsubishi) |
Product Features and Benefits:
- Energy Saving Design: Variable frequency drives on pumps and conveyor, plus heat recovery system, reduce electricity usage. This directly lowers your production cost per part.
- Uniform Anti-Rust Coating: The electrodeposition process ensures a consistent film thickness on all surfaces, including edges and blind holes. Salt spray test results exceed 500 hours (standard steel panels), providing excellent corrosion resistance.
- High Productivity: Automatic loading/unloading, programmable logic control, and continuous operation capability allow throughput of 200-500 vehicle components per day, depending on geometry.
- Environmentally Friendly: Closed-loop rinse system minimizes wastewater discharge; low-VOC paint formulations are supported. The system complies with international environmental standards.

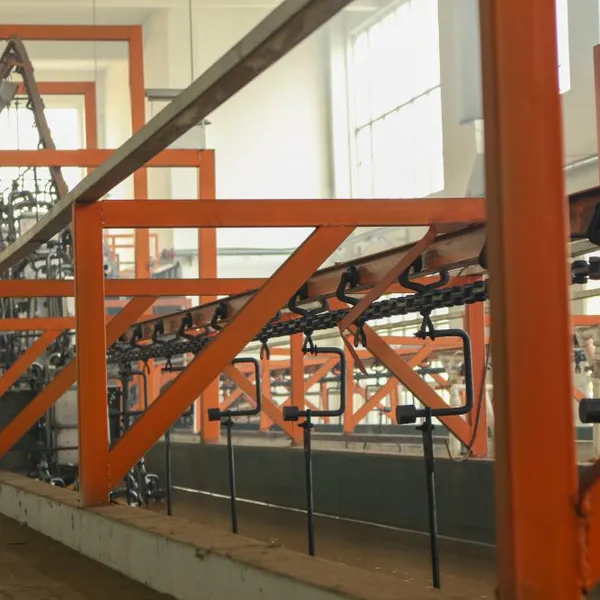

- Customizable Configuration: We offer modular design – you can choose single or multiple dip tanks, different oven lengths, and various conveyor types (power & free, overhead monorail) to match your factory layout.
- Low Maintenance: All components are industrial-grade with easy access for cleaning and replacement. Our after-sales team provides remote diagnostics and spare parts support.
Our electrodeposition line is suitable for coating a wide range of vehicle components: brake discs, calipers, suspension arms, chassis parts, engine brackets, fasteners, and more. The uniform coating not only prevents rust but also improves paint adhesion for topcoats, if required.
At Deqing Leixin, we have served clients from over 30 countries since 2011. Our annual export value of US$1-1.5 million demonstrates our capability to deliver reliable equipment. With a 1000-3000 sqm factory and 51-100 skilled workers, we ensure strict quality control from raw material inspection to final assembly. We are proud to be ISO9001 certified, and our products are shipped from Ningbo or Shanghai ports with professional packaging to avoid damage. We invite you to partner with us for a durable, energy-saving, and uniform anti-rust coating solution. Contact us today for a free consultation or quotation.
Frequently Asked Questions
-
Q: What is the typical lead time for this electrodeposition line?
A: Lead time depends on the line configuration. For a standard line, it is approximately 45-60 days after deposit. Customized solutions may require 60-90 days. -
Q: Can this line handle both small and large vehicle parts?
A: Yes, the line is designed with adjustable conveyor speed and dip tank dimensions. We can customize the tank size, rack design, and fixture to suit your part sizes. -
Q: What kind of anticorrosion performance can I expect?
A: With our standard epoxy e-coat, you can achieve over 500 hours of salt spray resistance (ASTM B117). For higher requirements, we offer acrylic or hybrid coatings that can reach 1000+ hours. -
Q: Do you provide installation and commissioning support?
A: Yes, we offer on-site installation supervision and commissioning by our experienced engineers. Remote technical support is also available 24/7. -
Q: Is the line compliant with safety regulations?
A: Absolutely. Our design follows CE and ISO standards. Safety features include emergency stops, safety interlocks, fire suppression system, and proper ventilation. We can also adapt to local regulations upon request. -
Q: What is the warranty period?
A: We provide a standard 12-month warranty from the date of commissioning, covering manufacturing defects. Extended warranty options are available. -
Q: Can I use my own paint supplier?
A: Yes, the system is compatible with most commercial cathodic e-coat paints. We can provide recommendations for qualified suppliers to ensure optimal performance. -
Q: How do you control the coating thickness uniformity?
A: Our PLC system precisely controls the rectifier voltage and current, immersion time, and bath temperature. The uniform electric field distribution design ensures thickness deviation within ±3 μm.
