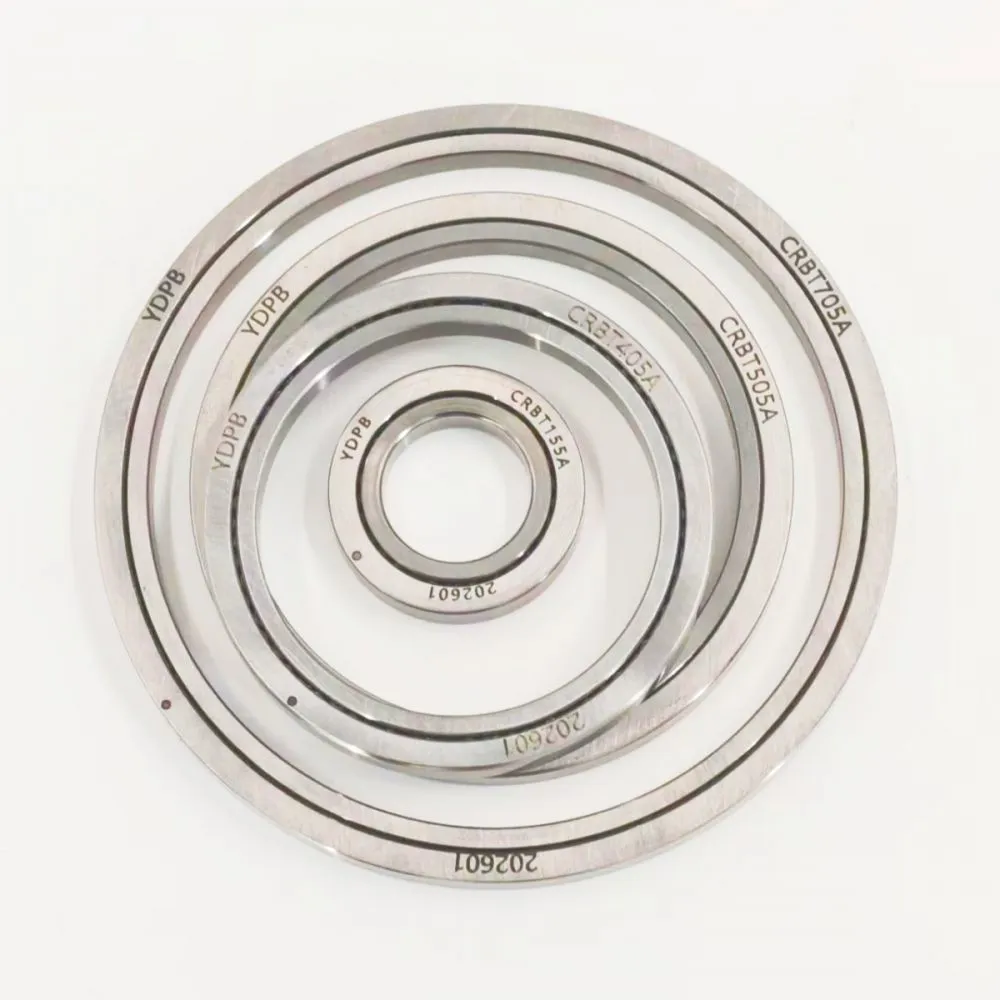

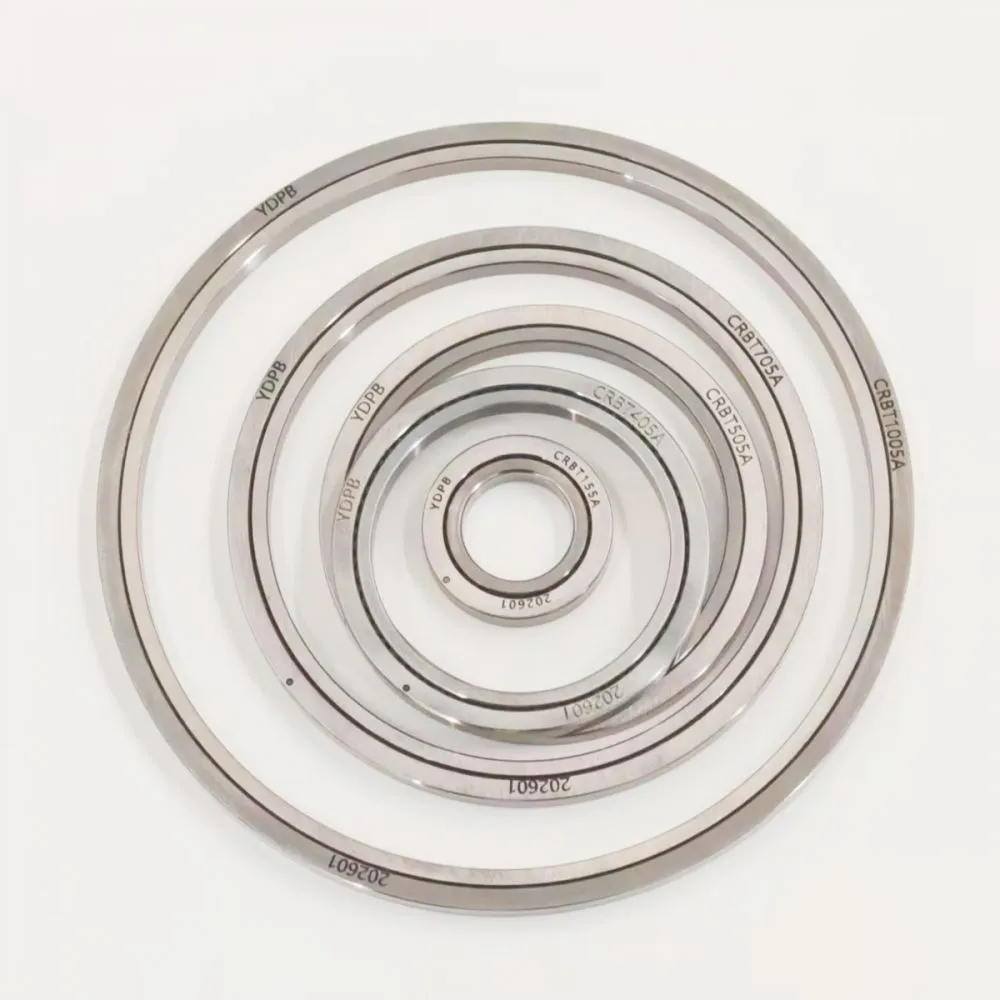

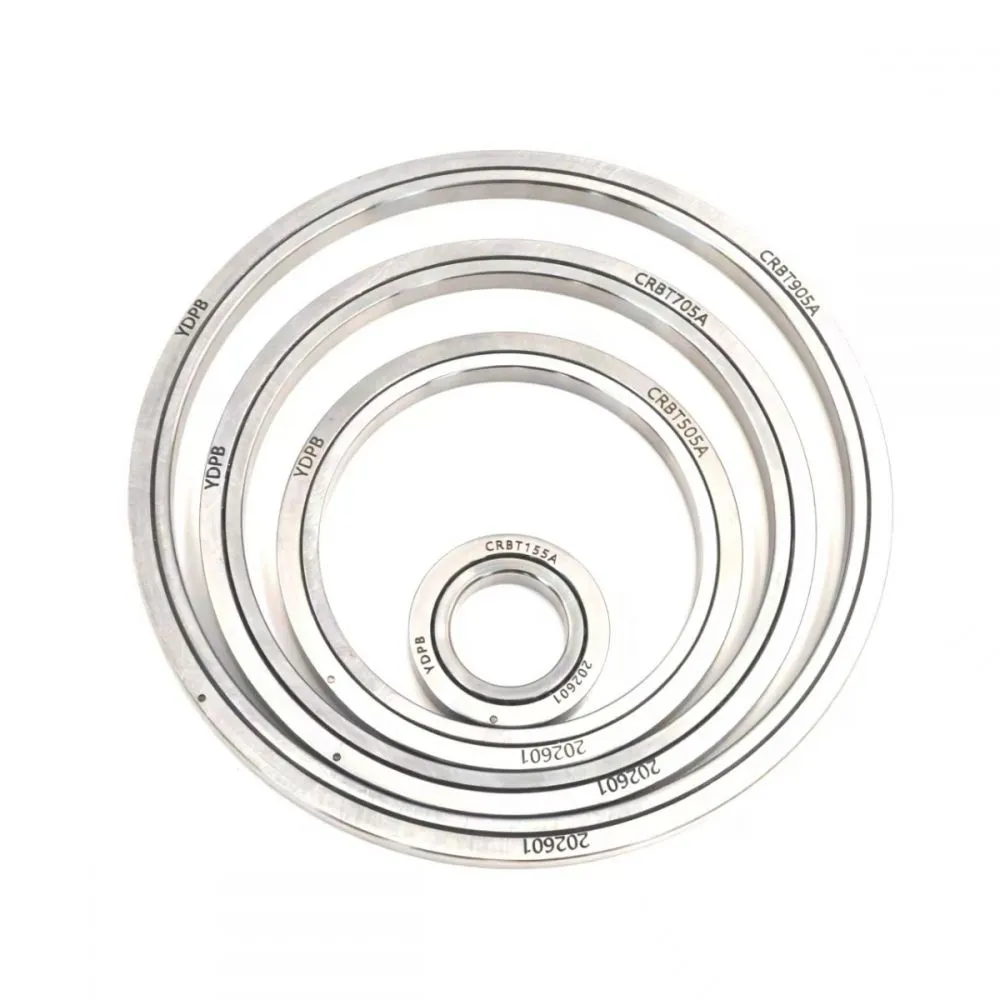

CRBT105A Thin-section crossed roller bearing
The CRBT105A series thin-wall cross roller bearing rings produced by Luoyang Yadian Mechanical Equipment Co., Ltd. have dimension of 10X21X5mm, and both the inner and outer rings of the bearing ring are integral structures. The inner diameter of the CRBT series thinwall cross roller bearing rings produced by Luoyang Yadian Mechanical ranges from 10 to 100mm. This series of products features an open structure. To meet the applications requirements of special industries, we can provide products with sealing structures, such as single-side sealing, double-side sealing, etc. For products with special size requirements or sealing needs, we also customize them according to demand. CRBT105A cross roller bearings can be used in fields such as CNC machine tools, industrial robots, service robots, collaborative robots AGVs, SCARA robots, exoskeleton robots, surgical robots, hexapod robots, quadruped robots, humanoid robots, radar communications, medical equipment, precision measuring instruments, printing and dyeing, alignment platforms, optical equipment, industrial rotary tables, hollow rotary platforms, DD motors/direct drive motors, harmonic reducers, and planetary reducers. They are matched with major universities and institutes, used in special robots, mobile radar vehicles, and national key scientific research projects to replace imports, earning high praise from customers.
Luoyang Yadian Mechanical Equipment Co., Ltd. mainly produces a series of precision bearings including turntable bearings, crossed roller bearings, crossed tapered bearings, harmonic reducer bearings, flexible bearings, RV reducer bearings, constant cross-section thin-section bearings, precision machine tool spindle bearings, and precision rotary table bearings. The bearing production covers inner diameters from Φ3mm to outer diameters of Φ2500mm, with precision grades of P5, P4, and P2; higher precision bearings can be provided upon request. The company's leading products are YRT, YRTS, YRTM, ZKLDF, and ZKLDFM series turntable bearings, as well as RB RE, RU, RA, RA-C, RAU, CRB, CRBC, CRBH, CRBS, CRBT, CRBTF, XU, XA, XI XSU, XSA, XSI, and SX series crossed cylindrical roller bearings, and JXR, XR, and Z series crossed tapered roller bearings. Meanwhile, Luoyang Yadianings can also provide CSG and SHF series harmonic reducer bearings, flexible bearings, RV reducer bearings, constant cross-section thin-section bearings, precision machine tool spindle bearings, precision rotary bearings, and non-standard customized bearings. Currently, the YDPB series products have been widely applied in fields such as CNC machine tools, industrial robots, service robots, collaborative, AGVs, SCARA robots, exoskeleton robots, surgical robots, hexapod robots, quadruped robots, humanoid robots, aviation equipment, radar communications, medical equipment, precision measuring instruments printing and dyeing equipment, alignment platforms, optical equipment, industrial rotary tables, hollow rotary platforms, DD motors/direct drive motors, harmonic reducers, and planetary reducers. They are matched with universities and research institutes, used in special robots, mobile radar vehicles, and national key scientific research projects to replace imports, earning high praise from customers
