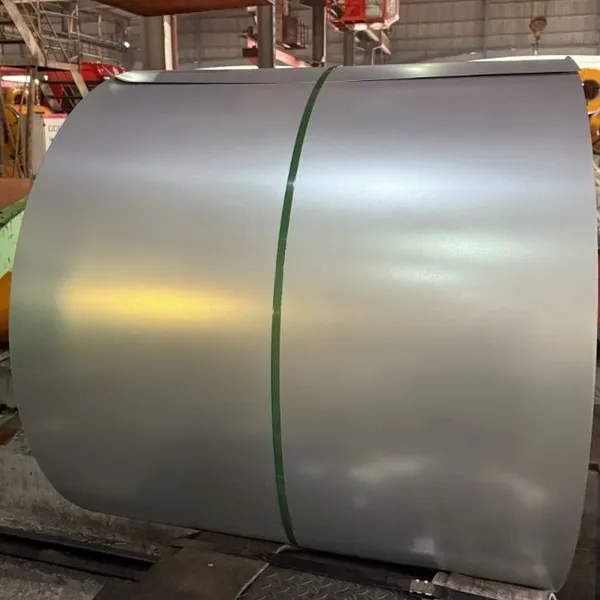

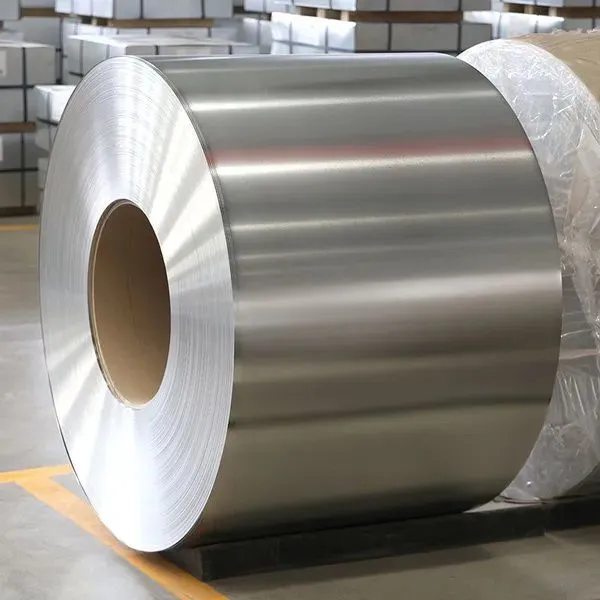

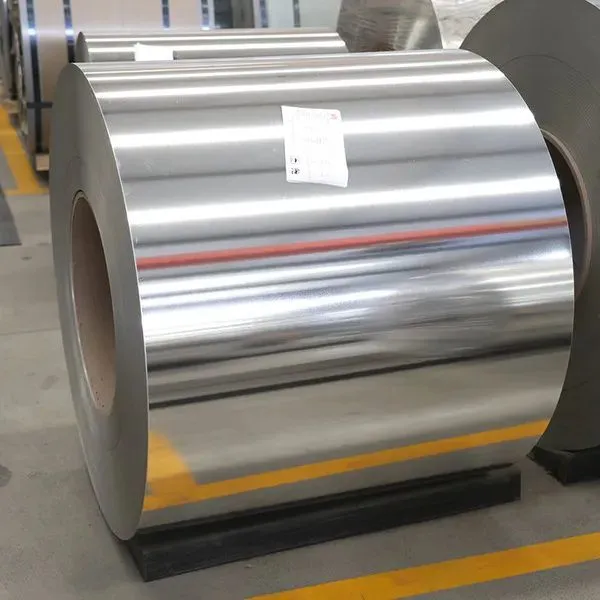

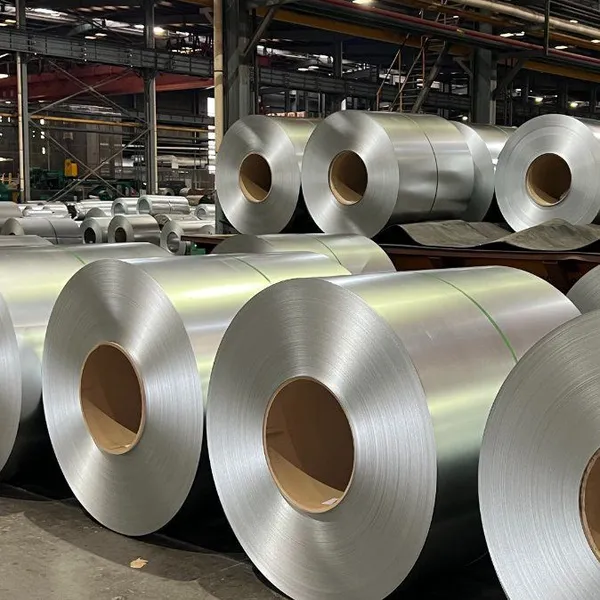

Electrolytic Tinplate Steel Coil
Tinplate steel Coil are produced tin coating with cold rolled steel use for Various tinplate Can. Witop Tinplate company Provide Tinplate, printed tinplate and TFS products
Electrolytic tinplate steel coil sheet
also called tinplate, tin coating thin steel sheet, and the English abbreviation is SPTE and ETP. tinplate meaning is cold rolled low carbon thin steel sheet in coil or steel strip coated with pure tin coating on both sides.
Tin coating plays a main and important role in preventing corrosion and rust. Electrolytic tinplate sheet have the strength and formability of steel, and have the corrosion resistance, tin solder-ability and beautiful appearance of the tin.
Electrolytic Tinplate Sheet | |
Standard |
JIS G 3303-2002, ASTM A623M-2002, DIN EN 10203-1991 |
Grade |
MR ,SPCC,SPHC,Q195, S08AL. |
Material Origin |
BAO(BAOWU) Steel |
Tin Coating |
2.0/2.0, 2.2/2.2, 2.8/2.8, 5.6/5.6, 8.4 /8.4 |
Tin Weight |
1.1G/M2-8.4G/M2 |
Surface Finish |
Bright Finish, Stone Finish, Silver Finish, Matte Finish |
Temper |
T1, T2, T2.5, T3, T4, T5, DR-8, DR-7M |
Thickness |
0.12-0.55MM |
Width |
20-1250MM |
Coil Weight |
3-5MT/Coil or Customized |
Coil Inner Diameter |
508MM or 610MM |
Package |
Standard Seaworthy Exporting Packing |
MOQ |
25MT |
Capacity |
6000MT/Month |
Transport Type |
Vessel Container, Vessel Bulk ,Railway Container,Railway Wagon |
Loading Port |
Tianjin, Qingdao, Ningbo, Shanghai and other port |
Delivery Time |
25-30 Days after Receiving the Deposit |
Terms of Trade |
EXW,FOB, CFR, CIF |
Terms of Payment |
TT and Irrevocable LC at Sight |
Application |
food and beverages, grease cans, chemical cans, and other miscellaneous cans, to provide excellent protection of the physical and chemical properties of the contents. Tinplate cans can be used to fill juice, coffee, tea, and sports drinks, as well as cola, soda, beer, and other beverages. High workability of tinplate allows for many variations in its shape, whether high, short, large, small, square, or round, which can meet the diverse needs of the beverage packaging and consumer preferences. For example, chemical cans,food cans, tea cans and oil bucket |
Product Structure & Process Flow Chart

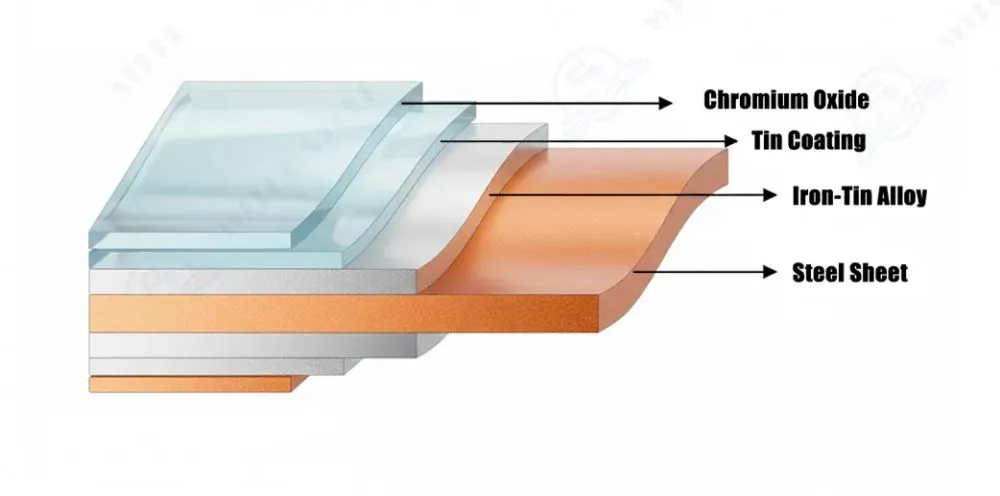

Tinplate Steel Structure
* Chromated, Oiled/non-Oiled
*Tin Coating
*Iron-Tin Layer
*Steel Sheet (Base Metal)
More Surface Treatment for Choose
1. Bright
2. Matte
3. Stone
4. Sliver

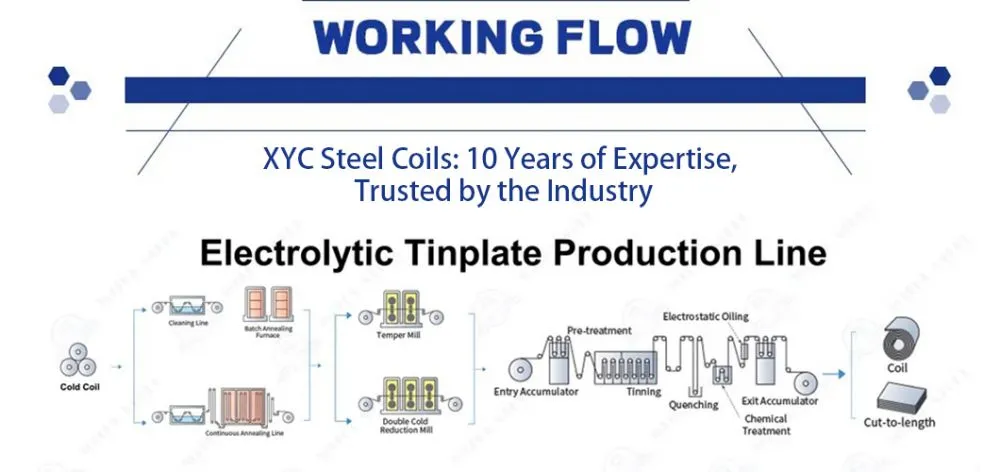

Tinplate Steel Sheet in Coil Process Flow Chart
1. Cold Coil
2. Cleaning Line
3. BA or CA Annealing Furnace
4. Temper Mill or Double Cold Reduction Mill
5. Entry Accumulator
6. Pre-treatment
8. Tin Coating
9. Quenching
10. Chemical Treatment
11. Electrostatic Oiling
12. Exit Accumulator
13. Coils or Cutting to Sheet or Shear to Strip
Product Application
Tinplate Steel Coil of Application
food and beverages, grease cans, chemical cans, and other miscellaneous cans, to provide excellent protection of the physical and chemical properties of the contents. Tinplate cans can be used to fill juice, coffee, tea, and sports drinks, as well as cola, soda, beer, and other beverages. High workability of tinplate allows for many variations in its shape, whether high, short, large, small, square, or round, which can meet the diverse needs of the beverage packaging and consumer preferences. For example, chemical cans,food cans, tea cans and oil bucket

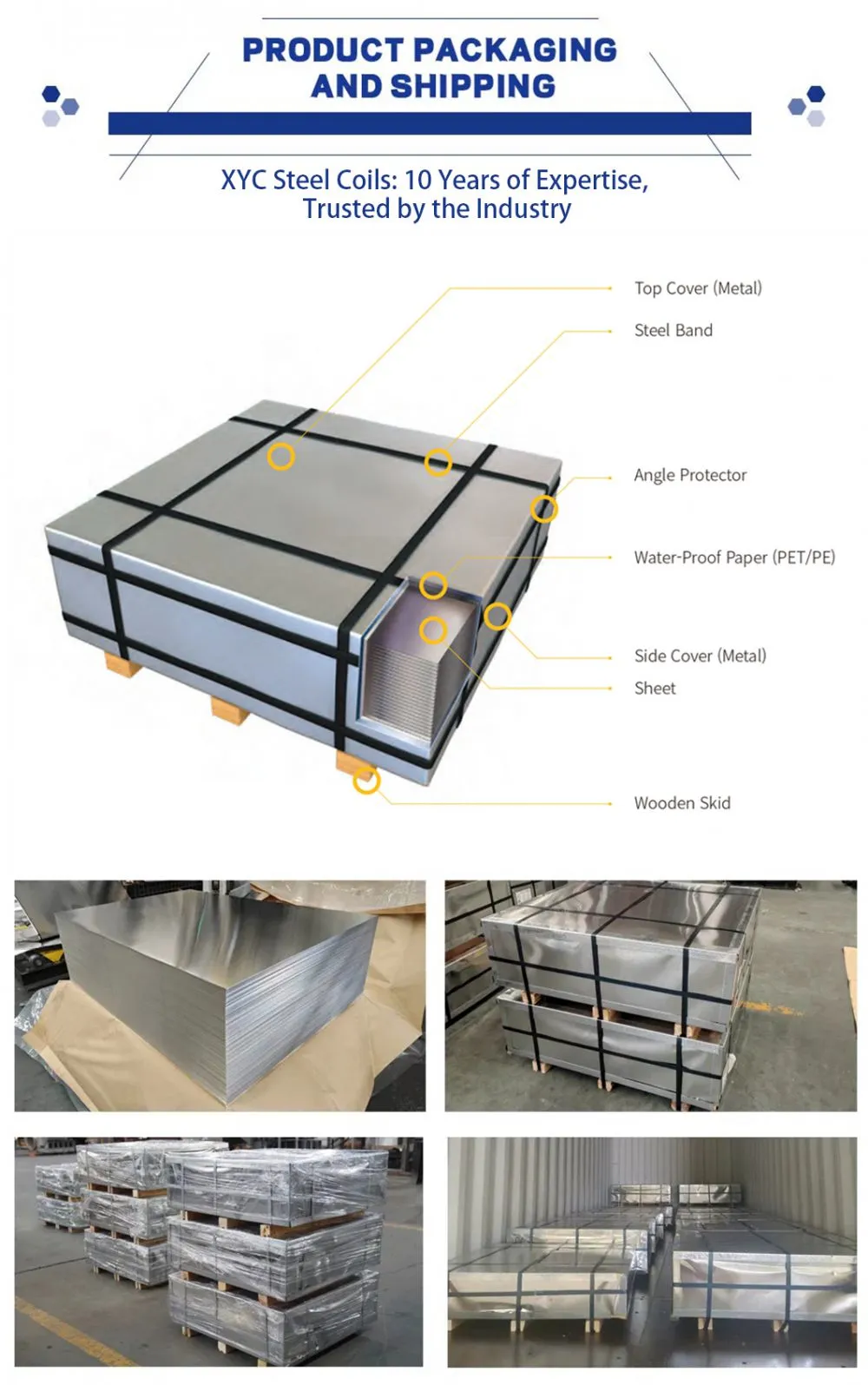

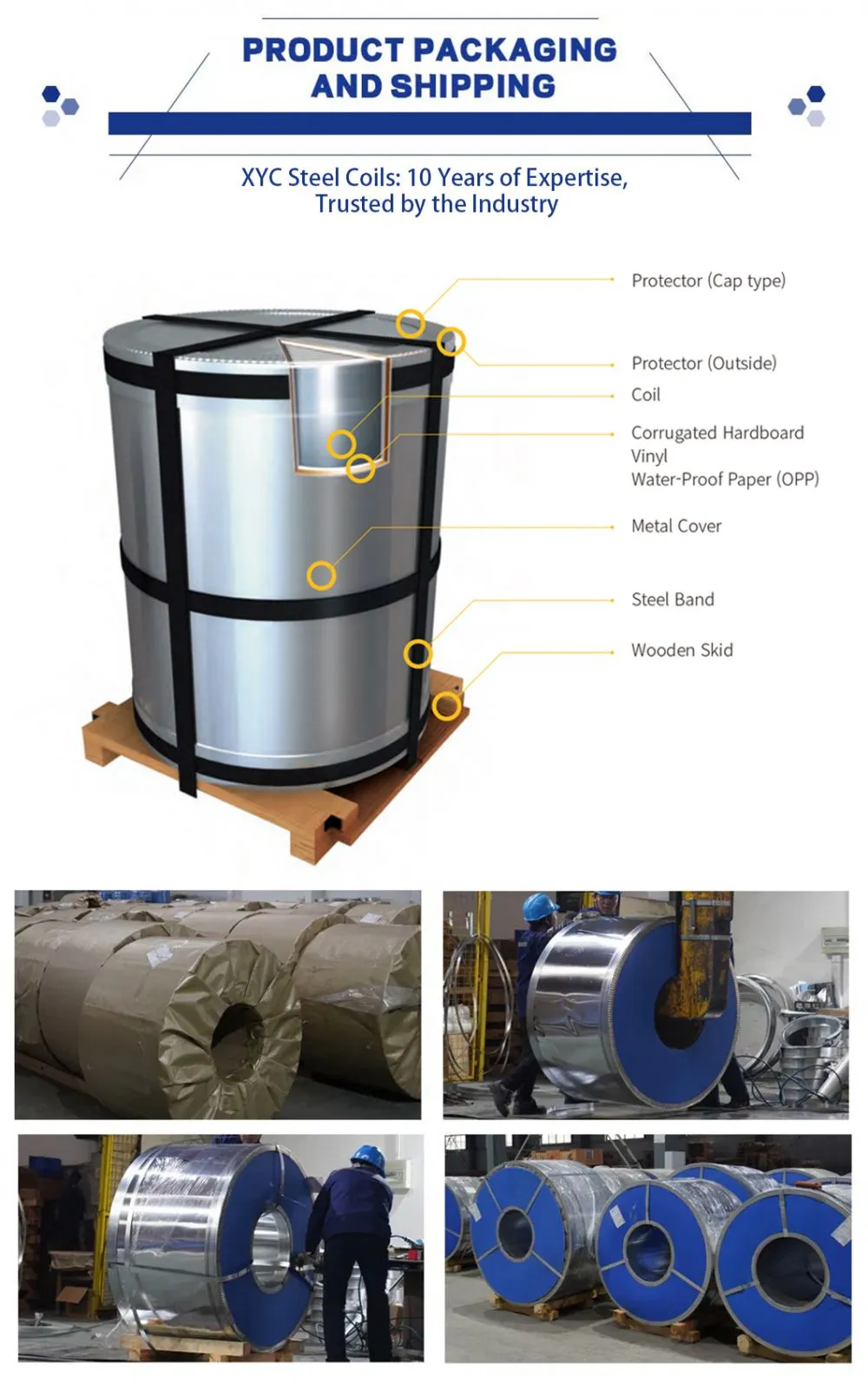

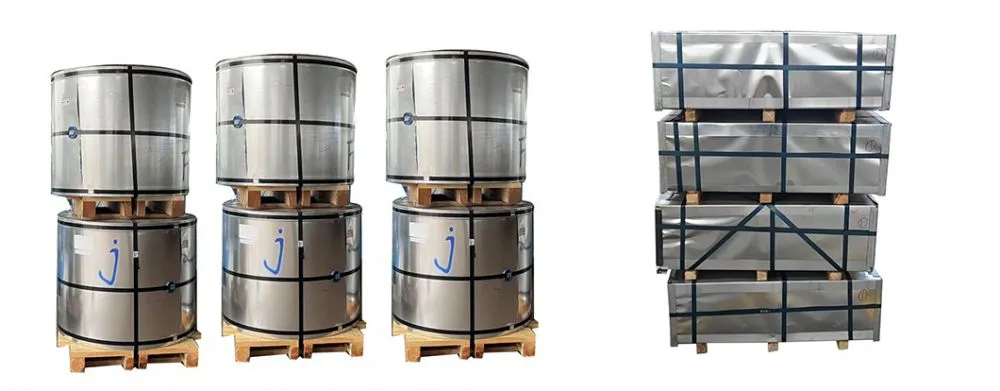

Packaging & Shipping
Exhibiton and Certificate
FAQ
FAQ: Buyer's Guide: Common Questions Answered by Xinyecheng Metal Technology
Q1: Are you a manufacturer or trading company?
A: We are a professional manufacturer of Tinplate steel coils,Stainless steel coils, and Stainless steel products with over 10 years of experience. Our factory is located in China and supports both OEM and direct export services.
Q2: What is your minimum order quantity (MOQ)?
A: Our standard MOQ is 25 tons (1 container), but we also support small trial orders for new customers.
Q3: Can you provide sample coils or cut sheets?
A: Yes, we can provide free A4-sized samples or cut sheets for testing and evaluation. Shipping costs may apply depending on location.
Q4: How do you ensure quality control?
A: Each batch undergoes strict quality inspection, including:
Coating and thickness test
Tensile strength and elongation test
T-bend and impact test
Surface and spangle inspection
We also provide mill test certificates (MTC) for every order.
Q5: What's your lead time?
A: Normal delivery time is 20–25 days after receiving the deposit. Urgent orders can be prioritized.
Q6: Do you support third-party inspection?
A: Yes. We welcome inspections by SGS, BV, TUV, or any agency appointed by the buyer.
Q7: Which markets do you serve?
A: Our main markets include Southeast Asia, the Middle East, Africa, South America, and Eastern Europe. We've served over 1,000 global buyers.
Q8: Can I visit your factory in China?
A: Absolutely! We welcome you to visit our factory. We'll provide pickup service, arrange a factory tour, and show you the production & inspection process.
Q9: What are your payment terms?
A: We accept T/T, L/C, and in some cases, DP or OA for long-term partners.
