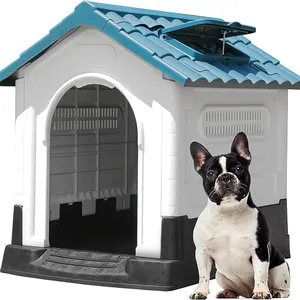

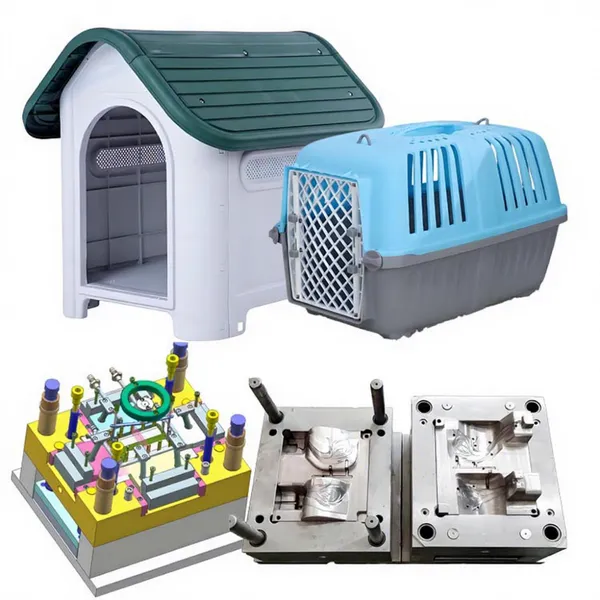

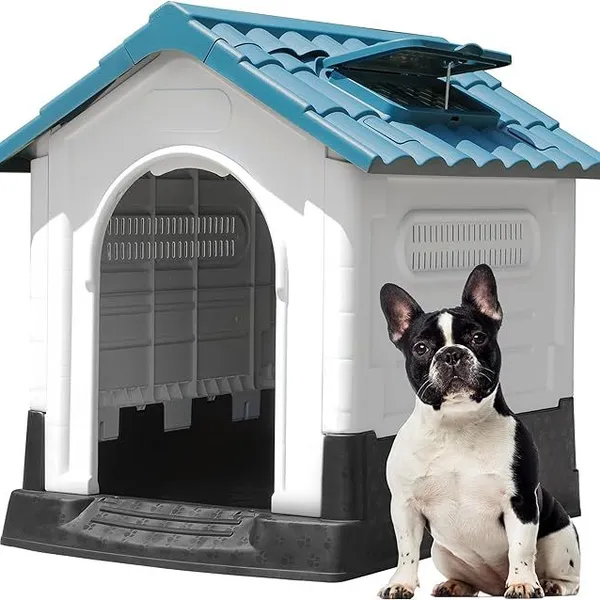

Welcome to Changzhou Hongxinyutai Precision Mold Co., Ltd. – your trusted partner for high-quality injection molds. Our Outdoor Pet Shelter Injection Mold is specifically designed for manufacturing durable, weather-resistant pet shelters using PP (Polypropylene) material with a cold runner system and robotic arm ready automation. This mold ensures consistent part quality, short cycle times, and long service life, making it an ideal solution for pet product manufacturers seeking efficiency and reliability.
With over 7 years of experience in precision mold making, we have fine-tuned our design and manufacturing processes to deliver molds that meet the demanding requirements of the injection molding industry. The cold runner design minimizes material waste and reduces maintenance, while the robotic arm interface allows seamless integration into automated production lines, boosting throughput and reducing labor costs.
Our mold is not just a tool; it is a complete production solution. From the initial concept to final testing, we ensure every detail is optimized for your specific needs. Let us help you bring your outdoor pet shelter design to life with a mold that performs day after day.
Key Features & Technical Specifications
- Material Compatibility: Specifically engineered for PP (Polypropylene), offering excellent UV resistance, impact strength, and low moisture absorption – perfect for outdoor use.
- Cold Runner System: Avoids material degradation common in hot runners; reduced scrap and easier color changes. The runner design is optimized for balanced filling and minimal pressure drop.
- Robotic Arm Ready: Equipped with standard interface plates and connector patterns to accept end-of-arm tooling (EOAT) for automated part removal, insert loading, or assembly operations.
- Precision Machining: All core and cavity components are CNC machined from high-quality tool steel (e.g., 2311, 2738 or similar) with hardness up to HRC 48-52, ensuring long mold life and fine surface finish.
- Cooling System Design: Conformal cooling channels provide uniform temperature distribution, reducing cycle time by up to 20% compared to conventional straight drilling.
- Ejection System: Hydraulic or mechanical ejection options available; designed to handle large parts (typical pet shelter dimensions: 500–800 mm length) without distortion.
- Customizable Cavity Count: Single cavity, family mold, or multi-cavity designs available upon request to match your production volume.
- TS16969 Certified Manufacturing: Our factory operates under TS16969 quality management standards, ensuring consistent process control and traceability.
| Parameter | Range / Details |
|---|---|
| Mold Base Standard | LKM, HASCO, DME or customized |
| Steel Grade (Cavity/Core) | S136, 2311, 2738, NAK80 (optional) |
| Runner Type | Cold runner (fully balanced design) |
| Gate Type | Edge gate, tunnel gate, or submarine gate |
| Cycle Time Estimate | 30–45 seconds (depending on part geometry) |
| Mold Weight | 1,500 – 5,000 kg (customizable) |
| Robotic Interface | Standard bolt pattern and pneumatic/electrical connections |
| Warranty | 1 year or 500,000 cycles, whichever comes first |
Benefits for Your Production
- Reduced Scrap: Cold runner design produces clean parts without the need for hot runner maintenance, minimizing start-up waste.
- Faster Time to Market: Our experienced team can deliver a prototype mold within 25–35 working days, and production molds within 40–55 days, depending on complexity.
- Lower Operating Cost: Robotic arm compatibility allows unattended operation, saving on labor. The efficient cooling system also reduces energy consumption.
- Superior Surface Finish: High polish or texture (e.g., MT-11010, MT-11020) available to match the aesthetic requirements of pet shelters, including wood grain or stone textures.
- Scalability: We can supply molds for small runs (1+1) or high-volume production (2+2 or 4+4 cavities) – all with the same robust construction.
Trusted Partner – Why Choose Hongxinyutai?
Since our establishment in 2017, Changzhou Hongxinyutai Precision Mold Co., Ltd. has grown into a modern facility spanning 1,000–3,000 square meters with a dedicated team of 51–100 professionals. We serve clients across North America, South America, Europe, Southeast Asia, Africa, Oceania, and the Middle East – a testament to our global reputation for quality and on-time delivery.
Our TS16969 certification reflects our commitment to rigorous quality control, from incoming material inspection to final mold tryout. Every mold undergoes a thorough FAT (Factory Acceptance Test) with sampling, dimensional measurement, and cycle simulation before shipment.
We understand that a mold is a long-term investment. That's why we offer comprehensive after-sales support including spare parts, maintenance guidance, and remote troubleshooting. Many of our customers have placed repeat orders for additional cavities or complementary molds, proving their satisfaction with our performance.
Ready to start your outdoor pet shelter project? Contact us today for a detailed quotation and free technical consultation. Our engineers will work closely with your team to design a mold that meets your exact specifications – with the cold runner, robotic arm interface, and PP expertise that set us apart.
Frequently Asked Questions (FAQ)
-
Q: What is the typical lead time for this mold?
A: Lead time is approximately 35–55 working days after order confirmation and design approval. We can offer expedited delivery for urgent projects upon request. -
Q: Can the mold be adapted for other materials besides PP?
A: Yes, with minor modifications the mold can also run PE, ABS, or nylon. However, the cooling and gate design are optimized for PP; please discuss your material requirements with our engineers. -
Q: What robotic arm interface do you support?
A: We can provide standard interfaces for major robot brands such as Fanuc, ABB, KUKA, Yaskawa, etc. Custom adapters are also available. -
Q: Do you provide mold tryout and samples?
A: Absolutely. We offer factory trial runs and can ship molded samples for your approval before mass production of the mold. Trial reports are included. -
Q: What warranty and after-sales service do you offer?
A: We provide a 12-month warranty covering defects in material and workmanship. We also supply spare parts (ejector pins, springs, etc.) and offer technical support via email or video call. -
Q: Is the mold designed for a specific part weight or thickness?
A: The mold can be customized to produce pet shelter walls with thicknesses from 1.5 mm to 4.0 mm. Actual part weight will depend on the design; we optimize gate and runner dimensions accordingly. -
Q: How does the cold runner system handle color changes?
A: Cold runners are generally easier to clean than hot runners. For color changes, simply purge the barrel and replace the runner material; we recommend using a runner shut-off nozzle for quick swaps. -
Q: Do you offer molds with multiple cavities for high volume?
A: Yes, we can supply 2-cavity, 4-cavity, or even 6-cavity molds based on your production needs. The cold runner layout is designed to ensure balanced filling across all cavities.
