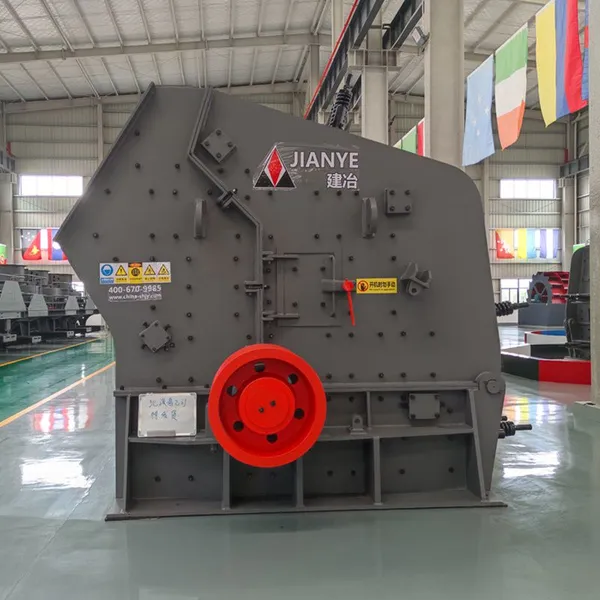

Help CenterPF-1515 Large Impact Crusher for High Capacity Limestone Crushing and Construction Material Processing
Product Spotlights
Hydraulic Adjustment: Equipped with hydraulic adjustment device for convenient crushing gap adjustment.
Durable High Chromium Blow Bar: Standard configuration includes high chromium blow bars for extended wear resistance.
Customizable Specifications: Equipment specifications can be customized according to specific customer requirements.
Related Products
-
CI5X1520 High Efficiency Impact Crusher for Aggregate Production Limestone and Quarry Crushing PlantNegotiableMOQ: 1 Unit -
CI5X1620 Heavy Duty Impact Crusher for Large Scale Aggregate Crushing and Mining Material ProcessingNegotiableMOQ: 1 Unit
-
PF-1210 Impact Crusher Machine for Limestone Aggregate and Quarry Stone CrushingNegotiableMOQ: 1 Unit
-
PF-1214 Primary Impact Crusher for Limestone Granite Concrete Recycling and Aggregate ProductionNegotiableMOQ: 1 Unit
-
PF-1315 Heavy Duty Impact Crusher for Quarry Stone Crushing and Aggregate Production PlantNegotiableMOQ: 1 Unit
PF Impact Crusher
Production capacity: 5-800t/h—High crushing efficiency, strong impact force, uniform finished particle size
Input size: ≤1020mm—Equipment of different specifications can be customized according to customer requirements.
Detailed Introduction:
Impact crusher is an equipment with the advantages of simple structure, high crushing ratio, low energy consumption, high output, and cubic shape after material crushing. It is mainly used in industrial sectors such as mining, cement, construction, refractory materials, coal, glass, etc., for crushing various materials with medium hardness, such as limestone, clinker, slag, coke, coal, etc.

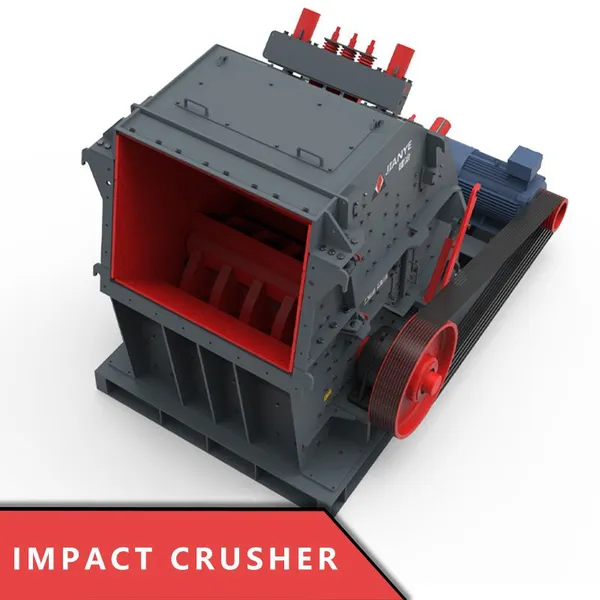

The impact crusher is composed of 10 key components with clear division of labor: the upper rack (supports the upper crushing structure) is equipped with a hydraulic adjustment device for convenient crushing gap adjustment and a rack lining plate to prevent wear, while the impact frame carrying the impact lining plate is matched with the blow bar (the core crushing part that hits materials) to realize material crushing; the rotor, which drives the blow bar to rotate at high speed, is connected with the main shaft pulley that transmits power, and the lower rack bears the main load of the equipment and connects various components, with a hydraulic lifting device designed to facilitate the maintenance of internal parts.
Application Areas
The working principle of impact crusher mainly utilizes the principle of crushing materials with impact energy. When the machine is in operation, the stones directly fall into the high-speed rotating turntable from the upper part of the machine, and the rotor rotates at high speed under the drive of the electric motor. The material entering from the feeding port collides with the plate hammer on the rotor, and under the action of high-speed centrifugal force, it collides with another part of the flying stones that are separated around the rotary table in an umbrella shape, resulting in high-speed collision and high-density crushing. The material is crushed by the high-speed impact of the plate hammer, and the crushed material is then counterattacked onto the lining plate and crushed again. After hitting each other, the stones will form eddy currents between the turntable and the casing, causing multiple impacts, friction, and crushing.
Technical Parameters
Company Introduction
Shanghai Jianye Heavy Industry Co., Ltd. was established in 2006 and is engaged in theinnovation and manufacturing of complete sets of crushing, screening, and grindingequipment, We provide customized solutions for the resource recycling and reuse ofhighways, railways, hydro-power, and construction waste. Our products include sandand gravel production equipment, industrial mills, screening and washing equipmentand mobile crushing stations, which are widely used in engineering projects such as sand and gravel aggregate processing, mining, construction waste resource utilizationand industrial powder production.With the slogan of "Harmonious Take-off, CreatingJianye", the people of Jianye adhere to the fundamental principles of enterprise survivawhich are mature technology, excellent quality, reasonable price, and thoughtful serviceand take customer satisfaction as our goal.
Excellence quality product and perfect service can help you achive preconcerted aim.
Your succeed is ours, hope cooperate profitly and develop each other.
Pre-sale:
1. Guide our customers to deploy the most useful equipment item according to theirs requiryment.2. Provide technical date, including equipment bil, lavout, base specification and installation picture to consult
3. Design and manufacture product according to the customers'special requestment.
4, Dispatch the technical person to reach the locale to lavout field, desian the best installtion flow and scheme to consult for free
Sale:
1.Product according to the standard of technology strictly
2.Experiment the machine by the operating regulate.
3. Verify the product before leaving factory strictly
4. Organize shipping by the contract in time.
After-sales:
1. Dispatch special worker after service to arrive locale to guide the user to install and debug, experiment circulate, rain operating personsfor free.
2. Guarantee of repal,replacement and refund of substandard products,the period of guarantee is 1 year(except abrasion in norma, wearingparts, the damaged parts by misoperation) lf the equipment appears fault during guarantee, our company woulde to reach the locale after takethe user's telephone, remove the fault, ensure the user's produce innormal.
FAQ:
1. How long is the warranty of your equipment? Do you supply spare parts?
Our standard warranty period is one year, and we do indeed supply spare parts to ensure uninterrupted operation.
2. Do you provide after-sale services?
Absolutely. Our dedicated and professional after-sales team is committed to promptly resolving any issues you may encounter.
3. Do you provide equipment operation training?
Absolutely! We offer the expertise of our professional engineers who are ready to travel to your site for seamless equipment installation, precise adjustments, and comprehensive operation training. Our team is fully equipped with passports to ensure a swift response to your needs.
4. Are you a trading company or manufacturer?
We proudly operate as a factory. Our esteemed company, Shanghai Clirik Machinery, stands as a distinguished manufacturer specializing in cutting-edge mining equipment.
5. How long is your delivery time?
For your convenience, if the products are readily available in our stock, delivery typically takes only 10-15 days. Or, should the products require manufacturing, anticipate a delivery timeline of 15-20 days, contingent on the order quantity.
6. If I need a complete grinding production line, can you help us to build it?
Indeed, we are well-equipped to assist in establishing a comprehensive production line, offering you tailored and expert advice. With numerous successful mining projects accomplished both in China and internationally, our experience is at your service.
Warm Tips
In order to provide you with the best experience service,
please provide your detailed requirements, we will do our best to quote you a comprehensive plan and drawings!
Your satisfaction is our core value.
Punctuality and integrity are trustworthy, and quality and integrity are our top priorities.
We eagerly await your inquiries and the opportunity to serve you!
