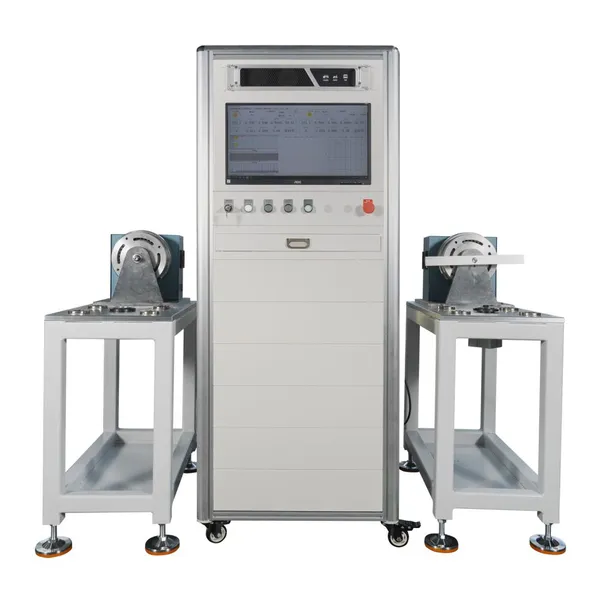

The stepper motor comprehensive test bench is a specialised performance testing device developed for various types of stepper motors, and is widely compatible with two-phase, three-phase and five-phase stepper motors, closed-loop stepper motors, waterproof stepper motors and other categories. The system is tailored to the operational characteristics of stepper motors—namely low-speed high torque, angular positioning and pulse response—and has been specifically optimised for low-speed sampling and the acquisition of minute torque values, enabling it to accurately replicate real-world operating conditions such as motor start-stop cycles, positioning and constant-speed operation. The equipment is suitable for scenarios including factory quality inspection, calibration during new product development, process optimisation validation and batch quality control for stepper motor manufacturers, and serves as standardised testing support equipment for the automation control components industry.
Core test items:
Electrical performance testing: Supports the testing of parameters such as DC resistance of motor windings, insulation resistance, power frequency withstand voltage, operating current, input power, output power and operating efficiency, effectively identifying issues such as winding manufacturing defects, poor insulation and abnormal electrical losses.
Mechanical performance testing: Tests core parameters such as static torque, holding torque, rated torque, stall torque, no-load speed, full-load speed and speed fluctuation, verifying the motor’s ability to operate under load and the stability of its mechanical output.
Positioning Control Performance Testing: Precisely measures stepper motor step accuracy, repeatability, step loss deviation and pulse response characteristics, verifying the control stability of motor start/stop, forward/reverse rotation and precise positioning, and is suitable for quality inspection in precision transmission applications.
Dynamic Response Performance Testing: Tests acceleration/deceleration response, step response and load switching dynamics, capturing parameter changes during motor operating condition transitions to provide data support for optimising motor drive algorithms and structural improvements.
Temperature Rise and Durability Testing: Supports long-term full-load and variable-load cyclic operation testing, with real-time monitoring of temperature rise in the motor housing and windings to verify the motor’s thermal stability and operational reliability during continuous operation.
Data Curve Generation: The system automatically generates characteristic curves such as speed-torque, efficiency-load and current-load, providing an intuitive overview of the motor’s performance across the entire operating range to meet the requirements of R&D data analysis and type testing.
Key Product Advantages:
1. Broad compatibility, covering all categories of stepper motors
The equipment is compatible with standard stepper motors of various specifications, including 42, 57, 86, 110 and 130, and supports different types such as open-loop, closed-loop, waterproof and geared stepper motors, meeting motor testing requirements across multiple industries including automation equipment, smart home systems and industrial control drives.
2. Stable low-speed data acquisition, tailored to stepper motor characteristics
Sampling algorithms have been optimised to address the operational characteristics of stepper motors, including low-speed operation, intermittent start-stop cycles and precise positioning. This enables the accurate capture of minute torque fluctuations, step errors and missed steps at low speeds, resolving the issue of unstable low-speed sampling data encountered with conventional test equipment.
3. Automated testing, suited to mass production quality inspection cycles
Utilising a fully automated control mode comprising an industrial PC and PLC, a complete set of performance tests can be carried out with a single connection. The system automatically performs operational loading, data acquisition, result evaluation, data storage and report export, reducing manual intervention, enhancing batch testing efficiency and supporting standardised quality inspection on production lines.
4. Stable testing accuracy and good data repeatability
Equipped with high-precision torque sensors, high-speed synchronous data acquisition cards and specialised power analysis modules, combined with shielded cabling and industrial anti-interference design, the system effectively resists electromagnetic interference in the workshop. Test data exhibits high consistency, meeting the data standards for factory acceptance testing and R&D trials.
5. Adjustable structure for convenient assembly, disassembly and commissioning

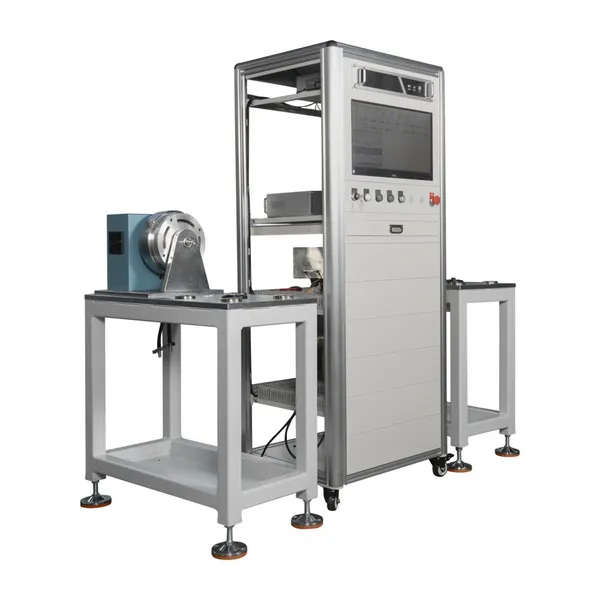

The test rig features a high-strength precision base, paired with an adjustable T-slot mounting structure and a centring adjustment base. This allows for rapid adaptation to motor fixtures of different sizes, with convenient coaxiality adjustment, effectively minimising the impact of mechanical losses on test accuracy.
6. Full data traceability
The system supports product number entry, automatic archiving of test data, and the retrieval and comparative analysis of historical data. Report templates can be customised to suit various use cases, including enterprise quality ledger management, batch traceability and factory audits.
Applications:
This equipment is widely used by stepper motor manufacturers, industrial control and automation component firms, research laboratories, and electromechanical research institutions at universities. It is suitable for scenarios such as full outgoing inspection of finished two-phase, three-phase and five-phase stepper motors, closed-loop stepper motors and geared stepper motors; batch sampling inspections; performance calibration of new products; driver algorithm validation; production process optimisation; and reliability and endurance testing. It is designed for quality control of motors used in industrial control equipment, smart machinery and precision transmission equipment.
Support Services:
The equipment can be customised to meet specific motor specifications, test conditions and corporate quality control standards. The manufacturer offers on-site installation and commissioning, hands-on operational training and the provision of technical documentation. Long-term after-sales technical support and maintenance services are provided for the entire unit, assisting enterprises in establishing a standardised and regulated stepper motor performance testing system to ensure consistent product quality upon dispatch.
