Help CenterLEO Milk Storage Tank
Related Products
Product Introduction
This vertical cylindrical sealed large-volume milk storage tank features outstanding thermal insulation performance. It is essential equipment for medium and large manufacturers producing liquid milk and milk powder.
1. Structure & Design
Vertical cone top + cone bottom with base frame + ice water cooling jacket
2. Functions & Advantages
1. Material Configuration
The silo consists of tank body, agitator, main manhole, maintenance manhole, breathing valve, internal CIP cleaning system and insulation layer, transition silo. All parts (motors and insulation excluded) are made of AISI 304(2B) stainless steel, anti-corrosion and easy to clean. The top and bottom heads adopt conical design, pressure-resistant and easy to discharge materials.
2. Stainless Steel Thickness Standard
• Tank shell: 1.5mm
• Bottom flange: 16mm
• Root section: 6mm
• Upper & middle section: 3mm
• Outer cladding: 1.5mm
3. Agitator System
Single-layer blade structure with 45° angle between blade surface and rotating plane. Equipped with mechanical seal to prevent internal liquid leakage.
4. Indoor & Outdoor Connection Design
The silo is installed outdoors and connected to indoor workshops via a transition silo. Material pipelines and cleaning pipelines are connected through the transition silo. Manholes, agitators and temperature gauges face the transition silo, and overflow pipes discharge inside the transition silo for convenient observation.
5. Efficient Insulation Layer
100mm thick polyurethane foaming thermal insulation layer. Outer wall of insulation layer is fully welded with stainless steel plates, beautiful appearance and rainproof. Temperature difference within the tank ≤ 2°C within 24 hours.
6. Maintenance Access Ladder & Platform

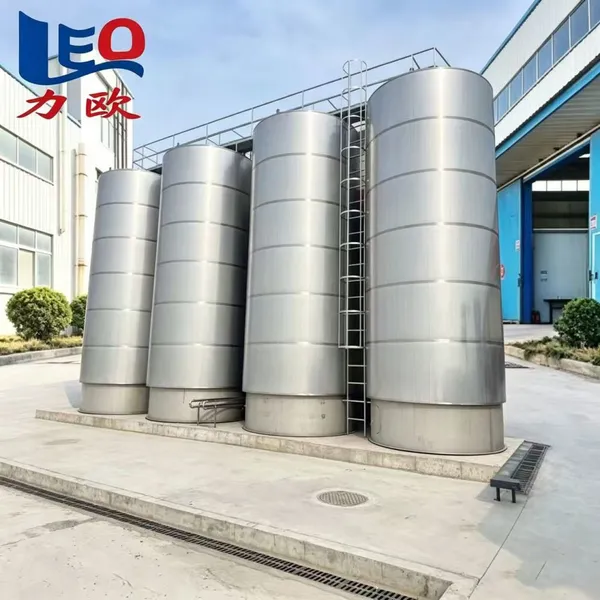

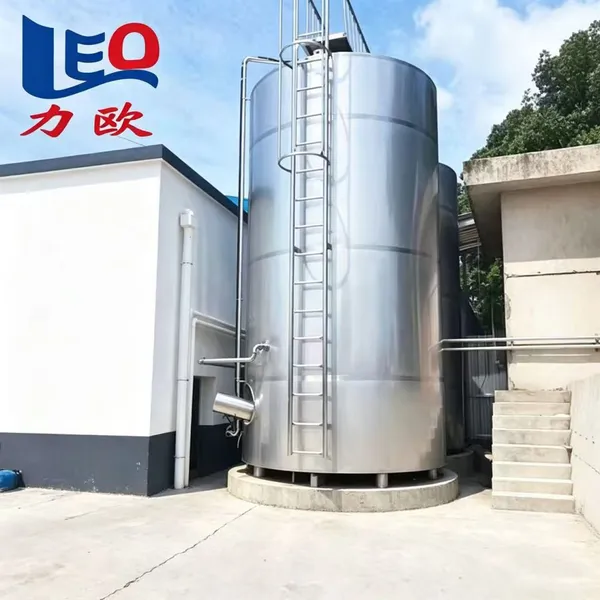

Equipped with independent access ladder; multiple silos can share a unified ladder and maintenance platform for convenient inspection and overhaul.
7. Intelligent Control System
• Interlock Agitation Control: Supports intermittent or continuous stirring when liquid level meets startup requirements. Agitator cannot be activated at low liquid level to protect mechanical seal.
• Real-time Liquid Level Display (E+H sensor): Continuously displays milk storage volume inside the tank for direct visual monitoring.
• Independent PLC CIP Cleaning System: Complete set including control cabinet, cleaning tank and detergent feeding system. Touch screen simulates full cleaning workflow, automatically cleans silos and matched pipelines.
3. Installation & Operation Instructions
1. The tank has large volume and heavy load, which requires specially designed load-bearing concrete foundation.
2. Remove all internal and external protective films and fully clean the tank before installation.
3. The top is reserved with beer supply port for dairy factory feeding.
4. Automatic mechanical breathing valve on top: opens automatically when internal pressure exceeds set value to protect tank safety and maintain internal sanitation. Regular inspection is required to avoid tank wall deformation caused by blocked breathing valve and pressure difference.
5. Do not start the agitator when the tank is empty or liquid level is below agitator position, to avoid damage to mechanical seal.
