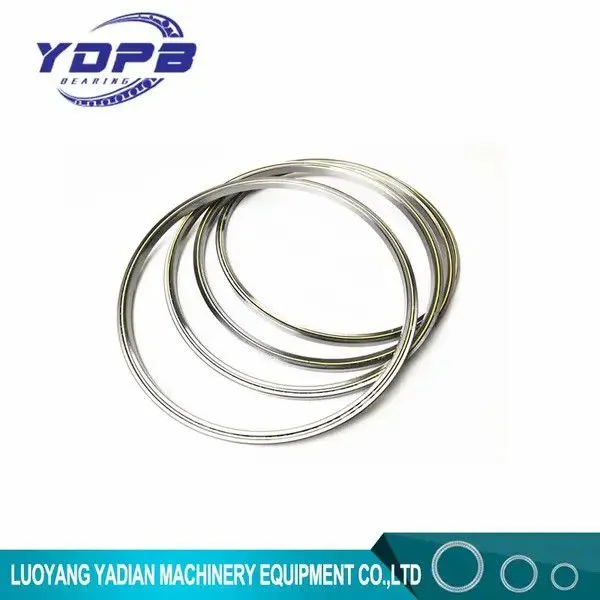

KA025XP0 Type X Four Point Contact Bearing
KA025XP0 four point contact type slim section thin-walled ball bearing belongs to the KA series of open thin-walled bearings. Its core feature is a constant cross-sectional size, which can greatly save installation space and overall weight. The inner diameter is 63.5mm, the outer diameter is 76.2mm, and the width is 6.35mm. The radial section maintains an equal width of 6.35mm, and the overall weight is only 0.054kg. It can withstand radial, axial, and overturning moment loads simultaneously. Compared with two sets of angular contact ball bearings, it occupies less axial space and has the advantages of low friction, high rigidity, and high operating accuracy. The material can be GCr15 bearing steel or stainless steel, and supports customization of different precision levels. Widely used in industrial robot joints, it is also suitable for aerospace, precision machining equipment, rail transportation and other scenarios that require strict installation space and lightweight requirements.
| Name | Thin Section Bearings |
| Series | KA series |
| Brand | YDPB |
| Model | YDKA025XP0 |
| Equivalent model | KA025XP0/CSXA025/SA025XP0/KXA025 |
| Dimensions (in) | 2.5X3X0.25 |
| Ring Material | GCr15 |
| Cage Material | Brass cage、PA12、Nylon |
| Radial Static | 3680N |
| Radial Dynamic | 2590N |
| Thrust Static | 9290N |
| Thrust Dynamic | 4040N |
| Sealed | According to requirement |
| Weight | 0.054KG |
| Design Structure | Balls |
| Precision | ABEC 1F、ABEC 3F、ABEC 5F、ABEC 7F |
Application：
| •Aerospace and astronomy instrumentation |
| • Fixturing and workholding equipment |
| • Food processing equipment |
| • Glassworking equipment |
| • Index and rotary tables |
| • Packaging equipment |
| • Machine tools |
| • Medical devices |
| • Optical scanning equipment |
| • Tire making equipment |
| • Radar, satellite and |
| •Communications equipment |
| • Robotics |
| • Textile machinery |
| • Tube and pipe cutting machines |
| • Semiconductor manufacturing equipment |
| • Sorting equipment |
Luoyang Yadian Machinery Equipment Co., Ltd. is a comprehensive enterprise specializing in the R&D, production, and sales of precision bearings. With deep expertise in the precision bearing manufacturing sector, its products are widely applied in high-end CNC machine tools, industrial robots, humanoid robots, aerospace and defense, semiconductors, and medical equipment.Luoyang Yadian Machinery Equipment Co., Ltd. specializes in the R&D and production of precision rotary table bearings, crossed roller bearings, crossed tapered roller bearings, and thin-section bearings. We also manufacture precision angular contact ball bearings, as well as specialized bearings for harmonic reducers in humanoid and industrial robots (including flexible bearings) and customized non-standard bearings. Our product sizes range from Φ3mm to Φ2500mm, meeting the customized matching needs of various industries and operating conditions.The company’s main products include YRT, YRTS, YRTM, and ZKLDF series rotary table bearings; RB, RE, RU, RA, RA-C, RAU, CRB, CRBC, CRBH, CRBS, CRBT, CRBTF, XU, XSU, and SX series crossed roller bearings; XR, JXR, and Z series crossed tapered roller bearings; CSF (CSG), SHF (SHG), flexible bearings, and RV series reducer bearings; KA, KB, KC, KD, KF, KG, JA, JB, JU, and JG series thin-section bearings; as well as precision machine tool spindle bearings and customized non-standard bearings.The company’s core advantages lie in its high precision, high rigidity, high stability, excellent quality at competitive prices, and flexible customization, providing professional matching services to numerous clients both at home and abroad. Our products are widely used in high-end CNC machine tools, rotary tables, industrial robots and joints, humanoid robots and joints, aerospace and defense, medical equipment, as well as high-end instruments and optical equipment in the semiconductor industry. Furthermore, we have long served major scientific research institutes, enterprises, public institutions, and key national research projects. Our products have been exported to Germany, Italy, Russia, the United States, Japan, Spain, Switzerland, as well as other regions across Europe, America, the Middle East, and Southeast Asia, earning widespread popularity and acclaim in the global market.The company strictly controls product quality in accordance with the ISO9001 international quality system standards. Leveraging the technical advantages of the Luoyang bearing industry base, we continuously optimize product performance and enhance quality. Looking ahead, the company will remain committed to its original mission, focusing on high-end CNC machine tools, precision rotary tables, industrial automation, humanoid robots and embodied intelligent manufacturing, aerospace and defense, medical equipment, semiconductors, and precision measuring instruments. We aim to establish high-standard bearing production lines to serve the strategic needs of the nation’s high-end intelligent manufacturing development.
