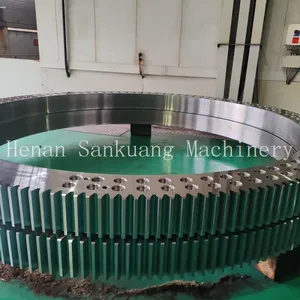

Help CenterAnnular Gear Module 6-12 1045 Carbon Steel CNC Machined Smooth Operation
Product Spotlights
Related Products
-
Annular Gear With Mill Test Report 24-Month Warranty Standard CompliantNegotiableMOQ: 1 Piece -
Split Ring Gear for Wind Turbine Yaw System Corrosion Resistant CoatingNegotiableMOQ: 1 Piece
-
Alloy Steel Split Ring Gear Induction Hardened AGMA Class 8 for High Torque ApplicationsNegotiableMOQ: 1 Piece
-
Integral Ring Gear 40Cr Alloy Steel 58-62 HRC Surface Hardness Max 50000 Nm TorqueNegotiableMOQ: 1 Piece
-
Split Ring Gear 18MnCr5 Carburized Depth 0.8-1.2mm 320HB Core HardnessNegotiableMOQ: 1 Piece
Henan San Kuang Machinery Technology Co., Ltd., established in 2014, is a professional manufacturer of high-quality power transmission components. Our factory occupies 10,000-30,000 square meters and employs a skilled team of 51-100 people. With an annual export value of US$2.5-5 Million, we serve clients across North America, South America, Europe, Southeast Asia, Africa, Oceania, the Middle East, and domestic markets. Our Annular Gear, designed with Module 6-12 from 1045 Carbon Steel and CNC machined, delivers exceptional smooth operation and reliability for demanding industrial applications. This gear is engineered to minimize noise and vibration, ensuring long service life and efficient power transmission.
Key Features & Technical Specifications
- Material: Premium 1045 carbon steel – offers excellent strength, wear resistance, and machinability.
- Module Range: 6 to 12 – suitable for medium to heavy-duty gear systems.
- Manufacturing Process: Fully CNC machined – ensures high dimensional accuracy, consistent tooth profile, and excellent surface finish.
- Operation: Smooth and quiet – optimized tooth geometry reduces backlash and vibration.
- Customization: Available upon request – custom module, tooth count, bore size, keyway, and surface treatments.
- Quality Control: Every gear undergoes strict inspection – hardness testing, dimensional measurement, and runout check.
| Parameter | Specification |
|---|---|
| Material | 1045 Carbon Steel |
| Module | 6, 7, 8, 9, 10, 11, 12 |
| Heat Treatment | Normalized or quenched & tempered (optional) |
| Surface Hardness | HRC 45-55 (after case hardening if required) |
| Tooth Accuracy | DIN 6-7 / ISO 7-9 |
| Max Outer Diameter | Up to 2000 mm (customizable) |
Benefits for Your Application
- Reduced downtime: Consistent quality and smooth operation extend gear life, lowering maintenance intervals.
- Energy efficiency: Precise tooth engagement minimizes friction losses, improving overall system efficiency.
- Versatility: Suitable for use in mining conveyors, cement mills, crushers, marine drives, and heavy machinery.
- Cost-effective: Competitive pricing without sacrificing performance – our large-scale production and optimized supply chain ensure value.
- Global logistics: Shipped from Ports of Shanghai, Lianyungang, Qingdao, or Tianjin with reliable freight partners.
Why Choose Henan San Kuang Machinery?
Our company has been serving the global market since 2014, with a factory spanning 10,000-30,000 m² and a team of 51-100 experienced professionals. We hold multiple management system certifications (including ISO9001, ISO14000, OHSAS18001, and others) that reflect our commitment to quality, environment, and safety. Our products are trusted by clients in over 20 countries across Europe, Americas, Asia, Africa, and Oceania. With an annual export value of US$2.5-5 Million, we have proven capabilities in large-scale manufacturing and timely delivery. Contact us today to discuss your specific annular gear requirements – custom modules, special tooth profiles, or large diameters are all welcome. We provide free technical consultation and samples upon request.
Frequently Asked Questions
Q1: What is the typical lead time for an annular gear with module 8?
A: For standard sizes, lead time is approximately 30-45 days after order confirmation. Custom orders may require 45-60 days depending on complexity.
Q2: Can you provide heat treatment like induction hardening?
A: Yes, we offer optional heat treatments including induction hardening, through hardening, and carburizing. Please specify your hardness requirement when ordering.
Q3: What is the maximum outer diameter you can produce?
A: Our CNC machines can handle gears up to 2000 mm outer diameter. For larger sizes, please consult our engineering team.
Q4: Do you provide a certificate of material and inspection report?
A: Absolutely. We supply a mill certificate for 1045 carbon steel and a dimensional inspection report for each gear.
Q5: Can the gear be customized with a different module, e.g., Module 5 or 14?
A: Yes, we can manufacture annular gears with modules from 4 to 16. Module 6-12 is our standard range but other modules are available on request.
Q6: Is this gear suitable for high-speed applications?
A: Yes, due to CNC machining and balanced tooth geometry, it operates smoothly at moderate to high speeds. For extremely high RPM, we recommend dynamic balancing as an extra service.
Q7: What payment terms do you accept?
A: We accept T/T, L/C, Western Union, and other negotiable terms. For long-term cooperation, flexible payment schedules can be discussed.
Q8: How do you ensure the gear quality before shipment?
A: Each gear undergoes 100% inspection including tooth profile check, runout test, hardness test, and dimensional verification. We follow ISO9001 quality management procedures.
