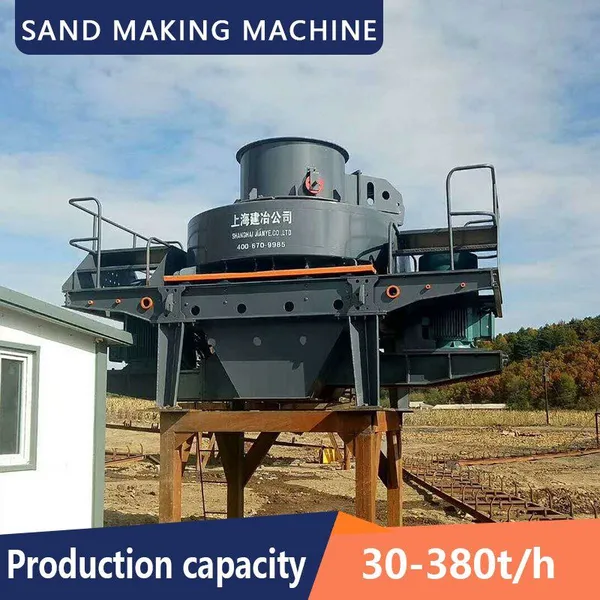

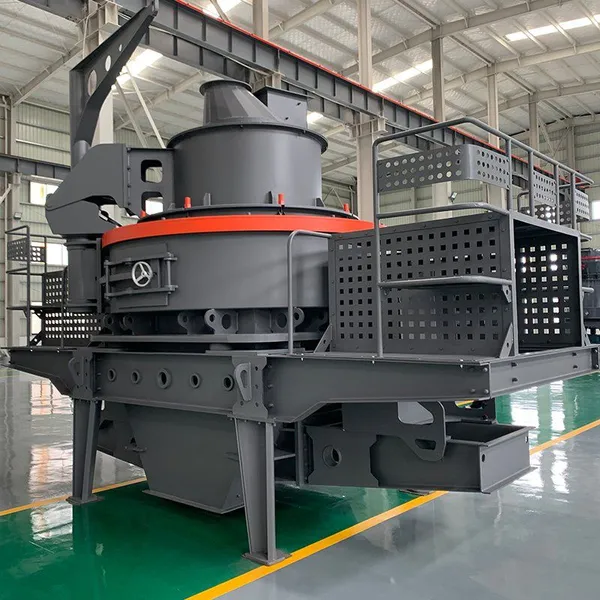

Help CenterJY6X13100 Heavy Duty VSI Sand Maker for Large Scale Quarry Crushing and M-Sand Production Plant
Product Spotlights
Extended Service Life: Wear-resistant materials prolong machine life by 40%, lowering costs by more than 40%.
Advanced Impeller Design: Reduces resistance, increasing material throughput and crushing ratio by 30% to 60%.
Hydraulic Maintenance System: Enables automatic opening to reduce labor intensity and facilitate easier maintenance.
Related Products
-
JY6X8015 VSI Sand Making Machine for Granite Limestone River Stone and Artificial Sand ProductionNegotiableMOQ: 1 Unit -
JY6X9026 Vertical Shaft Impact Crusher for Aggregate Shaping and M-Sand Production PlantNegotiableMOQ: 1 Unit
-
JY6X1040 VSI Sand Maker for High Capacity Granite Basalt Limestone Sand ProductionNegotiableMOQ: 1 Unit
-
JY6X1150 Heavy Duty VSI Sand Making Machine for Quarry Aggregate and Manufactured Sand ProductionNegotiableMOQ: 1 Unit
-
JY6X1263 High Capacity Vertical Shaft Impact Crusher for Hard Rock Crushing and Sand Making PlantNegotiableMOQ: 1 Unit

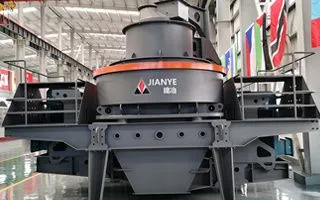

Vertical Shaft Impact Crusher
Production capacity: 109-1407 t/h—High crushing efficiency, High product quality uniformity, Suitable for medium-hard materials, Easy maintenance
Input size: ≤60mm—Equipment of different specifications can be customized according to customer requirements.
Detailed Introduction:
Vertical shaft impact crushers are widely applied to process all kinds of ores, concrete, fireproof material, bauxite, quartz, basalt, glass, etc. JYS crushers have many more advantages than other machines for materials of medium and high hardness. They are highly applied in sand-making and other mineral waste residue crushing.
Product Features:
Working principle:
1. Center feeding (stone-on-stone): Materials enter centrally, thrown by the high-speed impeller to collide with internal stones for crushing. Good finished grain, fit for sand making.
2. Center + circular waterfall feeding (stone-on-stone): Part materials go through the impeller, the rest fall via the circular channel; they collide to crush, with higher capacity, fit for sand making.
3. Center + circular waterfall feeding (stone-on-iron): Materials thrown by the impeller collide with internal metal liners to crush. High efficiency, fit for fine crushing of high-hardness materials.
Applicability:
1. Special thin oil lubrication systems ensure the temperature stays within 25°C; an innovative automatic protection device provides the machine with vibration protection, oil filtering and warning systems;
2. A new type of oil filtering system protects the bearings and other transmission systems from unexpected impurities, prolonging their service life.
3. Wear-resistant materials prolong the machine's service life by 40%, thus lowering costs by more than 40%.
Innovation:
1. Excellent impeller design reduces resistance, increasing material throughput and crushing ratio by 30%~60% compared to traditional machines. 2. The hydraulic system enables automatic opening, reducing labor intensity and facilitating easier maintenance.
3. The mainframe adopts new technologies, which strengthens the machine's structure and toughness while ensuring stable performance.
4. JYS crusher utilizes a world-advanced thin oil anti-leakage device, eliminating the trouble of replacing oil seals.
Application Areas
JY6X/JYS Vertical shaft impact crusher is widely used in sand making (for construction, highway, railway), ore processing (iron ore, bauxite, quartz), and crushing of industrial wastes (concrete, basalt, glass), fitting medium-to-high hardness materials.

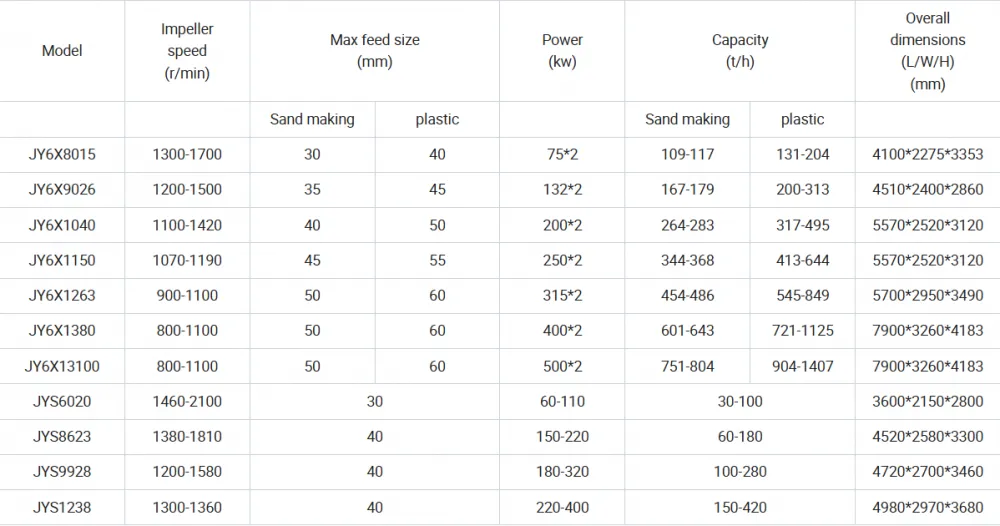

Technical Parameters
Company Introduction
Shanghai Jianye Heavy Industry Co., Ltd. was established in 2006 and is engaged in theinnovation and manufacturing of complete sets of crushing, screening, and grindingequipment, We provide customized solutions for the resource recycling and reuse ofhighways, railways, hydro-power, and construction waste. Our products include sandand gravel production equipment, industrial mills, screening and washing equipmentand mobile crushing stations, which are widely used in engineering projects such as sand and gravel aggregate processing, mining, construction waste resource utilizationand industrial powder production.With the slogan of "Harmonious Take-off, CreatingJianye", the people of Jianye adhere to the fundamental principles of enterprise survivawhich are mature technology, excellent quality, reasonable price, and thoughtful serviceand take customer satisfaction as our goal.
Excellence quality product and perfect service can help you achive preconcerted aim.
Your succeed is ours, hope cooperate profitly and develop each other.
Pre-sale:
1. Guide our customers to deploy the most useful equipment item according to theirs requiryment.2. Provide technical date, including equipment bil, lavout, base specification and installation picture to consult
3. Design and manufacture product according to the customers'special requestment.
4, Dispatch the technical person to reach the locale to lavout field, desian the best installtion flow and scheme to consult for free
Sale:
1.Product according to the standard of technology strictly
2.Experiment the machine by the operating regulate.
3. Verify the product before leaving factory strictly
4. Organize shipping by the contract in time.
After-sales:
1. Dispatch special worker after service to arrive locale to guide the user to install and debug, experiment circulate, rain operating personsfor free.
2. Guarantee of repal,replacement and refund of substandard products,the period of guarantee is 1 year(except abrasion in norma, wearingparts, the damaged parts by misoperation) lf the equipment appears fault during guarantee, our company woulde to reach the locale after takethe user's telephone, remove the fault, ensure the user's produce innormal.
FAQ:
1. How long is the warranty of your equipment? Do you supply spare parts?
Our standard warranty period is one year, and we do indeed supply spare parts to ensure uninterrupted operation.
2. Do you provide after-sale services?
Absolutely. Our dedicated and professional after-sales team is committed to promptly resolving any issues you may encounter.
3. Do you provide equipment operation training?
Absolutely! We offer the expertise of our professional engineers who are ready to travel to your site for seamless equipment installation, precise adjustments, and comprehensive operation training. Our team is fully equipped with passports to ensure a swift response to your needs.
4. Are you a trading company or manufacturer?
We proudly operate as a factory. Our esteemed company, Shanghai Clirik Machinery, stands as a distinguished manufacturer specializing in cutting-edge mining equipment.
5. How long is your delivery time?
For your convenience, if the products are readily available in our stock, delivery typically takes only 10-15 days. Or, should the products require manufacturing, anticipate a delivery timeline of 15-20 days, contingent on the order quantity.
6. If I need a complete grinding production line, can you help us to build it?
Indeed, we are well-equipped to assist in establishing a comprehensive production line, offering you tailored and expert advice. With numerous successful mining projects accomplished both in China and internationally, our experience is at your service.
Warm Tips
In order to provide you with the best experience service,
please provide your detailed requirements, we will do our best to quote you a comprehensive plan and drawings!
Your satisfaction is our core value.
Punctuality and integrity are trustworthy, and quality and integrity are our top priorities.
We eagerly await your inquiries and the opportunity to serve you!
