Help Center100D LCP Filament Fiber Low Dielectric Constant for PCB & Electronics
Product Spotlights
Low elogation at break:3%-5%
Low dielectric constant: 2.9-3.2 (stable up to 100 Ghz)
Dissipation factor < 0.004 at 10 Ghz;
Near-zero moisture absorption
Related Products
-
LCP Fiber Yarn for Aquaculture Net With Low Creep and Seawater ResistanceUS$ 21 - 82MOQ: 100 Kilograms -
LCP Fiber for Antenna Applications LCP Fiber With High Abrasion Resistance Synthetic Fiber General High-Performance FibersUS$ 45MOQ: 30 Kilograms
-
100D LCP Filament Fiber Low Dielectric Constant for PCB & ElectronicsUS$ 46 - 50MOQ: 30 Kilograms
-
100D LCP Filament Fiber Low Dielectric Constant for PCB & ElectronicsUS$ 45MOQ: 30 Kilograms
-
Electronic Single Cotton Fiber Tensile Strength TesterNegotiableMOQ: 1
Product Description

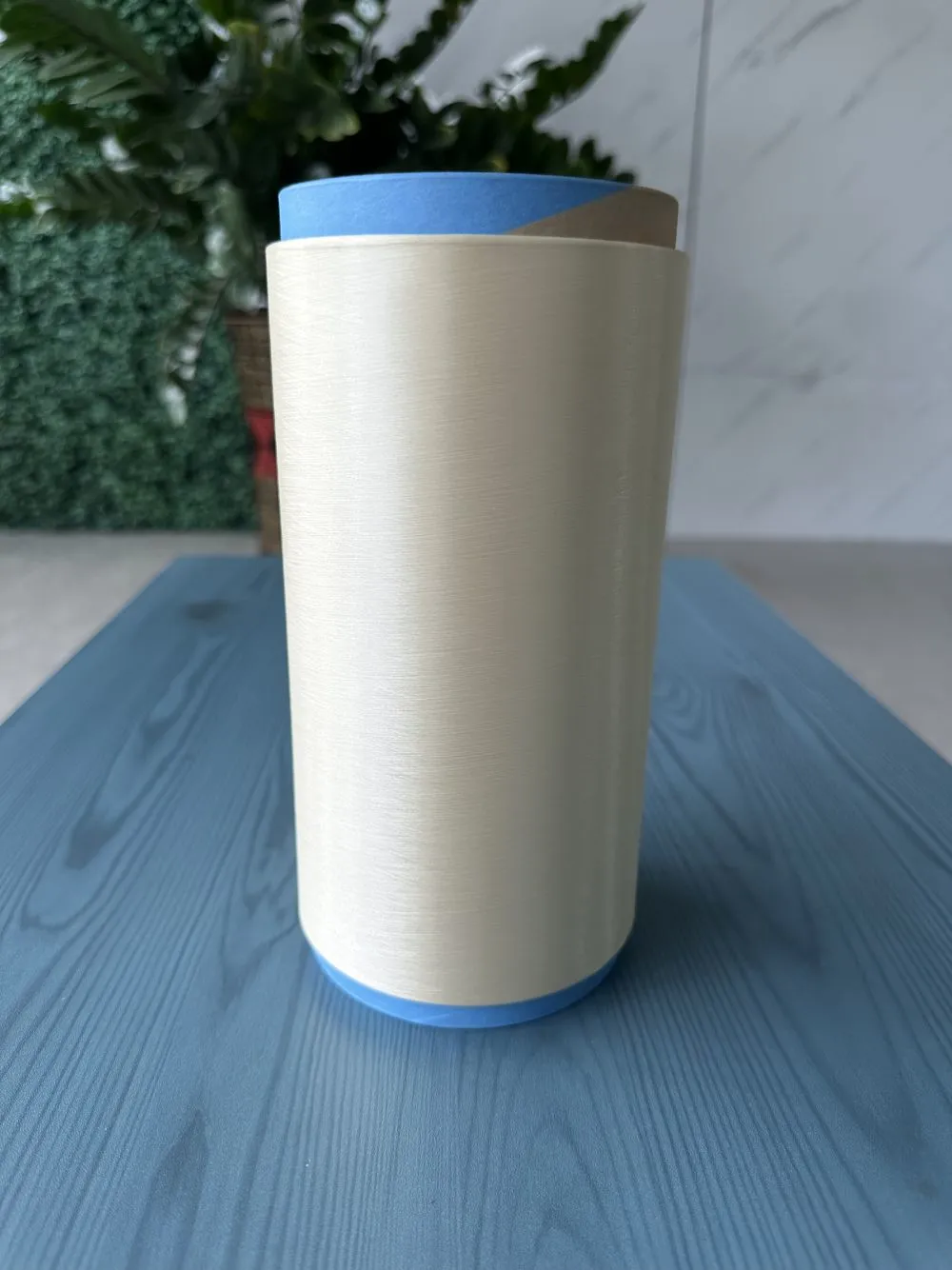

Liquid Crystal Polymer (LCP) fiber is a high-performance engineering fiber with excellent comprehensive properties. It is made from thermotropic liquid crystal polymer through advanced melt spinning process, featuring highly oriented molecular structure and stable performance.

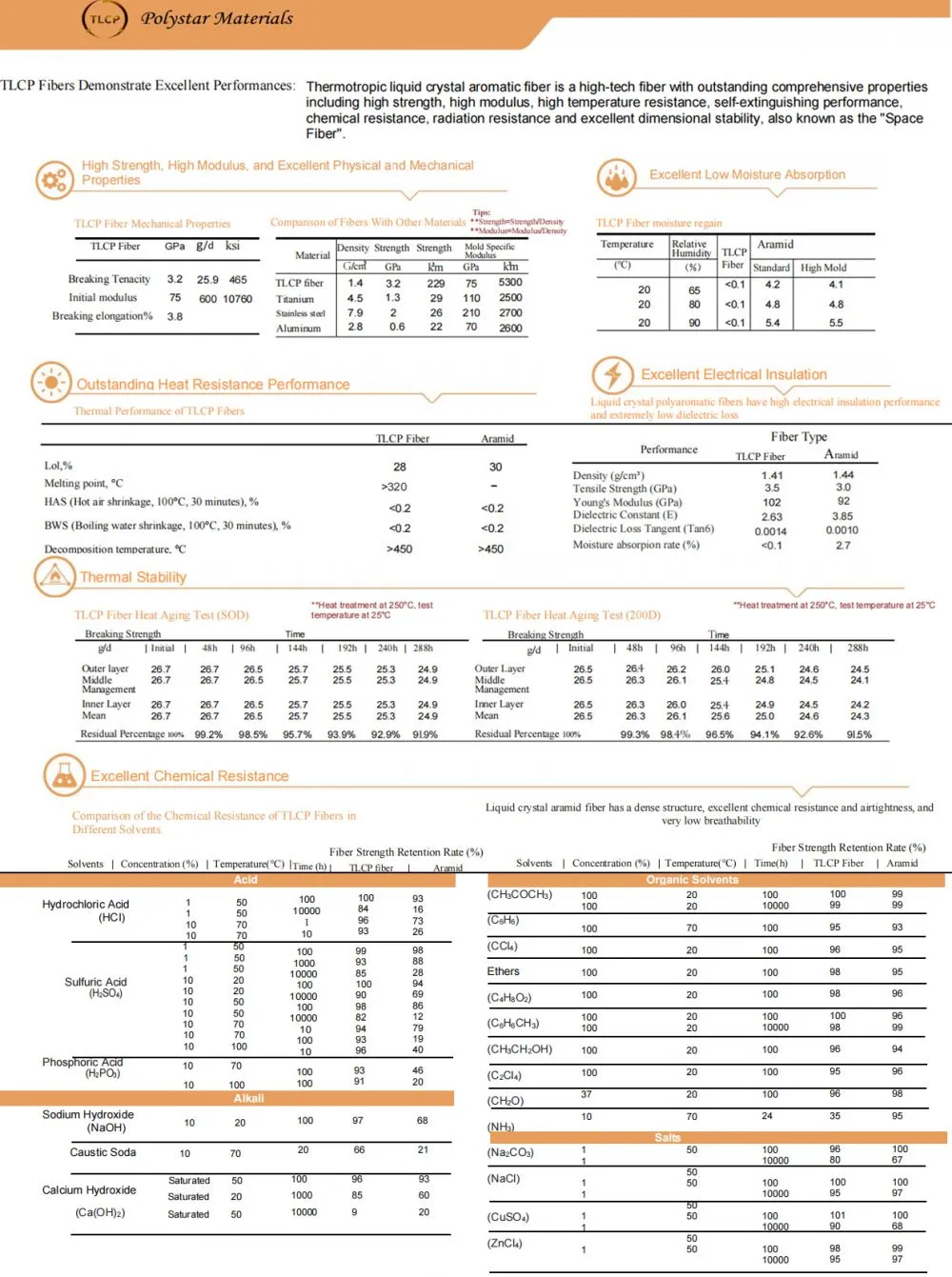

This product has ultra-high tensile strength, high modulus and low elongation, providing outstanding mechanical support and long-term durability. With near-zero moisture absorption and low thermal expansion coefficient, it maintains excellent dimensional stability even under high temperature and harsh environments. It also shows superior high temperature resistance, good flame retardancy, and strong resistance to acid, alkali, organic solvents and hydrolysis. In addition, LCP fiber has low dielectric constant and low dissipation factor, delivering excellent high-frequency signal transmission performance and electrical insulation property.
Overview
As a professional manufacturer of LCP fiber, we provide high-performance liquid crystal polymer materials. Our products excel in high temperature resistance, low dielectric loss and flame retardant property, fully complying with international industrial standards.

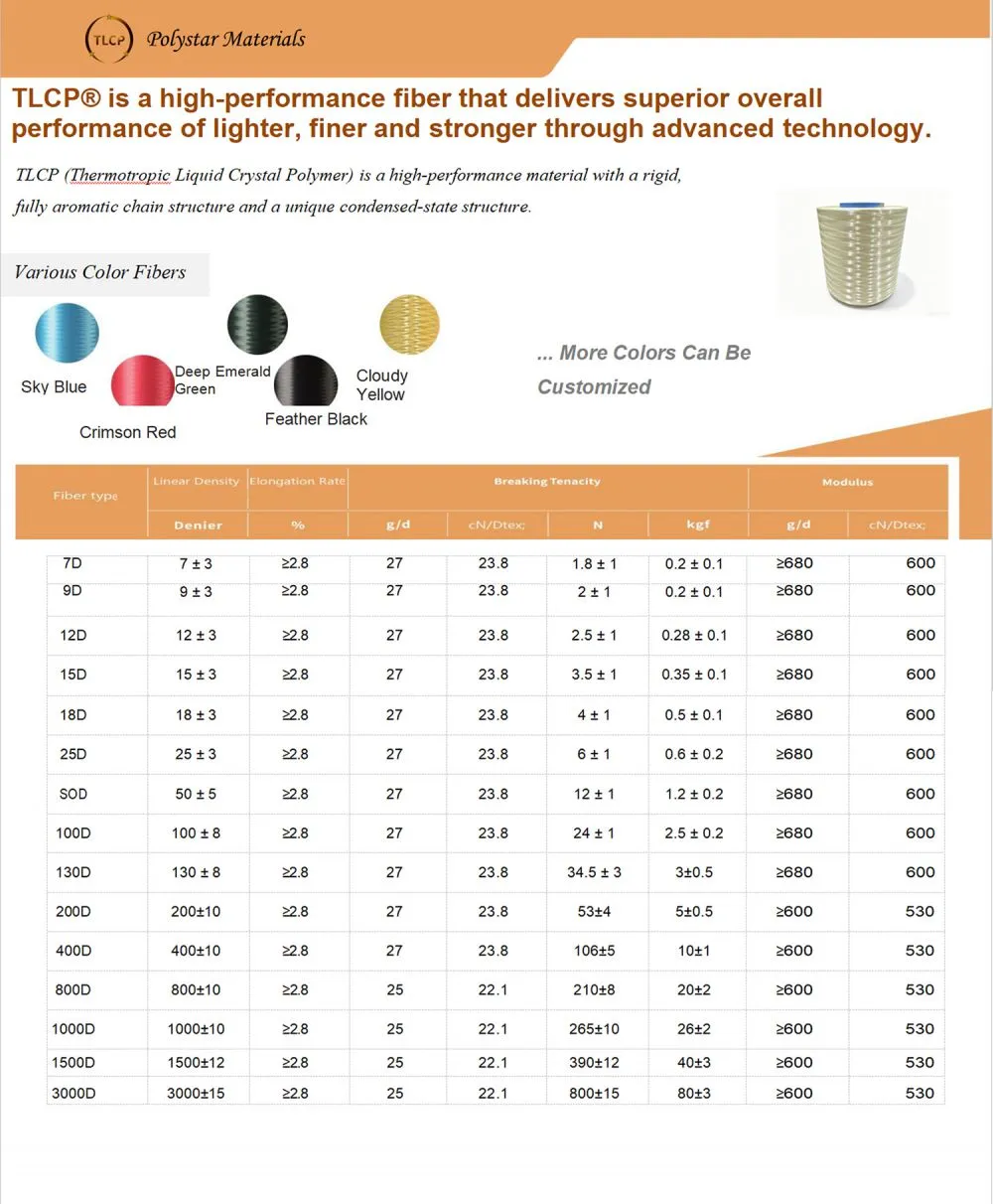

Main Specifications

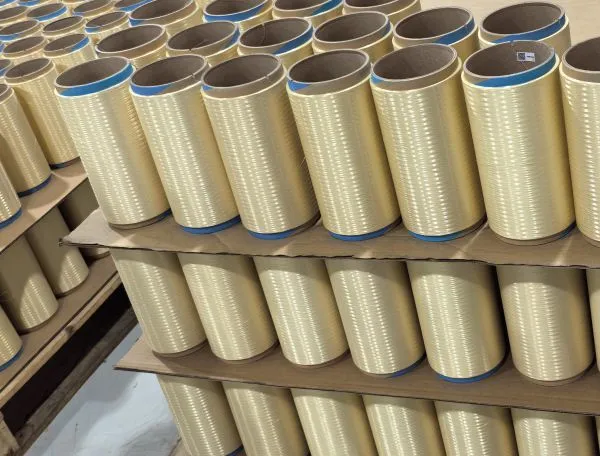

Fiber type: Filament / Staple
Common denier: 100D, 200D
Diameter: 0.3mm
Length: 23500mm (filament) / 51mm (staple)
Color: Natural white
Key Performance & Advantages
High temperature tolerance: Long-term operation at 260ºC, peak temperature up to 320ºC, no deformation or performance decline.
Low dielectric constant: Stable electrical characteristics at high frequency, an ideal material for communication electronics.
High tensile strength: Excellent physical property reduces material damage during processing and usage.
UL94 V-0 flame retardant level, meeting global safety standards for electronic and industrial products.
Good comprehensive resistance: Resist corrosion, ultraviolet rays and aging, suitable for long-term continuous use.
Application Range
Mainly used for 5G communication equipment, PCB reinforcement, aerospace components, high-temperature resistant textiles and medical devices.
Certifications
We have passed ISO9001 quality management system, SGS inspection, RoHS environmental certification etc.
Service & Support
We offer sample service for performance verification. Custom production is acceptable. Complete technical documents including material data sheets can be provided.
Thank you for your kinder browser, we are pleased to provide free samples for quality testing and a detailed product catalog with technical parameter upon your request, please feel free to let us know your specific needs, and our team will respond to you within 24 hours with a tailored solution.
