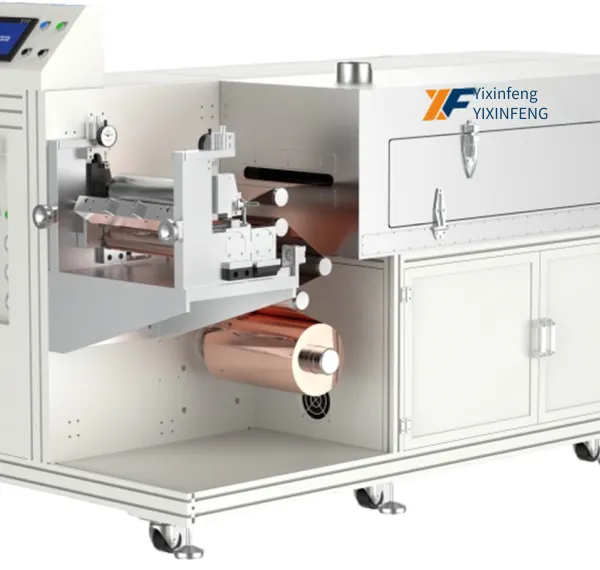

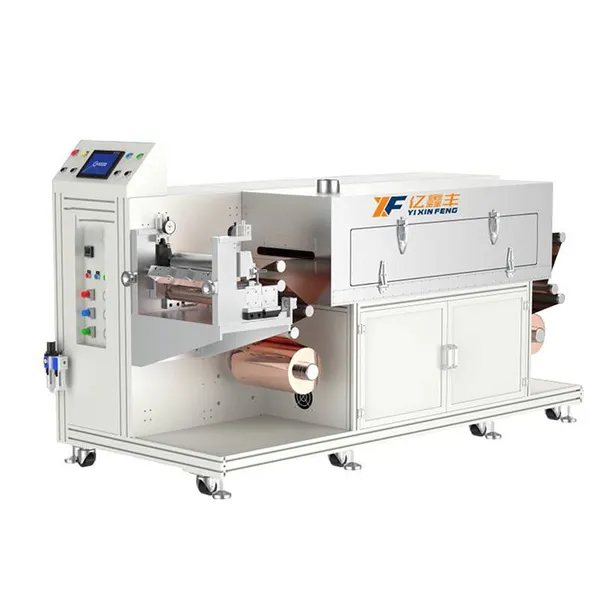

Help CenterFloor-standing Multi-functional Roll Coating Applicator, Film Coating Extrusion, Micro-concave Continuous Coating Lithium Electrode Sheet Roll Coating Applicator
Related Products
-
350ml Laboratory Vacuum Defoaming Mixer for Ink, Resin, Glue, Coating, Silver Paste, and Polyurethane Mixing and CentrifugationNegotiableMOQ: 0 Unit -
1l Vacuum Defoaming Mixer for Epoxy Resin, Silver Paste, Polyurethane, Conductive Adhesive, and uv Centrifugal DefoamingNegotiableMOQ: 0 Unit
-
Yixinfeng Solid-state Battery Electrode Sheet Rolling and Slitting Integrated Machine for Cutting Copper Foil, Aluminum Foil and Battery Materials of Positive and Negative ElectrodesNegotiableMOQ: 0
-
Yixinfeng Large Cylindrical Pole Piece Battery Slitting Machine With Dual-axis Unwinding and Four-axis Rewinding, Continuous Coating, Model 550, Circular Knife for SlittingNegotiableMOQ: 0
-
Internal Heating Electric Horizontal Three-roller Pair-roller Machine, Differential Roller Press for Solid-state Dry Battery Material Preparation in the LaboratoryNegotiableMOQ: 0
1. Equipment Introduction
1. Functional Overview:
The coating speed of the high-precision slot coater is 0 - 5m/min, the width of the guide roller surface is 300mm, and the length of the oven is 1m. It includes units such as feeding device, extrusion slot die, oven, unwinding and rewinding, electrical control, and protective cover. It is mainly used for the base coating of various slurries with low to medium-high viscosities.

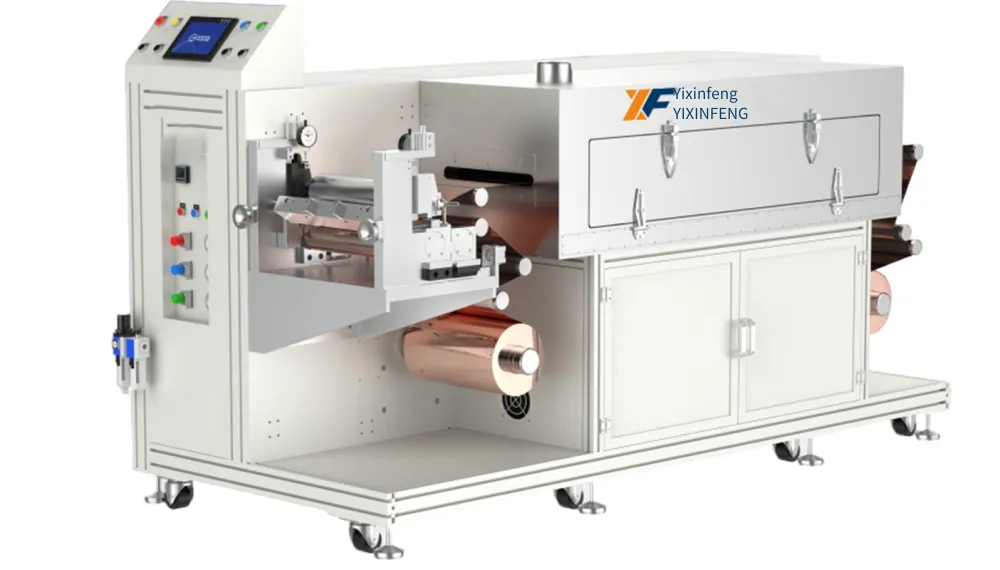

Equipment structure diagram: (The picture is for reference only)
2. Main Technical Parameters and Performance Indicators of the Equipment
l Serial Number |
Sub-item |
Detail |
Technical Indicators/Details |
l 1 |
Coating Parameters |
Foil |
Copper foil, aluminum foil, and PET film (material thickness 6 - 30um) |
Slurry |
Battery slurry, electrolyte (viscosity range |
||
Coating thickness: |
50 - 150um; |
||
Material width range: |
100 - 250mm; |
||
Coating width: |
200mm; |
||
Base material weight: |
Max.30Kg; |
||
Tension control range: |
1-50N; |
||
Mechanical speed: |
Max. 5m/min; The production speed depends on the actual coating process, materials, and drying degree. |
||
Guide rollers: |
The surface of the passing rollers is subjected to hard anodizing treatment. |
||
Coating dry film error |
Slot coating: better than ±1.8% (related to the slurry characteristics) |
||
Equipment dimensions: |
Approximately 2000mm × width 1161mm × height 1270mm |
||
Unwinding method |
Unwind upwards or downwards, with a roll diameter of 250mm |
||
Tension control |
The tension can be set, and it is controlled by a PLC program to form a closed-loop tension control; |
||
Unwinding drive |
400W servo motor, 1 set of precision planetary reducer, 1 set of servo controller |
