Shanghai Yunshan Plasticizing Co., Ltd. proudly presents our Virgin PA66 Resin Granules CM3004-V0, a premium-grade engineering plastic specifically formulated for high-performance injection molding applications. As a reliable supplier based in Shanghai, China, we understand the critical demands of the automotive industry. Our CM3004-V0 PA66 granules offer exceptional heat resistance and inherent flame retardancy, making them an ideal raw material for manufacturing durable auto switches and other electrical components. With years of experience in the plastics sector, we ensure consistent quality and stable supply to support your production needs.
This polyamide 66 (Nylon 66) grade features a V0 flame retardant rating, providing enhanced safety for electrical applications. The material maintains excellent mechanical strength even under elevated temperatures, ensuring reliable performance in demanding automotive environments. Whether you require high dimensional stability or resistance to thermal aging, CM3004-V0 delivers the robustness your products demand.
Key Product Features & Benefits
- Superior Heat Resistance: Continuous use temperature up to 180°C (short-term peaks higher), ensuring switch components withstand engine bay heat.
- Flame Retardant V0 Rating: Meets stringent safety standards for electrical enclosures and connectors, reducing fire risk.
- Excellent Mechanical Properties: High tensile strength and impact resistance for long-lasting auto switches.
- Good Electrical Insulation: Low dielectric constant and high volume resistivity for safe electrical performance.
- Easy Processing: Optimized for injection molding; good flowability and mold release characteristics.
- Virgin Material Purity: No recycled content, ensuring batch-to-batch consistency and superior end-product quality.
- Customizable Color Options: Available in natural (off-white) or custom colors upon request.
- Global Compatibility: Compliant with RoHS and REACH regulations (available upon request for certification).
Typical Technical Parameters
| Property | Value | Test Method |
|---|---|---|
| Melting Point | ~260°C | DSC |
| Density | 1.14 g/cm³ | ISO 1183 |
| Tensile Strength (at yield) | 80 MPa | ISO 527 |
| Elongation at Break | 15% | ISO 527 |
| Flexural Modulus | 2800 MPa | ISO 178 |
| Notched Izod Impact (23°C) | 4.5 kJ/m² | ISO 180 |
| Flame Rating | V0 (0.8 mm) | UL 94 |
| Moisture Absorption (23°C / 50% RH) | 2.5% | ISO 62 |
Note: The above values are typical and may vary with processing conditions. Full technical datasheet is available upon request.
Detailed Product Description
Our Virgin PA66 CM3004-V0 is a specially formulated polyamide 66 grade that combines high thermal stability with self-extinguishing properties. In the demanding environment of automotive electronics, components must withstand prolonged exposure to heat, vibration, and potential electrical faults. This material was designed precisely for such conditions.
The high heat resistance of CM3004-V0 ensures that auto switches maintain their dimensional integrity even when located near hot engine parts or in high-current circuits. The V0 flame retardancy, achieved through halogen-free additives in most formulations, provides an essential safety margin for connectors, housings, and internal switch mechanisms.
Injection molders will appreciate the excellent flowability of this grade, which fills complex mold geometries with ease. The material exhibits low warpage and good surface finish, reducing post-processing steps. Its high crystallinity contributes to chemical resistance against oils, greases, and coolants commonly found in automotive environments.
We supply this material in the form of virgin granules (pellets) with consistent size distribution, ensuring smooth feeding in injection molding machines. Each batch is tested to meet our strict quality specifications. For customers requiring specific colors or custom additive packages, we offer toll compounding services (subject to minimum order quantities).
Why Choose Shanghai Yunshan Plasticizing Co., Ltd.?
As a dedicated supplier headquartered in Shanghai, China, we have built a reputation for reliability, competitive pricing, and technical support. Our team works closely with polymer producers to source genuine virgin materials, ensuring you receive authentic grades without fillers or degraded content. We stock the CM3004-V0 grade in our warehouse, allowing for quick delivery to both domestic and international customers.
Our commitment to quality is demonstrated through rigorous incoming inspection, proper storage conditions, and traceability records. We understand that downtime due to material inconsistency can be costly; therefore, we test each lot for key properties such as melt flow index, moisture content, and mechanical strength before shipment.
With over years of experience in the plastics industry, Shanghai Yunshan Plasticizing Co., Ltd. is your trusted partner for engineering plastics. Whether you need small sample quantities for trial or bulk orders for mass production, we are ready to assist. Contact us today to discuss your specific requirements and receive a competitive quotation. Let us help you make reliable auto switches that stand the test of time and heat.
Frequently Asked Questions (FAQ)
-
Q: What does “CM3004-V0” stand for?
A: It is a specific grade designation for a PA66 resin with V0 flame retardant rating. “CM3004” is the base grade code, while “V0” indicates the UL 94 flammability class. -
Q: Is this material suitable for other applications besides auto switches?
A: Yes, it can be used for any injection-molded part requiring high heat resistance and flame retardancy, such as electrical connectors, relay housings, circuit breakers, and power tool components. -
Q: What is the recommended drying conditions before molding?
A: PA66 is hygroscopic. We recommend drying at 80°C for 4–6 hours or until moisture content is below 0.2%. A dehumidifying dryer is preferred. -
Q: Can I get a sample for testing?
A: Yes, we offer free samples (up to 5 kg) for qualified customers. Please send an inquiry and we will arrange shipment. -
Q: What packaging options are available?

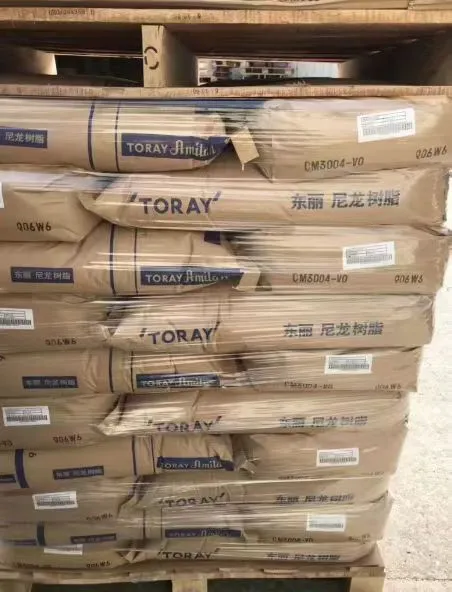

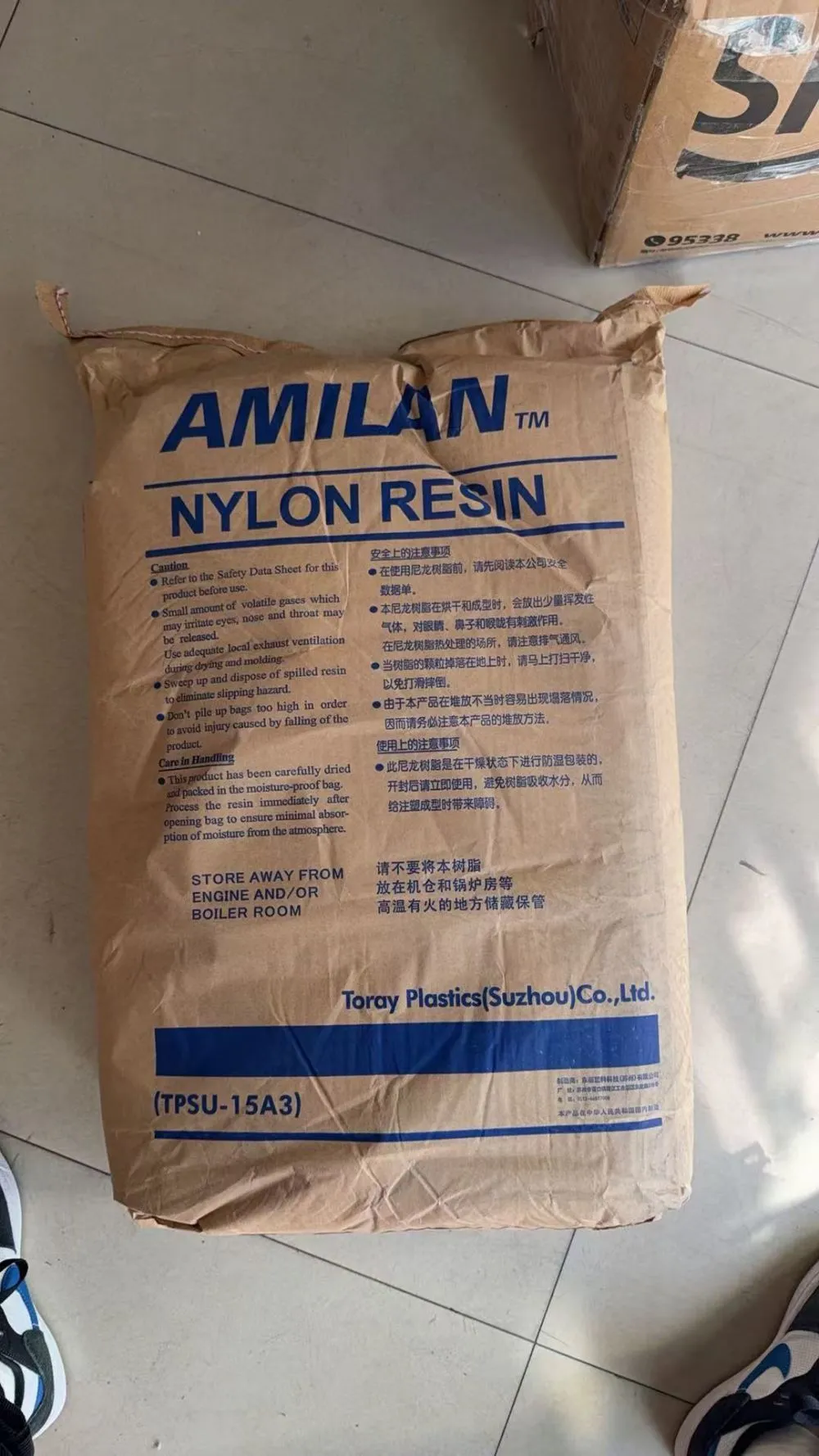

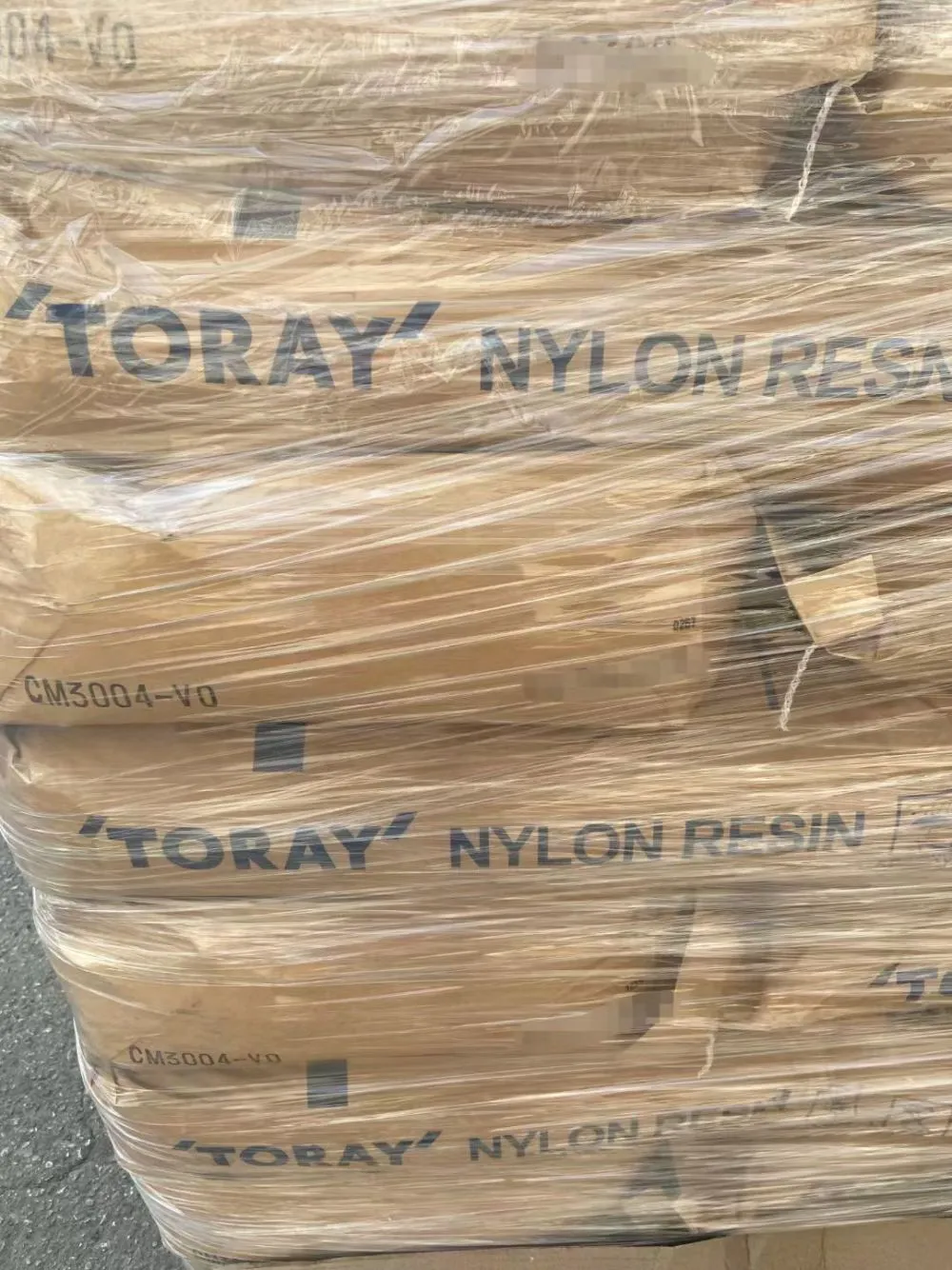

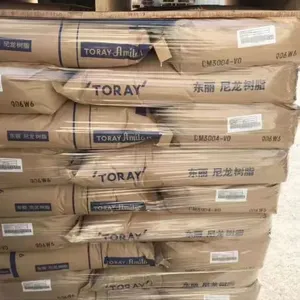

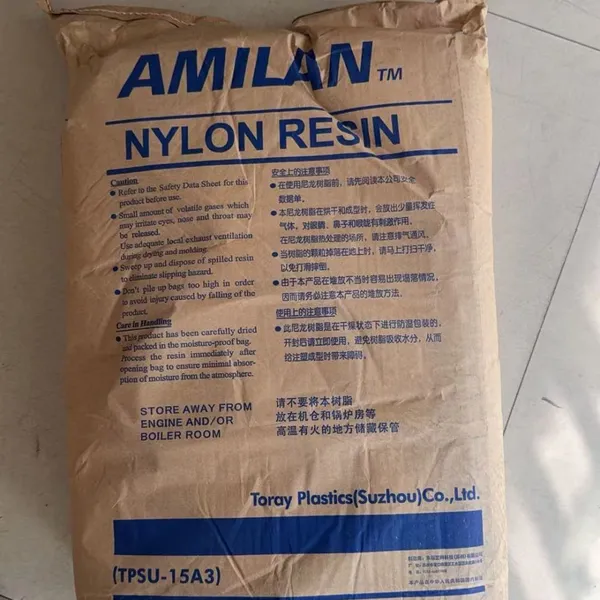

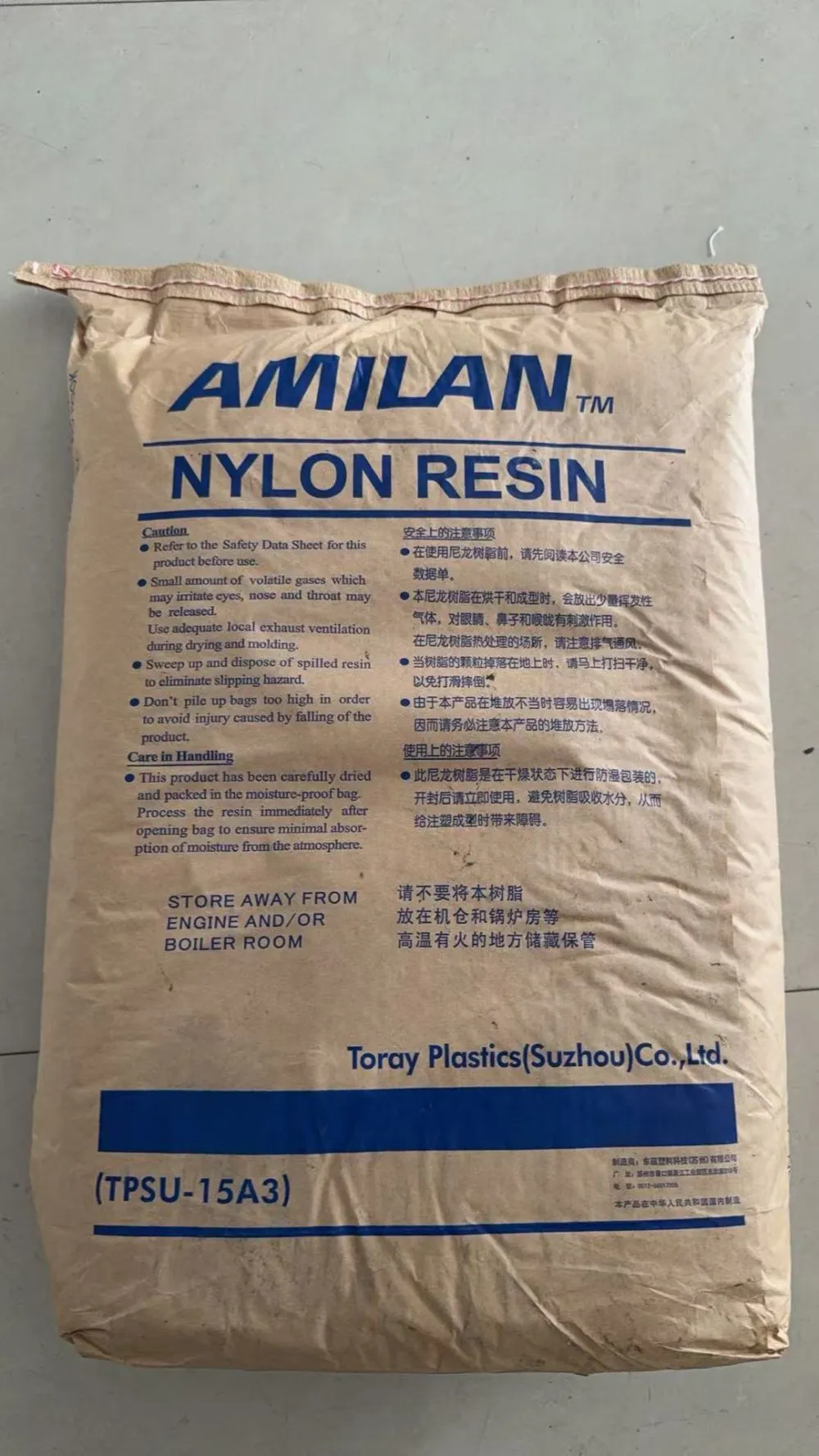

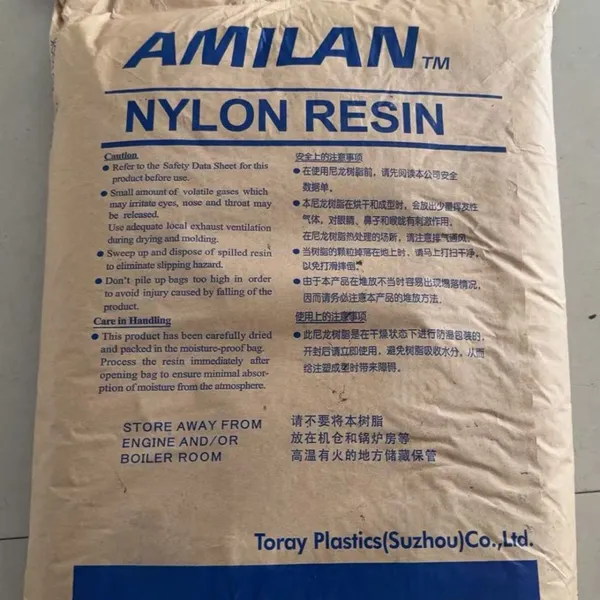

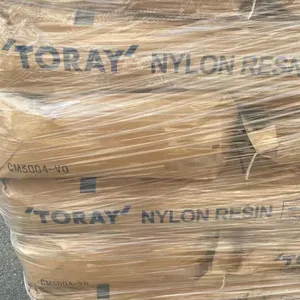

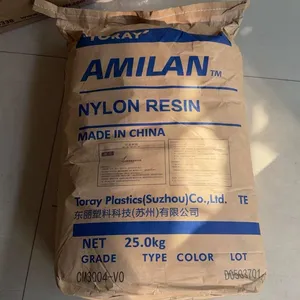

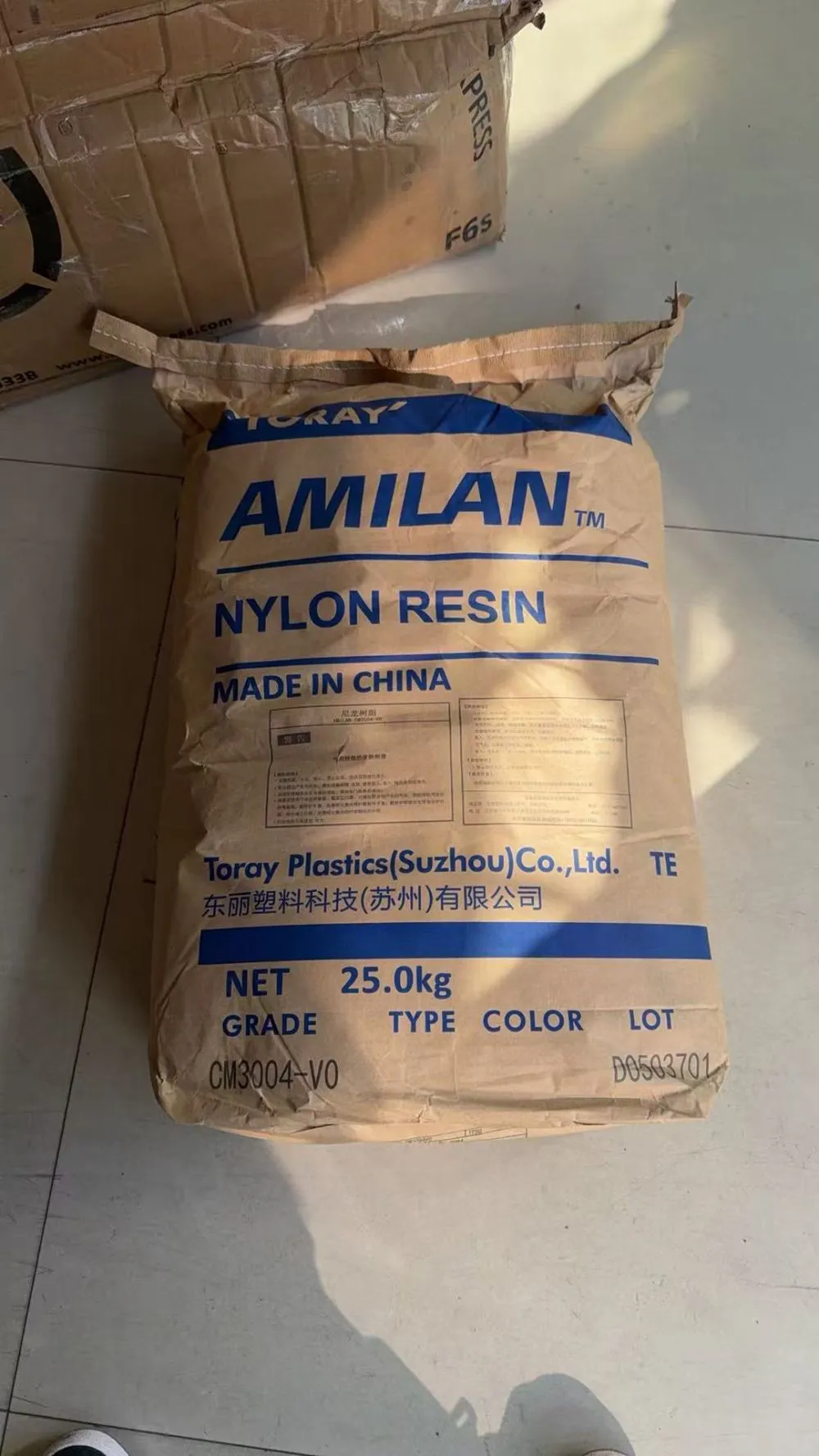

A: Standard packaging is 25 kg kraft paper bags with inner PE liner. Big bags (500–1000 kg) and customized packaging are available upon request. -
Q: Does this grade contain halogenated flame retardants?
A: The V0 rating can be achieved with halogen-free systems; please specify your preference. Our standard CM3004-V0 typically uses non-halogen FR additives. -
Q: What is the minimum order quantity (MOQ)?
A: The MOQ is 1 metric ton for standard grades. Smaller quantities may be considered for initial trials. -
Q: How do you ensure product consistency?
A: We perform in-house QC tests on every batch and can provide a Certificate of Analysis upon request. Our suppliers are ISO 9001 certified (documentation available upon request).
Contact Shanghai Yunshan Plasticizing Co., Ltd. today for more information or to place an order. Your reliable partner for engineering plastics.
