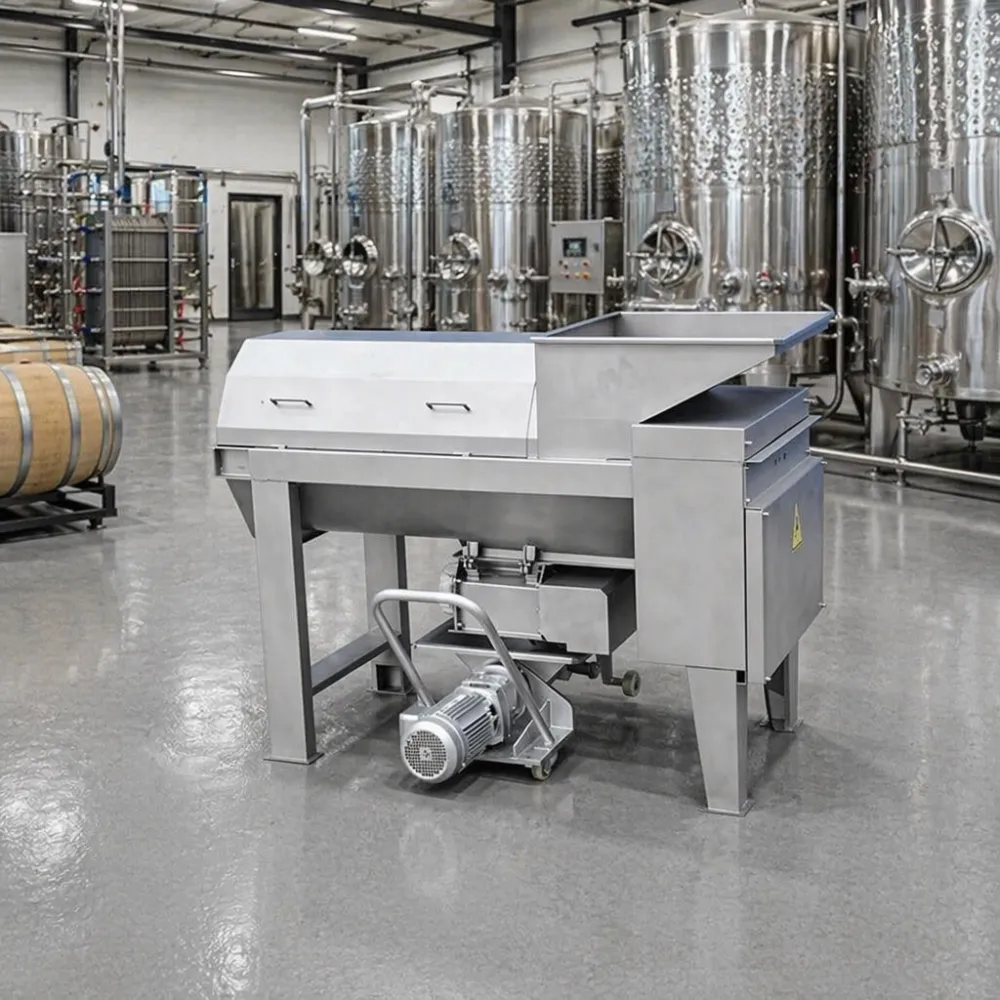

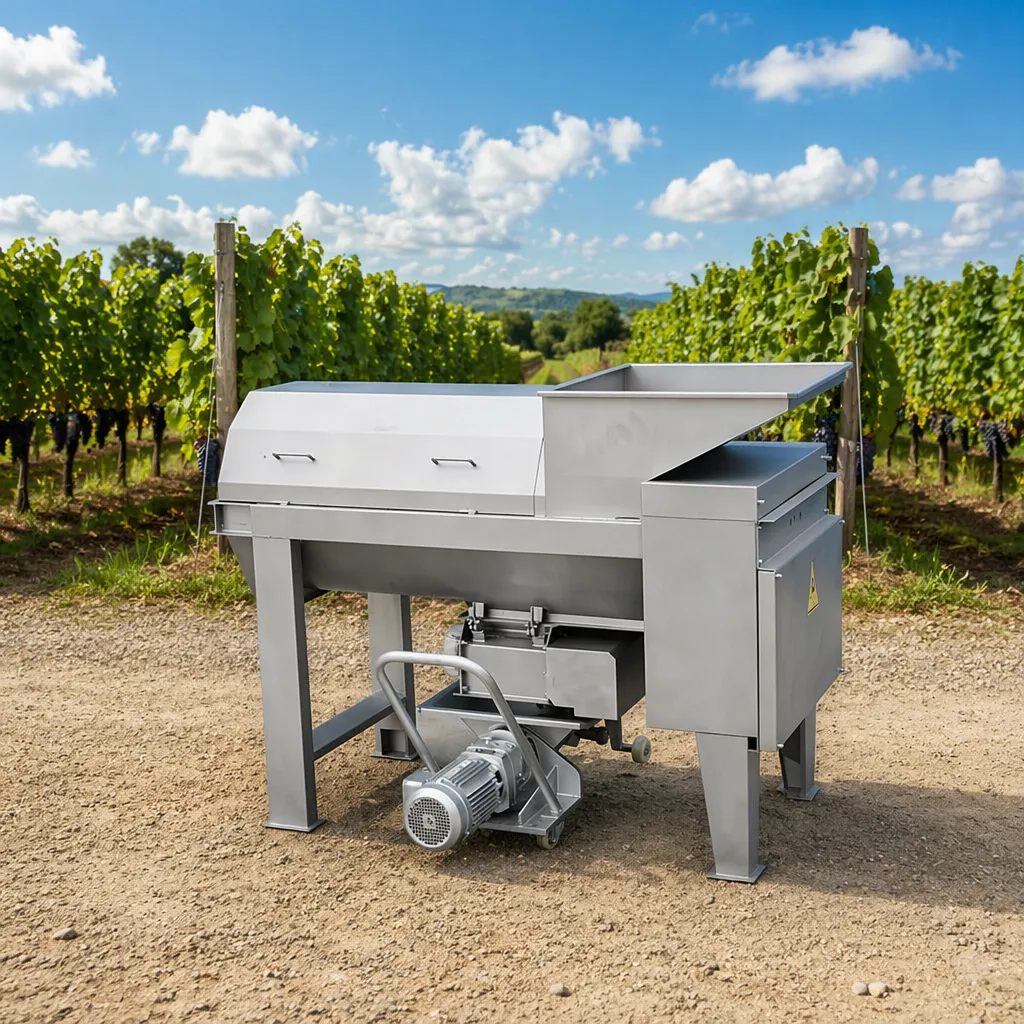

Food Grade Stainless Steel Grape Destemmer and Crusher Machine Professional Fruit Grinder for Wine and Juice Production
Application:
This grape destemmer and crusher was developed specifically for small- and medium-sized wineries, home winemaking operations, fruit beverage processing plants, agricultural product processing facilities, and farm-based home brewing production lines. It is ideal for the pretreatment of fresh red grapes, white grapes, seedless grapes, and various wine grape varieties. Its integrated design enables destemming, crushing, and juice conveyance in a single pass, seamlessly integrating with upstream processing operations such as wine fermentation tanks, juice extraction equipment, and fruit pulp storage tanks. In addition to grape processing, this equipment can also handle small berries such as mulberries and cherries for use in wine and fruit vinegar production, serving a wide range of clients including food and beverage breweries, agricultural cooperatives, fruit processing enterprises, and global wine equipment wholesalers.
Advantage/Features:
1.Food Grade 304 Stainless Steel Construction
All parts that contact grapes, pulp and juice adopt 304 stainless steel material, corrosion-resistant, non-toxic and hygienic, fully meet food safety production standards, easy to rinse and clean after production.

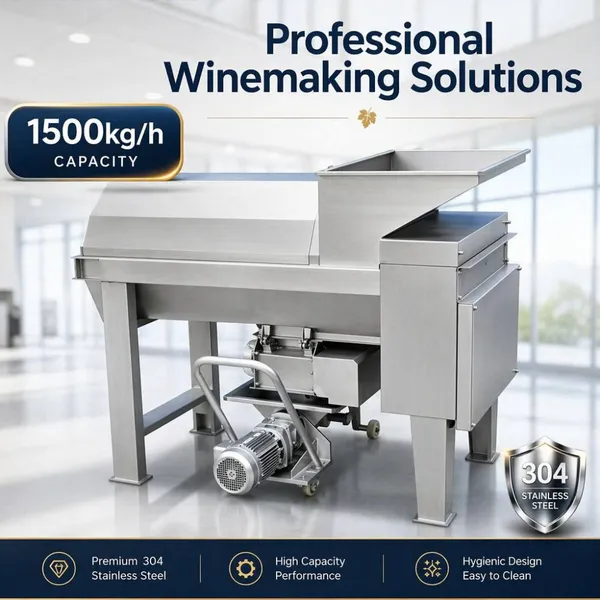

2.High Efficient Integrated Processing 1500kg/h Large Capacity
Combines destemming, crushing and screw juice conveying in one single machine, stable processing capacity up to 1500 kilograms per hour, greatly saving manual sorting and crushing labor costs for winery production.

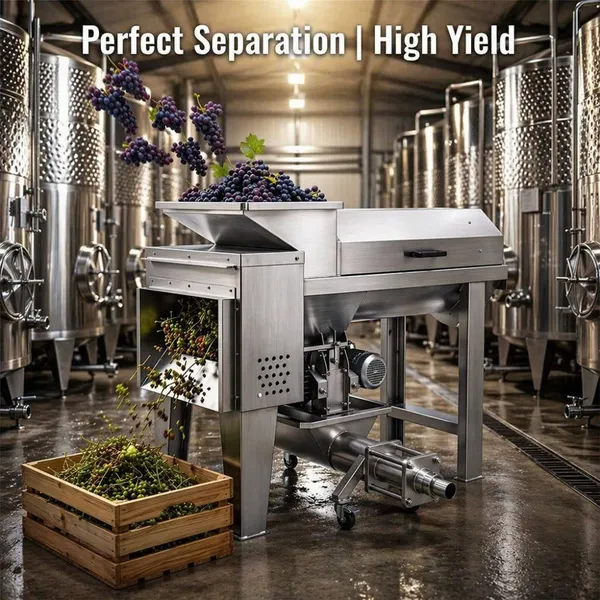

3.Perfect Grape-Stem Separation, Low Fruit Loss Rate
Precision adjustable destemming roller structure thoroughly separates grape clusters from hard stems without crushing grape seeds or stems, effectively reducing tannin impurity mixing and improving wine taste & raw material yield.
4.Independent Dual Power Matching System

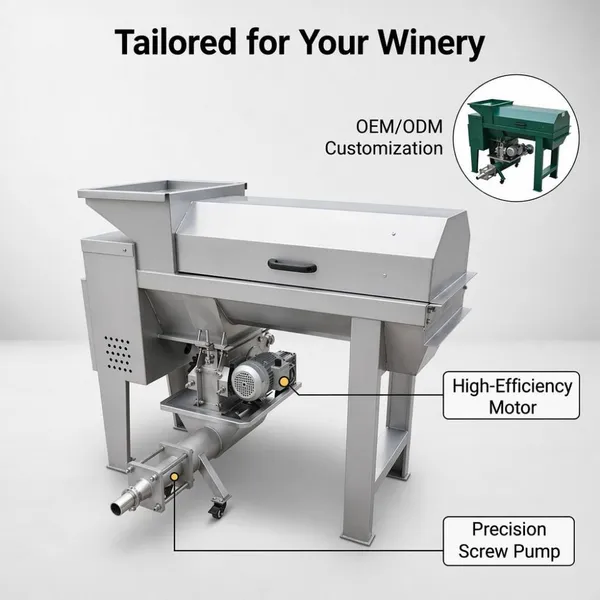

Equipped with separate drive motors for destemming crushing unit and screw pump, total stable power of 3.15kW, adjustable running speed according to grape ripeness and processing volume, stable operation without blockage.
5.Low Maintenance & Long Service Life High-efficiency wear-resistant motor and anti-blockage screw pump design, fewer vulnerable parts, simple disassembly for daily maintenance, greatly lowering long-term production operation cost for wineries.

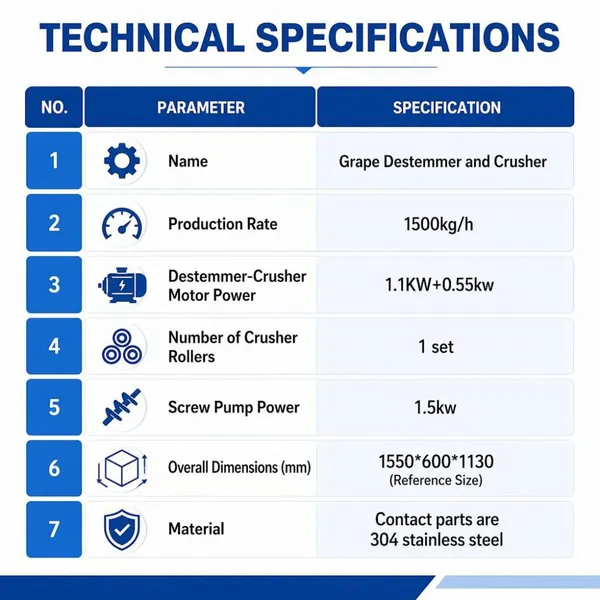

Technical Parameter:
Parameter Name |
Technical Data |
Full Product Name |
Grape Destemmer and Crusher |
Processing Capacity |
1500kg per hour |
Destemmer & Crusher Motor Power |
1.1kW + 0.55kW |
Screw Pump Transport Power |
1.5kW |
Total Matching Power |
3.15kW |
Quantity of Crushing Roller |
1 set |
Main Contact Material |
Food Grade 304 Stainless Steel |
Overall External Dimension |
1550*600*1130 mm |
Custom Service |
OEM / ODM Customizable |
Applicable Raw Materials |
Fresh red grape, white grape, seedless grape, mulberry, cherry and other small berries |
Function Integration |
Grape stem removing, fruit crushing, pulp screw conveying all-in-one |
Auxiliary Design |
Mobile casters for screw pump, detachable cleaning structure |
