Help CenterGeniusCore 7 Inch RK3566 Open Frame Industrial Android HMI Panel PC K-3566 | Low Power Capacitive Touch
Product Spotlights
Built on power-efficient ARM Cortex-A55 architecture, the RK3566 delivers consistent performance with low power consumption and integrates a built-in NPU to support lightweight edge AI tasks.
Related Products
-
GeniusCore 7 Inch RK3399 Hexa-Core Open Frame Industrial Android Panel PC K4 | Dual Display RS232 RS485 HMINegotiableMOQ: 1 Piece -
GeniusCore 7 Inch A311D Open Frame AIoT Android Industrial Panel PC K-A311D | 5TOPS NPU Capacitive Touch HMINegotiableMOQ: 1 Piece
-
GeniusCore 7 Inch S905D3 Open Frame AIoT Android Industrial Panel PC K-S905 | IPS Capacitive Touch HMINegotiableMOQ: 1 Piece
-
GeniusCore 10.1 Inch RK3588 Open Frame AI Industrial Android Panel PC D-3588 | IPS Capacitive Touch HMINegotiableMOQ: 1 Piece
-
GeniusCore 10.1 Inch A40i Industrial Open Frame Android Panel PC H0 | IPS Capacitive Touch HMINegotiableMOQ: 1 Piece
The 7″ Android Open Frame Panel PC
Powered by Rockchip RK3566 quad-core processor, this unit is engineered for industrial HMI panels, embedded control systems and smart terminals demanding long-term stability and abundant I/O resources.
Built on efficient ARM Cortex-A55 architecture, the RK3566 achieves steady performance at low power consumption, perfectly suited for 24/7 industrial continuous operation.
✔ Open Frame Design for Easy Panel Integration
✔ Comprehensive Industrial I/O & Expansion Options
✔ Dual OS Support: Android & Linux
Display & Touch
7″ IPS LCD
LVDS / MIPI display interface
Capacitive touch compatible
Open frame mounting structure

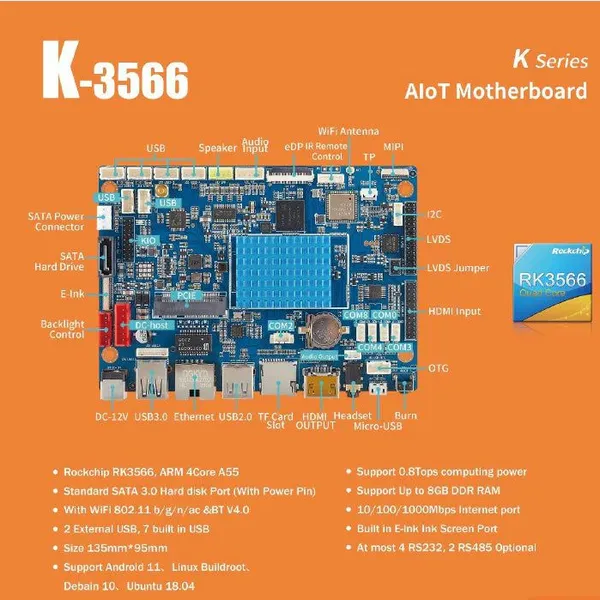

Processor & Memory
Rockchip RK3566
Quad-core ARM Cortex-A55
Up to 8GB DDR4 RAM
eMMC flash storage

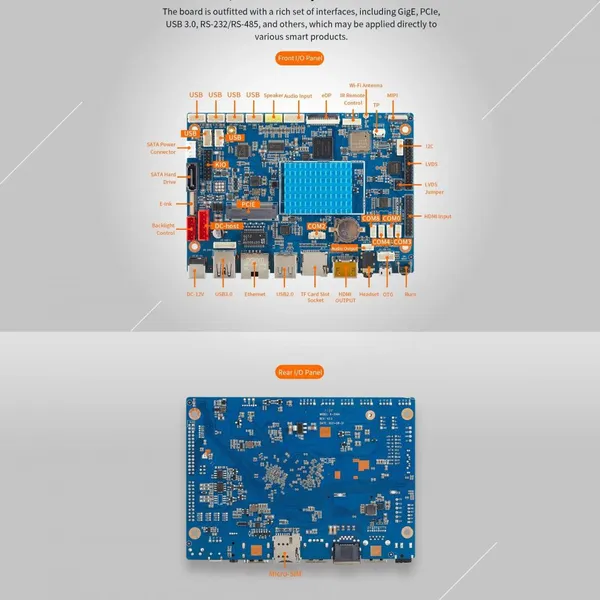

Interfaces
USB 3.0 / USB 2.0 / USB OTG
HDMI output
RS232 / RS485 (optional)
GPIO / Audio Port / TF Card Slot
Connectivity & Expansion
Ethernet LAN
Optional WiFi & Bluetooth
Mini PCIe expansion slot
SATA 3.0 hard drive support
Software
Operating System: Android 11 / Android 12Linux System: Debian / Ubuntu / Buildroot
Typical Applications
Industrial HMI, automation control panels, smart control terminals, embedded display devices
Specifications subject to change according to different configurations.
