Hengshui City Yike Composite Materials Co., Ltd. presents our Industrial FRP Storage Tank for Dilute Sulfuric Acid, designed specifically for chemical plant wastewater treatment applications. Since 2009, we have been manufacturing high-performance composite tanks that withstand aggressive chemical environments while offering lightweight durability and long service life. This tank is engineered to safely store dilute sulfuric acid (concentration typically 10%–30%) used in neutralization and pH adjustment processes, ensuring operational reliability and cost efficiency.
Our FRP tanks utilize premium-grade glass fiber reinforcements and corrosion-resistant resin systems such as epoxy, vinyl ester, or polyester (depending on application requirements). The inner surface is lined with a chemical-resistant veil to prevent acid attack, while the outer layer features UV-stabilized gel coat for outdoor installation. Every tank is manufactured using advanced winding or hand lay-up techniques, ensuring optimal strength-to-weight ratio and leak-proof integrity.
Key benefits of choosing our FRP storage tank include:
- Exceptional corrosion resistance: Suitable for dilute sulfuric acid, hydrochloric acid, and other aggressive chemicals.
- Lightweight construction: Up to 70% lighter than steel, reducing foundation and installation costs.
- Longevity with low maintenance: Non-metallic material eliminates rust and electrolytic corrosion.
- Customizable design: Capacity, dimensions, wall thickness, and fittings tailored to your specific wastewater treatment process.
- Safe operation: Available with optional manholes, level indicators, overflow pipes, and secondary containment.
Technical Specifications (Typical)
| Parameter | Value / Range |
| Material | FRP (Fiberglass Reinforced Plastic) |
| Resin System | Vinyl Ester / Epoxy / Isophthalic Polyester |
| Capacity Range | 1,000 – 50,000 liters (custom larger sizes upon request) |
| Operating Temperature | –40°C to 80°C (higher temperature options available) |
| Design Pressure | Atmospheric or low pressure ≤0.1 MPa |
| Wall Thickness | 5–20 mm depending on capacity and fluid properties |
| Connections | Flanged / threaded inlet, outlet, drain, vent (customizable) |
| Color | Translucent or custom colors (e.g., white, green, blue) |
In chemical plant wastewater treatment, dilute sulfuric acid is commonly used for pH neutralization of alkaline effluents. Our FRP storage tank ensures the acid remains uncontaminated and safely stored until needed. The smooth interior surface minimizes residue buildup and simplifies cleaning. Additionally, the non-conductive nature of FRP provides electrical safety in hazardous environments.
We offer a range of optional accessories to enhance functionality:
- Manhole covers (round or square)
- Level gauges (magnetic or ultrasonic)
- Overflow and emergency vent pipes
- Secondary containment basins
- Ladders, platforms, and support structures
Trusted Supplier with Global Reach
Hengshui City Yike Composite Materials Co., Ltd. has been serving the global chemical and environmental industries since 2009. With an annual export value between US$1.5 Million and US$2.5 Million, our products are shipped to North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and many other regions. Our main ports of shipment are Tianjin and Shanghai. We understand the rigorous demands of chemical storage and have delivered thousands of reliable FRP tanks for dilute acid applications across diverse climates and operating conditions.

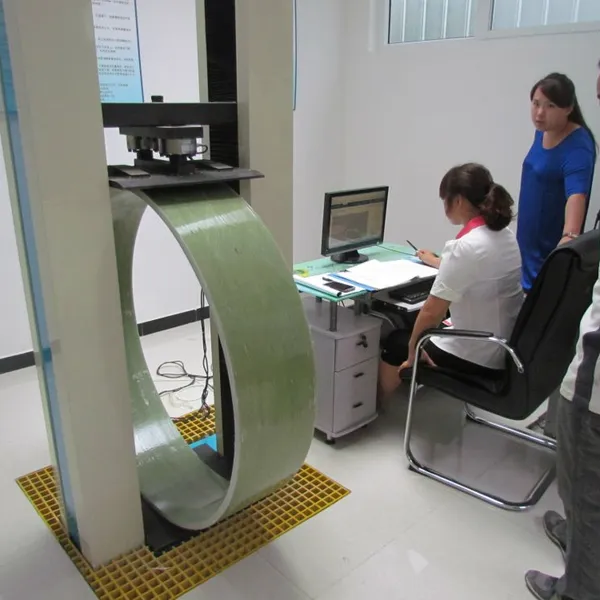

Every tank undergoes strict quality control during production, including resin cure testing, thickness verification, and hydrostatic pressure testing (upon request). Our experienced engineers provide technical support for tank sizing, resin selection, and installation guidance. We are committed to offering products that meet international standards while ensuring competitive pricing.
Why choose our FRP storage tank?
- Proven performance in dilute sulfuric acid service for over a decade.
- Flexible customization to integrate with existing wastewater treatment systems.
- Short lead times and reliable logistics from China to your project site.
- Competitive pricing without compromising on material quality.
Contact us today to discuss your specific requirements. Our team can provide a detailed quotation, technical drawing, and sample specifications. Whether you need a small tank for pilot testing or a large field-erected storage unit, we are your trusted partner for industrial FRP solutions.
Frequently Asked Questions
-
Can this tank store concentrated sulfuric acid?
This design is optimized for dilute sulfuric acid (typically up to 30% concentration). For higher concentrations, we recommend a different resin system (e.g., vinyl ester) and thicker corrosion barrier. Please consult our engineers for specific application. -
What is the typical lifespan of an FRP tank in dilute acid service?
With proper operation and maintenance, our FRP tanks can last 15–20 years or more, depending on temperature, acid concentration, and UV exposure. -
Do you provide installation services?
We offer detailed installation manuals and can arrange on-site technical guidance for large projects. For international clients, we can recommend local partners. -
How do I choose the right resin for my application?
For dilute sulfuric acid (≤30%), vinyl ester resin is commonly used due to its excellent chemical resistance. Epoxy resin is also suitable for moderate temperatures. Our sales team will recommend based on your specific chemical and temperature data. -
What certifications do your tanks have?
Our tanks are designed and manufactured according to accepted industry practices. Specific certifications (e.g., ASME, CE) can be provided at additional cost if required by your project. Please confirm your certification needs during inquiry. -
Can the tank be used outdoors in freezing conditions?
Yes, with proper selection of resin and wall thickness, and we can add insulation options. Freeze protection measures such as tank heating or underground installation are also available. -
What is the minimum order quantity?
We accept small orders starting from one tank. However, customized designs may have a minimum depending on complexity. -
How long does delivery take?
Typical production time is 15–30 days for standard sizes. Larger or custom tanks may require 30–45 days. Shipping time depends on your location and selected port.
