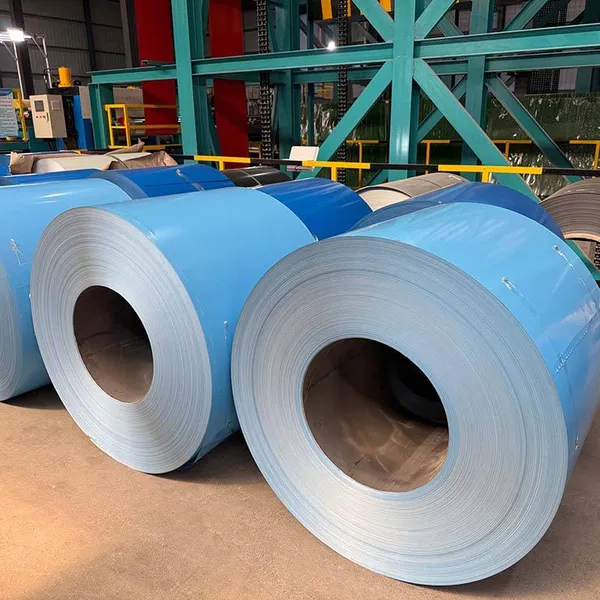

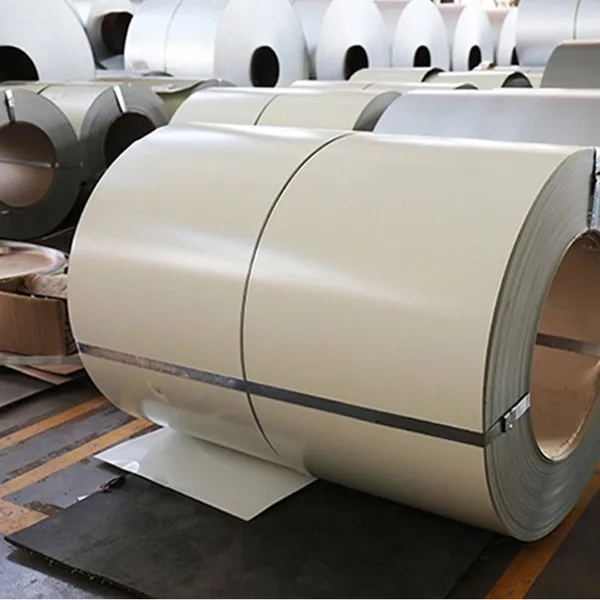

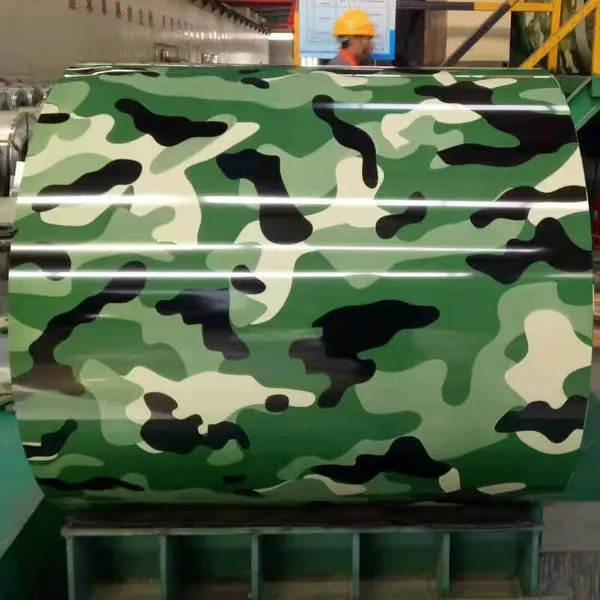

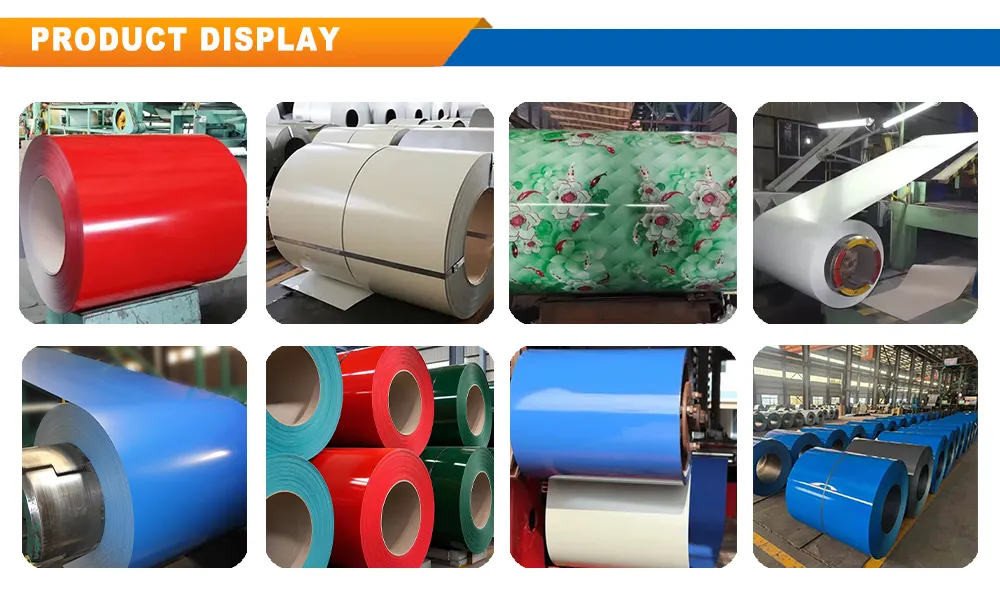

RAL Color PPGI Coil for Industrial Roofing
This 0.45mm PPGI color coated steel coil combines SGCC galvanized steel strength with high-quality RAL color finishing technology. The surface coating improves weather resistance, UV protection, and appearance durability. It is widely applied in industrial roofing panels, factory buildings, warehouses, and commercial construction projects requiring both performance and aesthetic value.
What Is PPGI？
Product Definition：
PPGI (Pre-painted Galvanized Steel Coil) is a high-performance composite material manufactured by applying a durable organic paint system onto a galvanized steel substrate in a continuous coil-coating line-. The substrate is made of cold-rolled steel sheet that has been hot-dip galvanized with a layer of zinc to provide corrosion resistance-. After surface pretreatment (degreasing, cleaning, chemical conversion), a primer and topcoat are applied and cured, resulting in a product that combines the strength of steel with the aesthetics of paint-.
Key Characteristics：
| Feature | Description |
|---|---|
| Corrosion Resistance | Zinc coating (40-275 g/m²) provides sacrificial protection to the steel base- |
| Aesthetic Versatility | Available in a wide range of RAL colors, gloss levels, and decorative finishes (wood grain, embossed) |
| Durability | Paint systems (PE, SMP, HDP, PVDF) offer excellent weathering, UV, and chemical resistance- |
| Formability | Can be roll-formed, stamped, bent, and deep-drawn without damaging the coating |
| Cost-Effective | Eliminates the need for post-fabrication painting, reducing production time and cost |
| Lightweight & High Strength | Combines structural strength with low weight, reducing transportation and installation costs |
| 100% Recyclable | Environmentally friendly material with excellent recyclability |
Why Choose PPGI Over Bare Steel or Post-Painted Steel？
| Factor | PPGI | Bare Steel | Post-Painted Steel |
|---|---|---|---|
| Corrosion Resistance | Excellent (zinc + paint) | Poor | Good |
| Aesthetic Consistency | Excellent (factory-controlled) | N/A | Variable |
| Production Efficiency | High (ready-to-use) | Low (requires painting) | Medium |
| Long-Term Cost | Lower (no repainting) | High (frequent maintenance) | Medium |
Key Specifications – PPGI Steel Coil
| Parameter | Specification / Range | Remarks |
|---|---|---|
| Standards | ASTM A755, JIS G3312, EN 10169, GB/T 12754- | Others on request |
| Substrate Material | Hot-dip galvanized steel (GI) or Galvalume steel (GL)- | DX51D+Z, SGCC, S250GD, etc.- |
| Thickness | 0.12 mm – 1.5 mm- | Custom on request |
| Width | 600 mm – 1400 mm- | Slitting available |
| Coil ID | 508 mm / 610 mm- | Standard |
| Coil Weight | 3 – 9 tons per coil- | Custom coil weight available |
| Zinc Coating (GI) | Z40 – Z275 g/m² (double-sided)- | Grade: Z40, Z60, Z100, Z180, Z275 |
| Al-Zn Coating (GL) | AZ30 – AZ150 g/m² (double-sided)- | 55% Al – 43.3% Zn – 1.6% Si |
| Paint System | 2-coat 2-bake (Primer + Topcoat)- | Primer: Epoxy/PU; Topcoat: PE/SMP/HDP/PVDF |
| Topcoat Thickness | 10 – 25 μm (front); 5 – 20 μm (back)- | Depending on paint type |
| Paint Types | PE (Polyester), SMP (Silicone-Modified Polyester), HDP (High Durability Polyester), PVDF (Kynar 500®)- | – |

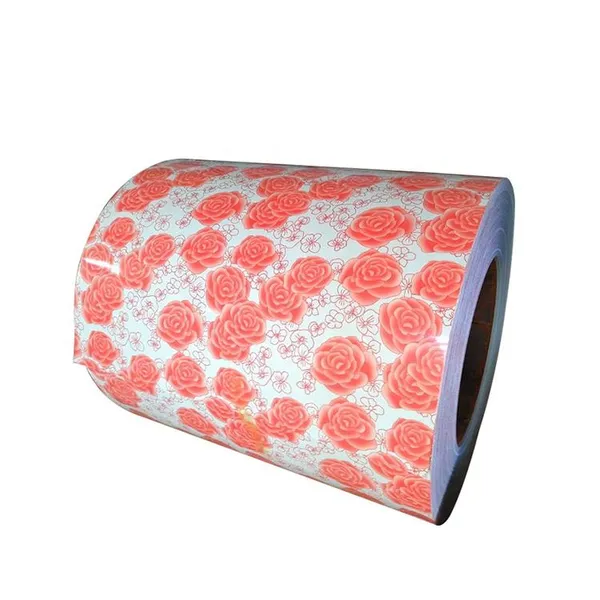

| Colors | RAL color system (200+ colors) / Custom Pantone / Custom patterns | Wood grain, brick, embossed available |
| Surface Finish | Glossy, matte, wrinkle, textured, embossed | – |
| Hardness (Pencil) | ≥ H (PE); ≥ 2H (SMP/PVDF) | Per ASTM D3363 |
| T-Bend | 0T – 3T (depending on coating type)- | Per ASTM D4145 |
| Reverse Impact | ≥ 9J (no paint removal) | – |
| Salt Spray Resistance | PE: ≥480 hrs; SMP: ≥600 hrs; HDP: ≥720 hrs; PVDF: ≥960 hrs | No red rust, ASTM B117 |
| Tensile Strength | 270 – 550 MPa | Grade dependent |
| Elongation | ≥ 10% – 30% | Deep stamping grades available |

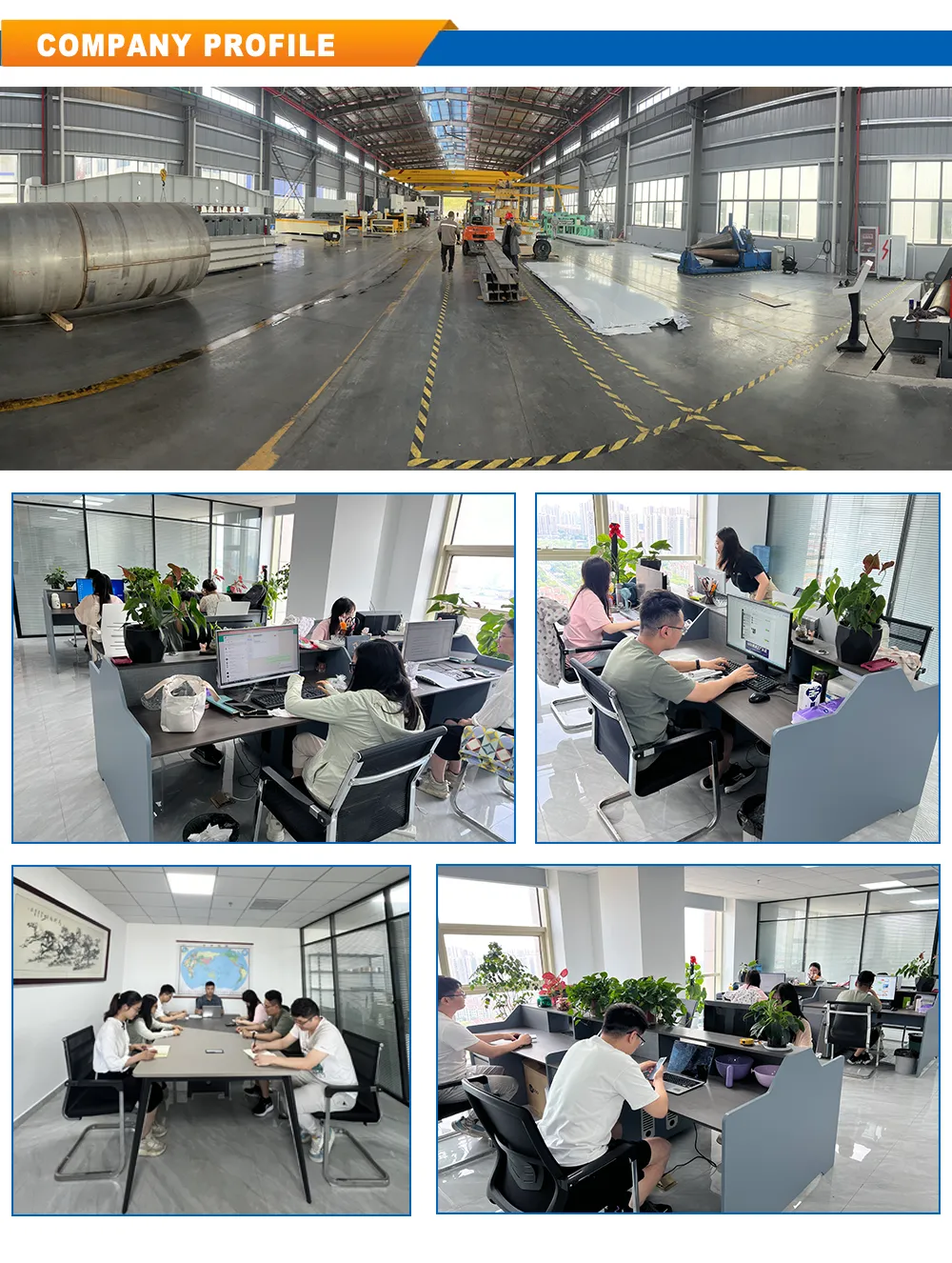

Wuxi Yansheng Technology Co., Ltd. – Company Profile
Wuxi Yansheng Technology Co., Ltd. is a comprehensive technology enterprise specializing in high-quality metal raw material supply and precision processing services. Located in Wuxi City, a major steel distribution center in China, the company leverages the mature industrial chain advantages of the Yangtze River Delta region to provide professional material solutions to global customers.
As a technology-driven enterprise, Yansheng Tech maintains strategic cooperation with several well-known steel mills (such as TISCO, Baosteel, JISCO, Dongfang Special Steel, etc.) and is an authorized distributor of these mills. Our main products include stainless steel (304/316/BA/EP pipe), carbon steel, silicon steel, copper, aluminum and other materials in the form of sheets, pipes, coils, as well as custom-processed parts.
Core Business Highlights:
Material Supply: We maintain sufficient stock inventory, offering 304/316 stainless steel sheets, pipes, coils, API 5L casing, electrical steel, and more. We also accept orders for special steel grades and non-standard specifications.
Precision Processing: Equipped with imported mirror polishing machines, water jet cutting machines, high-precision slitting/leveling lines, large CNC milling machines, boring machines, and more. We provide customized services including BA/EP pipe finishing, medium plate polishing, matte finishing, embossing, plasma cutting, etc.
Main Applications: Our products are widely used in industries such as solar energy, pressure vessels, boilers, electric heating equipment, petrochemicals, environmental protection machinery, pharmaceutical and food processing, and new energy vehicles.
Our processing center is located in Xishan District, Wuxi City, covering nearly 10,000 square meters, with an experienced technical and service team. We adhere to the business philosophy of "Technology First, Quality Oriented, Service Supreme" , providing 24/7 warehousing and logistics support as well as comprehensive after-sales service. Yansheng Tech is committed to being your trusted long-term partner.
Frequently Asked Questions (FAQ)
Q1. What products do you mainly supply?
We mainly supply stainless steel (304/316/BA/EP pipes), carbon steel, silicon steel, copper, aluminum, and other materials in sheets, pipes, and coils. Customized processing services are also available.
Q2. Do you have stock available?
Yes, we maintain sufficient stock for most standard specifications. For non-standard sizes, we can accept orders with reasonable lead time.
Q3. Can you provide MTC (Mill Test Certificate)?
Yes, we provide MTC for every shipment. Third-party inspection (SGS, TÜV, BV, etc.) is also available upon request.
Q4. Do you support video inspection before shipment?
Yes, we fully support video inspection. You can also arrange an agent or third party to visit our factory for on-site inspection before shipment.
Q5. What are your main export markets?
We export to Southeast Asia, the Middle East, Europe, Africa, and South America. We have rich experience in international trade and export documentation.
Q6. What payment terms do you accept?
We accept T/T (wire transfer), L/C at sight (irrevocable), and sometimes a combination of T/T deposit + L/C balance. Payment terms are negotiable based on order size and customer history.
Q7. Can you provide samples?
Yes, samples are available for most standard products. For custom sizes, we may need to produce small batch samples. Sample cost and shipping are usually borne by the customer, but can be discussed.
Q8. What is your typical lead time?
For stock items: 7–10 days after order confirmation. For custom production: 20–30 days, depending on the specification and quantity.
Q9. What quality certifications do you have?
We provide MTC with every shipment. Our partner mills are ISO9001 certified. We can also assist with third-party inspections (SGS, TÜV, BV) upon request.
Q10. How can I get a quotation?
Please send us your material grade, specification (size, thickness, length), quantity, and preferred trade term (FOB, CIF, DAP, etc.). We will reply with a detailed quotation within 24 hours.
