Welcome to Changzhou Hongxinyutai Precision Mold Co., Ltd. As an experienced manufacturer established in 2017, we specialize in delivering high-performance injection molding solutions tailored to the demanding requirements of the automotive and industrial sectors. Our OEM Service: PA6+GF30 Transmission Injection Molding with IATF 16949, S136 Mold, 1*4 Cavities, Hot Runner, Robotic Extraction represents the pinnacle of precision, efficiency, and quality assurance. By combining advanced mold technology with rigorous process control, we ensure that each component meets the strictest dimensional and mechanical standards, giving you components that perform reliably in critical transmission applications.
Our state-of-the-art facility, spanning 1,000-3,000 square meters with a dedicated team of 51-100 skilled employees, is fully equipped to handle complex projects from design through production. With a proven track record of exporting to North America, Europe, Southeast Asia, and beyond, we are your trusted partner for high-volume, precision injection molding. Let us walk you through the specific benefits of this service:
Key Features & Technical Specifications

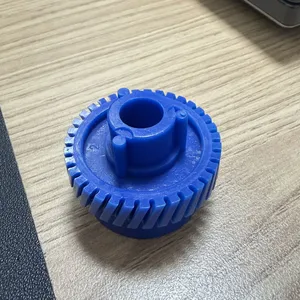

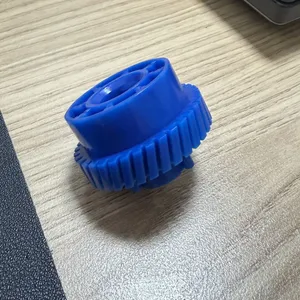

- Material Excellence: PA6+GF30 provides exceptional strength, stiffness, heat resistance, and dimensional stability—ideal for transmission gears, housings, and structural components.
- IATF 16949 Certified Process: Our entire production system adheres to the international automotive quality management standard, ensuring consistent product quality and traceability.
- S136 Mold Steel: High-grade stainless steel offers superior corrosion resistance, excellent polishability, and long mold life, minimizing downtime and maintenance.
- 1×4 Cavity Configuration: Balanced multi-cavity design maximizes output while maintaining tight tolerances across all cavities, reducing per-part cost.
- Hot Runner System: Eliminates cold runner waste, reduces cycle time, and improves material flow, resulting in better surface finish and lower scrap rates.
- Robotic Extraction: Automated part removal ensures consistent handling, reduces cycle time, and prevents damage to delicate features.
Performance Parameters (Typical Values)
| Parameter | Value / Range |
|---|---|
| Material | PA6 + 30% Glass Fiber (Density ~1.36 g/cm³) |
| Tensile Strength | ≥ 160 MPa (ISO 527) |
| Flexural Modulus | ≥ 8500 MPa |
| Mold Steel Hardness | 48-52 HRC (S136 heat treated) |
| Cavity Count | 1 × 4 (balanced runner) |
| Cycle Time (estimated) | 25-45 seconds (depending on part geometry) |
| Typical Dimensions | Customizable (up to 300 mm x 200 mm per cavity) |
Advantages for Your Business
- Cost Efficiency: The 1×4 hot runner mold reduces material waste and cycle time, directly lowering your per-part cost.
- Consistent Quality: Our IATF 16949 system, combined with automated extraction, ensures every part meets strict tolerances (±0.05 mm typical).
- Reliable Supply: With a factory of 1,000–3,000 m² and 51–100 workers, we can handle both prototypes and mass production runs (up to millions of parts annually).
- Global Shipping: We ship from Jiangsu, Shanghai, or Shenzhen ports, serving markets in North America, Europe, Asia, Oceania, and Africa.
- Flexible Customization: Adjustments to cavity configuration, mold steel, gate type, or extraction method are available upon request.
Why Choose Hongxinyutai Precision Mold? Since 2017, we have honed our expertise in precision injection molding, gaining the trust of clients across 15+ countries. Our commitment to quality is reflected in our TS16969 / IATF 16949 certification, rigorous in-process inspections, and continuous improvement culture. We provide full support from DFM analysis to mold trials and production ramp-up. Whether you need a dedicated mold for a long-running transmission component or a high-precision small-series, we deliver. Contact us today to discuss your project requirements and receive a competitive quotation. Let us prove why we are a preferred partner for automotive and industrial OEMs worldwide.
Frequently Asked Questions
-
Q: What is the minimum order quantity (MOQ) for this service?
A: Our MOQ is flexible. For new projects, we typically recommend a trial run of 500–1000 parts for validation, but larger production orders are welcome. Please discuss your specific needs with our sales team. -
Q: Can you modify the cavity count (e.g., 1×2 or 1×8)?
A: Yes, the cavity layout is customizable based on your volume and machine tonnage. 1×4 is a standard configuration, but we can design 1×2, 1×6, or 2×2 etc. upon request. -
Q: How long does mold fabrication and production sampling take?
A: Typical lead time for an S136 hot runner mold of this complexity is 30–45 days. First sample delivery can be arranged within 10 days after mold completion. -
Q: Is the IATF 16949 certification applicable to the entire factory?
A: Yes, our quality management system is certified to IATF 16949:2016 (equivalent to TS16969), covering design, tooling, molding, and inspection processes. -
Q: What tolerance can you hold for PA6+GF30 parts?
A: With our precision mold and process control, we achieve typical tolerances of ±0.05–0.1 mm on critical dimensions, depending on part geometry. -
Q: Do you provide material certification and test reports?
A: Absolutely. We supply material certificates (MTC) and can perform dimensional reports, tensile tests, and other mechanical tests as required. -
Q: Can you handle assembly or secondary operations?
A: Yes, we offer additional services such as ultrasonic welding, insert molding, and light assembly. Please inquire for specific requirements. -
Q: How do you ensure the mold steel quality (S136)?
A: We source S136 from certified suppliers and perform hardness testing and PMI (Positive Material Identification) verification before mold construction.
Ready to start your project? Contact Changzhou Hongxinyutai Precision Mold Co., Ltd. today. Our team will respond within 24 hours with a detailed proposal. Experience precision, efficiency, and reliability with every part.
