Help CenterSS304 Stainless Steel Glass Railing Standoff 38mm Diameter Solid Type Satin Finish Heavy Duty
Product Spotlights
Related Products
-
Glass Railing Standoff 30mm Diameter for Signage Display and Mirror Mounting Stainless SteelUS$ 1 - 5MOQ: 100 Pieces -
SS304 Glass Railing Standoff 38mm Satin Finish for Balcony Glass Staircase BalustradeUS$ 1 - 5MOQ: 100 Pieces
-
Glass Railing Standoff Matte Black Finish 50mm Solid Heavy Duty Easy InstallationUS$ 1 - 5MOQ: 100 Pieces
-
China Manufacturer Glass Railing Standoff 304 Stainless Steel Free Samples With Mill Test ReportUS$ 1 - 5MOQ: 100 Pieces
-
Heavy Duty Glass Railing Standoff 304 Stainless Steel Easy Installation 1 Year WarrantyUS$ 1 - 5MOQ: 100 Pieces

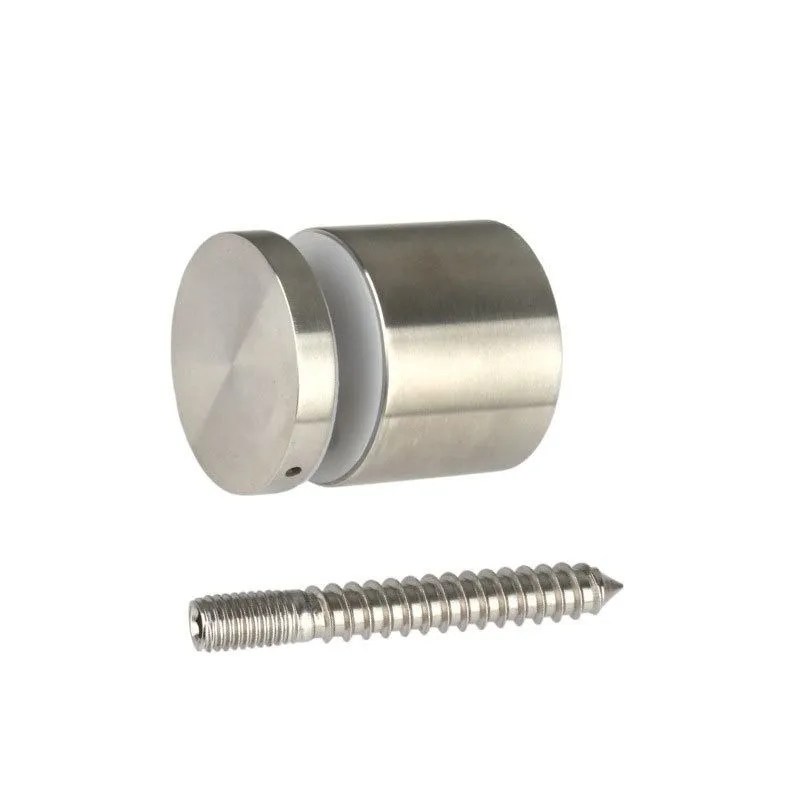

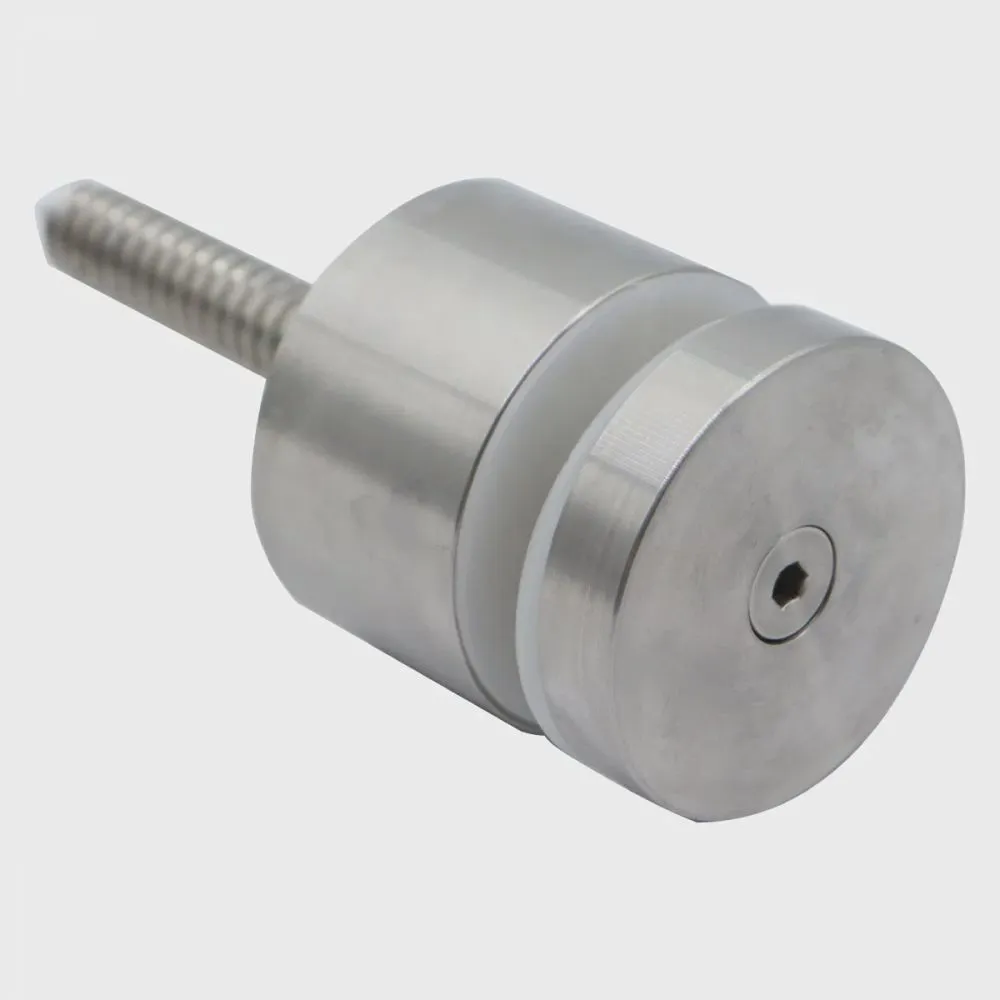

Product Overview: Hefei SENOTECH New Materials Co., Ltd. (established 2020, annual export value US$1–1.5 million) is proud to offer the SS304 Stainless Steel Glass Railing Standoff – a premium, heavy-duty solution for modern glass railing installations. With a solid 38mm diameter body, satin finish, and true 304 stainless steel construction, this standoff delivers exceptional corrosion resistance and lasting aesthetic appeal. Designed for architects, contractors, and DIY enthusiasts, it combines robust load-bearing capacity with clean, minimalist design to elevate any balcony, staircase, or deck railing project.
Key Features & Benefits
- Solid 304 Stainless Steel: The standoff is machined from a single piece of SS304, ensuring no welding weak points and superior rust resistance – ideal for coastal or humid environments.
- 38mm Diameter Heavy-Duty Design: Thicker than standard standoffs, providing extra stability and supporting thicker glass panels (up to 21.52mm) with confidence.
- Satin Finish (Brushed): The fine brushed texture hides fingerprints and scratches, maintaining a uniform premium look over time.
- Universal Compatibility: Works with most glass railing systems; available with M8 or M10 threaded studs and can be customized to match your specific glass thickness and hole pattern.
- Easy Installation: Pre-drilled central hole and included stainless steel set screw (or bolt) make mounting simple – instructions provided with each unit.
- Versatile Application: Suitable for interior and exterior glass railings, including balconies, staircases, terraces, pool fences, and commercial partitions.
Technical Specifications
| Parameter | Value |
|---|---|
| Material Grade | SS304 (AISI 304, 0.8% carbon max, 18% chromium, 8% nickel) |
| Outer Diameter | 38mm ±0.2mm |
| Overall Length | 50mm / 60mm / 70mm (customizable upon request) |
| Thread Size | M8 / M10 (standard; other sizes optional) |
| Glass Thickness Range | 10mm – 21.52mm (with appropriate rubber gaskets) |
| Load Capacity | Up to 150 kg per standoff (tested in static vertical load) |
| Surface Finish | Satin (brushed 240#) – uniform grain direction |
Why Choose Our Standoff? Unlike hollow or cast alternatives, this solid SS304 standoff offers unmatched rigidity and corrosion resistance. The satin finish is carefully polished to meet architectural standards. Each unit undergoes strict dimensional inspection before packaging. We offer flexible customization – from thread type to overall length – to ensure seamless integration with your project. Backed by Hefei SENOTECH's reliable supply chain and export experience to over 20 countries including North America, Europe, and Oceania.
Frequently Asked Questions
Q1: Can this standoff be used for tempered glass panels?
A: Yes, it is designed for tempered glass. The stainless steel construction and rubber gaskets (sold separately) provide a secure grip without damaging the glass edges.
Q2: What is the recommended installation method?
A: Drill pilot holes into the supporting structure (wood, steel, concrete), then mount the standoff using the provided screw/bolt. Ensure the glass hole is aligned with the standoff's center. For detailed steps, refer to the included manual or contact our support team.
Q3: Are the threads left-hand or right-hand?
A: Standard threads are right-hand (RH). Left-hand variants are available upon request as a custom option.
Q4: Does the satin finish require special maintenance?
A: No. The brushed surface is low-maintenance – simply wipe with a damp cloth and mild detergent. Avoid abrasive cleaners to preserve the satin appearance.
Q5: What is the minimum order quantity (MOQ)?
A: Our standard MOQ is 100 pieces, but we can negotiate smaller trial orders for new customers. Contact us for details.
Q6: Can I get a sample before placing a bulk order?
A: Yes, sample orders are accepted. Shipping cost is to be covered by the buyer, which will be deducted from the first bulk order if placed within 90 days.
Q7: Does the standoff come with matching screws or set screws?
A: Yes, each standoff includes one stainless steel screw (or set screw) of the specified thread. Additional mounting hardware (washers, plugs) can be added at no extra cost upon request.
Q8: Is it suitable for outdoor use in coastal areas?
A: Absolutely. SS304 is marine-grade stainless steel, offering excellent resistance to salt spray and moisture. However, for extremely harsh environments (e.g., direct saltwater contact), we recommend our SS316 option (available upon request).
Trust & Reliability
Hefei SENOTECH New Materials Co., Ltd. has been a trusted exporter of architectural hardware since 2020, with annual exports exceeding US$1 million. Our products are shipped to diverse markets across North America, Europe, Southeast Asia, Africa, and Oceania. We maintain strict quality control: every batch of standoffs is inspected for dimensional accuracy, thread fit, and surface finish before packing. Our team provides prompt technical support and customized solutions to meet your project deadlines. Whether you need a small sample or a large container order, we are committed to delivering consistent quality and competitive pricing. Contact us today to discuss your glass railing requirements – we look forward to partnering with you.
