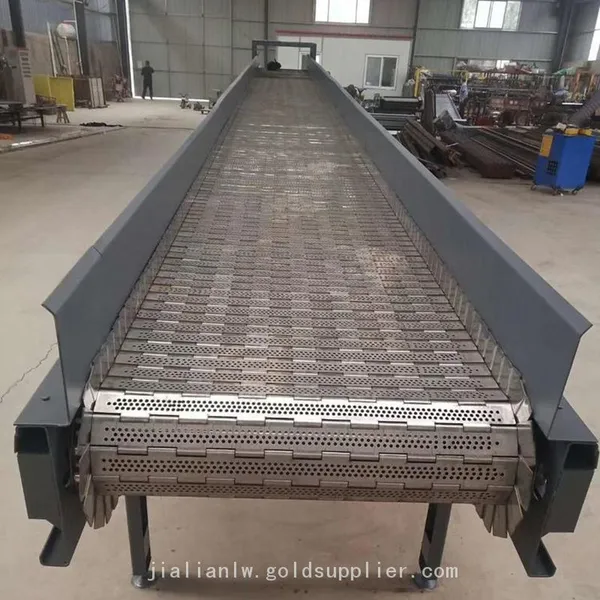

Help CenterPlastic Chain Plate Conveyor Flat Top Chain Anti-Static Perforation Single Hinged Straight Stainless Steel Chain Conveyor System
Related Products
-
Chip Conveyor Chain Plate Hinged Belt Type Chip ConveyorUS$ 1000MOQ: 2 Units -
Factory PVC/PU Portable Conveyor Belt Food Industry Conveyor Belt Machine System Band ConveyorUS$ 200MOQ: 2 Units
-
High-Performance Belt Conveyor System With Speed Control for Material TransportUS$ 300MOQ: 2 Combos
-
Inclined Cleated Conveyor With Hopper for Material Handling and SortingUS$ 400MOQ: 2 Combos
-
Plate Chain Conveyor LineUS$ 5,000 - 100,000MOQ: 1 Set
Tooth-shaped flexible chain conveyor equipment is a versatile and highly adaptable conveyor system designed for transporting goods through complex paths, such as curves, inclines, or around obstacles. The unique design of the tooth-shaped chains allows for smooth, stable movement while providing high flexibility. This system is often used in applications where precision and reliability are crucial, especially in industries with irregular-shaped or delicate products.
| Model : | As Fact Need Customize |
| Applicable Products: | Bottles,Cans,Brick Pak, Bags, Pouches etc............. |
| Conveyor Chain Type: | Various Flexible Conveyor Chains (As Fact Need Choice) |
| Conveying Height: | As Client Fact Need Customize |
| Conveying Speed: | 0 ~ 80m/min (Adjustable Speed) |
| Conveying Direction: | Horizontal Flexible Conveyors, Slope Flexible Conveyors, Bend Flexible Conveyor,Multi-Layer Belt Conveyor,etc |
| Height of Outlet and Inlet: | As Client Fact Need Customize |
| Conveyor Chain Size: | 44.63.83.103.140.175.295mm (As Client Fact Need to Customize) |
| Conveyor Frame Material: | Stainless Steel Frame, Aluminum Profile Frame, Spray-paint Carbon Steel Frame |
| Drive Motor: | OMAT, SEW |
| Drive Type: | VFD Motor Drive Mode |
1. Basic structure and composition
Chain plate: made of metal (such as stainless steel, carbon steel) or high-strength engineering plastic, with various shapes (flat plate, wavy, with ribs, etc.), directly carrying materials.
Chain: Roller chains or sleeve chains are usually used to connect with chain plates and transmit power.
Drive device: including motor, reducer, drive sprocket, providing power to drive the chain to operate.
Tensioning device: Adjust the tightness of the chain to prevent slipping or detachment.
Rack: A steel structure or aluminum frame that supports the entire conveyor system.
Guidance device: Ensure that the chain and chain plate maintain the correct trajectory during operation.
2. Working principle
The driving device drives the sprocket to rotate, and through the meshing of the chain and sprocket, the chain plate is pulled to move in a circular motion. The material is placed on the chain plate and moves to the target position with the chain plate to achieve continuous conveying.
3. Core Features
High load-bearing capacity: capable of transporting heavy materials such as ore and metal parts, with a single machine length of up to tens of meters.
Resistant to harsh environments: Suitable for high temperatures (metal chain plates), humidity, and corrosive environments, with optional anti-corrosion materials.
Flexible layout: Supports horizontal, inclined (≤ 30 °), curved (special design), and vertical (additional structure required) multi-directional conveying.
Strong stability: The chain is rigidly connected to the chain plate, running smoothly and suitable for precision assembly lines.
Multi functional extension: It can be equipped with protective covers, cleaning nozzles, weighing sensors and other modules.
4. Application scenarios
Heavy industry: mining (coal, ore), metallurgy (steel ingots, scrap steel), casting (sand molds, castings).
Manufacturing industry: automotive assembly (engines, components), home appliance production lines.
Logistics warehousing: Port bulk cargo loading and unloading, express sorting center for large package transportation.
Special industries: chemical industry (corrosion-resistant chain plate conveying chemicals), food grade stainless steel chain plate used for beverage filling.

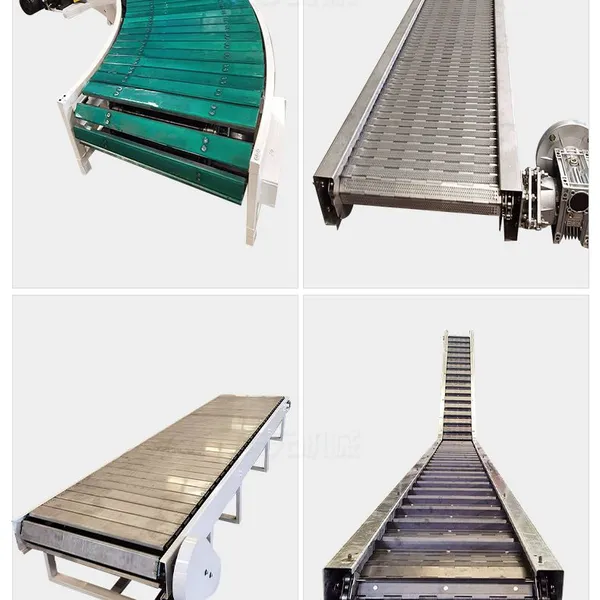

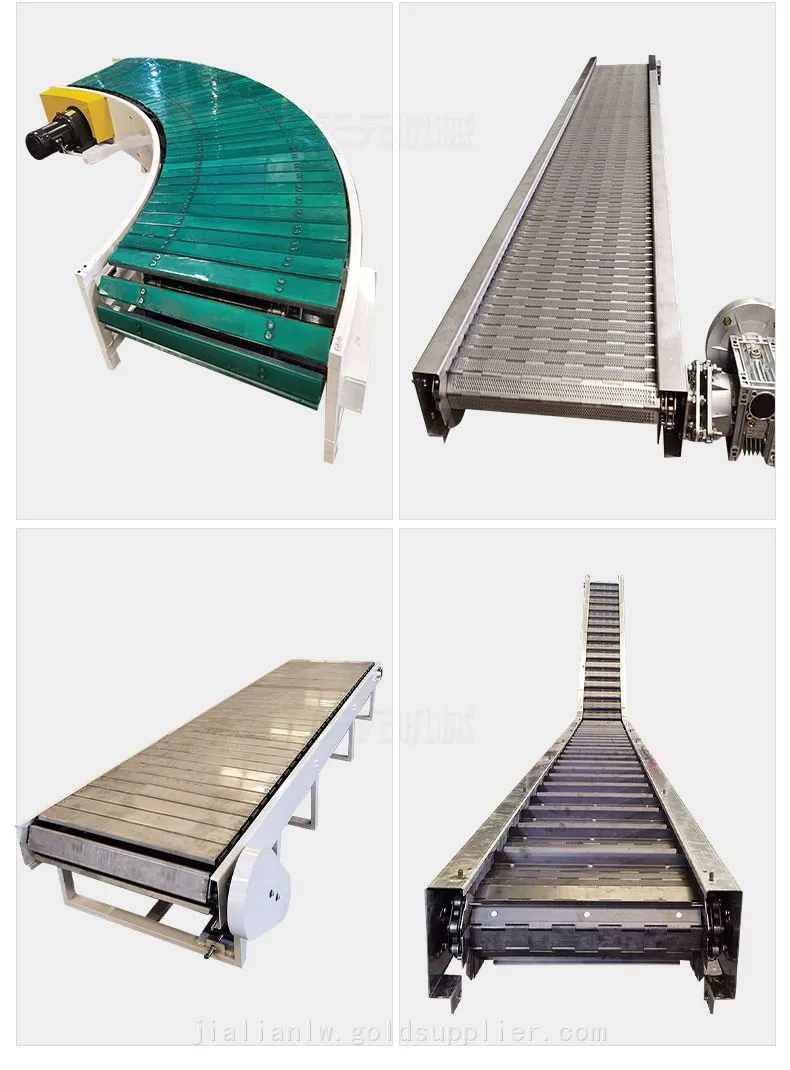

5. Common types
Lightweight chain plate machine: Plastic chain plate, used for electronic components and food packaging.
Heavy duty chain plate machine: Thickened steel plate, used for conveying building materials and ores.
Stacking chain plate machine: allows materials to pause stacking on the conveyor line, used for assembly cycle control.
Roof Conveyor: Chain plate with hinged roof, used for climbing or lifting operations.
