Silage Bagging Baler Machine
1. The device adopts manual control joystick, does not require complex electrical system, and is easy to operate.
2. Three-cylinder design (pressure optional 30-120 tons), dry straw bale weight can reach 30-65 kg per bale, neat bales effectively cut down transportation costs.
3. It can process silage, yellow storage and dry straw. A diesel engine can be equipped for sites without power supply. Feed box size and bale specifications are customizable.
OUR STRENGTHS
|
🏭 Large factory production |
💰 Price advantage |
🎧 Personal service |
📏 Support custom |
🚚 Fast delivery |

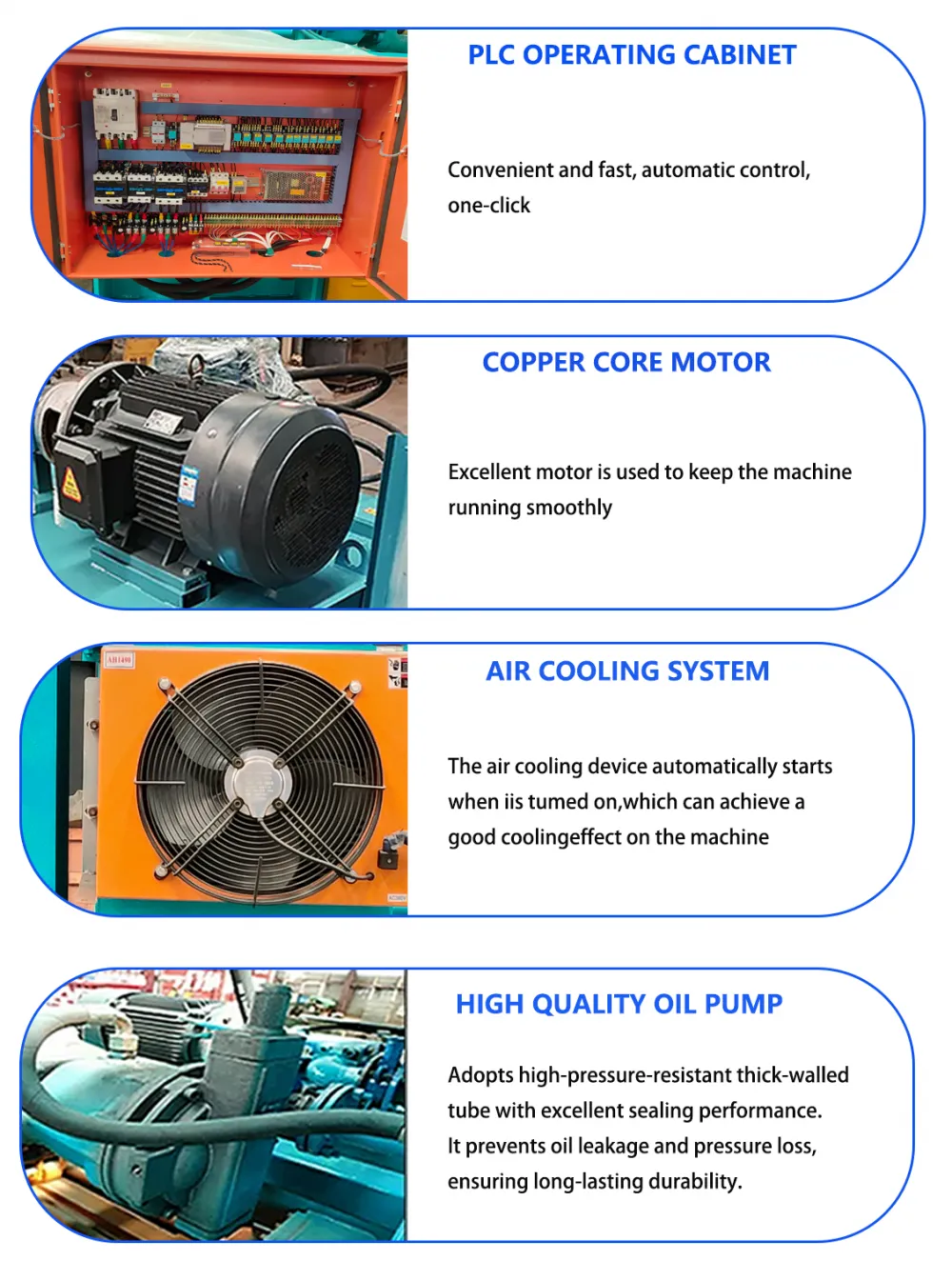

Core Technical Advantages
PLC OPERATING CABINET: Convenient and fast, fully automatic one-button control.
COPPER CORE MOTOR: High-quality pure copper motor ensures stable long-time machine operation.
HIGH-PRESSURE SEALED OIL PUMP: Thick anti-pressure oil pipes with premium seals eliminate oil leakage and pressure loss, extend service life.
AIR COOLING SYSTEM: Cooling fan starts automatically after power on to avoid overheating failure.
Detailed Application Introduction
Silage on farms: Compress wheat, corn straw into tight bales for long-term fresh silage storage, reduce feed waste and save storage space.
Livestock farming: Supply high-quality preserved forage for cattle, sheep and other livestock to guarantee stable all-year feed supply.
Rural cooperatives: Centralized straw recycling and baling for village collective agricultural business to raise farm income.
Feed processing plants: Mass raw material compression, convenient transportation and deep processing of forage feed.
Paper mills: Process crop straw into compact bales as raw paper material to cut logistics cost.
Biomass power plants: Dense straw bales serve as clean biomass fuel for power generation, realize agricultural waste recycling.
Product Specification
| Model | 70 | 90 | 100 | 120 |
| Power | 18.5 kW | 22 kW | 37 kW | 45 kW |
| Bale Size | 700*300*400mm | 700*300*400mm | 700*300*400mm | 700*300*400mm |
| Bale Weight | 55-60 kg | 60-70 kg | 60-70 kg | 60-70 kg |
| Overall Dimensions | 3600*2100*1900mm | 3700*2100*2600mm | 3800*2500*3600mm | 9800*2700*4100mm |
| Machine Weight | 1.5 Tons | 4 Tons | 9 Tons | 9.8 Tons |
| Hourly Output | 120 Bales | 120-150 Bales | 180-210 Bales | 180-210 Bales |
Notice: Customization is available according to customer requirements, including bale size, power, cooling system and other configurations.

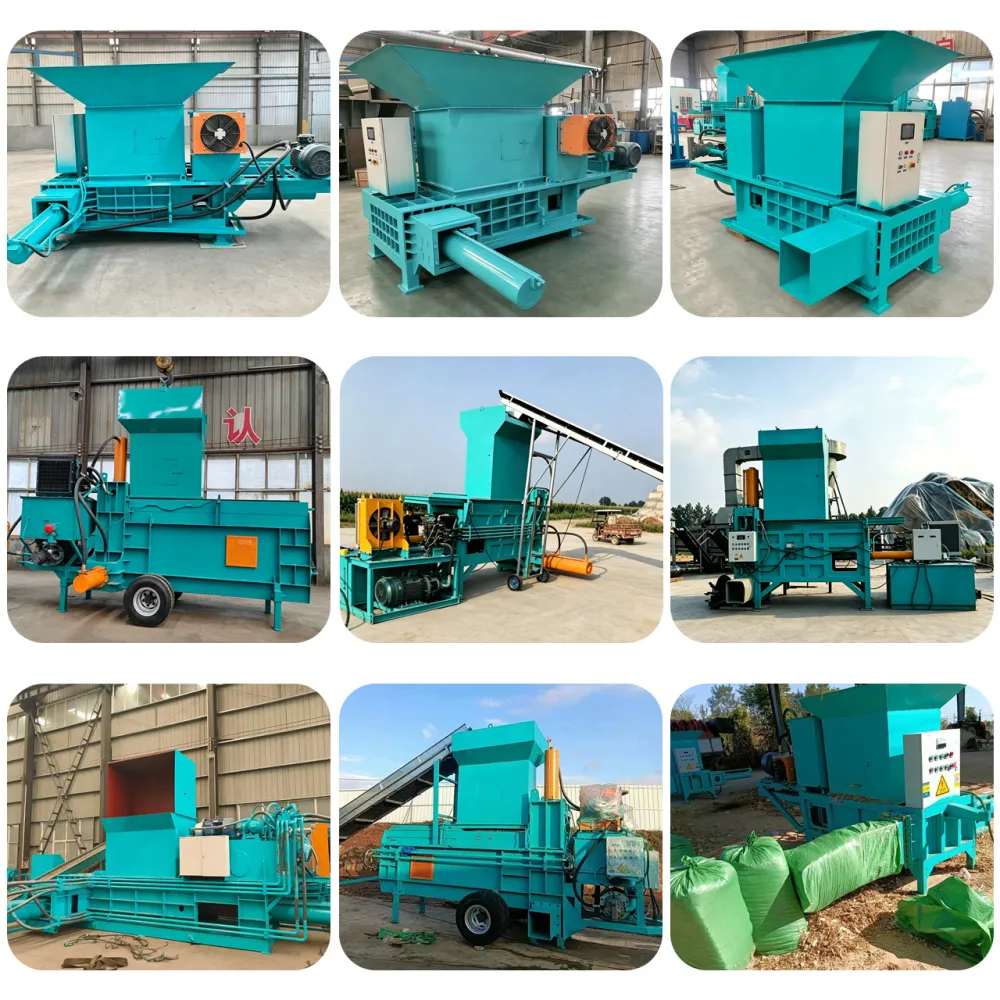

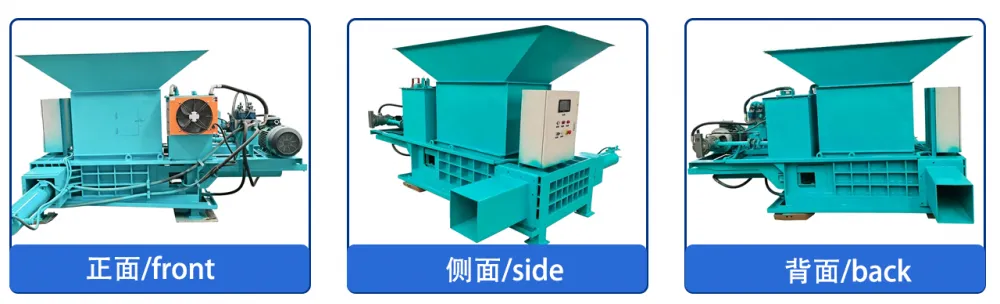

Product Showcase
Product Advantages
This machine has passed CE certification for export customs clearance.
We are direct factory manufacturer, support full machine customization, free online factory video visit available.
Bale size and working voltage can be customized based on your actual demand, bale weight varies by raw material.
High efficiency bagging output reaches 100-210 bales per hour.
Fit for corn straw, silage, dry straw storage; compressed bales are easy to unpack, widely used in building materials, fertilizer, mushroom cultivation and livestock feed.
Thickened steel plates greatly improve machine durability and extend service life.
National standard steel frame full welding, imported hydraulic seals to stop oil leakage; PLC one-button control finishes full bag compression automatically.
Applicable Raw Materials & Packing Effect
Applicable raw materials: corn stalks, peanut vines, rice straw, alfalfa, dry corn straw and other crop forage.
✅ High Density Compression: Reduce loose straw volume by 5~10 times to cut storage space.
✅ Low Logistics Cost: Compact bales greatly lower transportation expense.
✅ Custom Packing Bags: Support standard 85-size bags or customized bag specifications.
✅ Heavy Duty Frame: Integrated hydraulic system, long service life and stable performance.

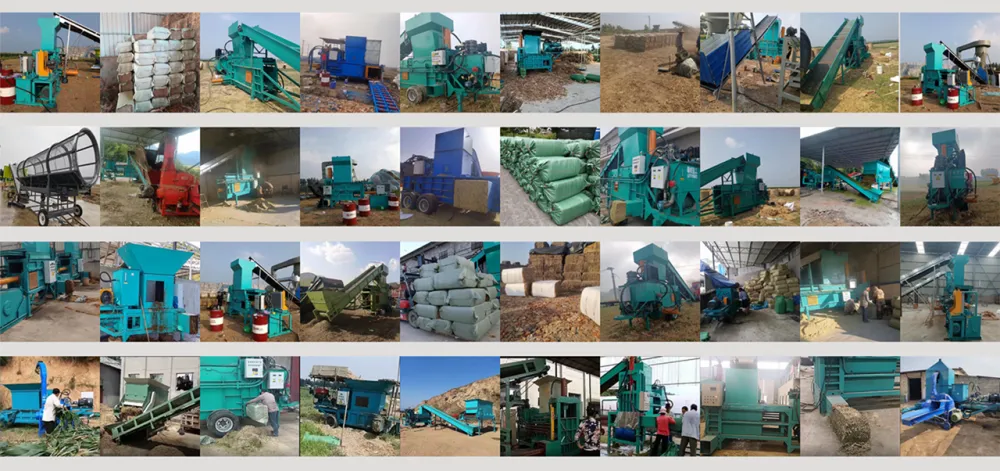

Straw Baler Field Working Cases
Our straw silage balers are widely used in livestock farms, rural cooperatives and feed processing plants. All photos are real customer on-site working records. The machine compresses corn straw, wheat straw and alfalfa into tight silage bales, easy to store and transport, and keeps forage fresh more than 1 year. We provide customized machines matching your raw material, daily output and workshop space.
After-sales Service Guarantee
Worry-Free Full-Service, More Assured Cooperation
✅ Source Factory Direct Supply: Henan Panqi Heavy Industry owns full production workshop, no middlemen, competitive factory price.
✅ Customized Solution: Adjust machine model, bale size and automatic configuration as your demand.
✅ Free Installation Guidance: Full operation training, optional engineer on-site service for big orders.
✅ Complete Warranty: 1-year warranty for core components, 24h online technical support with fast response.
Company Introduction
Henan Panqi Heavy Industry Technology Co., Ltd.
Henan Panqi Heavy Industry Technology Co., Ltd. is a professional hydraulic machinery manufacturer with over 10 years experience. We introduce domestic and overseas advanced technology to develop full series equipment: horizontal baler, vertical baler, straw silage baler, full-automatic hydraulic baler, waste paper baler, plastic baler and industrial waste baler. Our complete model range meets all kinds of user demands, welcome global buyers to visit and cooperate with us.
Our Factory Certifications & Patents
Complete Production Process Summary
1. Design & Drafting: Engineers draw equipment CAD drawings, confirm baler size, pressure and structural parameters to set production standards.
2. Gas Cutting: Cut steel plates and profiles as drawings to form base, bin and pressure plate blanks.
3. Parts Manufacturing: Grind and machine cut parts, finish precision processing for cylinder flanges and guide sleeves to guarantee machine accuracy.
4. Welding Assembly: Weld all machined parts, fully reinforce load-bearing base, column and cylinder seats for high structural strength.
5. Factory Testing: Complete no-load and full-load pressure test after assembly, check running stability, hydraulic pressure and sealing performance to meet rated standard.
6. Logistics & Delivery: Anti-rust treatment and packaging after inspection, load onto trucks and deliver to customers.
Machine Loading & Shipment Photos
We provide mature global logistics solutions. All balers are wrapped with anti-rust film and fixed firmly inside containers or flat trucks. We support EXW, FOB, CIF trade terms. We send real loading photos & videos for every order to let you track full shipment progress. Standard stock machines ship fast within 3-7 working days, customized orders will be delivered on agreed schedule.
FAQ
Q: Are you a real manufacturer?
A: Yes, we are professional hydraulic baler manufacturer with 12+ years production experience, equipped with complete production line and professional technical team.
Q: Will the finished bales loose or deform?
A: No problem. Our machine hydraulic pressure is stable, hundreds of successful farm cases prove neat tight bale forming with no loose issue.
Q: Can I customize feed bin size and machine voltage?
A: Default industrial voltage 380V, 220V/415V/440V voltage customization available. Diesel engine power kit optional for off-grid farms.
Q: Can I visit your factory before order?
A: Sure, in-person factory visit or online video factory tour are both available anytime. Our factory address: 500m south of Miaowang Road & Zhengshang Road intersection, Xingyang, Zhengzhou, Henan Province, China.
Q: Can I customize bale dimension?
A: Yes, we adjust output bale size and weight according to your demand.
If you have any other questions, please feel free to contact us anytime.
