Product Introduction:
Item |
Indicator |
Unit |
Test Standard |
Appearance |
Transparent light yellow liquid |
||
Acid value |
17-25 |
mgkoh/g |
GB/T2895-2008 |
Solid content |
64-70 |
% |
GB/T7193-2008 |
Viscosity 25℃ |
0.68-1.13 |
Pas |
GB/T7193-2008 |
Stability 80℃ |
≥24 |
h |
GB/T7193-2008 |
196 is an unsaturated polyester resin mainly made from phthalic anhydride and standard diols, and it has been dissolved in styrene, with medium viscosity and reactivity, and it has excellent mechanical properties after curing. It is widely applicable to various FRP products and molding processes such as hand lay-up and filament winding.
Liquid resin performance indicators:
Resin casting performance indicators (typical values)
Item |
Indicator |
Unit |
Test standard |
Appearance |
Casting has no defects |
||
Tensile strength |
68 |
Mpa |
GB/T2567-2008 |
Tensile elastic modulus |
3700 |
Mpa |
GB/T2567-2008 |
Elongation at break |
4.00 |
% |
GB/T2567-2008 |
Flexural strength |
120 |
Mpa |
GB/T2567-2008 |
Flexural elastic modulus |
3800 |
Mpa |
GB/T2567-2008 |
Impact strength |
11.00 |
KJ/m2 |
GB/T2567-2008 |
Heat distortion temperature |
60 |
℃ |
GB/T1634-2004 |
Barcol hardness |
45 |
GB/T3854-2005 |
Product features:
196It has the advantages of light weight, high specific strength, corrosion resistance, high temperature resistance (60~70), slow heat transfer, impact resistance, convenient molding, and designability (complex design structures can be realized), and is applied to automobile front face parts, body skirt parts, body shells, etc.
Packaging and storage:

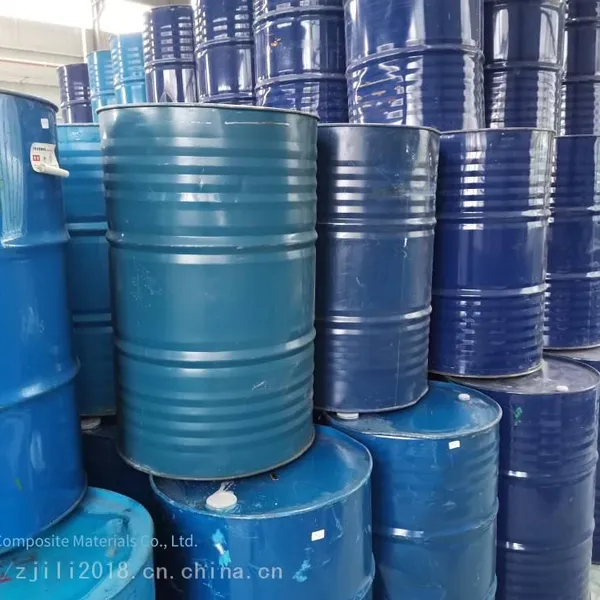

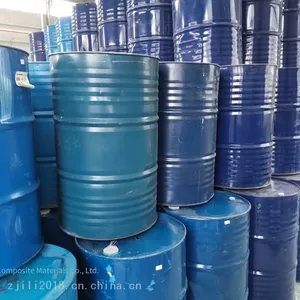

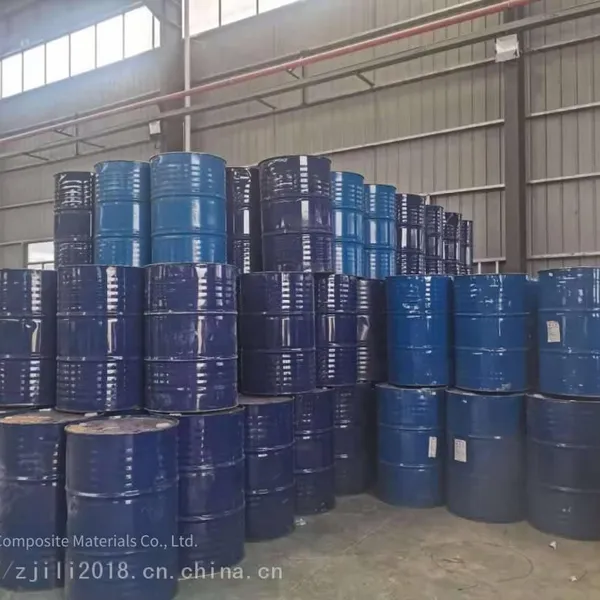

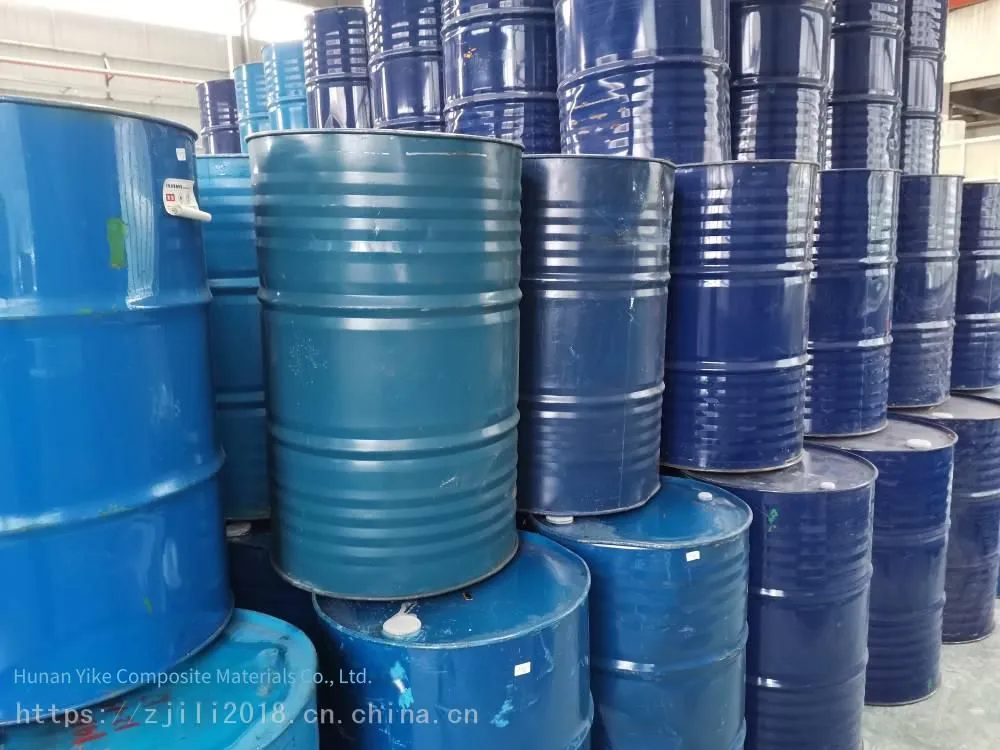

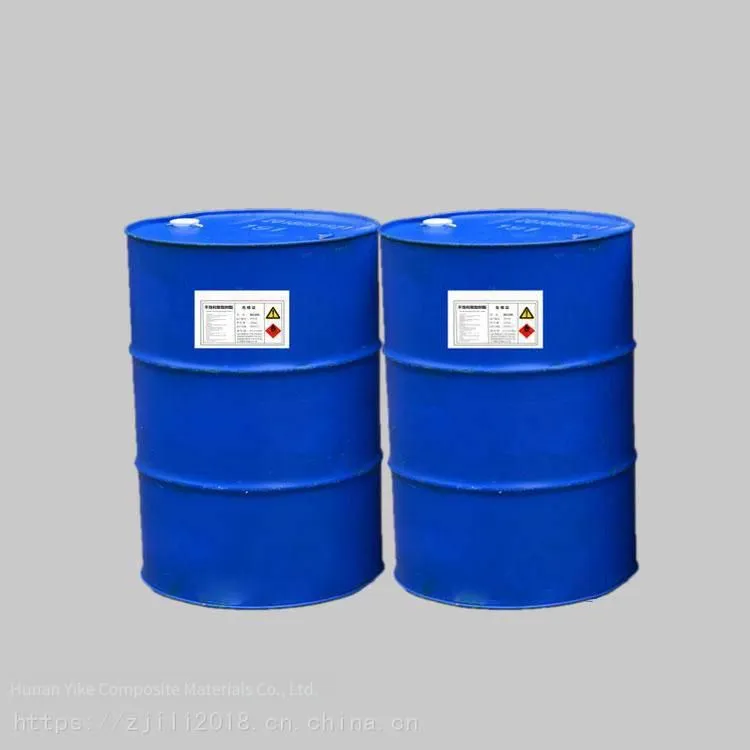

196The packaging is a metal drum with a net weight of220KG. The storage period is three months at20°C. Increasing the temperature will shorten the storage period accordingly. It should be stored in a cool and ventilated place. This product is flammable. Avoid direct sunlight and keep it away from heat sources and open flames.
