digital display measuring instrument for wire and cable insulation thickness

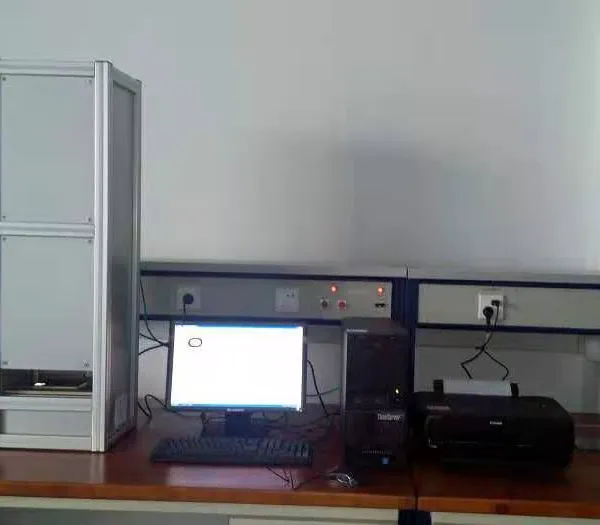

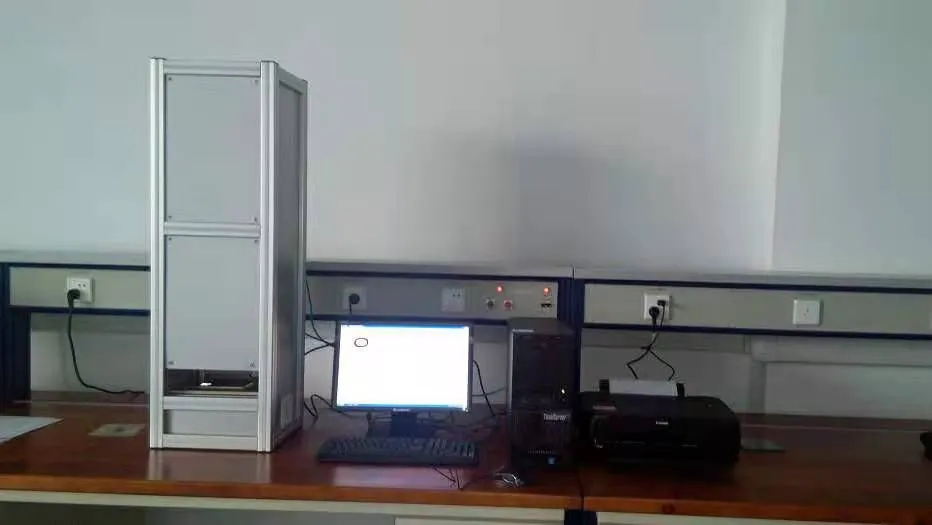

Product Overview：
The digital display measuring instrument for wire and cable insulation thickness is a precision and high-efficiency opto-mechatronic measuring device. It is widely applied in machinery, instrumentation, electronics, light industry and other sectors, as well as universities, research institutes and metrological verification departments.

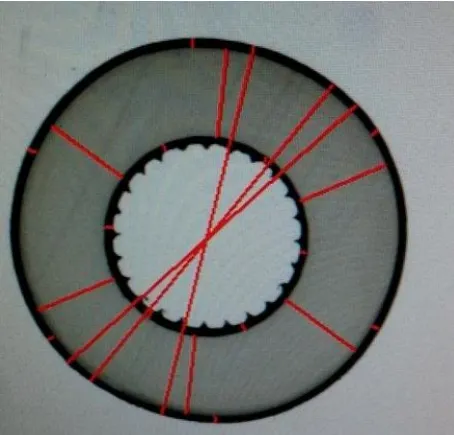

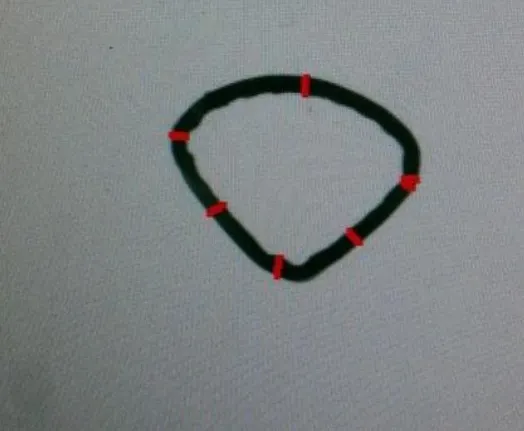

This instrument can efficiently inspect the contour dimensions and surface profiles of various complex-shaped workpieces, such as templates, stampings, cams, threads, gears, form milling cutters and so on.
The instrument is equipped with a high-quality optical system featuring clear objective lens imaging and accurate magnification. Under transmitted light illumination, the contour measurement error is less than 0.08%. The measurement indication error is (3+L/75) μm, where L stands for the measured length in millimeters (mm).
Main Technical Parameters：
1. Worktable：
Metal Stage Size：320mm×220mm；
Glass Stage Size：Φ190mm；
X-axis Travel：150mm；
Y-axis Travel：50mm；
Measurement Accuracy：3+L/75μm；
Digital Display Resolution of X and Y Coordinates： 0.001；
2. Projection Screen：
Size / Dimension：Φ312mm Applicable range > Φ300mm (with cross reticle engraved；
Projection Rotation Range：0～360°；
Digital Display Resolution of Rotation Angle：1′or 0.01°；
3. Objective Lens：
Objective Lens | Magnification：Standard: 10× (20×, 50×, 100× optional；
Object Field of View:Φ30mm；
Working Distance of Object Side:85.17mm；
Reflection Mode: External Reflection；
Focus Travel:70mm；
4. Data Processing System: Multi-functional Data Processing System；
5.Illumination: Transmitted and Reflected IlluminationLight source: 24V, 150W halogen lamp for both；
6.Power Supply: AC220V, 50/60Hz, Total Power 350W；
7.Cooling Method: Forced Air Cooling (3 Axial Fans)；
8.Overall Dimensions：720mm×390mm×1100mm；
9.Weight：175kg。
