ZYD-100 (6000 L/H) Double Stage High Vacuum Transformer Oil Purification Machine
High Quality
Easy operation
Affordable price
Product Introduction
JUNSUN's ZYD-100 Double Stage High Vacuum Transformer Oil Purification Machine is specially designed for treating transformer oil and other kinds of insulating liquids in the oil-filled power equipment. Through degasification, dehydration, and filtration process, the dissolved gases and moisture, solid impurities, contaminations can be effectively removed from oil.
Main Features
1. Equipped with double stage high vacuum system consisting of large capacity rotary vane vacuum pump and roots vacuum pump. The system has fast pumping speed, ensuring the machine to operate continuously in a high vacuum state (ultimate vacuum ≤ 5Pa, working vacuum ≤ 133Pa).
2. Equipped with JUNSUN specially designed large size vacuum chamber, together with advanced degasification and dehydration technology, which can remove gas and water very quickly and effectively.
3. Equipped with high precision large size three stage oil filtration system, including primary filter, secondary filter, and fine filter, which have gradually increased precision, the dimensions of filter elements are bigger than most of other manufacturers, which can effectively remove mechanical impurities from oil and have longer service life.
4. Equipped with automatic temperature control system, automatic oil level control system, automatic defoaming system, automatic pressure protection system, which guarantees safe and reliable operation in the long term.
5. Equipped with comprehensive protection mechanism, such as power protection, pressure protection, motor overload protection. If any protection mechanism is triggered, the machine will stop working automatically.
6. Equipped with high efficiency electric heating system, heating the oil uniformly, avoid the deterioration of oil during heating process.
7. This machine is able to operate offline or online at indoor or outdoor. In addition, this machine has a specialized vacuum pumping interface, if equipped with related optional features, it can be also used as independent vacuum pump set to evacuate transformers.
Technical Specifications
ITEM NAME |
UOM |
DATA |
Model Number |
JUNSUN ZYD-100 |
|
Nominal Flow Rate |
L/H |
6000 |
|
Nominal Pumping Speed (Rotary Vane Vacuum Pump) |
M3/H |
100 (50Hz) |
|
Nominal Pumping Speed (Roots Vacuum Pump) |
M3/H |
505 (50Hz) |
Type of Cooling (Vacuum Pumps) |
Natural Air Cooling |
|
MTBF |
Hours |
≥5000 |
Working Vacuum |
MPa |
-0.06 ~ -0.099 |
Ultimate Vacuum |
Pa |
≤5 |
Working Pressure |
MPa |
≤0.5 |
Oil Heating Temperature |
℃ |
20～80 (usually recommend 60) |
Working Noise |
dB(A) |
≤75 |
Power Supply |
AC 380V, 50Hz, 3Ph (or customized according to user requirements) |
|
Heating Power |
KW |
60 (20×3, Each Independent Control) |
Total Power |
KW |
68 |
Inlet/Outlet Pipe Diameter |
MM |
40/40 |
Primary Filter Element |
Micron |
100/50 |
Secondary Filter Element |
Micron |
20/10 |
Fine Filter Element |
Micron |
5/3/1 |
Dimensions of Filter Element |
MM |
160×700 |
Estimated Weight |
KG |
Approx. 900 |
Length |
MM |
Approx. 1650 |
Width |
MM |
Approx. 1350 |
Height |
MM |
Approx. 1700 |

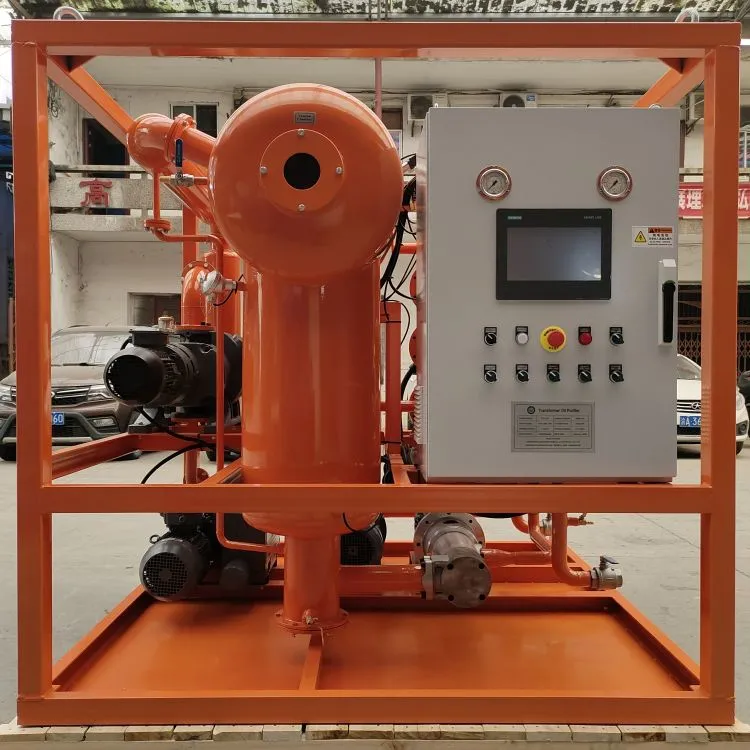

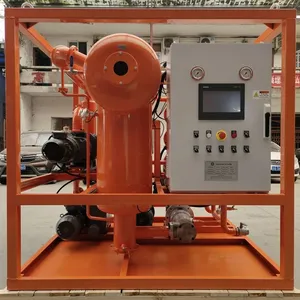

Front view of machine

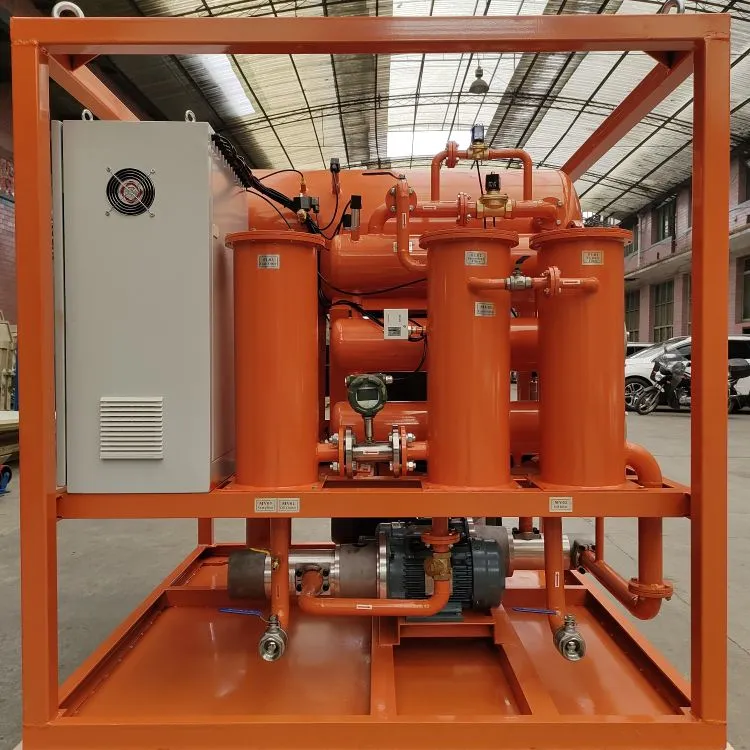

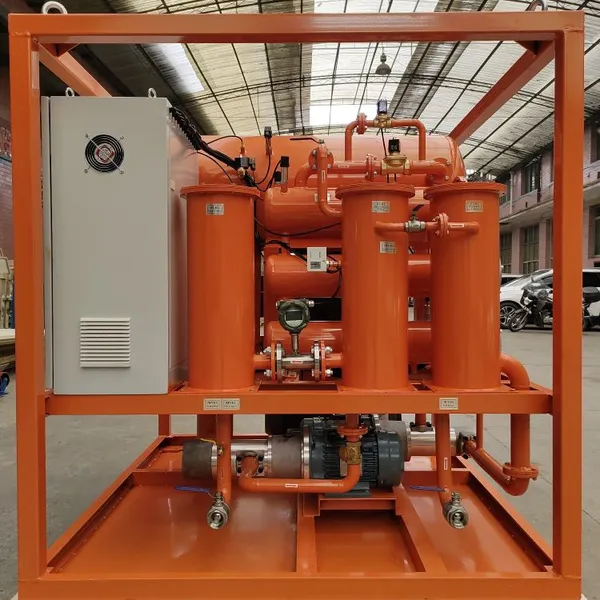

Back view of machine

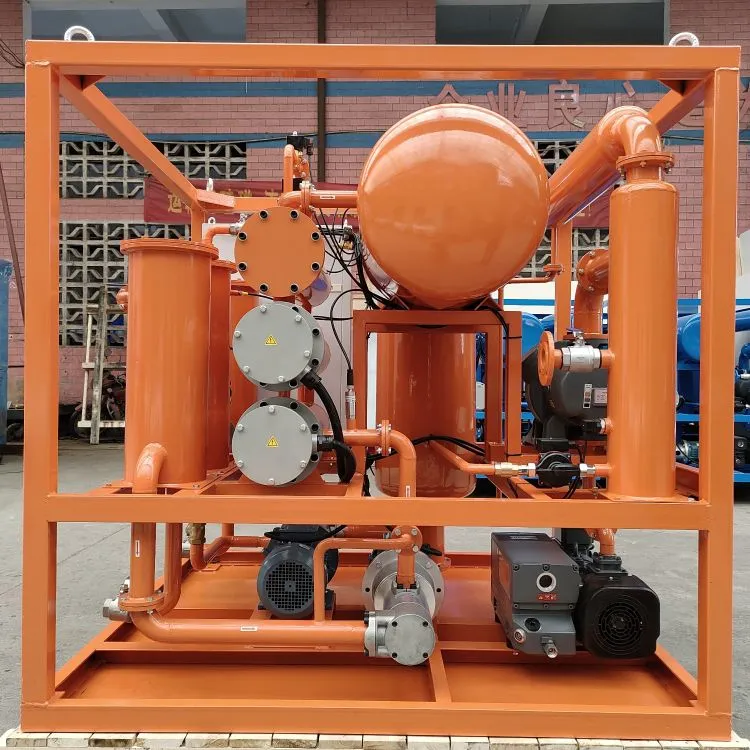

Left view of machine

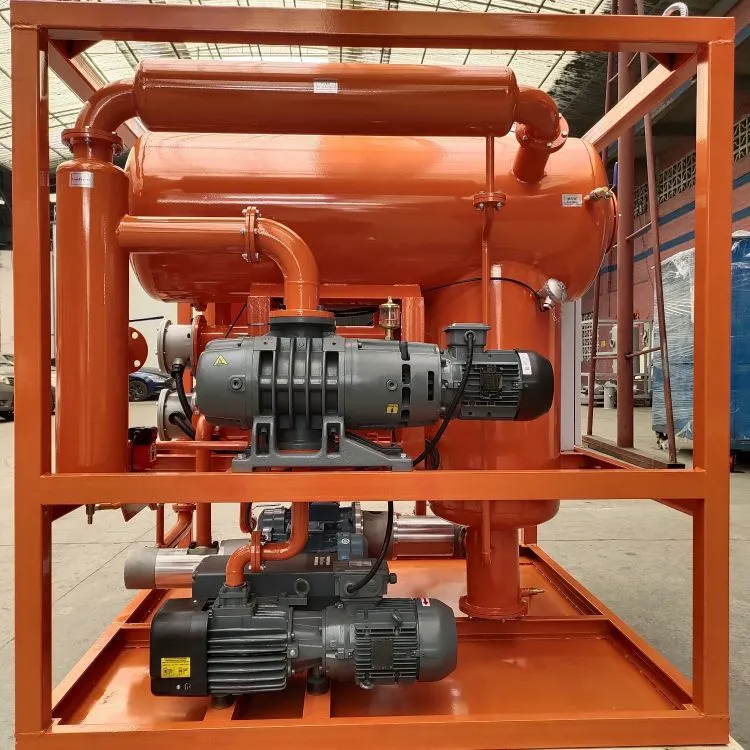

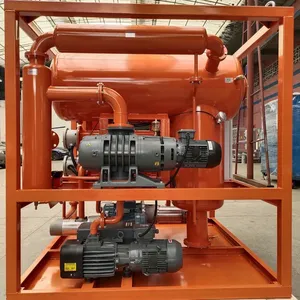

Right view of machine
Why choose JUNSUN?
1. We are one of the largest manufacturers & exporters of oil purifier in China
2. We have more than 20 years export experience
3. We offer our customers high quality products at competitive price
4. We offer our customers excellent after-sales service
5. We are not satisfied until our customers are satisfied!
