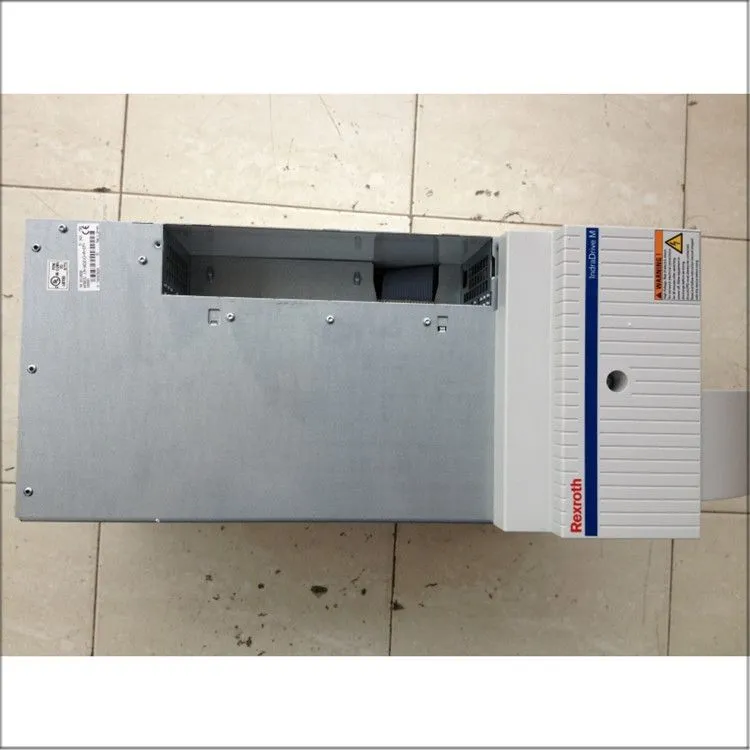

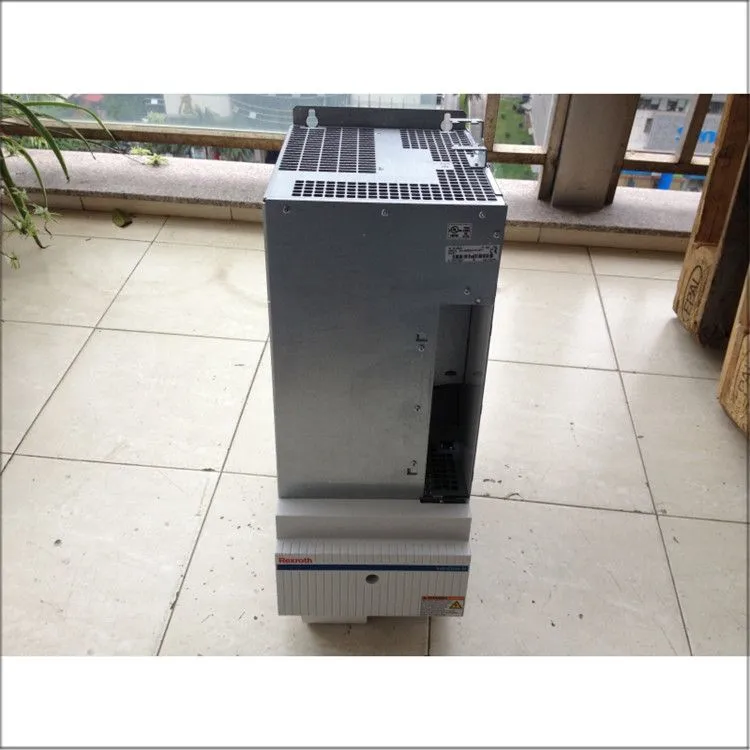

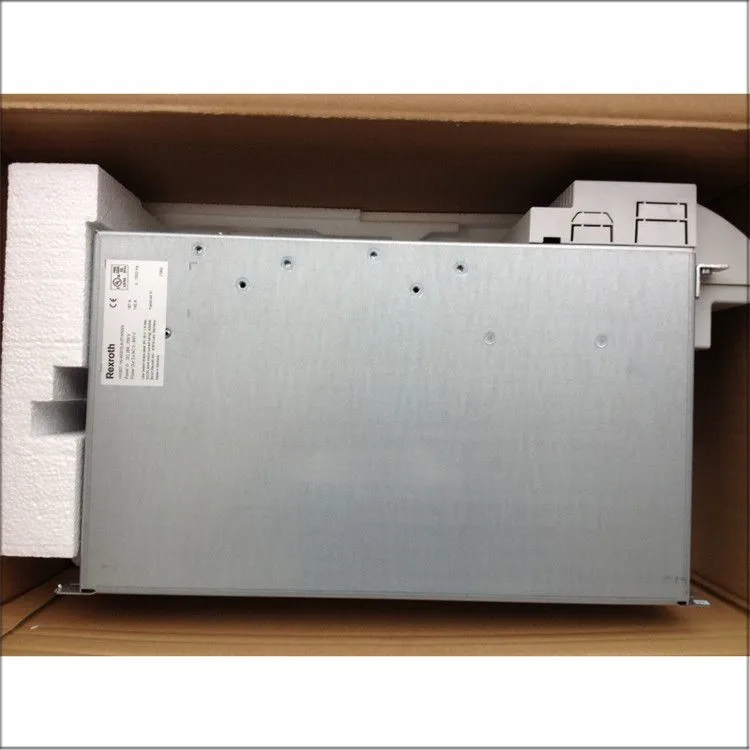

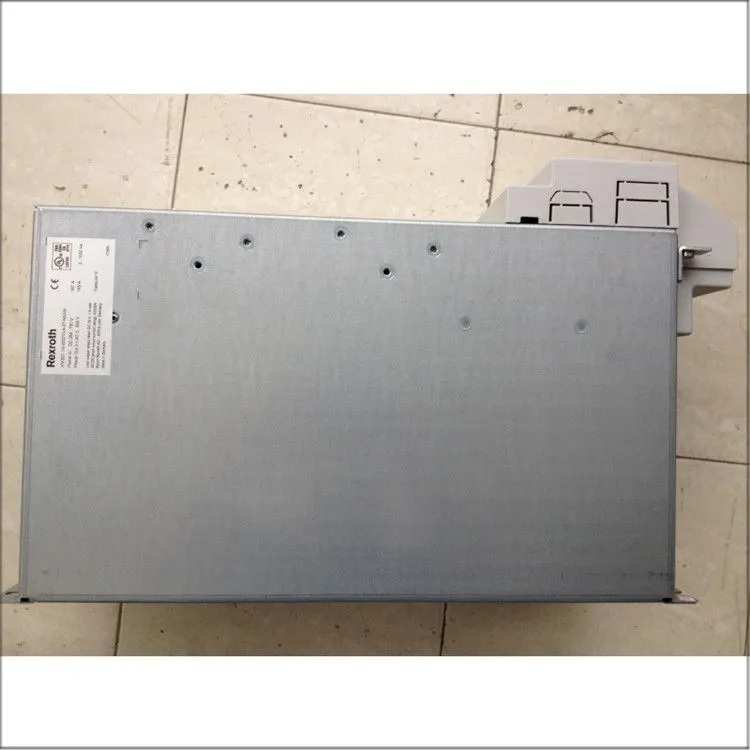

Rexroth HMS01.1N-W0210-A-07-NNNN IndraDrive Single-Axis Inverter
Overview
The Rexroth HMS01.1N-W0210-A-07-NNNN (Ordering Code R911295328) is a high-performance single-axis inverter from the Bosch Rexroth IndraDrive M series. Designed as a modular drive converter, it is typically supplied with DC voltage from a central power supply unit and generates a regulated AC output with variable amplitude and frequency for precise motor control. Its high current capacity and robust construction make it a powerful and scalable solution for demanding multi-axis systems in industrial automation.
Technical Features
High Power and Current Capacity – This model has a maximum current of 210 A and a continuous current of 150.7 A. It is designed for a typical motor nominal power of 75 kW, making it suitable for high-power applications.
Wide DC Bus Voltage Range – The inverter operates on a nominal DC bus voltage of 700 V DC, with a supported input voltage range of 254 to 750 V DC. This wide voltage capability ensures compatibility with various power supply configurations.
Adjustable Output Frequency – The inverter provides an output voltage of up to 500 V AC. The output frequency is adjustable and depends on the switching frequency setting: 0-400 Hz at 4 kHz, 0-800 Hz at 8 kHz, 0-1200 Hz at 12 kHz, and 0-1600 Hz at 16 kHz. This wide frequency range enables high-speed operation for applications such as spindles, while also supporting low-speed positioning tasks.
Advanced Control Section (07) – The model includes an 07 control section, which provides a mounting slot for a single-axis control unit with various interfaces for connection to the automation environment. This includes support for encoder systems, safety technology, and other digital and analog signals.
Integrated Air Cooling – The inverter features an internal air cooling system with an integrated blower to ensure reliable operation under various load conditions. This robust cooling solution maintains performance and prevents overheating during intensive industrial processes.
Modular and Scalable Design – The inverter is part of the IndraDrive M modular system and can be used in multi-axis applications, where it is supplied with power from the DC bus of supply units like HMV01 or HMU05. For smaller axis packages, it can also be powered from the DC bus of an HCS converter, provided sufficient power reserve is available.
Robust Construction and Protection – The inverter features an IP20 protection class and is designed for industrial environments. It measures 440 mm in height, 200 mm in width, and 309 mm in depth, weighing approximately 16.25 kg.
Core Functionalities
Precise Motor Speed and Torque Control – The inverter converts DC voltage from the bus into a regulated AC output with variable amplitude and frequency, enabling precise control of motor speed, torque, and position for high-performance motion control.
Efficient Multi-Axis System Integration – In multi-axis applications, the inverter shares the DC bus with other axes, allowing regenerative energy from braking axes to be used by other accelerating axes, significantly improving overall system efficiency.
High Dynamic Response and Overload Capacity – The drive is designed to deliver high dynamic response with a peak current capability of 210 A for short-term overloads, making it suitable for applications requiring rapid acceleration, deceleration, and high peak torque.
Wide Speed Range and High Positioning Accuracy – The inverter supports a wide speed range up to 1,600 Hz and provides high positioning accuracy, making it suitable for precision motion control applications such as machine tool feed drives and robotics.
Flexible System Integration – The 07 control section supports various communication protocols, enabling easy integration with higher-level controllers such as PLCs, HMIs, and industrial PCs.
Configurable Motion Logic – The integrated technology functions can be configured based on motion logic to perform a wide and diverse range of process-oriented tasks.
Application Sectors
The Rexroth HMS01.1N-W0210-A-07-NNNN is ideal for a wide range of industrial automation applications that demand high precision, power, and dynamic performance.
Machine Tools – Controlling feed axes and spindles in CNC machines, milling centers, lathes, and grinding machines.
Robotics – Providing motion control for articulated robots, delta robots, and Cartesian gantry systems, especially those requiring high-power, high-torque motors.
Packaging Machinery – Driving axes in high-speed packaging lines, filling machines, labeling systems, and palletizing equipment.
Material Handling – Powering conveyors, automated guided vehicles (AGVs), and heavy-duty material handling systems with frequent starts, stops, and reversals.
Printing and Paper Converting – Controlling web tension, registration, and cutting in printing presses and converting equipment.
Woodworking Machinery – Driving axes in routers, planers, saws, and other wood processing equipment.
Metal Forming – Controlling axes in metal forming equipment such as presses, shears, and bending machines.
General Automation – Serving as the drive module for a wide range of factory automation tasks, including assembly lines and testing equipment.

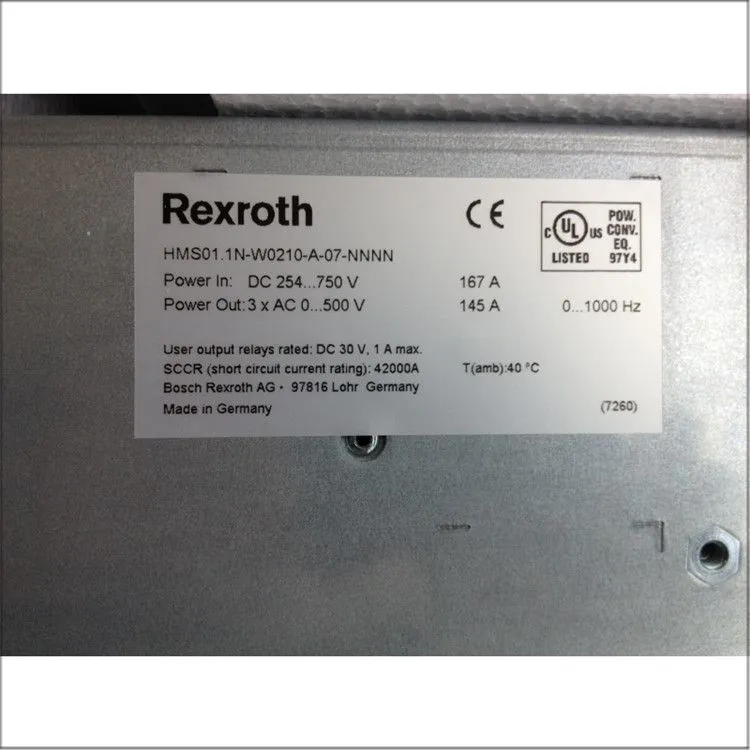

Performance Specifications
| Specification | Value |
|---|---|
| Manufacturer | Bosch Rexroth |
| Series | IndraDrive M (HMS01) |
| Model Code | HMS01.1N-W0210-A-07-NNNN |
| Ordering Code | R911295328 |
| Product Type | Single-Axis Inverter / Servo Drive |
| Maximum Current | 210 A |
| Continuous Current | 150.7 A |
| Typical Motor Nominal Power | 75 kW |
| DC Bus Voltage | 700 V DC nominal (254–750 V DC range) |
| Output Voltage | Up to 500 V AC |
| Output Frequency (at 4 kHz) | 0 – 400 Hz |
| Output Frequency (at 8 kHz) | 0 – 800 Hz |
| Output Frequency (at 12 kHz) | 0 – 1,200 Hz |
| Output Frequency (at 16 kHz) | 0 – 1,600 Hz |
| Control Section | 07 (advanced communication and feedback) |
| Cooling Method | Internal air cooling with integrated blower |
| Protection Class | IP20 |
| Dimensions (H x W x D) | 440 mm x 200 mm x 309 mm |
| Weight | Approx. 16.25 kg |
| EMC Compliance | EN 61800-3 |
| Applicable Standards | CE, UL, CSA |
Conclusion
The Rexroth HMS01.1N-W0210-A-07-NNNN is a powerful, reliable, and versatile single-axis inverter that exemplifies Bosch Rexroth's expertise in modular drive technology. With its 210 A peak current, 150.7 A continuous current, support for DC bus voltages up to 750 V, and integrated 07 control section, it delivers precise, energy-efficient motion control for demanding industrial applications.
Its defining features include a modular design for scalable multi-axis systems, high dynamic response with significant overload capacity, a wide output frequency range up to 1,600 Hz, flexible system integration, and a robust cooling system. These attributes make it an ideal solution for a wide range of applications — from CNC machine tools and robotics to packaging machinery, material handling, printing equipment, woodworking, metal forming, and general automation.
As a proven component in the Rexroth IndraDrive portfolio, the HMS01.1N-W0210-A-07-NNNN delivers consistent performance, precise control, and long-term reliability for equipment across numerous industries.
