Welcome to Hefei SENOTECH New Materials Co., Ltd – your trusted partner for high-quality mechanical anchors. As a dynamic trading company established in 2020 with an annual export value of US$1 million to US$1.5 million, we have rapidly built a global network serving markets across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, and beyond. Our mechanical anchors are manufactured to rigorous standards, backed by a Mill Test Report for every batch, and come with a 1-year warranty. We offer full sizes available to meet diverse project requirements, ensuring you get the right anchor for your application.

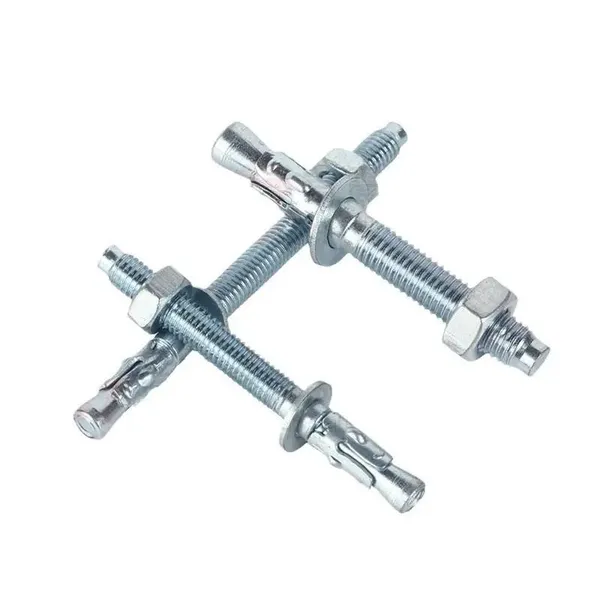

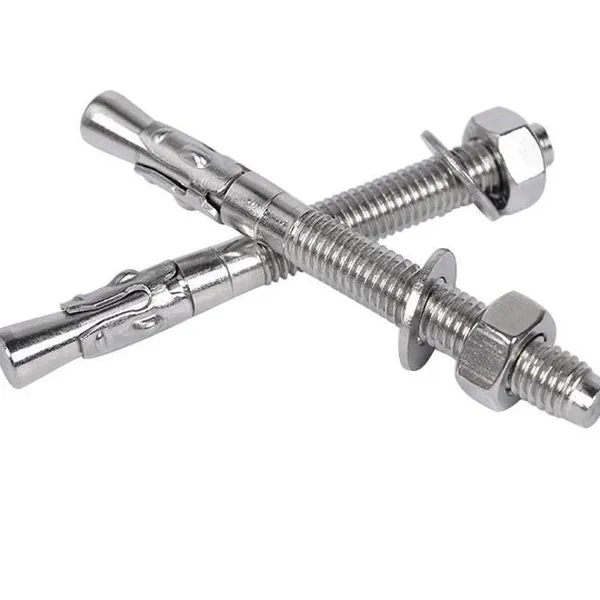

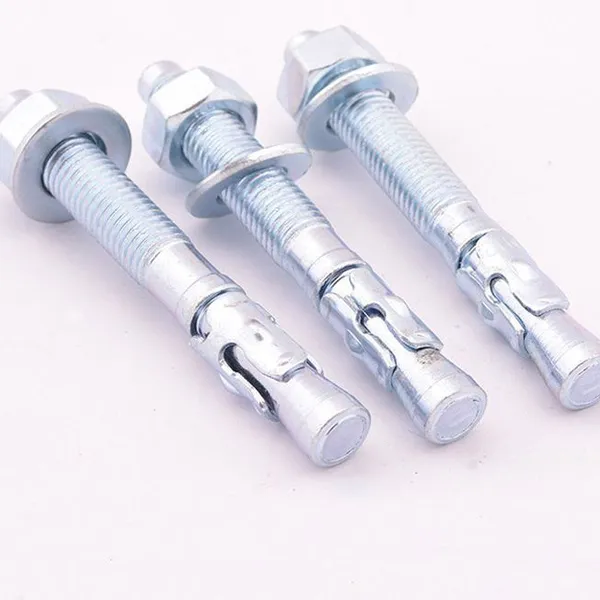

Our mechanical anchors are engineered for reliable performance in concrete, brick, block, and stone substrates. They provide strong holding power through mechanical expansion, making them ideal for structural connections, safety barriers, machinery mounting, and heavy-duty installations. With a focus on quality control and customer satisfaction, each anchor is tested to ensure consistent tensile and shear strength.
Product Features & Technical Specifications
- Material Options: Available in carbon steel (zinc plated, hot dip galvanized) or stainless steel (304, 316) for corrosion resistance in harsh environments.
- Full Size Range: From M6 to M30 diameter, with lengths up to 400 mm – we stock common sizes and can customize upon request.
- Mill Test Report: Each shipment includes a mill test certificate verifying chemical composition and mechanical properties for traceability and compliance.
- 1-Year Warranty: We stand behind our product quality – defects in material or workmanship are covered for one year from delivery.
- Easy Installation: Designed for standard drilling and setting tools, reducing labor time and ensuring consistent embedment depth.
- Versatile Applications: Suitable for static and dynamic loads in indoor and outdoor installations, including seismic zones (consult engineering guidelines).
| Size (Diameter) | Drill Bit Diameter | Min. Embedment Depth (mm) | Tensile Load (kN, steel) |
|---|---|---|---|
| M6 | 6.0 mm | 25 | 3.3 |
| M8 | 8.0 mm | 30 | 5.5 |
| M10 | 10.0 mm | 40 | 9.0 |
| M12 | 12.0 mm | 50 | 14.0 |
| M16 | 16.0 mm | 65 | 24.0 |
| M20 | 20.0 mm | 80 | 35.0 |
Additional Benefits: Our mechanical anchors are designed to minimize stress on the base material while delivering superior pull-out resistance. The expansion sleeve and cone assembly are precision-machined to ensure uniform expansion and consistent performance across all diameters.
Quality Assurance: Each production batch undergoes random sampling and testing. The Mill Test Report provides full traceability of the steel used, including tensile strength, yield strength, and elongation. This documentation is essential for projects requiring material certifications, such as infrastructure, commercial buildings, and industrial facilities.
Packaging & Delivery: We package anchors in sturdy cartons or pallets suitable for long-distance shipping. Full sizes available mean you can order mixed containers to optimize freight costs. Typical lead time is 15–25 days after order confirmation, depending on quantity and finishing requirements.
As a committed supplier with a global reach, Hefei SENOTECH has delivered products to over 30 countries across multiple continents. Our annual export value of US$1 million to US$1.5 million reflects the trust our clients place in our product quality and service. We continuously improve our supply chain to offer competitive pricing without compromising on reliability. Contact us today to request a quote or sample – let our mechanical anchors be the secure foundation for your next project.
Frequently Asked Questions
Q1: What does the Mill Test Report contain?
A: The Mill Test Report includes the chemical composition (carbon, manganese, silicon, etc.), tensile strength, yield strength, and elongation percentage for the steel used in the anchor batch. It is issued by the steel mill and confirms the material meets specified standards.
Q2: Are these anchors suitable for outdoor use?
A: Yes, we offer hot dip galvanized and stainless steel options that provide excellent corrosion resistance for outdoor and humid environments. Our zinc-plated finish is suitable for indoor use or dry conditions.
Q3: Do you provide installation instructions?
A: Yes, each package includes a simple installation guide with recommended hole diameter, embedment depth, and torque values. We can also supply technical datasheets on request.
Q4: Can I order non-standard lengths or custom finishes?
A: Absolutely. Custom lengths, finishes (e.g., Dacromet, mechanical galvanizing), and special packaging are available upon request. Please provide your specifications for a quote.
Q5: What is the warranty coverage?
A: Our 1-year warranty covers defects in material and workmanship under normal usage conditions. The warranty does not cover damage from improper installation, misuse, or environmental factors beyond normal exposure.
Q6: How do I choose the right size for my application?
A: Selection depends on the substrate strength, load requirements, and safety factors. Our technical team can assist with recommendations based on your project details. Generally, larger diameters are used for heavier loads.
Q7: Are samples available before placing a bulk order?
A: Yes, we offer free samples (shipping cost may apply) so you can test the anchor performance in your specific application. Contact our sales team to arrange samples.
Q8: What are the payment terms?
A: We typically accept T/T (telegraphic transfer) or L/C. For new customers, a 30% deposit and 70% balance before shipment is common. Negotiable for long-term cooperation.
