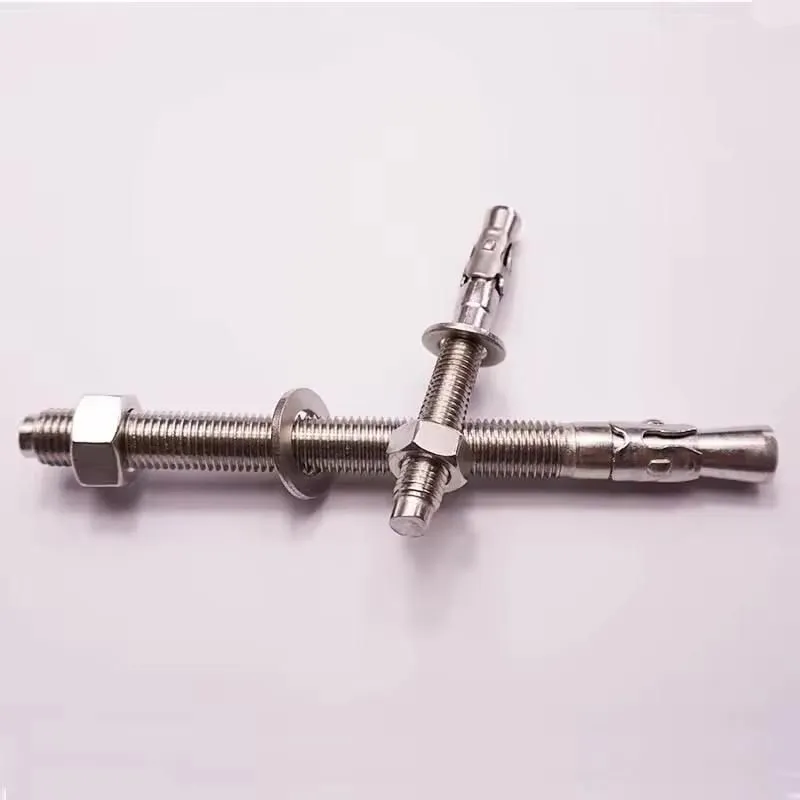

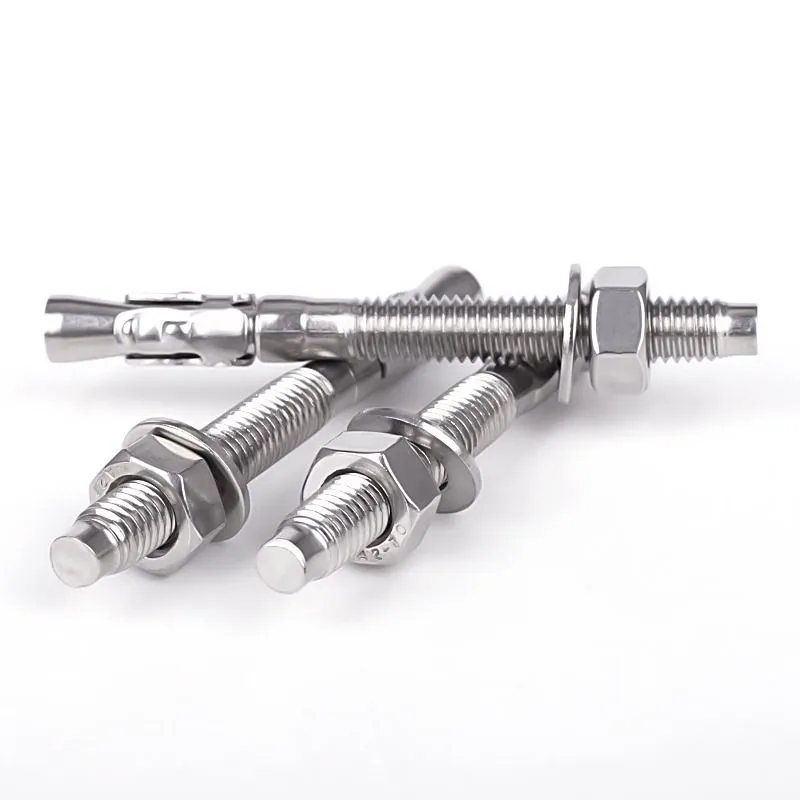

Heavy Duty Wedge Anchor Hot Dip Galvanized ETA Approved Long Thread for Heavy Machinery Installation
Product Spotlights
Heavy duty wedge anchor with hot dip galvanized coating for superior corrosion resistance; ETA approved for cracked and non-cracked concrete; long thread design allows easy adjustment for heavy machinery alignment; high load capacity; customizable dimensions and packaging; factory-tested reliability.
US$ 0.01 - 0.5
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Material:
Other, Carbon Steel (e.g., C45, Q235)
Application:
Other, Heavy Machinery Foundation, Steel Structures, Concrete Anchoring
Surface Treatment:
Hot Dip Galvanized (HDG)
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
30 days
Related Products
-
Factory Direct Through Bolt With Mill Test Report Carbon Steel Full Sizes Available 1 Year WarrantyUS$ 0.01 - 0.5MOQ: 1000 Pieces -
Free Samples Through Bolt SS304 ETA Approved Long Thread High Hardness Full Sizes AvailableUS$ 0.01 - 0.5MOQ: 1000 Pieces
-
Through Bolt for Infrastructure Projects High Loading Capacity Hot Dip Galvanized Full Sizes AvailableUS$ 0.01 - 0.5MOQ: 1000 Pieces
-
Through Bolt 304 Stainless Steel Hot Dip Galvanized Yellow Zinc Plated Full Sizes Available High Loading CapacityUS$ 0.01 - 0.5MOQ: 1000 Pieces
-
China Manufacturer Through Bolt Long Thread ETA Approved High Hardness Carbon Steel Full Sizes AvailableUS$ 0.01 - 0.5MOQ: 1000 Pieces
Material
Other, Carbon Steel (e.g., C45, Q235)
Application
Other, Heavy Machinery Foundation, Steel Structures, Concrete Anchoring
Surface Treatment
Hot Dip Galvanized (HDG)
Thread Type
Long Thread / Full Thread
Diameter Range
M8 – M24 (customizable)
Length Range
50mm – 300mm (customizable)
Certification
ETA (European Technical Assessment) Approved
Packaging
Cartons, Pallets or as per customer request
Feature
High Load Capacity, Corrosion Resistant, Easy Installation
Hefei SENOTECH New Materials Co., Ltd (established 2020, annual export value US$1–1.5 million, serving markets across North America, South America, Europe, Asia, Africa, and Oceania) is proud to present our Heavy Duty Wedge Anchor Hot Dip Galvanized ETA Approved Long Thread – a robust, corrosion-resistant anchoring solution engineered specifically for heavy machinery installation. These anchors combine the proven wedge expansion mechanism with a long thread design for maximum clamping force and easy nut tightening. Our ETA (European Technical Assessment) approval guarantees compliance with stringent European safety and performance standards, making them the preferred choice for demanding industrial projects worldwide. Whether you need to secure a concrete pump, a press machine, or a turbine base, our anchors deliver reliable performance and long-term durability.
Key Features & Technical Specifications
- Heavy-Duty Design: Manufactured from high-strength carbon steel (C45 or Q235) with optimized wedge geometry to ensure deep expansion in concrete (C20/25 to C50/60). Provides superior pull-out and shear resistance for static and dynamic loads.
- Hot Dip Galvanized (HDG) Coating: A zinc coating of 55–85µm per ASTM A123/ISO 1461 offers exceptional corrosion protection – ideal for outdoor, marine, or high-humidity environments. Long thread portion is also fully galvanized to prevent thread galling.
- Long Thread Configuration: Extended threaded length (up to 3x diameter) allows precise nut adjustment and full tensioning even when the anchor is installed flush with the concrete surface. Compatible with standard hex nuts and washers.
- ETA-Approved Performance: Certified under European Technical Assessment (ETA) according to ETAG 001 / EAD 330232-00-0601 for cracked and non-cracked concrete. Each batch undergoes pull-out and torque testing at our facility.
- Easy Installation: Pre-assembly design (nut + washer + wedge sleeve) saves installation time. Use a standard torque wrench for final tightening; no special tools required.
- Wide Size Range: Diameters from M8 to M24 and lengths from 50mm to 300mm are available ex-stock. Custom diameters (up to M30) and lengths are available upon request.
| Size (Diameter x Length) | Embedment Depth (mm) | Min. Edge Distance (mm) | Max. Fixture Thickness (mm) | Recommended Torque (Nm) | Characteristic Pull-Out Resistance (kN, C20/25 non-cracked) |
|---|---|---|---|---|---|
| M12 x 100mm | 60 | 100 | 40 | 40 | 12.5 |
| M16 x 125mm | 80 | 130 | 45 | 60 | 18.0 |
| M20 x 160mm | 100 | 160 | 60 | 100 | 28.0 |
| M24 x 200mm | 120 | 200 | 80 | 150 | 40.0 |
*Test data based on ETA assessment. Contact our engineers for specific project calculations.
Why Choose Our Heavy Duty Wedge Anchor?
- Proven Reliability: Each lot is factory-tested for hardness, coating thickness, and functional performance. We provide a batch test certificate upon request.
- Application Versatility: Perfect for installing heavy machinery (presses, pumps, compressors, turbines), steel columns, bridge rails, and seismic anchorage systems.
- Corrosion Protection: The hot dip galvanized finish outperforms electroplated or mechanically galvanized alternatives in salt spray and cyclic corrosion tests (up to 1000h without red rust).
- Long Thread Benefit: Allows for shimming, leveling, and post-installation adjustment – critical for precision machinery alignment.
- Global Logistics: With a trading office in Hefei, Anhui, we offer competitive FOB Shanghai or CIF terms. Typical lead time for standard sizes: 7–15 days.
Trust & Assurance from Hefei SENOTECH
Since 2020, Hefei SENOTECH New Materials Co., Ltd has grown into a reliable international supplier, exporting over US$1 million–US$1.5 million annually to more than 20 countries across North America, South America, Europe, Africa, Asia, and Oceania. Our anchor products have been used in industrial plants, wind farms, and infrastructure projects. We are committed to transparent communication, on-time delivery, and responsive after-sales service. Contact us today to request a quote, download our ETA certificate, or discuss custom dimensions. Let our expert team support your heavy machinery installation with the strongest, most corrosion-resistant wedge anchors available.
Frequently Asked Questions (FAQ)
-
Q: What concrete strength is suitable for these anchors?
A: These wedge anchors are rated for concrete strength classes from C20/25 up to C50/60. For higher strength concrete, the load capacity increases; please refer to our ETA table or consult our technical department. -
Q: Can the hot dip galvanized coating be damaged during installation?
A: The HDG coating is robust (55–85µm). During tightening, the wedge expansion may cause minor surface scuffing, but this does not compromise corrosion protection. For extremely corrosive environments, we recommend stainless steel anchors (available separately). -
Q: What is the difference between a wedge anchor and a sleeve anchor?
A: Wedge anchors expand through a cone-shaped wedge that is pulled up into a sleeve, creating a tight grip against the concrete. Sleeve anchors use a separate expansion sleeve. Wedge anchors generally offer higher load capacity and are preferred for heavy-duty static loads. -
Q: Do you provide installation instructions?
A: Yes, each carton includes a step-by-step installation guide. We also offer video guidance and on-site technical support for bulk orders (conditions apply). -
Q: Can I get a sample before bulk ordering?
A: Absolutely. Sample orders are welcome. Standard samples (up to 10 pieces) within our stock range can be shipped within 3 days. Custom samples may require 7–10 days for production. -
Q: How is the anchor delivered? Does it come with nuts and washers?
A: Yes, each anchor is supplied pre-assembled with a hot dip galvanized hex nut and flat washer. The wedge sleeve is also pre-installed. You only need to drill the hole, insert the anchor, tap it flush, and tighten. -
Q: Is the ETA certificate valid for all sizes?
A: The ETA (European Technical Assessment) covers the entire size range described in the assessment document. Our standard M8–M24 sizes are covered. For sizes beyond, we can provide tests according to corresponding standards or offer alternative certifications (e.g., ICC-ES, depending on project requirements). -
Q: What is your payment term, and do you accept letters of credit?
A: Common payment terms include T/T (30% deposit, 70% before shipment) and L/C at sight for larger orders. For long-term partners, partial D/P is negotiable. Please discuss with our sales team.
