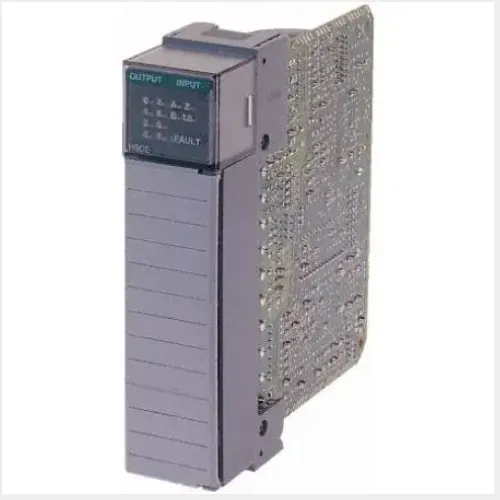

1746-NIO4V Allen Bradley SLC500 System Analog I/O Module 1746NIO4V

1746-NIO4V Allen Bradley SLC500 System Analog I/O Module 1746NIO4V thumbnail-1
1746-NIO4V Allen Bradley SLC500 System Analog I/O Module 1746NIO4V photo-1

Product Spotlights

Genuine Allen-Bradley 1746-NIO4V SLC500 Analog I/O Module with 4 inputs and 2 outputs. 14-bit input resolution, optical isolation, and flexible voltage/current configuration. Space-saving design reduces chassis slot usage. Backed by ISO9001 certified supplier Rossonix with global shipping and 12-month warranty.
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand:
Allen-Bradley
Model:
1746-NIO4V
Product Type:
Analog I/O Module
Contact Supplier Request Quote Chat Now
Rossonix Co.,limited
Platinum Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Allen-Bradley
Model 1746-NIO4V
Product Type Analog I/O Module
Input Channels 4
Output Channels 2
Input Signal Types Voltage/Current
Output Signal Types Voltage/Current
Backplane Power Supply 5V DC
Operating Temperature 0°C to 60°C
Series SLC 500

About the 1746-NIO4V Allen Bradley SLC500 Analog I/O Module

Dear Customer, Rossonix Co., Limited, established in 2011, is a trusted supplier of industrial automation components with annual export value between US$5 Million and US$10 Million. We are proud to offer the genuine 1746-NIO4V Allen Bradley SLC500 System Analog I/O Module. This module is a vital component for precise analog signal processing in demanding industrial environments, providing four analog inputs and two analog outputs in a single compact unit. It directly enhances the flexibility and accuracy of your SLC 500 control system, reducing installation costs and simplifying wiring.

Detailed Product Features and Technical Specifications

The 1746-NIO4V module is engineered for seamless integration with the Allen-Bradley SLC 500 platform. Below are its key characteristics:

  • Input Sections: Four single-ended or differential analog input channels. Each channel accepts voltage signals (0-10V, ±10V, etc.) or current signals (4-20mA, 0-20mA) via jumper selection, offering excellent versatility for various sensors and transmitters.

  • Output Sections: Two analog output channels configurable for voltage (0-10V, ±10V) or current (4-20mA). Suitable for driving actuators, valves, and variable frequency drives.

  • Resolution: 14-bit resolution for inputs and 12-bit resolution for outputs, ensuring high-precision data conversion.

  • Isolation: Optically isolated between inputs, outputs, and backplane – protecting the CPU from electrical noise and ground loops.

  • Backplane Power: Operates on 5V DC backplane power from the SLC 500 chassis, low power consumption of typically 1.2A at 5V.

  • Diagnostic Features: Built-in watchdog timer and LED indicators for input/output status, fault detection, and module health.

Technical Parameters (Typical)

Attribute Detail
Input Channels 4 (single-ended/differential, configurable)
Output Channels 2 (voltage or current)
Input Voltage Range ±10V, 0-10V, 0-5V, 1-5V (jumper selectable)
Input Current Range 4-20mA, 0-20mA
Output Voltage Range ±10V, 0-10V
Output Current Range 4-20mA, 0-20mA
Input Resolution 14-bit (0.0061% of full scale)
Output Resolution 12-bit (0.0244% of full scale)
Update Rate Input: 2.4 ms per channel; Output: 1.2 ms per channel
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -40°C to 85°C
Relative Humidity 5% to 95% non-condensing
Dimensions (H x W x D) Approx. 3.7 x 1.7 x 5.5 inches (94 x 43 x 140 mm)
Weight ~0.3 lbs (0.14 kg)

Key Advantages for Your Application

  • Space Saving: Combines input and output functionality in one module, freeing up slots in the SLC 500 chassis for other cards.

  • Cost Efficiency: Reduces cabling and component costs compared to using separate input and output modules.

  • Easy Configuration: Hardware jumpers and software RSLogix 500 programming allow simple setup for different signal types and ranges.

  • Robust Reliability: Designed to withstand industrial electrical noise and harsh environments, with optical isolation and solid-state components.

  • Global Compatibility: Works with all SLC 500 processors (5/01, 5/02, 5/03, 5/04, 5/05) and most third-party equivalents.

Trusted Partnership with Rossonix

At Rossonix Co., Limited, with over a decade of experience in the automation industry, we maintain an overseas office and ship from Shenzhen, Hong Kong, and Europe to serve our global customer base – including North America, South America, Europe, Oceania, and Asia. Our products are backed by ISO9001 and ISO9000 quality management systems. Each 1746-NIO4V module undergoes meticulous inspection and testing before dispatch. We also offer customizable packaging and bulk ordering options. With an annual export value exceeding US$5 million, Rossonix is your reliable partner for genuine, factory-sealed Allen-Bradley modules. Contact us today to secure competitive pricing and fast delivery for your next project.

Frequently Asked Questions

  • Q: Is this module new or used?
    A: We supply brand new, factory-sealed 1746-NIO4V modules with original packaging and documentation. Used or refurbished options are available upon request.

  • Q: Can I use this module with a SLC 5/01 processor?
    A: Yes, the 1746-NIO4V is fully compatible with all SLC 500 processors, including the 5/01, as long as the chassis has adequate backplane power.

  • Q: What is the warranty period?
    A: We provide a standard 12-month warranty against manufacturing defects. Extended warranty plans can be discussed.

  • Q: How do I wire the input channels for 4-20mA current?
    A: Refer to the user manual: for current input, you need to connect a 250 ohm resistor across the input terminals and select the appropriate jumper setting. We supply wiring diagrams with each module.

  • Q: Does this module support differential inputs?
    A: Yes, each input channel can be configured as single-ended or differential via jumper selection, offering better noise rejection for long cable runs.

  • Q: What is the typical lead time?
    A: For standard quantities (1-10 pieces), lead time is 2-3 business days. Larger orders may require 7-10 days depending on stock. We ship from Shenzhen or Hong Kong.

  • Q: Can I get a datasheet or manual before purchase?
    A: Certainly. We can provide the official Allen-Bradley User Manual (Publication 1746-UM... ) and a quick reference guide upon request via email or live chat.

  • Q: Do you offer volume discounts?
    A: Yes, pricing varies with quantity. Please contact our sales team for a customized quotation for 10+ units or project-based requirements.

Product Tags: Allen Bradley SLC500 Analog I/O Module , 1746-NIO4V 1746NIO4V Module , SLC 500 Series Analog Input Output
