China Factory EPS Foam Board ICF Block Building System Insulated Concrete Forms Energy-saving Concrete Block Molds
Product Spotlights
(1) The construction period is short, mainly because the next stage of wall finishing can begin immediately after the EPS walls have been erected, whereas traditional walls require a period of curing.
(2) Construction costs are low, saving on labour and materials, and the work can even be carried out by homeowners themselves.
(3) Low living costs, saving several thousand yuan annually on heating and cooling expenses.
(2) Construction costs are low, saving on labour and materials, and the work can even be carried out by homeowners themselves.
(3) Low living costs, saving several thousand yuan annually on heating and cooling expenses.
US$ 12.59
100 - 299 Square Meters
US$ 12.29
300 - 499 Square Meters
US$ 11.89
≥500 Square Meters
Key Specifications
Get Latest Price
Type:
Wall Formwork
Certification:
CE
Warranty:
1 year
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
30 days
Related Products
-
Build Blocks ICFs Forms Wall Construction ICFs Wall Blocks Fireproof Heat-Insulating ICF EPS Foam Module Block for BuildingUS$ 12.69 - 13.5MOQ: 100 Square Meters -
ICF Block Durable Reinforced EPS Insulated Concrete Formwork High Load Bearing Building Block for Civil Engineering ProjectsUS$ 12.6 - 13.3MOQ: 100 Square Meters
-
High Performance Icf Blocks Insulated Concrete Forms for Residential House Building Construction Low Later Maintenance CostUS$ 12.5 - 12.9MOQ: 100 Square Meters
-
Low Cost Thermal Insulation Icf Blocks Insulated Concrete Forms for Modern House Construction and RenovationUS$ 11.99 - 12.69MOQ: 100 Square Meters
-
Eco Friendly Energy Saving EPS ICF Building Block Insulated Concrete Form for Wall ConstructionUS$ 13.5 - 14.2MOQ: 100 Square Meters
Type
Wall Formwork
Certification
CE
Warranty
1 year
Material
Other, EPS foam + plastic (metal) fasteners
After-sales Service
Support
Product Name
Insulated Concrete Forms (ICF)
Shape
Straight,L-Shape,T-Shape
Color
White Grey
Density
28-45 kg/m³
Product Advantages
Fast Installation, Easy Assembly, Simple Operation, Time-saving
Features
Energy-Saving, Soundproof, Waterproof, Termite-Proof
Application
Residential Building, Commercial Building
Compressive Strength
≥ 250 kPa
Water Absorption Rate
≤ 2%
Sample
Supported
Specification
Customisation
Trademark
RSC
Origin
China

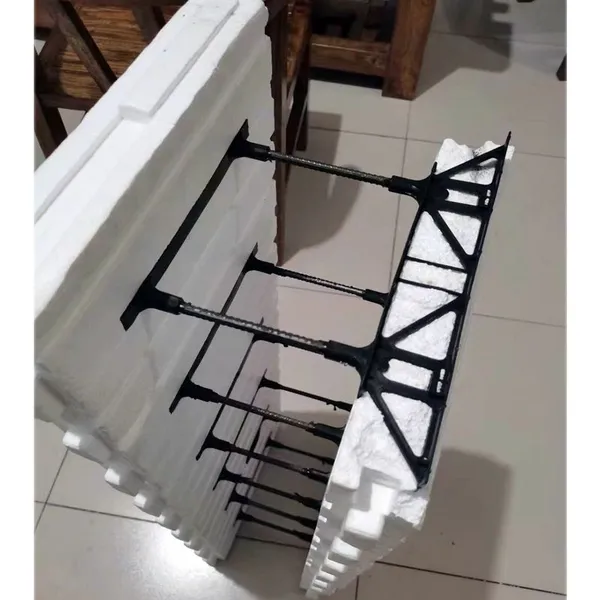

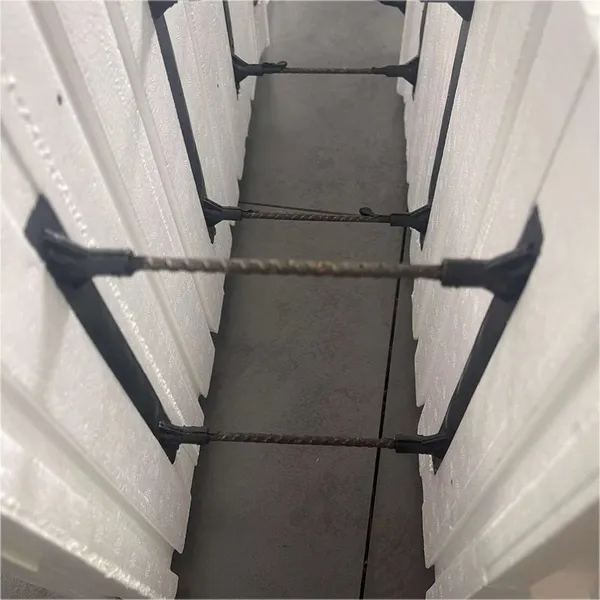

Our ICF insulated concrete form modules
are available in two materials: standard white EPS and graphite grey EPS.
Standard density: 30 kilograms per cubic metre, with custom densities up to 70 kilograms per cubic metre.
Total thickness: 250 millimetres, 280 millimetres, and 320 millimetres, with 55-millimetre EPS insulation layers on both sides.
The central concrete core thicknesses are 140mm, 170mm, and 210mm.
Three configurations: Straight, T-shaped corner, and Right-angled.
Intermediate connectors are available in steel or plastic.
(Note: Graphite material offers exceptional thermal insulation properties.)
