Cheap Sale ICF Blocks Panel for Building Insulated Concrete Forms Eps ICF Blocks Building System Concrete Formwork

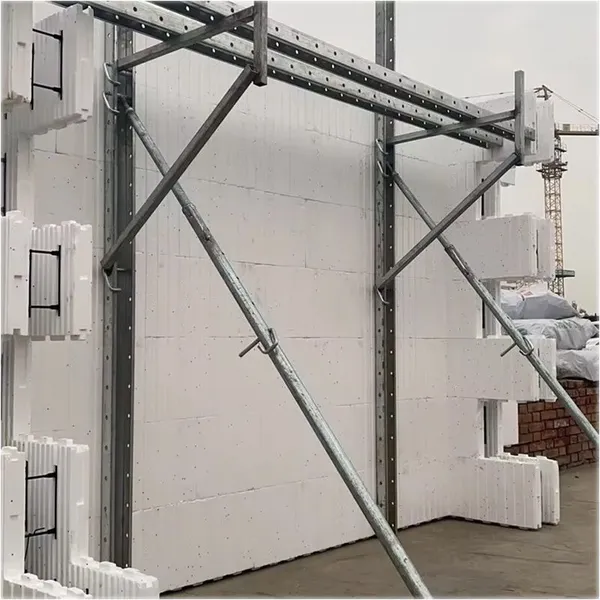

Cheap Sale ICF Blocks Panel for Building Insulated Concrete Forms Eps ICF Blocks Building System Concrete Formwork photo-1
Cheap Sale ICF Blocks Panel for Building Insulated Concrete Forms Eps ICF Blocks Building System Concrete Formwork photo-2

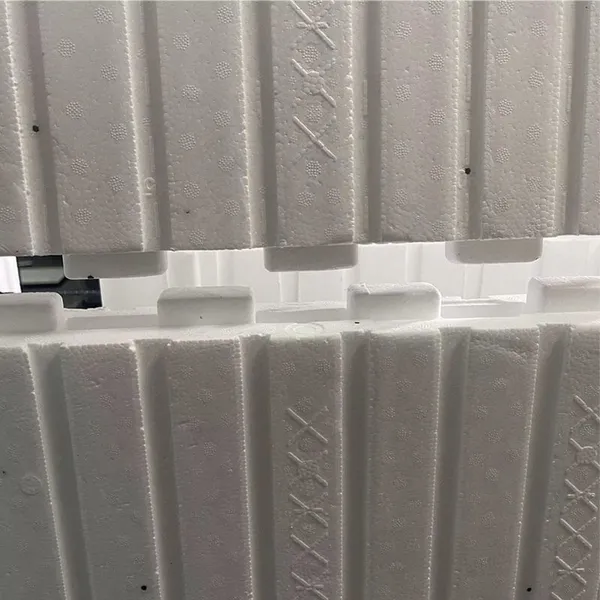

Cheap Sale ICF Blocks Panel for Building Insulated Concrete Forms Eps ICF Blocks Building System Concrete Formwork photo-3
Cheap Sale ICF Blocks Panel for Building Insulated Concrete Forms Eps ICF Blocks Building System Concrete Formwork photo-4
Cheap Sale ICF Blocks Panel for Building Insulated Concrete Forms Eps ICF Blocks Building System Concrete Formwork photo-5

Product Spotlights

1. Excellent thermal insulation with dual-layer insulation within the walls. Simple construction process, easy operation, and cost-effective.
2. Strong structural integrity and extended service life. The entire building is cast as a unified reinforced concrete structure, delivering superior seismic resistance.
3. Excellent sound insulation.
4. Utilizes high-grade B1-rated flame-retardant polystyrene material for wall plastering, achieving enhanced fire resistance.
US$ 13.29 100 - 299 Square Meters
US$ 12.99 300 - 499 Square Meters
US$ 12.69 ≥500 Square Meters
Key Specifications
Get Latest Price
Type:
Wall Formwork
Certification:
CE
Warranty:
1 year
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
30 days
Type Wall Formwork
Certification CE
Warranty 1 year
Material Other, EPS foam + plastic (metal) fasteners
After-sales Service Support
Product Name Insulated Concrete Forms (ICF)
Shape Straight,L-Shape,T-Shape
Color White Grey
Density 30-70 kg/m³
Product Advantages Fast Installation, Easy Assembly, Simple Operation, Time-saving
Features Energy-Saving, Soundproof, Waterproof, Termite-Proof
Application Residential Building, Commercial Building
Compressive Strength ≥ 250 kPa
Water Absorption Rate ≤ 2%
Sample Supported
Specification Customisation
Trademark RSC
Origin China

Our ICF insulated concrete form modules

are available in two materials: standard white EPS and graphite grey EPS.

Standard density: 30 kilograms per cubic metre, with custom densities up to 70 kilograms per cubic metre.

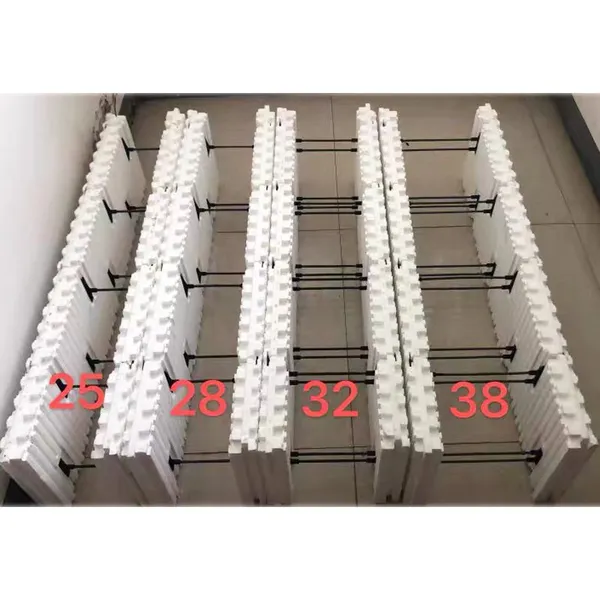

Total thickness: 250 millimetres, 280 millimetres, and 320 millimetres, with 55-millimetre EPS insulation layers on both sides.

The central concrete core thicknesses are 140mm, 170mm, and 210mm.

Three configurations: Straight, T-shaped corner, and Right-angled.

Intermediate connectors are available in steel or plastic.

(Note: Graphite material offers exceptional thermal insulation properties.)
