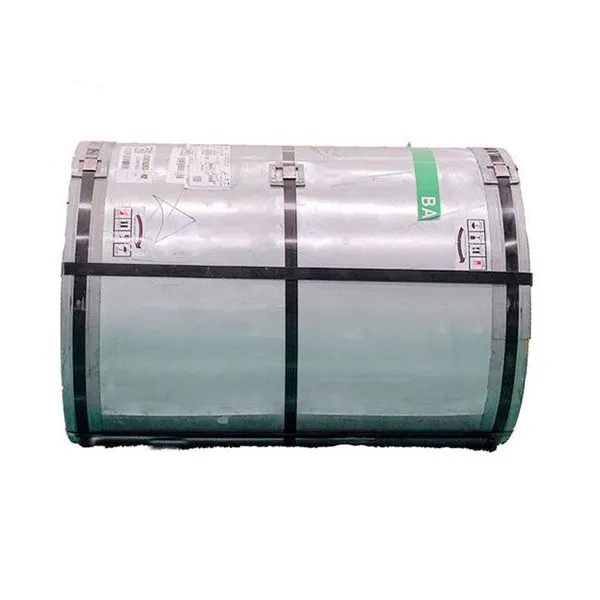

High Flux CRGO Transformer Lamination Steel 30Q130
The 30Q130 grain oriented silicon steel strip is engineered for transformer lamination cores requiring high magnetic induction and low energy loss. Its 0.30mm thickness provides balanced performance between efficiency and strength. Widely used in industrial transformers, grid systems, and power distribution equipment.
What Is Silicon Steel Coil？
Product Definition：
Silicon steel, also known as electrical steel or transformer steel, is a low-carbon silicon-iron alloy with silicon content typically between 0.5% and 4.5%-6. The addition of silicon increases electrical resistivity and maximum permeability, while reducing core loss (hysteresis loss) and magnetic aging-5-11. It is the most important soft magnetic material for power equipment.
Two Main Types of Silicon Steel：
| Feature | Grain-Oriented Silicon Steel (GO / CRGO) | Non-Oriented Silicon Steel (NO / CRNGO) |
|---|---|---|
| Grain Structure | Grains oriented in one direction (Goss texture) | Grains distributed randomly-1-5 |
| Silicon Content | ≥3.0% (typically 3.0-4.5%) | 0.5-3.0%-1-6 |
| Thickness | 0.18 – 0.35 mm | 0.35 – 0.65 mm-1-5 |
| Core Loss | Lower (P1.7 0.8–1.2 W/kg) | Higher (P1.5 3.0–6.5+ W/kg) |
| Magnetic Direction | Strong directional (best along rolling direction) | Isotropic (uniform in all directions)-1 |
| Primary Application | Transformers (power/distribution) | Motors, generators, compressors-5-11 |
| Manufacturing Complexity | More complex (multiple annealing steps) | Simpler-5 |
Key Characteristics – Both Types：
| Feature | Description |
|---|---|
| Low Core Loss | Minimizes energy waste during magnetization cycles – reduces operating cost of electrical equipment |
| High Permeability | Efficient magnetic flux conduction – reduces size/weight of cores |
| High Lamination Factor | Smooth, uniform surface enables tight stacking efficiency ≥97%-2-3-6 |
| Good Punchability | Suitable for stamping and cutting for core manufacturing-1 |
| Insulation Coating | C-5 / C-6 coating reduces eddy current losses between laminations-2-6 |
| 100% Recyclable | Sustainable material with excellent recyclability |
Typical Applications：
| Industry | Application | Recommended Type |
|---|---|---|
| Power Generation & Distribution | Transformers (power, distribution, instrument) | Grain-Oriented (CRGO)-5-11 |
| Electric Motors | AC motors, DC motors, servo motors, traction motors | Non-Oriented (CRNGO)-1-11 |
| Home Appliances | Compressors (refrigerators, air conditioners), washing machines | Non-Oriented (CRNGO)-11 |
| Automotive | EV drive motors, starter motors, alternators | Non-Oriented (CRNGO)-11 |
| New Energy | Wind turbines, solar inverters, EV charging stations | Both types |
| Electronics | Chokes, inductors, transformers for power supplies | Grain-Oriented |
Each batch includes EN 10204 3.1 mill test certificate with full magnetic performance data. Third-party inspection (SGS, BV, TÜV) supported. MOQ: 5–10 tons for trial orders.
Key Specifications – Silicon Steel Coil
Grain-Oriented Silicon Steel (CRGO)：
| Parameter | Specification / Range | Remarks |
|---|---|---|
| Standards | ASTM A876, IEC 60404-8-4, JIS G3304, GB/T 2521 | Others on request |
| Grades (Common) | 23Q110, 23Q120, 27Q120, 30Q120, 30Q130, 35Q145 | Iron loss based classification-2-6 |
| Grades (High Induction) | 23QG085, 23QG090, 23QG095, 27QG095, 27QG100, 30QG100, 30QG105 | High permeability grades-6 |
| Grades (Domain Refined) | 23R080, 23R085, 27R090, 27R095, 30R100 | Laser refined, ultra-low loss-2 |
| Thickness | 0.18 mm – 0.35 mm | 0.23, 0.27, 0.30, 0.35mm common-1-5 |
| Width | 600 mm – 1250 mm | Custom slitting available-2-6 |
| Coil ID | 508 mm (standard) | 610mm on request |
| Core Loss P1.7 (50Hz) | 0.80 – 1.20 W/kg | Grade dependent-2-6 |
| Magnetic Induction B8 | ≥1.80 – 1.90 T | High induction grades up to 1.90T-2-6 |
| Lamination Factor | ≥97% | -2 |
| Coating | C-5 (T1), C-6 (T2) insulation coating | Reduces eddy current loss-2-6 |
| Brands Available | Baosteel, WISCO, Shougang, Nippon Steel, JFE, AK-6 | – |
Non-Oriented Silicon Steel (CRNGO)：
| Parameter | Specification / Range | Remarks |
|---|---|---|
| Standards | ASTM A677, IEC 60404-8-4, GB/T 2521, EN 10106 | Others on request |
| Grades (50 Series) | 50W800, 50W600, 50W470, 50W400, 50W310, 50W250, 50W1300 | 0.5mm thickness, P1.5 values-3-6 |
| Grades (35 Series) | 35W250, 35W270, 35W300, 35W440, 35W550 | 0.35mm thickness-3-6 |
| Grades (High Grade) | 35WW230, 35WW250, 50WW230, 50WW250 | Low loss motor grades-3 |
| Thickness | 0.35 mm – 0.65 mm | 0.35, 0.50, 0.65mm common-3-7 |
| Width | 600 mm – 1250 mm | Custom slitting available |
| Coil ID | 508 mm (standard) | – |
| Core Loss P1.5 (50Hz) | 2.3 – 13.0 W/kg | Grade dependent-3 |
| Magnetic Induction B50 | ≥1.62 – 1.72 T | Grade dependent-3 |
| Lamination Factor | ≥95 – 97% | – |
| Density | 7.60 – 7.85 g/cm³ | Grade dependent-3-7 |
| Coating | C-3 / C-5 / C-6 insulation coating | – |
