As a manufacturer with over two decades of experience, Cangzhou Dean Safety & Special Tools Co., Ltd (established in 2001) specializes in high-performance safety tools for hazardous environments. Our Corrosion Resistant Non-Sparking Combination Wrench is precision-engineered from premium Beryllium Copper to deliver exceptional safety and durability in offshore, marine, and other explosive atmospheres. With an annual export value exceeding US$100 Million, we serve global markets across North America, Europe, Asia, and beyond.

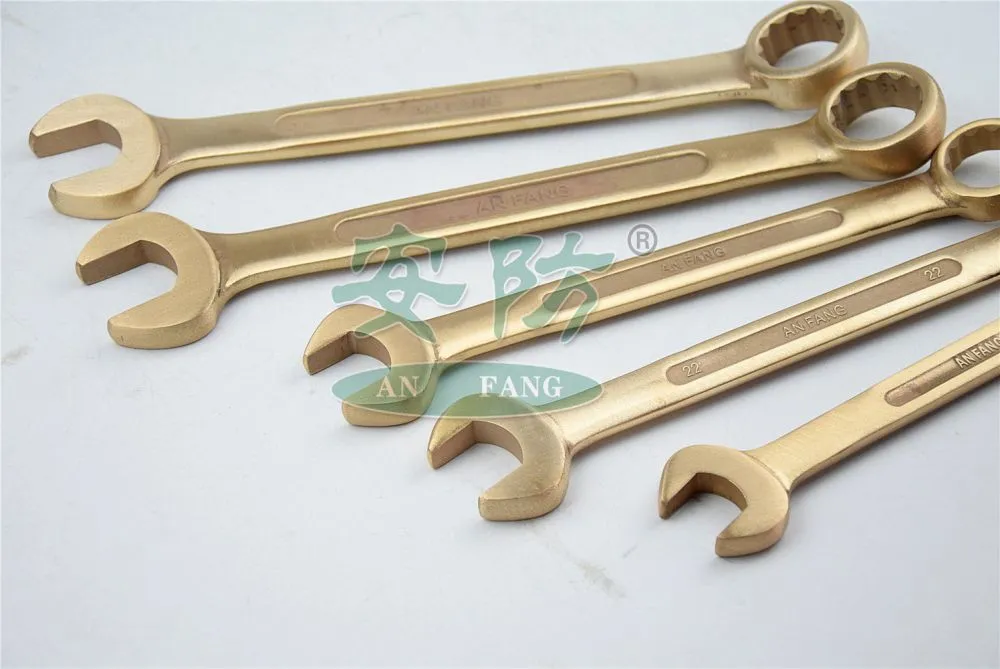

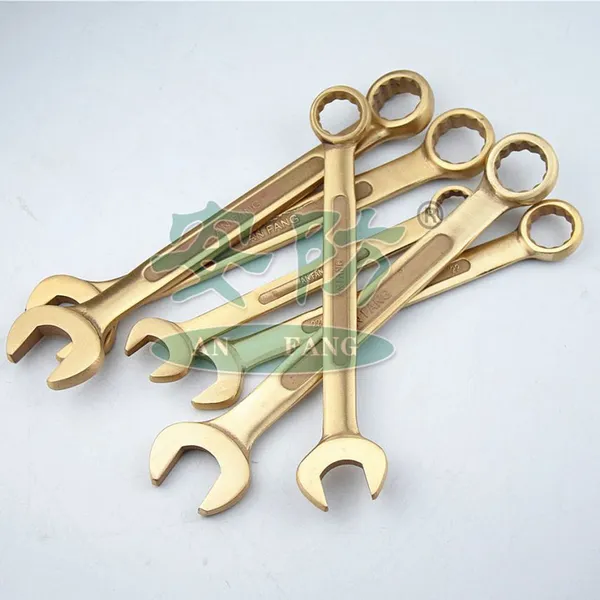

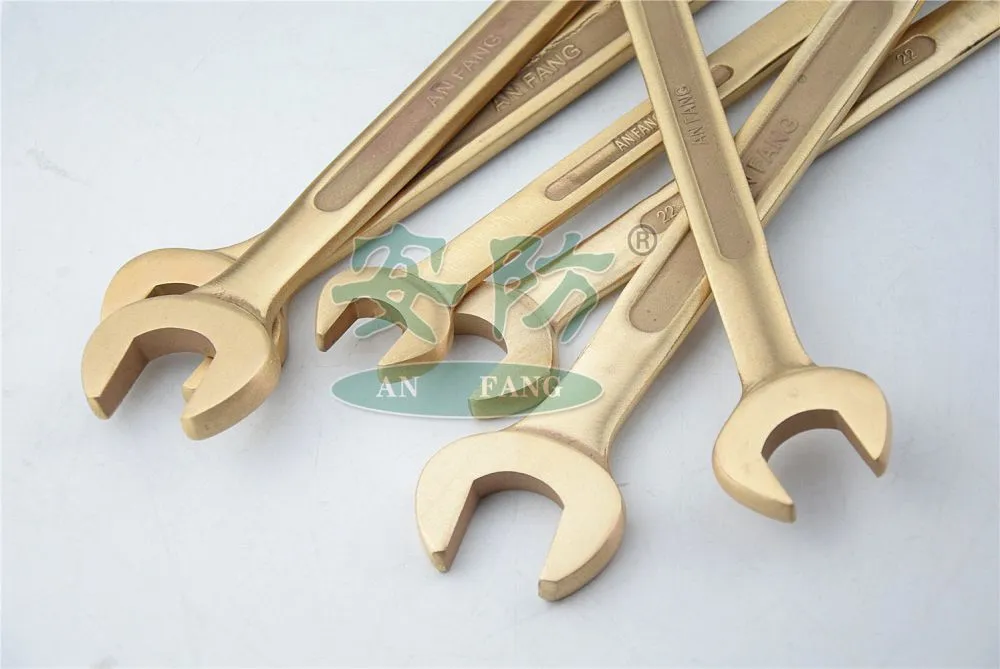

This combination wrench is designed to eliminate ignition risks while withstanding the harshest corrosive conditions. Beryllium Copper ensures no sparks are generated when striking against steel or concrete, making it ideal for oil rigs, shipyards, chemical plants, and gas facilities. The ergonomic design provides a comfortable grip, and the double-ended configuration (open-end and box-end) offers flexibility for various fastening tasks.
Key Features & Technical Specifications
- Material: High-quality Beryllium Copper (C17200/C17300) – non-ferrous, non-magnetic, and certified anti-sparking.
- Corrosion Resistance: Excellent resistance to saltwater, chemicals, and humidity – extends service life in marine environments.
- Non-Sparking Safety: Meets international safety standards for explosive atmospheres (Zone 0, 1, 2).
- Design: Combination open-end and 12-point box-end for rapid fastening and final torque application.
- Hardness: Optimized heat treatment ensures consistent hardness (HRC 35-42) without brittleness.
- Customization: Available in standard metric (6mm – 50mm) and imperial sizes; special lengths or coatings upon request.
- Packaging: Individually wrapped or in sets to prevent damage during transit.
Physical & Mechanical Properties (Typical Values)
| Property | Value |
|---|---|
| Tensile Strength | ≥ 1100 MPa |
| Yield Strength (0.2% offset) | ≥ 900 MPa |
| Elongation | ≥ 5% |
| Hardness | HRC 35–42 |
| Density | 8.25 g/cm³ |
| Thermal Conductivity | 105 W/m·K |
| Electrical Conductivity (%IACS) | ≈ 22% |
| Magnetic Permeability |
Benefits for Offshore & Marine Applications
- Enhanced Worker Safety: Eliminates the risk of incendive sparks in confined spaces or near flammable gases/liquids.
- Long-Term Reliability: Beryllium Copper resists pitting and stress corrosion cracking caused by seawater and saline atmospheres.
- Reduced Replacement Cost: Higher strength than aluminum bronze tools means less wear and fewer tool changes.
- Versatility: The combination head design reduces the need for multiple tools – one wrench serves both turning and torquing functions.
- Compliance Ready: Designed to meet the requirements of ATEX, IECEx, and other explosion-proof standards (certifications available upon request).
Our factory in Cangzhou, Hebei, utilizes advanced forging and CNC machining processes to ensure consistent quality across all sizes. Each wrench is individually inspected and tested for spark resistance using a standard drop test. With a global logistics network shipping from Tianjin, Shanghai, or Ningbo ports, we guarantee fast delivery to customers in North America, South America, Europe, Africa, and Oceania.
Why Choose Cangzhou Dean Safety & Special Tools?
Since 2001, we have been a dedicated manufacturer of non-sparking tools, with an annual export value exceeding US$100 Million. Our main markets span over 20 countries across six continents. We have supplied hundreds of offshore oil platforms, marine maintenance teams, and chemical plants worldwide. Our products undergo rigorous third-party testing for material composition, mechanical properties, and spark resistance. We offer flexible customization (size, marking, packaging) and provide full after-sales support.
Contact us today to discuss your specific requirements. Request a quote or sample to experience the superior quality of our Beryllium Copper combination wrench. With our proven track record and dedicated service, you can trust Dean Safety for your most critical safety tool needs.
Frequently Asked Questions
Q1: Is Beryllium Copper safe to handle? Does it pose any health risks?
A1: Yes, our Beryllium Copper tools are safe for normal industrial use. The beryllium content is fully alloyed, and no airborne particles are generated during handling. Machining operations that produce dust should follow standard ventilation practices, but for wrench usage, there is no health risk.
Q2: Can this wrench be used underwater or in direct contact with seawater?
A2: Absolutely. The Beryllium Copper alloy offers excellent resistance to seawater corrosion. However, prolonged immersion in aggressive chemicals may require additional protection. Rinsing with fresh water after use is recommended for maximum longevity.
Q3: What sizes are available? Can I order non-standard sizes?
A3: We offer metric sizes from 6mm to 50mm and imperial from 1/4" to 2". Custom sizes are available with a minimum order quantity; please contact our sales team with your requirements.
Q4: Does this tool meet international explosion-proof certifications?
A4: Our manufacturing process aligns with the requirements of ATEX, IECEx, and North American standards. Specific certification documents can be provided upon request for your project compliance.
Q5: How do I verify the non-sparking property of the wrench?
A5: Each batch is tested using a standardized drop test against a steel surface in a controlled environment. No visible sparks are produced. Material certificates with chemical composition are included with every shipment.
Q6: What is the typical lead time for a standard order?
A6: For stock sizes (e.g., 10mm–24mm), lead time is 7–15 days. For custom sizes or large quantities, please allow 20–30 days depending on production schedule. We ship from Tianjin, Shanghai, or Ningbo ports.
Q7: Can I get a sample before placing a bulk order?
A7: Yes, we offer sample orders with a small fee (refundable with bulk orders). Contact our export team for sample availability and shipping terms.
Q8: How should I maintain the wrench to prolong its life?
A8: After each use, clean the tool with a dry cloth to remove moisture or dirt. Apply a light anti-rust oil if stored for long periods. Avoid dropping or striking against hardened steel surfaces unnecessarily.
