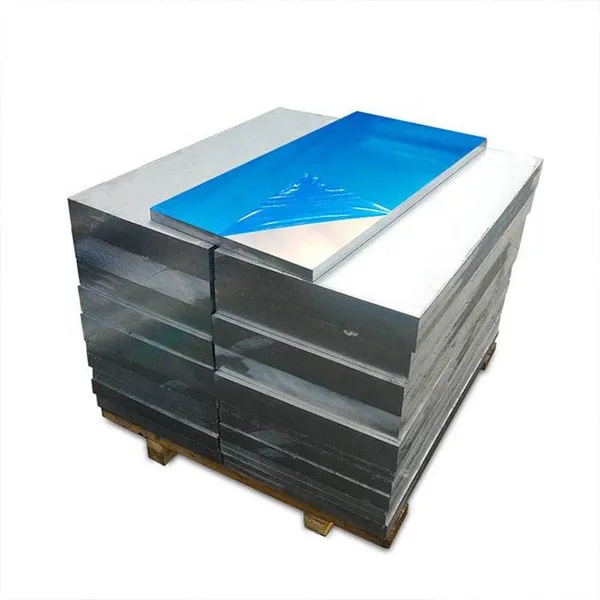

5052 H112 Aluminum Plate with Protective Film
5052 H112 aluminum plate with PE film is widely used in cabinets, enclosures, and industrial equipment. It offers excellent corrosion resistance and good forming performance. The protective film ensures surface quality during cutting, fabrication, and transportation, making it ideal for finished visible applications.
What Is Aluminum Plate & Sheet？
Product Definition：
Aluminum plates and sheets are flat-rolled products manufactured from aluminum alloys through hot rolling and cold rolling processes. With a density of just 2.70 g/cm³ (approximately one-third that of steel), aluminum offers an excellent strength-to-weight ratio, outstanding corrosion resistance, high thermal and electrical conductivity, and 100% recyclability.
Aluminum Sheet vs Plate：
| Classification | Thickness Range | Manufacturing Process | Typical Applications |
|---|---|---|---|
| Aluminum Sheet | 0.15 mm – 6.0 mm | Cold rolled | Automotive panels, roofing, signage, HVAC, kitchenware |
| Aluminum Plate | 6.0 mm – 200 mm | Hot rolled | Marine structures, aerospace components, tooling plates |
Key Characteristics：
| Feature | Description |
|---|---|
| Lightweight | Density ~2.70 g/cm³ – one-third that of steel- |
| Corrosion Resistance | Natural oxide layer provides excellent protection in most environments |
| High Strength Options | 5xxx (marine) and 7xxx (aerospace) series offer exceptional strength |
| Excellent Formability | Readily bent, stamped, drawn, and machined |
| High Thermal Conductivity | 120–230 W/(m·K) – ideal for heat exchangers and |
| 100% Recyclable | Environmentally friendly with no loss of properties |
| Weldability | Most alloys easily welded (especially 5xxx and 6xxx series) |
Why Choose Aluminum Over Steel？
| Factor | Aluminum | Steel |
|---|---|---|
| Density | 2.70 g/cm³ | 7.85 g/cm³ |
| Weight | 1/3 the weight of steel | Heavy |
| Corrosion Resistance | Excellent (natural oxide) | Poor (requires coating) |
| Thermal Conductivity | Excellent (120-230 W/m·K) | Moderate (45-60 W/m·K) |
| Electrical Conductivity | Good (30-60% IACS) | Poor (10-15% IACS) |
| Recyclability | 100% recyclable | 100% recyclable |
Typical Applications by Industry：
| Industry | Applications | Recommended Series |
|---|---|---|
| Aerospace | Aircraft skin, wings, fuselage frames, landing gear-13 | 2xxx, 7xxx (7075) |
| Automotive | Body panels, fuel tanks, chassis components, engine parts-13 | 5xxx (5052, 5182), 6xxx (6061) |
| Marine / Shipbuilding | Boat hulls, decks, superstructures, offshore platforms-13 | 5xxx (5083, 5052, 5754) |
| Construction & Architecture | Roofing, siding, curtain walls, cladding, ceilings-13 | 3xxx (3003), 5xxx (5052), 6xxx (6061) |
| Food & Chemical | Storage tanks, pressure vessels, food-grade equipment-13 | 5xxx (5083), 6xxx (6061), 1xxx (1050) |
| HVAC & Heat Exchangers | Condensers, evaporators, radiator fins-10 | 1xxx (1050, 1060, 1100), 3xxx (3003) |
| Electronics | Housings, heat sinks, battery components-13 | 5xxx (5052), 6xxx (6061) |
| Tooling & Machining | Jigs, fixtures, molds, machine plates | 6xxx (6061-T651), 7xxx (7075-T651) |
Key Specifications – Aluminum Plate / Sheet
| Parameter | Specification / Range | Remarks |
|---|---|---|
| Standards | ASTM B209, EN 485, GB/T 3880, JIS H4000- | Others on request |
| 1xxx Series (Pure Aluminum) | 1050, 1060, 1070A, 1100 | Al ≥99.0-99.7%-2-4 |
| 3xxx Series (Al-Mn) | 3003, 3004, 3105 | Good workability, moderate strength-1 |
| 5xxx Series (Al-Mg) | 5052, 5083, 5086, 5754 | Marine grade, excellent corrosion resistance-10 |
| 6xxx Series (Al-Mg-Si) | 6061, 6063, 6082 | Heat treatable, structural applications-9 |
| 7xxx Series (Al-Zn) | 7075, 7050 | Highest strength, aerospace grade |
| Thickness – Sheet | 0.15 mm – 6.0 mm | Tolerance: ±0.02–0.10 mm |
| Thickness – Plate | 6.0 mm – 200 mm | Tolerance: ±0.10–0.50 mm |
| Width | 500 mm – 3000 mm | Custom slitting available |
| Length | 1000 mm – 12000 mm | Custom cut to size |
| Temper | O, H12, H14, H16, H18, H22, H24, H32, H34, H111, H112, T3, T4, T5, T6, T651 | Varies by alloy |
| Density | 2.66 – 2.81 g/cm³ | Alloy dependent--10 |
| Melting Point | 475 – 660°C | Alloy dependent |
| Thermal Conductivity | 120 – 230 W/(m·K) | Alloy dependent- |
| Modulus of Elasticity | 69 GPa | – |
| Testing | PMI (XRF), tensile, hardness, bend, UT (optional) | Mill cert EN 10204 3.1 |
| Packaging | Interleaved paper + PE film + waterproof wrap + steel straps + wooden pallet | Seaworthy, ISPM 15 |
Wuxi Yansheng Technology Co., Ltd. – Company Profile
Wuxi Yansheng Technology Co., Ltd. is a comprehensive technology enterprise specializing in high-quality metal raw material supply and precision processing services. Located in Wuxi City, a major steel distribution center in China, the company leverages the mature industrial chain advantages of the Yangtze River Delta region to provide professional material solutions to global customers.
As a technology-driven enterprise, Yansheng Tech maintains strategic cooperation with several well-known steel mills (such as TISCO, Baosteel, JISCO, Dongfang Special Steel, etc.) and is an authorized distributor of these mills. Our main products include stainless steel (304/316/BA/EP pipe), carbon steel, silicon steel, copper, aluminum and other materials in the form of sheets, pipes, coils, as well as custom-processed parts.
Core Business Highlights:
Material Supply: We maintain sufficient stock inventory, offering 304/316 stainless steel sheets, pipes, coils, API 5L casing, electrical steel, and more. We also accept orders for special steel grades and non-standard specifications.
Precision Processing: Equipped with imported mirror polishing machines, water jet cutting machines, high-precision slitting/leveling lines, large CNC milling machines, boring machines, and more. We provide customized services including BA/EP pipe finishing, medium plate polishing, matte finishing, embossing, plasma cutting, etc.
Main Applications: Our products are widely used in industries such as solar energy, pressure vessels, boilers, electric heating equipment, petrochemicals, environmental protection machinery, pharmaceutical and food processing, and new energy vehicles.
Our processing center is located in Xishan District, Wuxi City, covering nearly 10,000 square meters, with an experienced technical and service team. We adhere to the business philosophy of "Technology First, Quality Oriented, Service Supreme" , providing 24/7 warehousing and logistics support as well as comprehensive after-sales service. Yansheng Tech is committed to being your trusted long-term partner.
Frequently Asked Questions (FAQ)
Q1. What products do you mainly supply?
We mainly supply stainless steel (304/316/BA/EP pipes), carbon steel, silicon steel, copper, aluminum, and other materials in sheets, pipes, and coils. Customized processing services are also available.
Q2. Do you have stock available?
Yes, we maintain sufficient stock for most standard specifications. For non-standard sizes, we can accept orders with reasonable lead time.
Q3. Can you provide MTC (Mill Test Certificate)?
Yes, we provide MTC for every shipment. Third-party inspection (SGS, TÜV, BV, etc.) is also available upon request.
Q4. Do you support video inspection before shipment?
Yes, we fully support video inspection. You can also arrange an agent or third party to visit our factory for on-site inspection before shipment.
Q5. What are your main export markets?
We export to Southeast Asia, the Middle East, Europe, Africa, and South America. We have rich experience in international trade and export documentation.
Q6. What payment terms do you accept?
We accept T/T (wire transfer), L/C at sight (irrevocable), and sometimes a combination of T/T deposit + L/C balance. Payment terms are negotiable based on order size and customer history.
Q7. Can you provide samples?
Yes, samples are available for most standard products. For custom sizes, we may need to produce small batch samples. Sample cost and shipping are usually borne by the customer, but can be discussed.
Q8. What is your typical lead time?
For stock items: 7–10 days after order confirmation. For custom production: 20–30 days, depending on the specification and quantity.
Q9. What quality certifications do you have?
We provide MTC with every shipment. Our partner mills are ISO9001 certified. We can also assist with third-party inspections (SGS, TÜV, BV) upon request.
Q10. How can I get a quotation?
Please send us your material grade, specification (size, thickness, length), quantity, and preferred trade term (FOB, CIF, DAP, etc.). We will reply with a detailed quotation within 24 hours.
