Help CenterNl Nylon Inner Tooth Coupling/ Coupled Curved Tooth Gear Nylon Sleeve
Product Spotlights
Related Products
-
Nylon Sleeve Gear Coupling Curved Tooth Shaft Coupler Nl6 Metal Hubs Pump Motor Large TorqueNegotiableMOQ: 1 Piece -
Custom Machining Plastic Outer Sleeve Curved Tooth Nylon Gear Coupling For Pump FanNegotiableMOQ: 1 Piece
-
High-Precision Flexible Mechanical Pinion Gear Coupling With Nylon SleeveNegotiableMOQ: 1 Piece
-
Nylon Sleeve Gear Coupling MC Nylon Internal Tooth Flexible Shaft CouplerNegotiableMOQ: 1 Piece
-
Standard Size Nylon Gear Sleeve Self Lubricating Flexible Coupling Replacement PartNegotiableMOQ: 1 Piece
Hebei Speed Torque Transmission Technology Co., Ltd., established in 2017 and located in Cangzhou, Hebei, China, is a professional manufacturer of high-quality transmission components. Our factory spans 3,000–5,000 square meters and is staffed by 101–200 experienced employees. We hold ISO9001:2015 certification and export to over a dozen markets worldwide, including North America, South America, Europe, Southeast Asia, and Oceania, with an annual export value of US$5–10 million. Our Nl Nylon Inner Tooth Coupling / Coupled Curved Tooth Gear Nylon Sleeve is designed to deliver reliable, low-noise, and maintenance-free performance in various industrial power transmission applications.

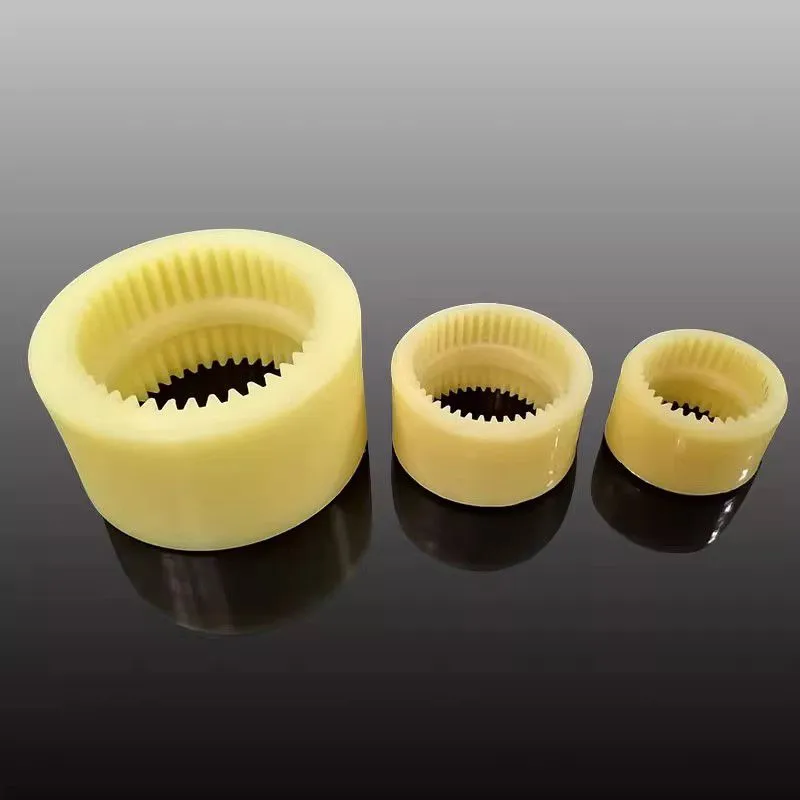

This coupling sleeve is engineered from high-grade nylon material, offering excellent wear resistance, self-lubrication, and vibration damping. The unique curved tooth profile ensures smooth torque transmission and compensates for minor misalignments, protecting connected equipment from shock loads. Whether used in pumps, compressors, conveyors, or gearboxes, this product enhances system efficiency and extends service life.
Key Features & Technical Specifications:
- Material: High-strength nylon (PA6 or PA66) – lightweight yet durable, resistant to oils and chemicals.
- Tooth Design: Curved inner teeth for progressive engagement, reducing peak stress and noise.
- Torque Capacity: Ranges from 50 Nm to 1,200 Nm depending on size (customizable upon request).
- Misalignment Compensation: Axial, radial, and angular misalignment tolerance up to 1–2°.
- Operating Temperature: -40°C to +120°C, suitable for harsh environments.
- Weight Reduction: Up to 60% lighter than traditional metal couplings, reducing rotational inertia.
- Installation: Easy push-fit design; no lubrication or special tools required.
- Custom Options: Available in different colors (black, white), hardness (Shore D 70–85), and custom dimensions.
Technical Parameter Table (Example Sizes):
| Model | Inner Diameter (mm) | Outer Diameter (mm) | Length (mm) | Max Torque (Nm) |
|---|---|---|---|---|
| NL-25 | 14–25 | 55 | 40 | 120 |
| NL-40 | 20–40 | 80 | 55 | 350 |
| NL-60 | 30–60 | 110 | 70 | 700 |
| NL-80 | 40–80 | 140 | 85 | 1,200 |
Benefits for Your Application:
- Reduced Downtime: No need for frequent lubrication; wear-resistant nylon extends replacement intervals.
- Quiet Operation: Curved tooth profile and inherent damping of nylon significantly lower noise levels compared to steel gears.
- Cost Savings: Lighter weight reduces bearing loads; simple installation cuts labor costs.
- Versatility: Suitable for food processing (non-toxic material option), packaging, textile, and automotive industries.
- Reliability: Each unit undergoes strict quality control in our ISO9001-certified facility.
Trust & Quality Assurance: With a dedicated team of 101–200 employees and a factory covering 3,000–5,000 square meters, Hebei Speed Torque Transmission Technology Co., Ltd. delivers consistent quality and on-time delivery. Our products are shipped from major Chinese ports – Port of Shanghai, Tianjin, and Qingdao – ensuring efficient logistics. We have successfully served clients across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and more. Contact us today to discuss your specific coupling needs and experience the reliability of our nylon inner tooth couplings.
Frequently Asked Questions (FAQ):
-
Q: What materials are available for this coupling sleeve?
A: Standard material is high-grade nylon (PA6 or PA66). We also offer custom formulations for enhanced temperature or chemical resistance. Please consult our sales team for special requirements. -
Q: Can this coupling handle misalignment?
A: Yes, the curved tooth design allows compensation for angular misalignment up to 1–2°, axial misalignment up to 1–2 mm, and radial misalignment up to 0.5 mm, protecting your equipment from excessive stress. -
Q: What is the maximum torque this sleeve can transmit?
A: Depending on size, torque capacity ranges from 50 Nm to 1,200 Nm. Larger or smaller capacities are available upon request. Refer to our parameter table for standard models. -
Q: Does the product require lubrication?
A: No, the nylon material has self-lubricating properties, making it maintenance-free in most applications. This reduces operating costs and environmental concerns. -
Q: What is the operating temperature range?
A: The standard grade works from -40°C to +120°C. For higher temperature environments (up to 180°C), we offer a heat-resistant grade – please specify when ordering. -
Q: Can you provide custom dimensions or colors?
A: Absolutely. We can customize inner diameter, outer diameter, length, color, and hardness according to your drawings or specifications. Minimum order quantity may apply for custom items. -
Q: How long is the lead time?
A: For standard sizes, lead time is 10–15 working days. Custom orders typically require 20–30 working days depending on complexity. We can expedite urgent orders upon request. -
Q: Do you have quality certifications?
A: Yes, our facility is ISO9001:2015 certified. Every product is inspected before shipment to ensure dimensional accuracy and material integrity.
Ready to upgrade your power transmission system? Choose Hebei Speed Torque's Nl Nylon Inner Tooth Coupling for a durable, quiet, and cost-effective solution. With our proven track record in global markets and commitment to quality, you can trust us for your critical components. Get in touch today for a quote or sample!
