Product Description

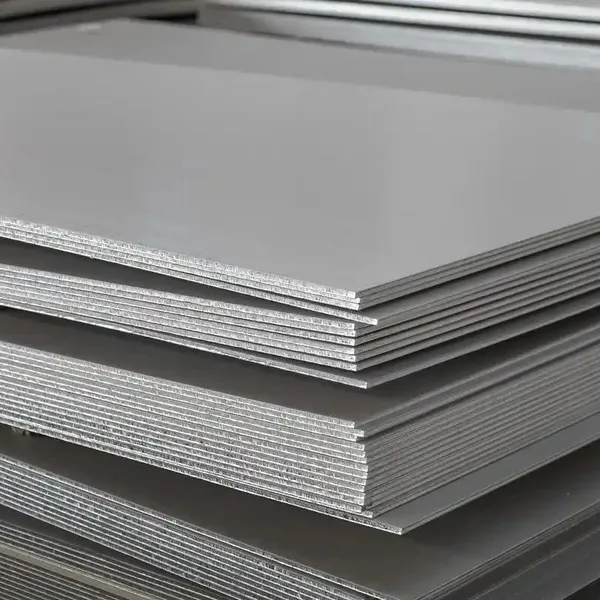

These hot rolled stainless steel plates are available in four specialized grades to meet demanding industrial requirements. 304L offers low carbon for improved weldability, ideal for large storage tanks and piping systems. 316L adds molybdenum for superior chloride resistance, perfect for marine and chemical processing. 321 is titanium-stabilized for high-temperature service up to 900°C, preventing intergranular corrosion in exhaust and heat exchanger applications. 310S provides exceptional oxidation resistance up to 1050°C, suitable for furnace components and thermal processing equipment. Hot rolling produces plates with excellent mechanical strength and toughness for heavy-duty structural use. Typical applications include pressure vessels, heat exchangers, kiln linings, petrochemical reactors, and power plant equipment.
Parameter |
Specification / Range |
Remarks |
Standards |
ASTM A240, A480, EN 100882, JIS G4304/4305, GB/T 3280 |
Others (e.g. DIN, BS) on request |
Common Grades |
304, 304L, 316, 316L, 321, 309S, 310S, 430, 201, 202, 904L, 2205, 2507 |
Duplex & super austenitic available |
Thickness range |
Cold rolled: 0.3mm – 6.0mm; Hot rolled: 3.0mm – 120mm |
Custom on request |
Width range |
Cold rolled: 1000 / 1219 / 1500 mm (max 2000mm); Hot rolled: 1500 – 3000 mm |
Slitting / trimming available |
Length range |
Cold rolled: 2000 – 6000 mm; Hot rolled: 3000 – 12000 mm |
Custom cut to length |
Surface finish |
2B, BA, No.1, HL (hairline), No.4, mirror (8K), embossed, colored |
Pickled & annealed for hot rolled |
Tolerances – thickness |
Cold rolled: ±0.03mm to ±0.08mm (depending on thickness) |
Per ASTM A480 |
Tolerances – width/length |
±2mm (sheared), ±1mm (slit) |
Laser/plasma ±0.5mm |
Flatness |
≤3mm/m for cold rolled; ≤5mm/m for hot rolled (standard) |
Leveling service available |
Mechanical properties (typical – 304) |
Tensile strength ≥515 MPa; Yield ≥205 MPa; Elongation ≥40% |
Varies by grade & temper |
Hardness (304/316) |
≤200 HB; ≤92 HRB |
Annealed condition |
Density |
7.93 g/cm³ (304/316); 7.70 g/cm³ (430) |
– |
Surface protection |
Interleaving paper + PE film on one or both sides |
Optional |
Product display
Surface
Packaging and shipping
