Help CenterHigh Quality CNC Router 4*8ft 1325 Cnc Wood Router for Mdf Cutting Wooden Furniture Door Making
Product Spotlights
3 Axis CNC Router Precision, Industrial-Grade Spindle for flawless wood/metal engraving.
* Multi-Material Mastery
Processes wood, MDF, aluminum composites, PVC & acrylics.
* Safety & Longevity
Reinforced steel frame and vibration-dampening tech ensure stability during high-speed cutting.
* Premium Components
Branded parts guarantee smooth operation, reliability, and extended machine life.
* Intelligent Safety Protection
Related Products
-
1325 4x8ft CNC Wood Router for MDF Cutting Furniture Door Making MachineUS$ 1620 - 2150MOQ: 1 Set -
Mini Cnc Router WMT6090 Cnc Router Metalworking MachineNegotiableMOQ: 1
-
3d Printed Cnc Router Punching & Bending Cnc Frame Kit Cnc Router SpindleNegotiableMOQ: 1 Piece
-
CNC Router Leather Cardboard Cutter Oscillating Knife Cutting Machine Pcb Board Engraving Cnc Router With CCDNegotiableMOQ: 1 Set
-
5 Axis CNC Router for Aluminum Machining With 24/7 Continuous OperationNegotiableMOQ: 10 Pieces

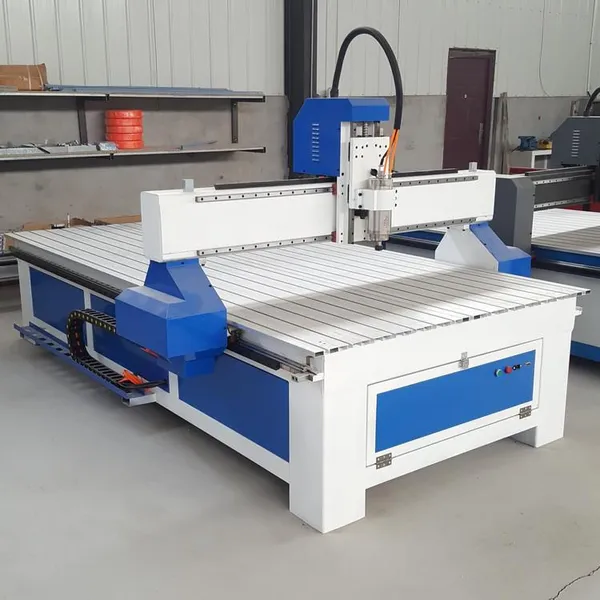

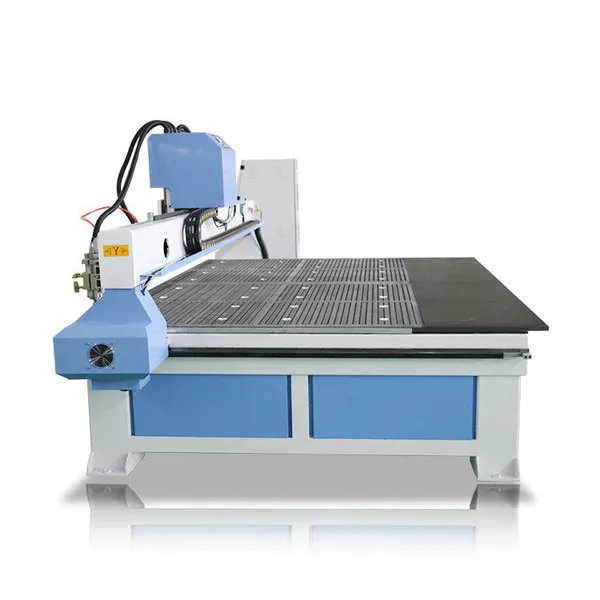

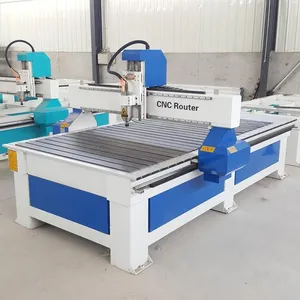

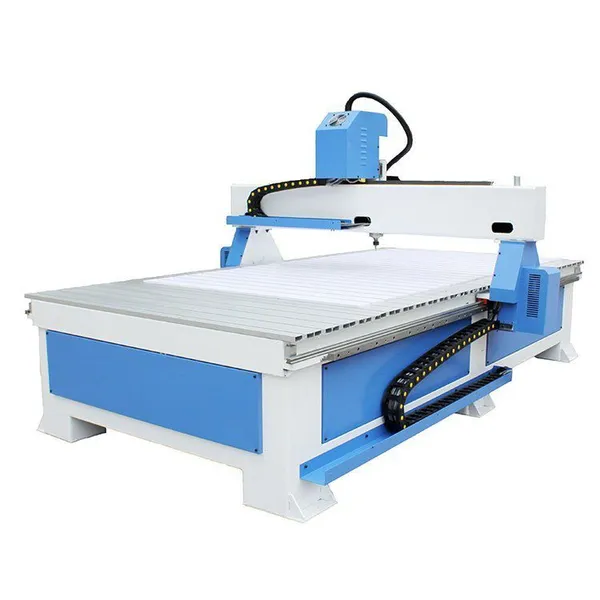

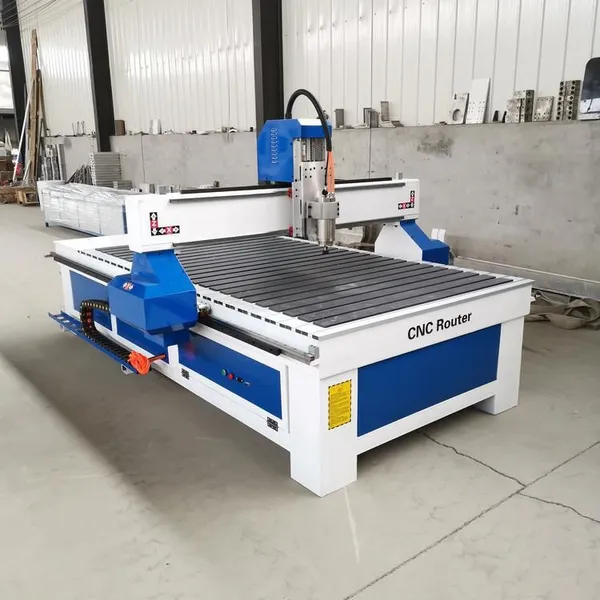

1325 3 Axis CNC Router combines high quality spindle technology with robust engineering, delivering exceptional precision for wood, acrylic, and non-ferrous metals. With spindle speeds, this CNC wood router ensures smooth finishes and intricate detailing. Designed for both workshops and industrial use, it offers plug-and-play operation, minimized maintenance, and customizable configurations to fit diverse production needs.Features
* Smart CNC Wood Router Control
3 Axis CNC Router Precision, Industrial-Grade Spindle for flawless wood/metal engraving.
* Multi-Material Mastery Processes wood, MDF, aluminum composites, PVC & acrylics.
* Safety & Longevity Reinforced steel frame and vibration-dampening tech ensure stability during high-speed cutting. * Premium Components
Branded parts guarantee smooth operation, reliability, and extended machine life.
* Intelligent Safety Protection
Air pressure detection system automatically stops operation & triggers alarms if pressure drops, protecting critical components.Voltage phase sequence protector prevents machine damage from power fluctuations or incorrect wiring.
Product Details
High-precision servo drive system
Utilizing a high-performance servo motor with strong instantaneous overload capacity, it easily handles high-load machining demands. Positioning accuracy reaches ±0.1mm, and repeatability accuracy reaches ±0.03mm, perfectly capturing fine engraving details.
Intelligent Vacuum Work Table
The honeycomb surface design is compatible with a variety of materials, including panels, acrylic, and composite materials. It maintains adsorption even during extended use, firmly holding the panel in place without vibration or displacement during the engraving process.
Air-cooling spindle
This high-precision spindle can rotate at a speed of up to 24,000r/min. It can effortlessly cut hardwood, medium-density fiberboard, acrylic and other materials. The fast tool change speed and the stable positioning accuracy of ±0.01 millimeters have enhanced the processing efficiency.
High-rigidity precision guide rails
Utilizing high-rigidity linear guide rails from Taiwan, the system boasts a repeatability of ±0.03mm and a three-year accuracy retention rate exceeding 95%. It boasts a maximum operating speed of 80m/min and is exceptionally durable.
High-precision transmission system
This product is made of high-quality alloy steel and features excellent wear resistance and impact resistance. The linear accuracy reaches 0.1 millimeters per meter, and the repeatability error is ±0.03 millimeters, ensuring precise and stable operation.
User-Friendly Control System
The high-performance Taiwan SYNTEC/LNC numerical control system features rapid processing speed and responsiveness, enabling the execution of high-precision woodworking processes such as solid wood engraving and panel furniture, without any delays or stalling.
Product Parameters
Model |
ABS-1325, ABS-1530, ABS-2030, ABS-2040, etc. |
Working area(X-Y-Z) |
1300x2500*200mm |
Table structure |
Aluminum T-slot & vacuum work table |
Control system |
DSP/LNC/Syntec control system |
Spindle type |
Aircooling spindle |
Inverter |
Delta/Fuling/Best inverter |
Motor and driving system |
servo motor drive＋Japan SHIMPO reducer |
Transmission |
X,Y axis: Taiwan helical rack Z axis: Taiwan TBI ball screw |
Guide rail |
Taiwan square rail |
Lubrication system |
Manual lubrication system |
Traveling speed |
30m/min |
Working speed |
0-15m/min |
System resolution |
±0.0025mm |
Working voltage |
220V 1PH/3PH 50HZ/60HZ |
Optional items |
Vacuum Systems: Oil-free ring blowers |
Sample and Application
Applicable materials: suitable for wood board, density board, MDF board, artificial board, particle board, gypsum board,
multilayer board, plastic, PVC, PCB, acrylic, Chevron board, PTFE board, aluminum-plastic board, aluminum, copper, ABS, PP,PE,epoxy resin, carbon fiber mixture, artificial stone, plexiglass, PVC, KT board, etc.
Application industry:
· Furniture industry: wooden furniture, panel furniture, mahogany furniture, cabinets, wardrobes, shoe cabinets, office furniture,custom furniture,wooden doors, tables and chairs, doors and windows, antique furniture, etc.
· Architectural decoration: stairs, architectural models, sand table models, decorative buckle lines, art floats, guard plates,
decorative surfaces, etc.
·Advertising production: billboards, logos, three-dimensional characters, acrylic signs, work cards, medals, crystal
characters, acrylic light boxes, etc.
· Mold manufacturing: wooden molds, plastic molds, foam molds, copper, aviation wood, auto parts, etc.
Company Profile
THEXISTECH Company has specialized in the OEM/ODM business of CNC Routers and laser machines since 2000. Our extensive product range includes CNC Routers, laser machines and plasma cutting machines.
The company has a complete infrastructure and more than 5 production bases to meet the different product needs of customers. With a complete industrial chain, we manage the entire machine production process, from design to machining, sheet metal bending, painting, and installation, ensuring top-quality machines for our clients.
Certifications & Services
FAQ
Q1: Is the machine easy to operate? Do you provide training?A1: Yes, Most users achieve proficiency in
Q2: Why choose this over other CNC routers for sale?
A2: We merge spindle precision, bearings, and customizable industrial modules at competitive pricing.
Q3: What materials can this machine process?A3: From softwoods to acrylics and light metals – perfect for furniture, signage, and artistic projects.Q4: Can the machine be customized for specific materials or label sizes?A4: Yes, we provide customization for blade types, label sizes, and conveyor systems based on your needs.Q5: Do you offer after-sales technical support?A5: Yes, we provide 24/7 remote support, spare parts supply, and engineer dispatch if needed.Q6: How to contact you? A6: Here is our contact information.
