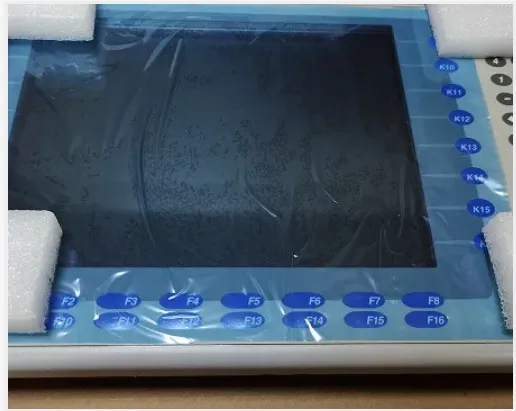

Rossonix Co., Limited is proud to offer the 2711P-K10C4A8 Allen-Bradley PanelView Plus 6 Terminal, a high-performance HMI designed for demanding industrial environments. With over a decade of experience in the automation components trading industry and an annual export value exceeding US$5 million, we ensure every unit delivered meets rigorous quality standards. This 10.4-inch color touchscreen terminal combines rugged construction with intuitive operation, making it the ideal operator interface for machine control, process monitoring, and data visualization applications. Whether you are upgrading an existing system or building a new one, this PanelView Plus 6 delivers reliability and seamless integration with Rockwell Automation platforms.
Key Features & Technical Specifications
- High-Resolution Display: 10.4-inch color TFT LCD with 640 x 480 resolution offers clear visibility even under bright shop floor lighting.
- Robust Touch Interface: Resistive touchscreen with industrial-grade durability supports gloved hand operation and long service life.
- Flexible Communication: Built-in Ethernet (10/100), RS-232, two USB ports, and optional DeviceNet/ControlNet modules enable easy connectivity to PLCs, drives, and sensors.
- Powerful Processing: 512 MB RAM and 512 MB non-volatile flash memory provide fast screen navigation and ample storage for applications.
- Wide Operating Range: 24 VDC input with 0–55°C operating temperature, suitable for most industrial control cabinets.
- Windows CE 6.0 OS: Real-time multitasking capability allows running complex screen logic and third-party applications.
- Removable Memory: SD card slot for easy firmware updates, application backup, and data logging expansion.
- Modular Design: Front panel meets NEMA 12/4X when properly installed; optional bezel kits available for panel mounting.
| Parameter | Value |
|---|---|
| Display Type | 10.4-inch Color TFT Active Matrix |
| Backlight | LED, replaceable (50,000 hours typical) |
| Touch Type | Analog Resistive (4-wire) |
| CPU | Marvell PXA320 806 MHz |
| Application Memory | 512 MB SDRAM + 512 MB Flash |
| Communication Ports | Ethernet (1), RS-232 (1), USB 2.0 (2 Host, 1 Device), SD Slot |
| Input Voltage | 24 VDC (18–32 VDC range) |
| Power Consumption | 30 W max |
| Environmental | 0–55°C operating, 10–90% humidity (non-condensing) |
| Dimensions (HxWxD) | 303 x 247 x 62 mm (panel cutout required) |
Customer Benefits
- Simplified Integration: Full compatibility with Allen-Bradley ControlLogix, CompactLogix, SLC 500, and MicroLogix families reduces development time.
- Enhanced Operator Experience: Advanced graphics and trend capabilities help operators quickly identify process deviations and respond faster.
- Reduced Downtime: Industrial-rated components and a proven platform ensure long-term reliability even in harsh environments.
- Scalability: Same programming environment (FactoryTalk View ME) across multiple PanelView Plus models, making screen portability easy.
- Global Support: Our warehousing in Shenzhen, Hong Kong, and Europe ensures fast delivery to North America, South America, Europe, Oceania, and Middle East markets.
Trusted Partner for HMI Solutions
Rossonix Co., Limited has been servicing the automation industry since 2011, exporting automation components worth US$5–10 million annually. We hold ISO9001 & ISO9000 certifications, reflecting our commitment to quality management and customer satisfaction. Our overseas office in Europe and logistics hubs in Shenzhen and Hong Kong enable efficient global shipping. Every Allen-Bradley 2711P-K10C4A8 terminal we supply is tested for full functionality before dispatch, and we offer customizable warranty options to suit your project timeline. Contact our sales team today for a competitive quote and technical consultation – we are ready to support your next automation upgrade.
Frequently Asked Questions
Q1: Is the 2711P-K10C4A8 compatible with older PanelView Plus 5 applications?
Yes, FactoryTalk View ME applications from PanelView Plus 5 can be migrated to PanelView Plus 6 with minor adjustments. We recommend reviewing the migration guide provided by Rockwell Automation.
Q2: What programming software is required?
This terminal is programmed using FactoryTalk View Studio Machine Edition (version 8.0 or higher). It also supports RSView32 conversions via migration tools.
Q3: Do you provide any accessories like mounting bezels or cables?
We can supply compatible accessories such as bezel kits, communication cables, and power supplies. These are available upon request.
Q4: How long is the lead time for this product?
Typical lead time from our Shenzhen warehouse is 1–3 business days for stock items. For large quantities, please contact us for a confirmed schedule.
Q5: Is this unit refurbished or brand new?
We offer both new original sealed units and fully tested used/refurbished units. Please specify your preference when ordering. All refurbished units carry a 1-year warranty.
Q6: Can I use this HMI with a non-Rockwell PLC?
Yes, through Ethernet/IP, Modbus TCP, or serial DF1 protocols, the PanelView Plus 6 can communicate with many third-party PLCs, though some configuration may be required.
Q7: What is the panel cutout dimension?
The recommended cutout for this 10.4-inch terminal is approximately 291 x 235 mm (11.46 x 9.25 inches). A precise template is included in the user manual.
Q8: Do you provide technical support for configuration?
Yes, our technical team can offer guidance via email or phone. We also provide customized application development services for an additional charge.
