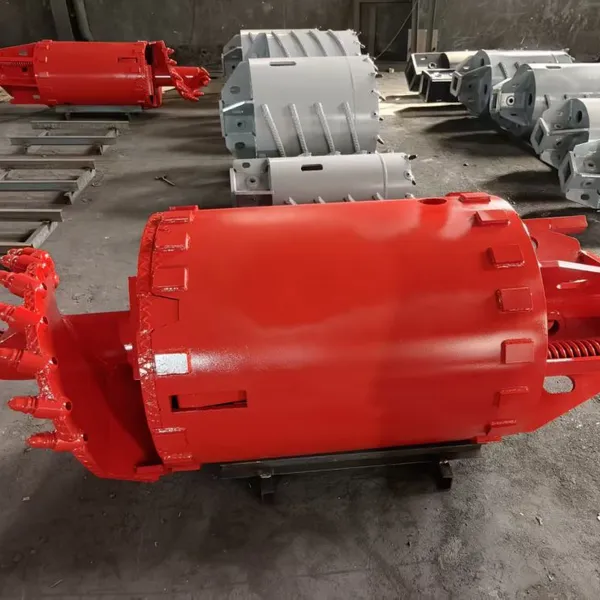

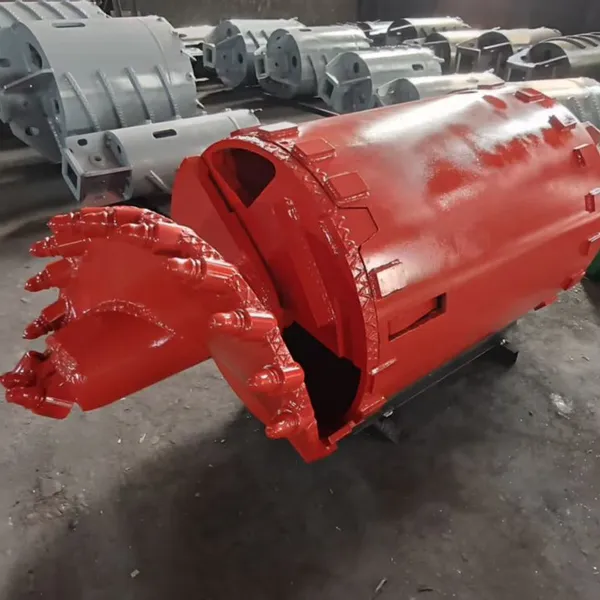

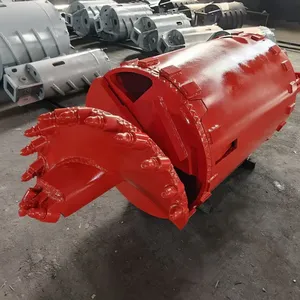

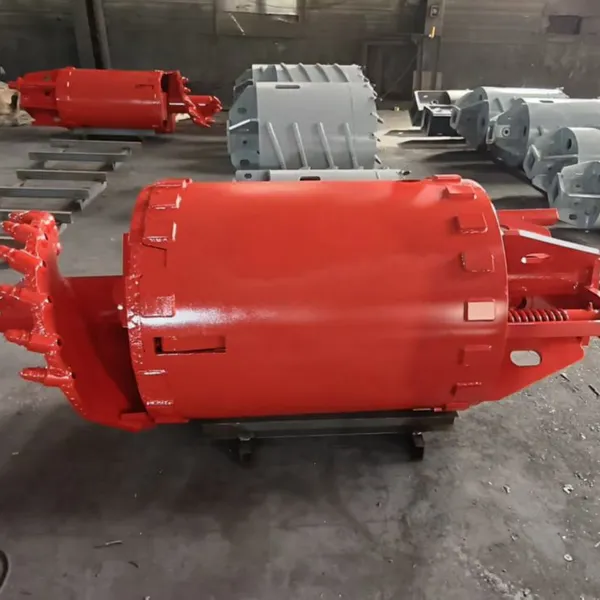

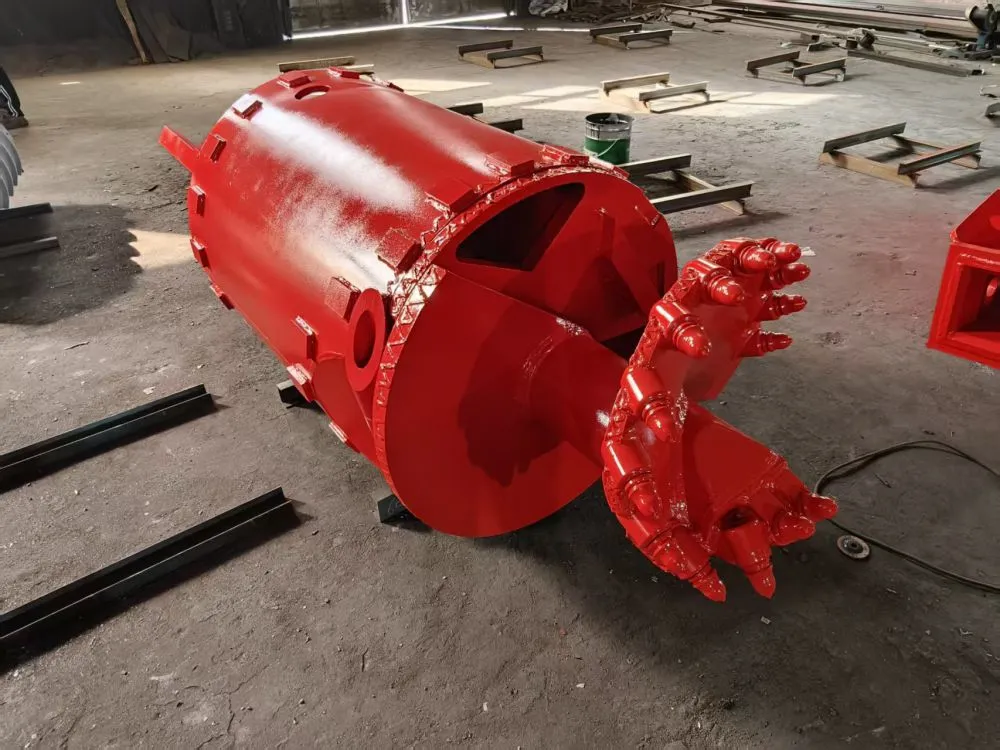

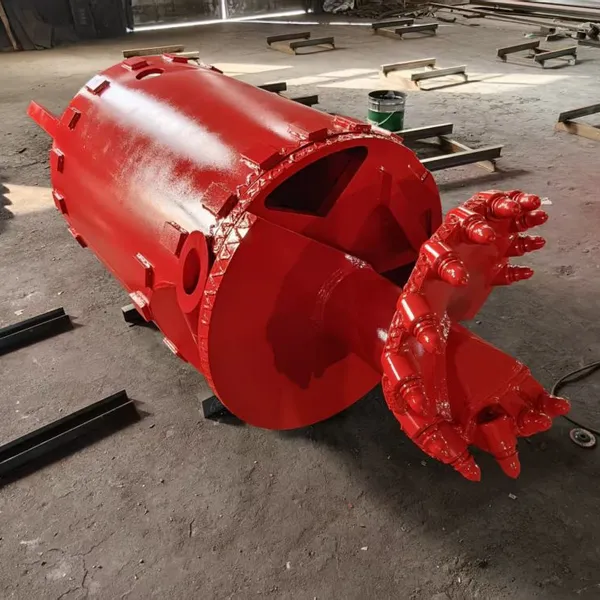

Help CenterDouble Bottom Open Rock Drilling Bucket for Rotary Drilling Rigs
Product Spotlights
Related Products
-
Durable Heavy Duty Universal Drilling Bucket for Construction Excavation MachineryNegotiableMOQ: 1 Piece -
Rotary Drilling Rig Double Cut Soil Drilling BucketNegotiableMOQ: 1 Piece
-
Open Type Centrifugal Drilling Bucket for Clay Bored Piles Piling WorkNegotiableMOQ: 1 Piece
-
Durable Drilling Rig Bucket Teeth and Holders Equipped Bucket for Drilling WorkNegotiableMOQ: 1 Piece
-
Piling Tool Open-Body Soil and Rock Cleaning Drilling Bucket for Pile ConstructionNegotiableMOQ: 1 Piece
Changsha Mingyi Machinery Equipment Co., Ltd., located in Changsha, Hunan, China, specializes in manufacturing high-performance piling and drilling tools. Our Double Bottom Open Rock Drilling Bucket for Rotary Drilling Rigs is engineered to provide superior rock excavation efficiency and structural durability. Designed for demanding hard rock formations, this bucket combines a double-bottom structure with an open design that facilitates faster soil discharge and improved penetration. With years of experience in the drilling equipment industry, we ensure each bucket meets rigorous quality standards, delivering reliable performance on your job site.
Key Features & Technical Specifications
Double Bottom Construction – Two reinforced bottom plates enhance structural rigidity, preventing deformation under high torque and heavy rock loads.
Open Rock Teeth Pocket – The open pocket allows direct rock breaking with cutting teeth, improving penetration speed in hard soil and soft rock formations.
High-Strength Material – Manufactured from wear-resistant alloy steel, heat-treated for hardness and toughness, extending service life.
Customizable Diameters – Available from 800 mm up to 2500 mm to match various pile diameters. Non-standard sizes can be produced upon request.
Cutting Teeth Options – Can be equipped with tungsten carbide teeth or standard steel teeth for different rock conditions. Teeth holder design allows quick replacement.
Compatible with Major Rig brands – Designed with standard connection flanges that fit most rotary drilling rigs from manufacturers such as Bauer, Soilmec, Mait, Sany, XCMG, and others. Adapters can be provided if needed.
Increased Discharge Efficiency – The open bottom design, combined with a wide opening, allows loosened rock and soil to fall out quickly, reducing cycle time.
Technical Parameters (Reference Table)
| Parameter | Value / Range |
|---|---|
| Bucket Diameter | 800–2500 mm (custom) |
| Bottom Plate Thickness | 30–50 mm (depending on size) |
| Body Material | Wear-resistant alloy steel (e.g., Q345B or higher) |
| Weight | Approx. 800–3000 kg (varies with diameter) |
| Teeth Type | Tungsten carbide or steel (optional) |
| Connection Type | Flange / Hexagonal / Custom according to rig |
| Applicable Formation | Soft to medium-hard rock, clay, and gravel |
Advantages for Your Projects
Faster Drilling Progress – The double-bottom design and optimized tooth layout reduce resistance, enabling faster penetration in challenging ground conditions.
Less Wear and Maintenance – Reinforced key areas and high-quality steel minimize downtime caused by bucket damage.
Versatile Application – Suitable for foundation drilling, piling, bored piles, and civil engineering projects.
Cost-Effective – Competitively priced without compromising performance; reduces overall project costs through efficiency gains.
Why Choose Changsha Mingyi Machinery?

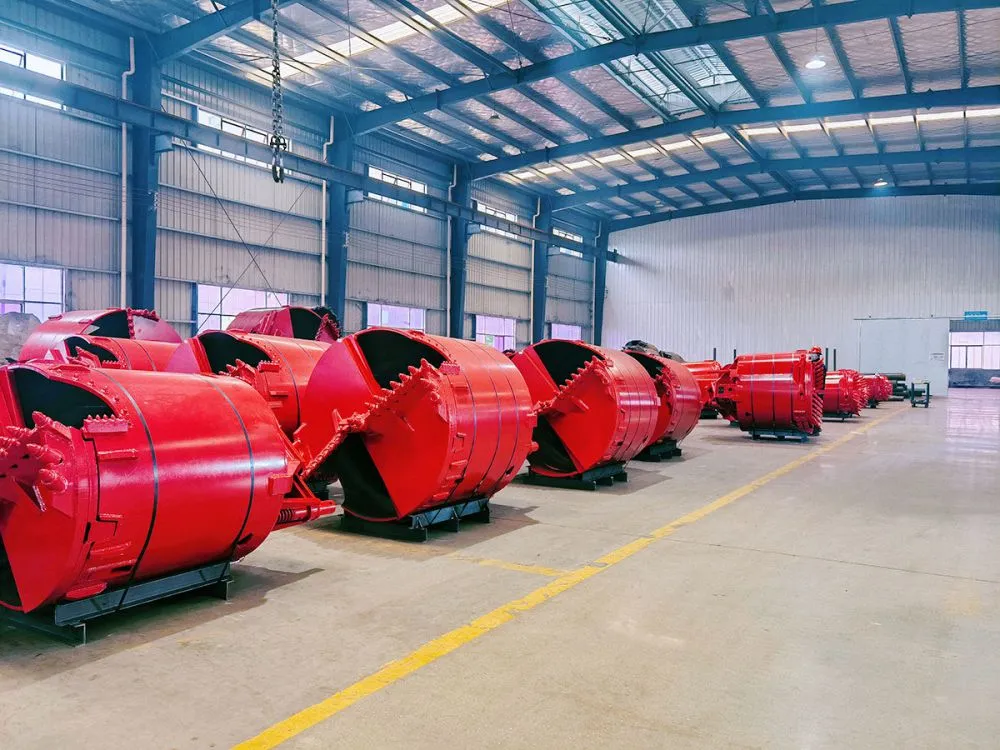

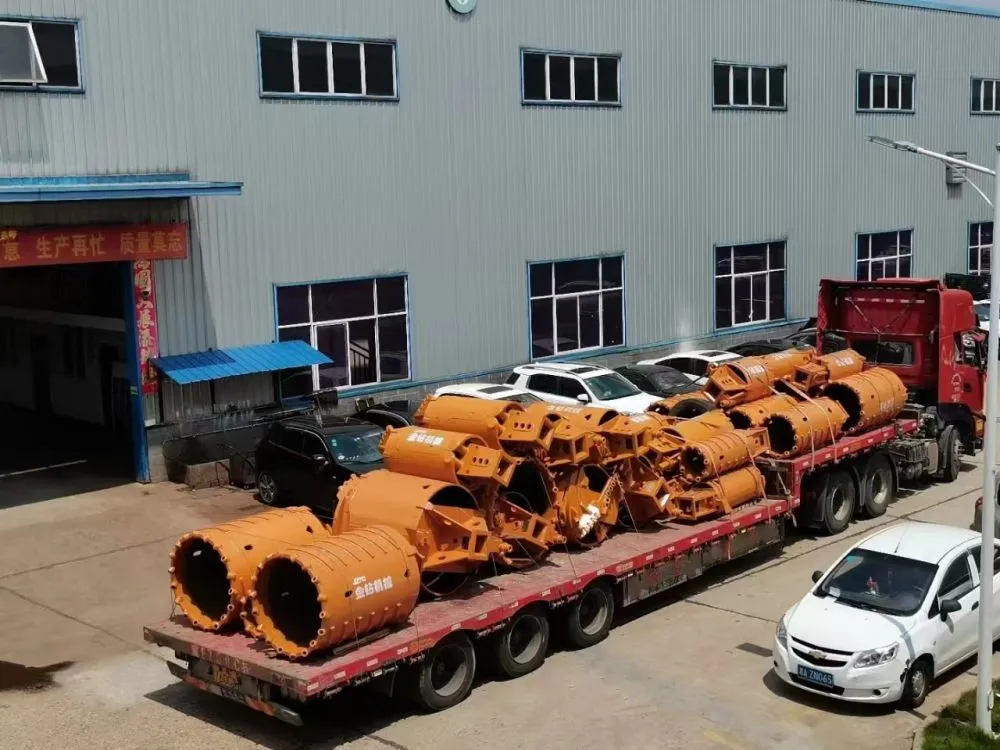

Based in the industrial hub of Changsha, Hunan, our factory has supplied drilling tools to numerous construction and foundation companies worldwide. We adhere to strict quality control processes during manufacturing and testing. With a dedicated R&D team, we continuously improve our bucket design based on field feedback. Our products have been used in projects across Asia, Africa, and South America, earning positive reviews for durability and performance. We offer after-sales support including technical consultation, replacement parts, and customization services. Contact us for a quote or to discuss your specific rock drilling needs. Your satisfaction is our priority.
Frequently Asked Questions (FAQ)
Q: Can this bucket be used on my particular rotary drilling rig model?
A: Yes. Our double bottom open rock drilling bucket features interchangeable connection adapters that fit most standard rigs from brands like Bauer, Soilmec, Mait, Sany, XCMG, and others. If your rig requires a non-standard connection, we can provide a custom adapter upon request.Q: What type of rock formations is this bucket designed for?
A: It is primarily designed for soft to medium-hard rock (compressive strength up to 60–80 MPa), as well as hard clay, gravel, and cemented soil. For extremely hard rock, we recommend a flat-bottomed rock coring bucket or a special heavy-duty version.Q: How do I choose the correct diameter and teeth type?
A: The diameter should match the pile diameter required for your project. The teeth type can be selected based on rock hardness: standard steel teeth for soft formations, tungsten carbide teeth for harder conditions. Our sales team can assist you with a recommendation.Q: Are spare parts readily available?
A: Yes, we stock commonly used teeth, holders, bolts, and wearable parts. For other components, the lead time is typically 7–15 days depending on the part. We ensure long-term supply support.Q: What is the typical warranty period?
A: We offer a 12-month warranty from the date of use against manufacturing defects. Warranty covers defects in materials and workmanship under normal operating conditions. Extended warranty options can be discussed.Q: Can you produce a bucket with dimensions outside the standard range?
A: Absolutely. As a manufacturer, we accept custom orders for diameters larger than 2500 mm or smaller than 800 mm, as long as the design and material thickness are adjusted accordingly. Lead time and price will be quoted based on your specifications.Q: How do I maintain this bucket to prolong its life?
A: Regularly inspect the teeth and holders for wear; replace worn parts promptly. Check the bottom plates for cracks after heavy use. Clean the bucket after each shift to remove built-up soil. Lubricate the pivot points if applicable. Storing the bucket in a dry place will prevent rust.Q: Is there a minimum order quantity?
A: No, we accept single pieces as well as bulk orders. However, for customized sizes, a minimum quantity may apply depending on the complexity. Contact us for details.
Trust Changsha Mingyi Machinery Equipment Co., Ltd. for your heavy-duty rock drilling tool needs. With our expertise and factory-direct pricing, you get reliable equipment that helps you finish your foundation projects efficiently. Send us your inquiry now!
