Wuxi Yansheng Technology Co., Ltd., established in 2017, is a professional manufacturer specializing in earthing and lightning protection products. With a factory area spanning 1,000–3,000 square meters, annual export value exceeding US$50 million, and a dedicated team of 101–200 employees, we bring years of expertise to every product we deliver. Our Solid Copper Portable Ground Rod for Lightning Protection Earthing System represents the perfect balance of high conductivity, durability, and on-site convenience — designed for professionals who demand reliable grounding performance in portable applications.
This ground rod is crafted from high-purity solid copper (99.9% Cu minimum), ensuring excellent electrical conductivity and corrosion resistance. Unlike copper‑clad steel rods, solid copper delivers consistent performance over its entire cross-section, making it ideal for temporary or permanent earthing installations where long-term reliability is critical. The rod features a pointed tip for easy insertion into various soil types, and a threaded coupling system that allows multiple rods to be connected seamlessly for deeper grounding requirements.

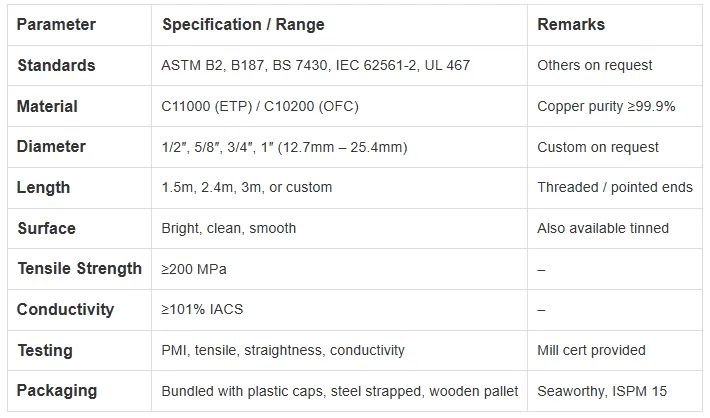

Key Features & Technical Specifications
Solid Copper Construction: 99.9% pure copper ensures low resistance and excellent current dissipation.
Portable Design: Lightweight and equipped with a threaded extension system; optional carrying handle available for field transportation.
High Corrosion Resistance: Solid copper withstands harsh soil conditions, including acidic and alkaline environments.

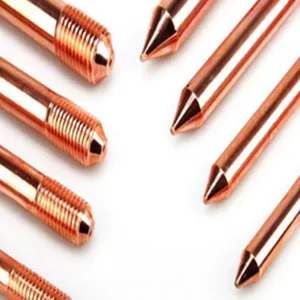

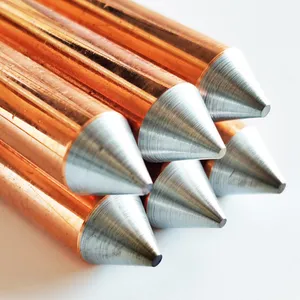

Easy Installation: Chisel or cone point allows manual or mechanical driving; coupling threads enable rapid stacking.
Wide Application: Suitable for lightning protection systems, substation grounding, temporary power supplies, communication towers, and solar fields.
Customizable Lengths: Available in 4 ft, 5 ft, 6 ft, and 8 ft sections; custom lengths on request.
Compliance: Designed to meet IEC 62305, UL 467, and GB/T 21714 earthing standards (certification available upon request).
Why Choose Our Solid Copper Portable Ground Rod?
Reliable Grounding: Solid copper provides lower resistance and longer service life compared to copper-clad or galvanized steel rods, especially in harsh environments.
Portable & Modular: The threaded coupling design allows you to build any desired depth by connecting multiple sections. Optional carrying handle simplifies field transport.
Versatile Application: Perfect for lightning protection systems, temporary power installations, military camps, construction sites, and renewable energy projects.
Fully Customizable: Length, diameter, point type, and surface finish can be tailored to your project requirements.
Cost-Effective: Despite being solid copper, our efficient manufacturing process ensures competitive pricing without compromising quality.
Backed by Wuxi Yansheng Technology’s robust production capacity and strict quality control, this ground rod has been exported to over 20 countries across North America, Europe, Southeast Asia, and Oceania. Our factory holds multiple international management system certifications including ISO 9001, ISO 14000, OHSAS 18001, and SA8000, ensuring consistent product quality and responsible manufacturing. With an annual export value exceeding US$50 million and a dedicated after-sales team, we guarantee timely delivery and professional support from our locations in Wuxi, Jiangsu, China.
Experience the difference of true solid copper performance. Whether you need a single rod for a field test or bulk supply for a national grid project, our team is ready to assist. Contact us today for a quote, sample, or technical consultation — let us help you ground your system with confidence.
Frequently Asked Questions (FAQ)
Q1: What is the difference between solid copper and copper-clad steel ground rods?
A: Solid copper rods are made entirely of copper, offering uniform conductivity and corrosion resistance throughout. Copper-clad steel rods have a steel core with a copper outer layer; they are stronger but less corrosion-resistant if the copper layer gets damaged. Solid copper is preferred for permanent grounding in corrosive soils.Q2: Can multiple rods be connected to reach deeper grounding depths?
A: Yes. Each rod section has a male thread on one end and a female coupling on the other (or separate couplers), allowing you to join rods end‑to‑end. Extension up to 20 ft or more is possible.Q3: What tools are needed for installation?
A: You can use a manual driving tool (ground rod driver) or a mechanical hammer. The pointed tip facilitates insertion into most soils. For rocky ground, pre‑drilling may be required.Q4: Is this rod suitable for lightning protection systems?
A: Absolutely. Solid copper has high conductivity (≥100% IACS) and is the preferred material for lightning protection earthing per IEC 62305 and UL 467.Q5: What sizes are available?
A: Standard diameters are 5/8" and 3/4". Standard lengths: 4 ft, 5 ft, 6 ft, and 8 ft. Custom sizes are available on request.Q6: How do I know which diameter or length to choose?
A: The choice depends on soil resistivity, required ground resistance, and local electrical code. Generally, a longer rod or larger diameter reduces resistance. Contact our technical team for application guidance.Q7: Does the rod come with a certificate of compliance?
A: Yes. We can provide material test reports and certificates for compliance with relevant standards such as UL 467 or IEC 62305. Please specify your requirement when ordering.Q8: What is the minimum order quantity (MOQ)?
A: For standard sizes, MOQ is 50 pcs. For custom specifications, please inquire. We also accept sample orders for evaluation.
